1. Utangulizi
This manual provides detailed instructions for the installation, operation, and maintenance of your Streamline Tirso 48" x 76" Semi-Frameless Sliding Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety.
Sifa Muhimu:
- Vipimo: 48 in. W x 76 in. H (Min Installation Width: 46 6/7 in.; Max Installation Width: 48 in.); Walk-through width varies between 20 2/3 - 21 6/7 in. W.
- Kioo: Premium 5/16 in. (8 mm) clear tempered glass.
- CrystalTech Coating: Hydrophobic coating designed to repel water stains, minimize limescale, and reduce maintenance.
- Marekebisho: Ukuta profiles adjust up to 1 1/6 in. for out-of-plumb walls.
- Muundo: Reversible for left or right-hand installation.
- Vifaa: Stylish matte black finish with stainless steel bar handles.
Figure 1: The Tirso Semi-Frameless Sliding Shower Door, showcasing its matte black hardware and clear glass in an installed bathroom setting.
2. Kuweka na Kuweka
Professional installation is recommended. Ensure all necessary tools and safety equipment are available before starting. This shower door features a reversible design, allowing for left or right-hand opening, and includes adjustability for out-of-plumb walls.
2.1 Orodha ya Hakiki ya Usakinishaji wa Awali:
- Hakikisha sehemu zote zipo na hazijaharibika kwenye orodha ya vifungashio.
- Confirm wall studs or solid blocking are present in installation areas.
- Ensure the shower base or curb is level and plumb.
- Gather tools: tape measure, level, drill, silicone sealant, screwdriver, pencil, safety glasses.
2.2 Hatua za Ufungaji (Jumla Zaidiview):
- Pima na Weka alama: Accurately measure the shower opening and mark the positions for wall profiles.
- Sakinisha Wall Profiles: Secure the vertical wall profiles to the wall, utilizing the 1 1/6 inch adjustability for out-of-plumb conditions.
- Assemble Top and Bottom Tracks: Attach the top and bottom tracks to the wall profiles.
- Sakinisha Paneli ya Kioo Isiyobadilika: Carefully place and secure the fixed glass panel into the frame.
- Install Sliding Door Panel: Mount the sliding door panel onto the rollers and guide it into the tracks.
- Attach Handles and Hardware: Secure the stainless steel bar handles and any other necessary hardware.
- Muhuri: Apply a high-quality silicone sealant to all exterior joints to prevent water leakage. Allow adequate curing time before use.
Figure 2: Technical drawing illustrating the dimensions and key features of the Tirso shower door, including its reversible design and CrystalTech treated glass.
Kielelezo cha 3: Maelezo ya kina view of the matte black top sliding mechanism and rollers, essential components for the door's smooth operation.
3. Maagizo ya Uendeshaji
The Tirso shower door is designed for smooth and effortless operation. After installation and sealant curing, the door is ready for use.
3.1 Opening and Closing:
- Grasp the stainless steel bar handle firmly.
- Gently slide the door along its track to open or close. Avoid forcing the door.
- Ensure the door is fully closed before showering to prevent water leakage.

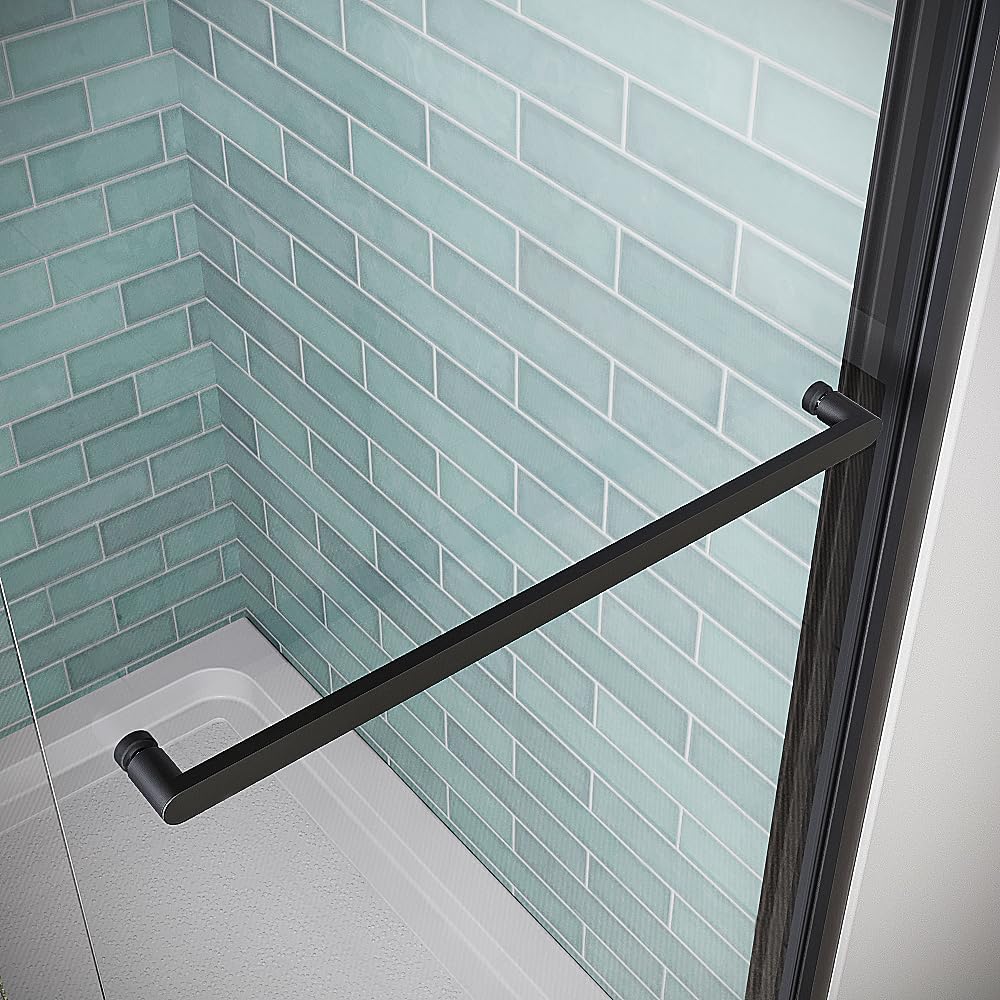

Figure 4: Close-up of the ergonomic matte black stainless steel bar handle, designed for comfortable and easy operation of the sliding door.
4. Matengenezo na Usafishaji
Regular cleaning and maintenance will preserve the appearance and functionality of your shower door. The CrystalTech coating significantly reduces the effort required for cleaning.
4.1 Cleaning the Glass (CrystalTech Treated):
- After each use, rinse the glass with clean water to remove soap residue.
- For routine cleaning, use a soft cloth or sponge with mild soap and water.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the CrystalTech coating and glass surface.
- The CrystalTech coating repels water, making it easier to wipe away water spots and limescale.
4.2 Cleaning Hardware:
- Clean matte black hardware with a soft, damp kitambaa na sabuni kali.
- Do not use abrasive cleaners, ammonia-based products, or harsh chemicals, as they can damage the finish.
- Regularly check and clean the bottom track to ensure smooth sliding operation.
5. Utatuzi wa shida
This section addresses common issues you might encounter with your shower door.
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Water leakage from door edges | Improper sealing; worn out seals; door not fully closed. | Check silicone sealant and reapply if necessary. Inspect and replace seals if damaged. Ensure door is fully closed before showering. |
| Mlango hautelezi vizuri | Debris in track; rollers need lubrication; misaligned rollers. | Clean debris from bottom track. Apply a silicone-based lubricant to rollers. Check roller alignment and adjust if needed. |
| Glass appears cloudy or stained | Hard water spots; improper cleaning agents. | Clean with mild soap and water. For stubborn spots, use a vinegar-water solution (1:1 ratio) and rinse thoroughly. Avoid abrasive cleaners. |
6. Vipimo
| Kipengele | Maelezo |
|---|---|
| Mtengenezaji | Sawazisha |
| Nambari ya Mfano | DSD-3404-221-BL |
| Vipimo vya Jumla | Inchi 48. W x 76 in. H |
| Minimum Installation Width | 46 6/7 ndani. |
| Maximum Installation Width | inchi 48 |
| Walk-through Width | 20 2/3 - 21 6/7 in. |
| Unene wa Kioo | 5/16 ndani (8 mm) |
| Aina ya Kioo | Clear Tempered Glass with CrystalTech Treatment |
| Vifaa vya Kumaliza | Matte Nyeusi |
| Nyenzo | Tempered Glass, Metal Hardware |
| Uzito wa Kipengee | Pauni 102.6 |
| Product Dimensions (packaged) | Inchi 0.31 x 39.38 x 76 |
| Vipengee vilivyojumuishwa | Door Hardware, Mounting Hardware, Frame Hardware |
Figure 5: An overhead perspective of the shower enclosure, providing a view of the door's top profile and its integration with the shower pan.
7. Udhamini na Msaada
7.1 Dhamana ya Mtengenezaji:
This Streamline Tirso Shower Door is covered by a 3 Year Limited Manufacturer's WarrantyDhamana hii inashughulikia kasoro katika vifaa na ufundi chini ya matumizi na huduma ya kawaida. Tafadhali weka uthibitisho wako wa ununuzi kwa madai ya udhamini.
7.2 Usaidizi kwa Wateja:
For technical assistance, replacement parts, or warranty inquiries, please contact Streamline customer support. Refer to the contact information provided with your product packaging or visit the official Streamline webtovuti.
