1. Utangulizi
This manual provides detailed instructions for the installation, configuration, and operation of your CP PLUS EZ-P23 2MP Smart Wi-Fi CCTV Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. Keep this manual for future reference.
The CP PLUS EZ-P23 is a Full HD 2MP Smart Wi-Fi CCTV Camera designed for home security. It features 360° Pan & Tilt capabilities, advanced night vision, two-way audio communication, and AI-based human detection with motion tracking. It supports local storage via an SD card up to 256GB.
2. Bidhaa Imeishaview
2.1 Sifa Muhimu
- 2MP Full HD Resolution: Delivers sharp and clear images for detailed surveillance.
- 360° Pan & Tilt Coverage: Allows comprehensive monitoring of large areas, eliminating blind spots.
- Sauti ya Njia mbili: Built-in microphone and speaker enable real-time communication.
- Intelligent Surveillance: AI-based human detection and motion tracking provide real-time alerts.
- Maono ya Juu ya Usiku: Infrared LEDs ensure clear footage up to 15 meters in complete darkness.
- Hifadhi inayoweza kupanuliwa: Supports micro SD cards up to 256GB for video recordings.
2.2 Vipengele vya Kamera

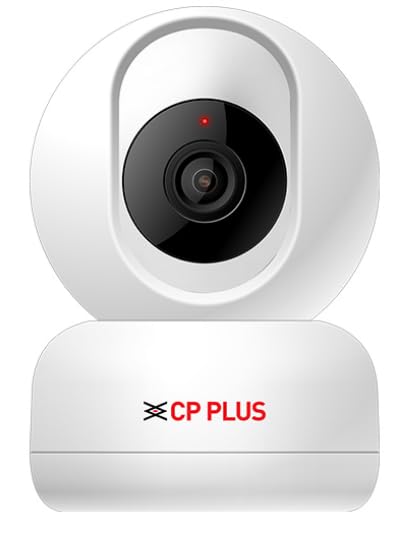

Kielelezo 1: Mbele view of the CP PLUS EZ-P23 Smart Wi-Fi CCTV Camera. The image shows the white camera unit with a black lens module and the CP PLUS logo on the base. A small red indicator light is visible above the lens.
- Lenzi ya Kamera: Inanasa video footage.
- Taa za infrared: Toa mwangaza kwa ajili ya maono ya usiku.
- Maikrofoni: Hurekodi sauti kwa ajili ya mawasiliano ya njia mbili.
- Spika: Hutoa sauti kwa mawasiliano ya njia mbili.
- Mwangaza wa Kiashiria cha Hali: Displays the camera's current operational status (e.g., power on, Wi-Fi connection).
- Slot ya Kadi ya SD ndogo: Kwa hifadhi ya video ya ndani (inasaidia hadi 256GB).
- Bandari ya Umeme: Inaunganisha kwenye adapta ya nguvu.
- Badilisha Kitufe: Inatumika kuweka upya kamera kwenye mipangilio ya kiwandani.
3. Mwongozo wa Kuweka
3.1 Unboxing na Ukaguzi wa Awali
- Ondoa kwa uangalifu vifaa vyote kutoka kwa kifurushi.
- Verify that all items are present: camera unit, power adapter, mounting accessories (if included), and this user manual.
- Inspect the camera for any signs of damage. If damaged, contact customer support.
3.2 Kuwasha Kamera
- Unganisha adapta ya umeme kwenye mlango wa umeme wa kamera.
- Chomeka adapta ya umeme kwenye sehemu ya kawaida ya umeme.
- The camera's status indicator light will illuminate, typically blinking, indicating it is powering on and ready for setup.
3.3 Upakuaji wa Programu na Uundaji wa Akaunti
- Download the official CP PLUS mobile application from your smartphone's app store (Google Play Store for Android or Apple App Store for iOS).
- Open the app and create a new user account. Follow the on-screen instructions to complete registration.
3.4 Kuunganisha kwa Wi-Fi
- Hakikisha simu yako mahiri imeunganishwa kwenye mtandao wa Wi-Fi wa 2.4GHz. Kamera inasaidia Wi-Fi ya 2.4GHz pekee.
- In the CP PLUS app, tap "Add Device" or the "+" icon.
- Select your camera model (EZ-P23) from the list of devices.
- Follow the in-app prompts to connect the camera to your Wi-Fi network. This usually involves scanning a QR code generated by the app with the camera's lens or entering Wi-Fi credentials manually.
- Once connected, the camera's status indicator light will typically turn solid blue or green, indicating a successful connection.
3.5 Usakinishaji wa Kadi Ndogo ya SD (Si lazima)
- Locate the micro SD card slot on the camera (refer to the product diagram if needed).
- Gently insert a formatted micro SD card (up to 256GB) into the slot until it clicks into place.
- In the app, navigate to the camera settings and format the SD card if prompted. This ensures compatibility and optimal performance.
3.6 Kuweka Kamera
The CP PLUS EZ-P23 can be mounted on a wall or ceiling. Choose a location that provides the desired viewing angle and is within range of your Wi-Fi signal and a power outlet.
- Mlima wa ukuta: Use the provided mounting bracket and screws to secure the camera to a wall. Ensure the camera is positioned securely.
- Mlima wa Dari: Attach the mounting bracket to the ceiling using screws. Then, secure the camera to the bracket. Ensure the camera is oriented correctly for ceiling installation (check app settings for image rotation if necessary).
4. Maagizo ya Uendeshaji
4.1 Ishi View
Open the CP PLUS app and select your camera from the device list to access the live video feed. You can view muda halisi footagkutoka kwa kamera yako wakati wowote, mahali popote.
4.2 Udhibiti wa Pan & Tilt
Kwenye moja kwa moja view screen, use the directional controls within the app to remotely pan (horizontal movement) and tilt (vertical movement) the camera lens to adjust the viewing angle and cover a 360° area.
4.3 Sauti ya Njia Mbili
Ili kutumia kipengele cha sauti cha njia mbili, gusa aikoni ya maikrofoni moja kwa moja view interface. Hold the button to speak, and release it to listen. This allows for real-time communication with individuals near the camera.
4.4 Utambuzi wa Mwendo na Tahadhari
- Nenda kwenye mipangilio ya kamera kwenye programu.
- Enable "Motion Detection" and "Human Detection" (if available).
- Rekebisha viwango vya unyeti inavyohitajika.
- Configure alert notifications to receive instant alerts on your smartphone when motion or human presence is detected.
4.5 Maono ya Usiku
Kamera hubadilisha kiotomatiki hadi hali ya kuona usiku katika hali ya mwanga mdogo, ikitumia LED zake za infrared kutoa mwanga mweusi na nyeupe ulio wazi.tage up to 15 meters. This feature ensures continuous surveillance even in complete darkness.
4.6 Kurekodi Video na Kucheza
If an SD card is installed, the camera will record footage based on your settings (e.g., continuous recording, motion-triggered recording). To view foo iliyorekodiwatage:
- In the app, select your camera and go to the "Playback" or "History" section.
- Choose the date and time to review matukio yaliyorekodiwa.
5. Matengenezo
5.1 Kusafisha Kamera
To maintain optimal image quality, periodically clean the camera lens with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive cleaners.
5.2 Sasisho za Firmware
Regularly check for firmware updates through the CP PLUS app. Keeping your camera's firmware updated ensures access to the latest features, security enhancements, and bug fixes. Follow the in-app instructions for updating firmware.
5.3 Usimamizi wa Kadi ya SD
If using an SD card for storage, it is recommended to periodically format the card through the app to maintain performance and prevent data corruption. Back up any important footage kabla ya umbizo.
6. Utatuzi wa shida
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Kamera haiwaki. | Adapta ya umeme haijaunganishwa au haina hitilafu; soketi ya umeme haifanyi kazi. | Angalia miunganisho ya umeme. Jaribu soketi tofauti ya umeme. Hakikisha adapta ya umeme inafanya kazi vizuri. |
| Imeshindwa kuunganisha kwenye Wi-Fi. | Incorrect Wi-Fi password; camera too far from router; 5GHz Wi-Fi network used. | Verify Wi-Fi password. Move camera closer to the router. Ensure you are connecting to a 2.4GHz Wi-Fi network. Reset the camera and try again. |
| Ubora wa picha duni. | Lenzi chafu; mwanga usiotosha; matatizo ya kipimo data cha mtandao. | Clean the camera lens. Ensure adequate lighting or check night vision settings. Verify stable Wi-Fi connection and sufficient bandwidth. |
| Arifa za mwendo hazijapokelewa. | Motion detection disabled; app notifications turned off; incorrect sensitivity settings. | Enable motion detection and human detection in the app. Check app notification settings on your phone. Adjust motion sensitivity. |
| Kadi ya SD hairekodi. | SD card not inserted correctly; card not formatted; card full or faulty. | Reinsert the SD card. Format the SD card via the app. Replace the SD card if it's faulty. Check recording settings in the app. |
7. Vipimo
| Kipengele | Maelezo |
|---|---|
| Nambari ya Mfano | CP PLUS EZ-P23 |
| Azimio la Kukamata Video | 2MP Kamili HD |
| Pan & Tilt | 360° Pan, Vertical Tilt |
| Umbali wa Maono ya Usiku | Up to 15 meters (Infrared) |
| Sauti | Sauti ya Njia Mbili (Maikrofoni na Spika Iliyojengewa Ndani) |
| Hifadhi | Kadi ndogo ya SD (hadi 256GB) |
| Muunganisho | Wi-Fi (GHz 2.4 pekee) |
| Utambuzi wa Binadamu | AI-based |
| Ufuatiliaji Mwendo | Ndiyo |
| Kipengele cha Fomu | Mlima wa Ukuta |
| Aina ya Kuweka | Mlima wa dari |
| Vipimo vya Bidhaa (LxWxH) | 18 x 8 x 8 Sentimita |
| Uzito wa Kipengee | Gramu 200 |
| Rangi | NYEUPE |
| Matumizi ya Ndani/Nje | Ndani |
8. Udhamini na Msaada
Kwa maelezo ya udhamini, tafadhali rejelea kadi ya udhamini iliyojumuishwa na bidhaa yako au tembelea CP PLUS rasmi website. For technical support, troubleshooting assistance, or any product-related inquiries, please contact CP PLUS customer service through their official channels.
CP PLUS Official Webtovuti: www.cpplusworld.com
Kumbuka: Vipimo vya bidhaa na vipengele vinaweza kubadilika bila ilani ya awali.
