1. Bidhaa Imeishaview
The DOOYA DT52E-75W electric curtain motor is designed to provide seamless automation and convenience for your curtains. This robust motor features a built-in receiver and is controlled wirelessly via a remote, offering smooth and efficient operation for various residential and office environments.

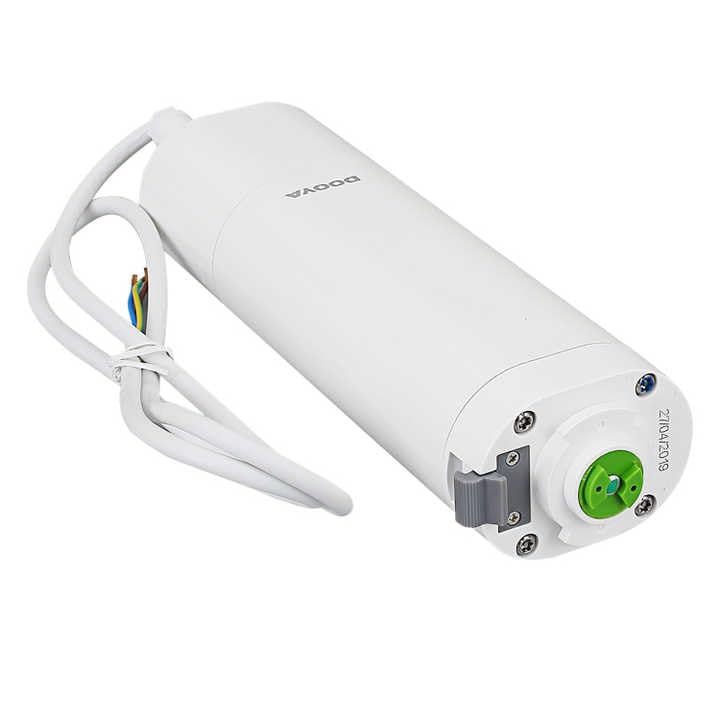

Kielelezo 1: Mbele view of the DOOYA DT52E-75W Electric Curtain Motor.
Sifa Muhimu:
- Udhibiti wa Mbali umejumuishwa: Effortlessly manage your curtains with the wireless remote.
- Motor yenye Nguvu: 75W motor for smooth and efficient operation.
- Voltage Utangamano: Works with 220-240V for seamless integration.
- Quick Curtain Movement: Open/close speed of 14 cm/s.
- Muundo wa Kudumu: Operates effectively in temperatures from -10°C to +55°C.
- Ulinzi wa joto kupita kiasi: Maximum single run time of 4 minutes to prevent overheating.
- Uendeshaji bila waya: Functions on 433.925 MHz radio frequency.
2. Vipengele na Vipimo
The DOOYA DT52E-75W motor package typically includes the motor unit and a wireless remote control. Ensure all components are present upon unboxing.

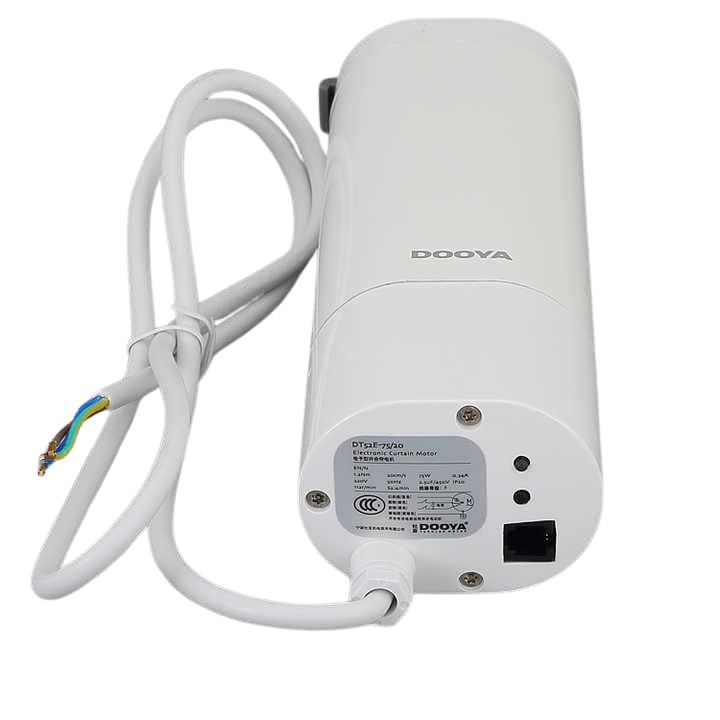

Kielelezo cha 2: Nyuma view of the motor showing the product label and connection points.

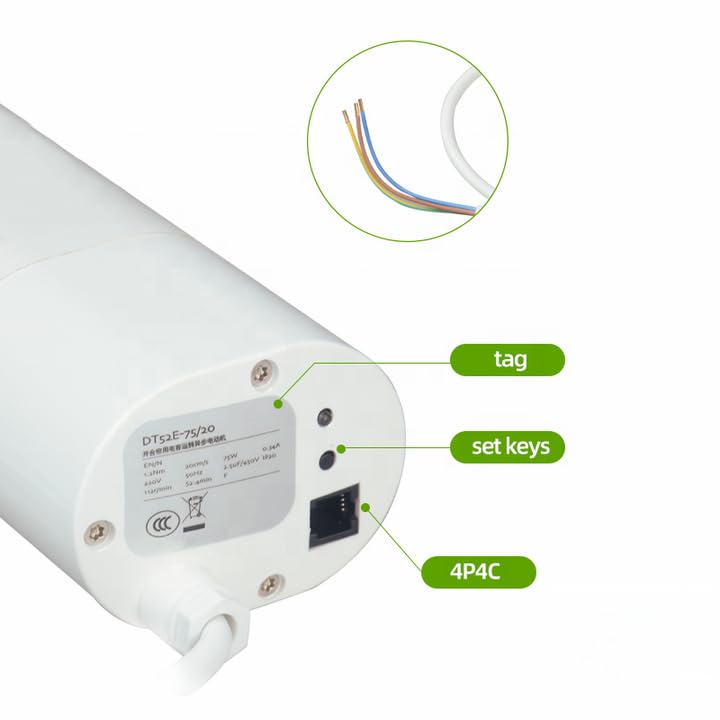

Kielelezo 3: Kina view of the motor's rear panel, highlighting the tag, set keys, and 4P4C port for connections.
Vipimo vya Bidhaa:

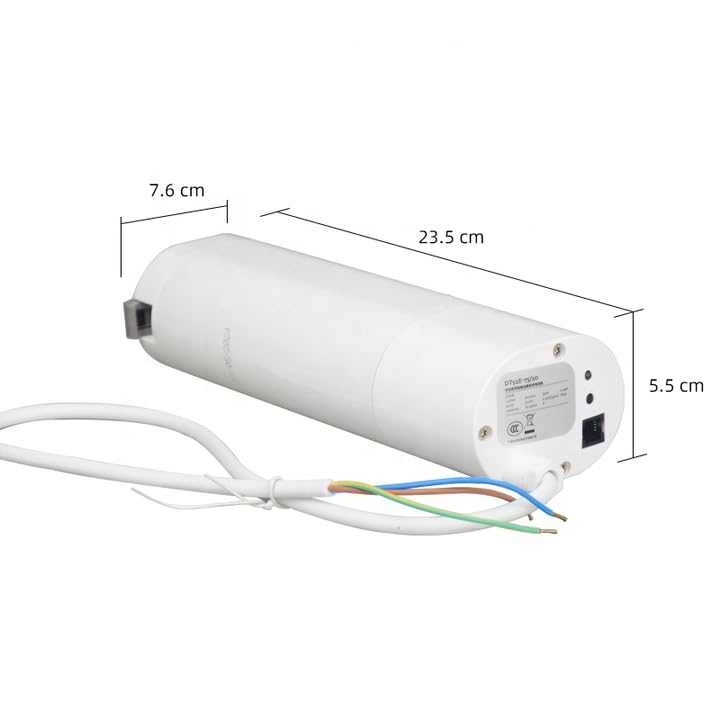

Figure 4: Dimensions of the DOOYA DT52E-75W motor, approximately 23.5 cm in length, 7.6 cm in width, and 5.5 cm in height.
3. Kuweka na Kuweka
Proper installation is crucial for the optimal performance and longevity of your electric curtain motor. It is recommended that installation be performed by a qualified professional.
Orodha hakiki ya usakinishaji mapema:
- Ensure the curtain track is correctly installed and operates smoothly manually.
- Verify that the power supply (220-240V) is accessible at the installation point.
- Confirm that the motor's specifications match your curtain system requirements.
Hatua za Ufungaji (Mwongozo wa Jumla):
- Mount the motor securely to the designated position on the curtain track.
- Connect the motor to the power supply, ensuring all wiring is done according to local electrical codes and safety standards. Refer to the wiring diagram on the motor's label (Figure 2) for correct connections.
- Integrate the motor with the curtain track system, ensuring smooth engagement with the curtain runners.
- Perform initial testing to confirm the motor moves the curtain freely without obstruction.
Note: Specific installation instructions for your curtain track system may vary. Always consult the track manufacturer's guide in conjunction with this manual.
4. Uendeshaji
The DOOYA DT52E-75W motor is operated using the included wireless remote control. The motor operates on a 433.925 MHz radio frequency.
Kazi za Kidhibiti cha Mbali:
- Kitufe cha Fungua: Press to fully open the curtains.
- Kitufe cha Funga: Press to fully close the curtains.
- Kitufe cha Kuacha: Press to stop the curtain movement at any desired position.
- Kitufe cha Kuandaa: Used for pairing the remote with the motor and setting limits (refer to specific programming instructions provided with the remote).
Kuweka Mipaka:
The motor allows for setting precise open and close limits to ensure the curtains stop at the desired positions. Refer to the remote control's specific manual for detailed instructions on how to program these limits using the programming button and set keys on the motor (Figure 3).
Ulinzi wa joto kupita kiasi:
The motor is equipped with overheat protection. To prevent damage, the maximum single run time is 4 minutes. If the motor runs continuously for this duration, it will automatically pause to cool down before resuming operation.
5. Matengenezo
Regular maintenance ensures the longevity and smooth operation of your DOOYA DT52E-75W motor.
- Kusafisha: Periodically wipe the motor casing kwa kitambaa laini na kikavu. Usitumie visafishaji au viyeyusho vya kukwaruza.
- Ukaguzi wa Njia: Ensure the curtain track remains clean and free of obstructions. Dust and debris can hinder smooth curtain movement and put strain on the motor.
- Ukaguzi wa Cable: Inspect the power cable and connections regularly for any signs of wear, damage, or loose connections.
- Mazingira ya Uendeshaji: The motor is designed to operate effectively in temperatures from -10°C to +55°C. Avoid exposing the motor to extreme temperatures or high humidity.
6. Utatuzi wa shida
If you encounter issues with your DOOYA DT52E-75W motor, refer to the following common troubleshooting steps:
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Motor does not respond to remote. |
|
|
| Curtains stop mid-way or do not open/close fully. |
|
|
| Motor hufanya kelele isiyo ya kawaida. |
|
|
Tatizo likiendelea baada ya kujaribu suluhu hizi, tafadhali wasiliana na usaidizi kwa wateja.
7. Vipimo
The following table outlines the technical specifications for the DOOYA DT52E-75W Electric Curtain Motor:

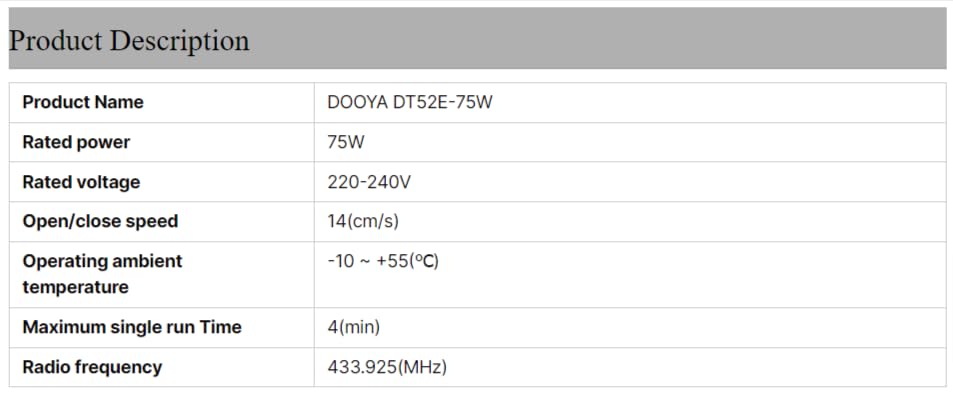

Figure 5: Official product specifications table.
| Vipimo | Thamani |
|---|---|
| Jina la Bidhaa | DOOYA DT52E-75W |
| Nambari ya Mfano | DT52E-75/20 |
| Nguvu Iliyokadiriwa | 75W |
| Imekadiriwa Voltage | 220-240V |
| Open/Close Speed | 14 cm/s |
| Halijoto ya Mazingira ya Uendeshaji | -10°C hadi +55°C |
| Maximum Single Run Time | dakika 4 |
| Frequency ya Redio | 433.925 MHz |
| Mtengenezaji | DOOYA |
| Nchi ya Asili | China |
8. Udhamini na Msaada
Maelezo ya Udhamini:
The warranty for the DOOYA DT52E-75W motor covers manufacturing defects only. This warranty does not cover damages caused by improper installation, misuse, wear and tear, or accidental damage. Please ensure proper handling and usage of the product to maintain warranty validity.
Usaidizi kwa Wateja:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your retailer or the authorized DOOYA service center. Please have your product model number (DT52E-75/20) and purchase details ready when contacting support.
