Kituo cha Kuweka cha HiDock H1 11-in-1 cha USB C chenye Kinasa Sauti cha AI Mwongozo wa Mtumiaji

Utangulizi

The HiDock H1 is a versatile 11-in-1 USB-C docking station integrated with an AI-powered voice recorder. This device is designed to expand your laptop's connectivity and enhance productivity through intelligent audio capture, transcription, and summarization capabilities. It supports high-resolution dual displays, fast data transfer, and efficient power delivery for various devices.

Bidhaa Imeishaview

The HiDock H1 combines essential docking station functionalities with advanced AI audio features, making it a comprehensive tool for professionals and students.

Sifa Muhimu:

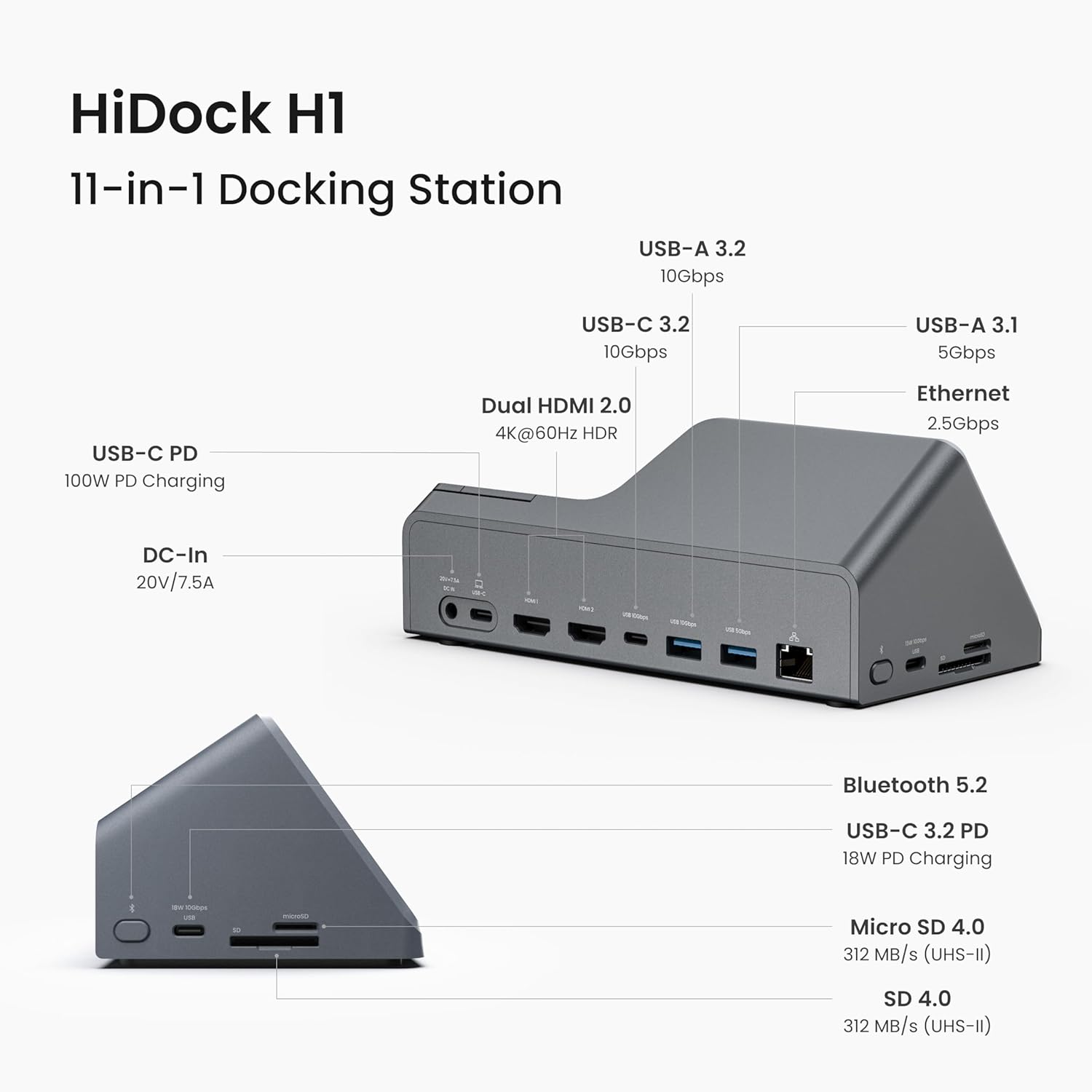

• Muunganisho wa 11-katika-1: Features 2 HDMI ports (4K@60Hz), 1 DC-In port (20V/7.5A), 1 Ethernet port (2.5Gbps), 3 USB-C 3.2 ports, 2 USB-A ports, and SD/MicroSD 4.0 card slots.
• AI Voice Recorder: One-click recording, automatic transcription, and smart summaries in 75 languages with over 20 built-in templates. Supports up to 1,000 hours of continuous recording.
• Fast 118W Charging: Includes a 100W USB-C PD port for laptops and an 18W USB-C 3.2 port for smartphones.
• Onyesho la HDMI mbili: Supports 4K@60Hz display output. Note: macOS supports only Single-Stream Transport (SST) mode, mirroring content across displays.
• Uhamisho wa Data wa Kasi ya Juu: Up to 10Gbps via USB-C 3.2 ports and 312MB/s for SD/MicroSD 4.0 card readers.
• Jopo la Kudhibiti Intuitive: Dedicated buttons for answering/ending calls, muting, recording, and a slider for bidirectional noise cancellation.
• Included Open-Ear Earphone: A lightweight earphone for private, hands-free communication during calls.

Sanidi

1. Inaunganisha kwa Nishati

1. Unganisha ncha moja ya kebo ya umeme ya AC kwenye usambazaji wa nishati.
2. Connect the other end of the AC power cord to an electrical outlet.
3. Connect the power supply to the DC-In port (20V/7.5A) on the HiDock H1.

2. Kuunganisha kwenye Kompyuta yako

1. Connect one end of the USB-C cable to the USB-C upstream port on the HiDock H1.
2. Connect the other end of the USB-C cable to a compatible USB-C port on your laptop.
3. In your laptop's audio settings, select "HiDock H1" as the sound input and output device.
4. For video conference software (Zoom, Microsoft Teams, etc.), configure HiDock H1 as both the microphone and speaker.

3. Kuunganisha Pembeni

Utilize the available ports on the HiDock H1 to connect your external devices:

• Bandari za HDMI: Connect up to two external monitors for dual display.
• Bandari za USB: Connect USB-A and USB-C devices for data transfer or charging.
• Bandari ya Ethernet: Unganisha kebo ya Ethaneti kwa muunganisho thabiti wa mtandao wa waya.
• SD/MicroSD Card Slots: Insert memory cards for data access.

Uendeshaji

1. Using the AI Voice Recorder

The HiDock H1 features an integrated AI voice recorder for capturing and processing audio from meetings, calls, and other sources.

• One-Click Recording: Press and hold the dedicated function button on the device to start recording.
• Automatic Transcription & Summarization: Recorded audio is automatically transcribed and summarized using the HiNotes App, powered by ChatGPT-4.1 and Claude 3.5 Sonnet.
• Usaidizi wa Lugha: Supports transcription and summarization in 75 languages.
• Violezo: Utilize over 20 built-in templates for structured summaries (e.g., General Meeting, Weekly Team Meeting, Business Call).
• Speaker Identification: The HiNotes App can identify multiple speakers in a transcription.
• Recording Notification: The HiNotes App features an optional "recording notification" that alerts all parties with a "start recording" tone.

2. Using the Open-Ear Earphone

The included open-ear earphone provides private audio for calls and meetings.

• Kuunganisha/Kutenganisha: The earphone is magnetically attached to the docking station. Simply pull to detach and place back to re-attach.
• Vidhibiti vya Kugusa: Double-tap the touch sensor on the earphone to answer/end calls.
• Kitufe cha Kutenda kazi: Hold the function button on the earphone to start recording.
• Kubadilisha Sauti: If audio is playing from both the speaker and earphone, double-press the earphone's touch sensor to force audio to the earphone only.

3. Kurekebisha Sauti na Kunyamazisha

• Udhibiti wa Sauti: Rotate the volume knob on the control panel to adjust audio output.
• Zima maikrofoni: Press the mute button on the control panel to mute or unmute the microphone. An LED ring around the volume knob indicates recording status.

4. Bidirectional Noise Cancellation

The HiDock H1 features a bidirectional noise cancellation slider to reduce background noise for both your outgoing and incoming audio.

• Adjusting Noise Cancellation: Move the BNC slider on the control panel to adjust the level of noise reduction. This helps to focus on voices by eliminating ambient sounds.

Matengenezo

To ensure optimal performance and longevity of your HiDock H1, follow these maintenance guidelines:

• Kusafisha: Tumia kitambaa laini na kikavu kusafisha sehemu ya nje ya kifaa. Epuka visafishaji vya kioevu au vifaa vya kukwaruza.
• Hifadhi: Hifadhi kifaa mahali pa baridi, kavu mbali na jua moja kwa moja na joto kali.
• Usimamizi wa Cable: Ensure cables are not excessively bent or tangled to prevent damage.
• Masasisho ya Programu: Regularly check for and install firmware updates for the HiDock H1 and the HiNotes App to ensure compatibility and access to new features.

Kutatua matatizo

Masuala ya Kawaida na Suluhisho:

• Hakuna Toleo la Kuonyesha: Ensure your laptop supports DP Alt Mode and Power Delivery. Check all HDMI cable connections. For macOS, external monitors will mirror content.
• No Audio/Microphone Detected: Verify that "HiDock H1" is selected as the input/output device in your computer's sound settings and video conference application settings.
• Earphone Audio Issues: If audio plays from both the main speaker and the earphone, double-press the earphone's touch sensor to switch audio exclusively to the earphone.
• Recording Not Starting: Ensure the device is properly connected and powered. Press and hold the function button on the device or earphone to initiate recording.
• Masuala ya Utangamano: The HiDock H1 is compatible with MacBook (macOS 11+), Windows 10/11, and ChromeOS. It is not compatible with Linux. USB-C to USB-A connection for desktops does not support display output.
• Background Noise Persists: Adjust the BNC slider on the control panel to increase noise cancellation.

Vipimo

Udhamini na Msaada

The HiDock H1 comes with standard manufacturer support. For specific warranty details, please refer to the product packaging or contact HiDock customer service.

• Ni pamoja na earphone: The complimentary open-ear earphone is not covered under warranty.
• Sera ya Faragha: HiDock adheres to GDPR compliance. No customer data is used to train AI models. Partnerships with OpenAI and Anthropic include robust data security measures.
• HiNotes App: Enjoy lifetime free transcription services with the HiNotes App upon purchase of the HiDock hardware device.
