BIOWAVE BioWrap Back Brace S/M

BIOWAVE BioWrap Back Brace Lumbar Support User Manual

Model: S/M (Waist Size 28”-38”)

Utangulizi

This manual provides instructions for the proper use and care of your BIOWAVE BioWrap Back Brace Lumbar Support. This device is designed to provide lumbar support and facilitate the integration of a BioWaveGO TENS unit for muscle stimulation and pain relief. Please read this manual thoroughly before initial use.

Diagram showing human anatomy with highlighted areas for pain relief, including hip, groin, pelvic floor, menstrual, sciatica, rib, mid torso, low back, and SI joint.

Image illustrating common areas of back pain and related discomfort where the BioWrap may be applied.

Taarifa za Usalama

Muhimu: The BioWrap Back Brace is intended for use with the BioWaveGO TENS Unit (sold separately). Do not use this product without consulting a healthcare professional if you have pre-existing medical conditions, are pregnant, or have implanted electronic devices.

  • Ensure electrodes are properly attached and skin is clean before use.
  • Do not apply electrodes over open wounds, rashes, or irritated skin.
  • Weka mbali na watoto.
  • Discontinue use if irritation or discomfort occurs.

Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako:

  • 1 x BIOWAVE BioWrap Back Brace (S/M)
  • 4 x Electrode Pads (for use with BioWaveGO)

Kumbuka: The BioWaveGO TENS Unit is required for electrical stimulation and is sold separately.

Contents of the BIOWAVE BioWrap package, showing the back brace, four electrode pads, and a BioWaveGO device (marked as not included).

Image showing the BioWrap Back Brace, electrode pads, and the BioWaveGO device (indicated as a separate purchase).

Vipimo vya Bidhaa

KipengeleMaelezo
ChapaBIOWAVE
MfanoBioWrap Back Brace
UkubwaS/M (For Waist Size 28”-38”)
Material (Inside)Neoprene
Material (Outside)Tricote
UtangamanoBioWaveGO TENS Unit
Matumizi MaalumLumbar Support, Sciatica, Back Pain Relief

Setup and Application

Follow these steps to properly set up and apply your BioWrap Back Brace with the BioWaveGO TENS Unit.

  1. Prepare Electrodes: Place the Velcro-backed side of each electrode pad directly onto the designated areas on the inside of the BioWrap. Ensure a secure attachment.
  2. Connect Leadwires: Plug the blue pad connectors into the blue leadwire cable connectors from your BioWaveGO device.
  3. Weka Brace: Wrap the BioWrap around your lower back, ensuring it is centered and comfortable. Pull tight to achieve a snug fit.
  4. Linda Brace: Attach the main Velcro closure over the left side. Unhook any secondary straps and pull them down to further tighten the BioWrap for optimal compression and electrode contact.
  5. Connect to BioWaveGO: Plug the single end of the cable into your BioWaveGO device.
  6. Power On and Adjust: Power on your BioWaveGO device. Press the '+' button to increase intensity and control your comfort level.

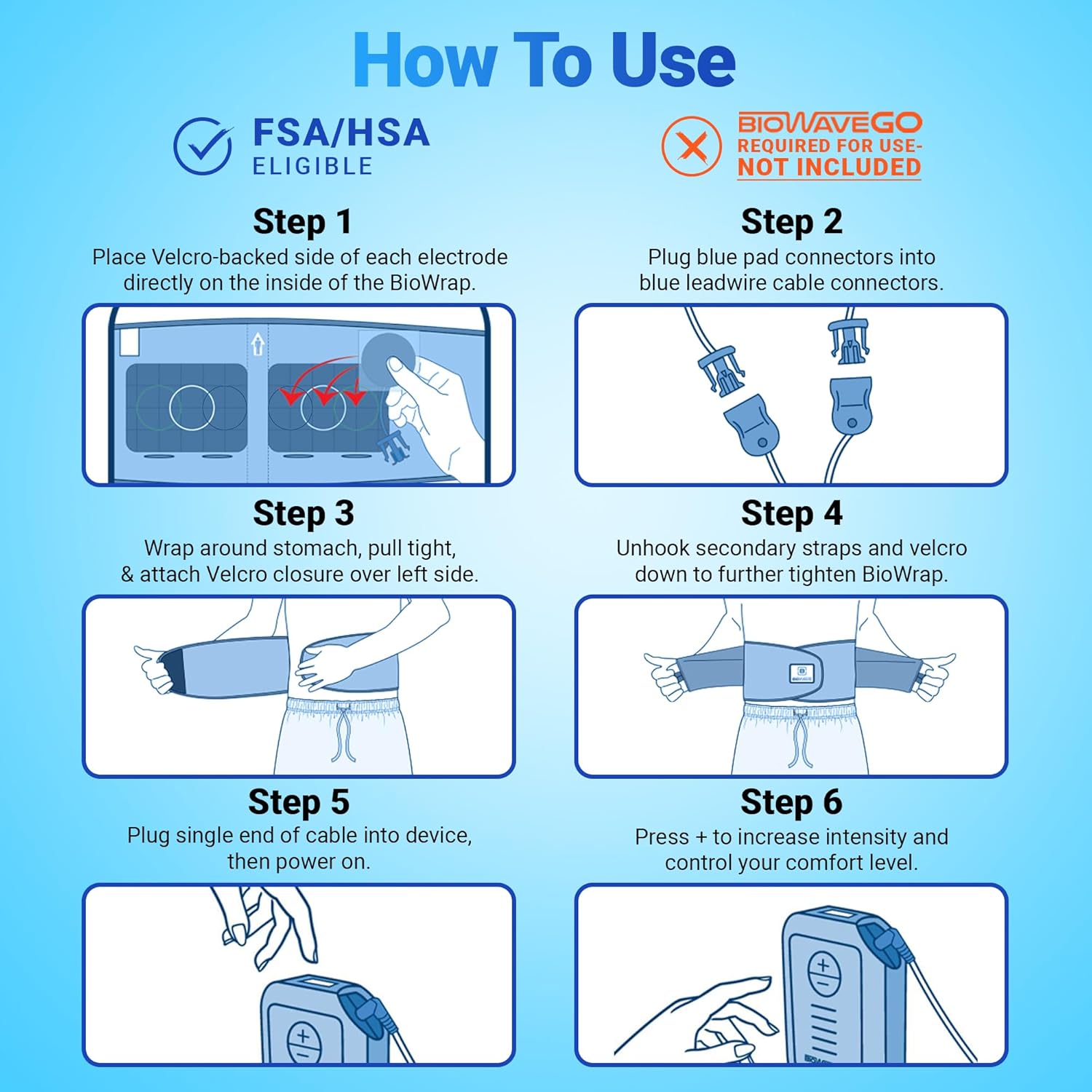

Step-by-step instructions for using the BIOWAVE BioWrap Back Brace with the BioWaveGO TENS unit, showing electrode placement, cable connection, and brace application.

Visual guide for applying electrodes, connecting the BioWaveGO, and wearing the BioWrap brace.

Maagizo ya Uendeshaji

Once the BioWrap Back Brace is properly applied and connected to the BioWaveGO TENS Unit, you can begin your therapy session.

  • Kuanzisha Kikao: Refer to your BioWaveGO TENS Unit manual for specific instructions on initiating a therapy session. Typically, a session lasts 30 minutes.
  • Kurekebisha Nguvu: Use the controls on your BioWaveGO device to adjust the intensity of the electrical stimulation to a comfortable yet effective level.
  • Monitoring Comfort: The sensation should be a deep, soothing massage, not painful. If you experience any discomfort, reduce the intensity or discontinue use.
  • Wearable Use: The BioWrap is designed for mobility. You can wear it during light activities.
A person wearing the BIOWAVE BioWrap Back Brace while walking a dog outdoors, demonstrating its wearable design and allowing for mobility during use.

The BioWrap Back Brace allows for mobility during use.

Matengenezo na Utunzaji

  • Cleaning the Brace: Hand wash the BioWrap Back Brace with mild soap and cold water. Air dry completely. Do not machine wash, tumble dry, bleach, or iron.
  • Utunzaji wa Electrode: Replace electrode pads when they lose their adhesiveness or if you notice reduced effectiveness. Always apply electrodes to clean, dry skin.
  • Hifadhi: Store the BioWrap and electrodes in a cool, dry place away from direct sunlight.

Kutatua matatizo

TatizoSababu inayowezekanaSuluhisho
No sensation or weak sensationElectrodes not making good contact; Electrodes worn out; BioWaveGO device not powered on or faulty connection.Re-position electrodes, ensure skin is clean; Replace electrodes; Check BioWaveGO power and cable connections.
Kuwasha kwa ngoziElectrodes applied to irritated skin; Allergic reaction; Overuse.Discontinue use immediately; Consult a healthcare professional; Ensure skin is clean and dry before application.
Brace feels too loose or too tightIncorrect sizing or improper application.Adjust Velcro straps for a snug, comfortable fit. Ensure correct size was purchased (S/M for 28”-38” waist).

Udhamini na Msaada

For information regarding warranty coverage for your BIOWAVE BioWrap Back Brace, please refer to the documentation included with your purchase or visit the official BIOWAVE webtovuti.

For customer support, technical assistance, or to purchase replacement parts, please contact BIOWAVE directly through their official channels.
