Mwongozo wa Maelekezo ya Gari la Michezo la CaDA C51304W Red Blade Sport

1. Utangulizi

Thank you for choosing the CaDA C51304W Red Blade Sport Car building kit. This manual provides detailed instructions for assembling, operating, and maintaining your model. Please read this manual thoroughly before beginning assembly to ensure a smooth and enjoyable experience.

This kit allows you to construct a highly detailed 1:14 scale Red Blade Sport Car model with 405 pieces. The finished model features functional elements and can be controlled via a 2.4GHz remote control or a smartphone application.

Assembled CaDA C51304W Red Blade Sport Car, front view

Figure 1.1: Assembled CaDA C51304W Red Blade Sport Car. This image showcases the completed Red Blade Sport Car model from a front-angle perspective, highlighting its sleek design and red color.

Assembled CaDA C51304W Red Blade Sport Car, rear view

Kielelezo cha 1.2: Nyuma View of the Assembled Sport Car. Picha hii inatoa view of the rear of the CaDA Red Blade Sport Car, showing its detailed taillights and exhaust design.

2. Taarifa za Usalama

ONYO: HATARI YA KUKABWA - Sehemu Ndogo. Not for children under 3 years. Recommended for ages 6 and up.

Always supervise children during assembly and operation.
Weka vifaa vyote vya kufungashia mbali na watoto ili kuzuia kukosa hewa.
Do not put parts in mouth.
Tupa betri ipasavyo kulingana na kanuni za ndani.
Refer to the safety instructions printed on the product packaging for additional warnings.

3. Yaliyomo kwenye Kifurushi

Verify that all components are present before starting assembly.

CaDA Building Block Kit (405 pieces)
Mwongozo wa Maelekezo Uliochorwa
Smart Power Module (Chassis with integrated motors and battery compartment)
2.4GHz Remote Control (Batteries not included)

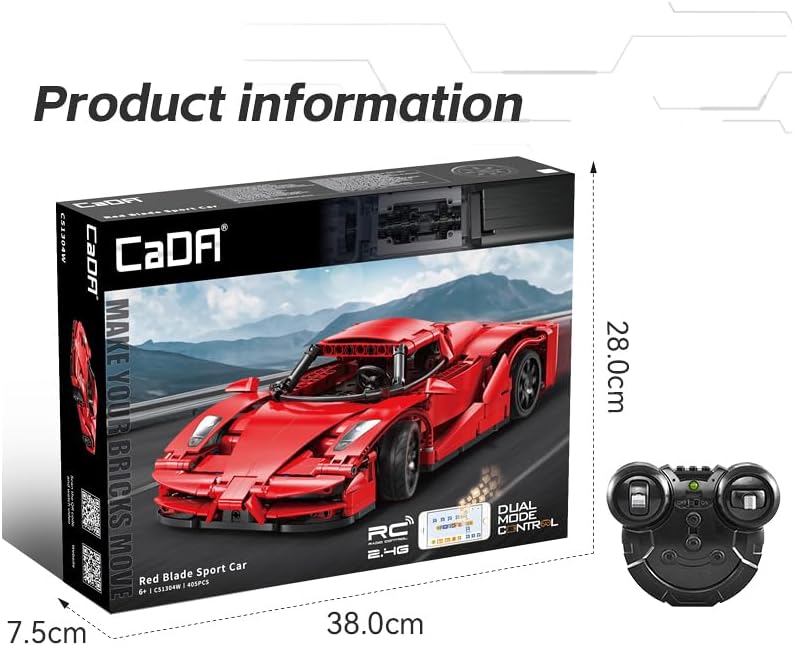

Figure 3.1: Product Packaging and Included Remote Control. This image displays the product box, showing the assembled Red Blade Sport Car model, and the separate 2.4GHz remote control unit. The box also indicates the piece count and dual-mode control.

4. Kuweka na Kukusanya

No glue or special tools are required for assembly. The model is designed for plug-in construction.

4.1. Ufungaji wa Betri

Udhibiti wa Mbali: Insert 2 x 1.5V AA batteries (not included) into the remote control's battery compartment. Ensure correct polarity.
Gari: The Smart Power Module (chassis) contains a built-in 3.7V 500mAh rechargeable battery. Charge the vehicle battery using the provided USB charging cable (if included, otherwise use a standard micro-USB cable) before first use. Refer to the Smart Power Module's specific instructions for charging details.

4.2. Model Assembly

Follow the step-by-step illustrated instructions provided in the manual included with your kit. Each step clearly shows which pieces to use and how to connect them.

Figure 4.1: Building and Play. This image illustrates the hands-on assembly process, showing individual building blocks being connected to form the model. The partially assembled car is visible in the background.

Figure 4.2: Smart Power Module. This image highlights the Smart Power Module, which forms the base chassis of the vehicle, including wheels and internal components. An inset shows the steering trim adjustment.

The assembly process involves connecting the 405 building blocks to create the detailed Red Blade Sport Car. Pay close attention to the orientation of pieces as shown in the diagrams.

5. Maagizo ya Uendeshaji

The CaDA C51304W Red Blade Sport Car can be controlled using either the included 2.4GHz remote control or a dedicated smartphone application.

5.1. Uendeshaji wa Udhibiti wa Kijijini

Ensure both the vehicle and remote control have sufficient battery power.
Turn on the vehicle's power switch (located on the Smart Power Module).
Turn on the remote control. The remote and vehicle should automatically pair.
Use the joysticks/buttons on the remote control to steer and accelerate the vehicle. Refer to the remote control's diagram in the included manual for specific button functions.
If the vehicle does not drive straight, use the steering trim adjustment on the Smart Power Module (refer to Figure 4.2) to fine-tune the steering.

5.2. Smartphone App Control (Bluetooth Connectivity)

Upakuaji wa Programu: Scan the QR code provided in the product packaging or search for "CaDA Smart+" in your device's app store.
Mahitaji ya Mfumo: iOS system version 13.0 or above, Android system version 8.0 or above.
Muunganisho:

Hakikisha kuwa Bluetooth imewashwa kwenye simu yako mahiri.
Turn on the vehicle's power switch.
Open the CaDA Smart+ app. The app will guide you through connecting to the vehicle via Bluetooth.

Kiolesura cha Kudhibiti: The app features a drag-and-drop control interface, allowing for intuitive control and programming of the vehicle's movements.
Kumbuka Utangamano: Some phones may not be compatible with the application. It is highly advised to test the app before constructing the model if app control is a primary feature for you.

Bluetooth connectivity and 2.4GHz remote control

Figure 5.1: Dual Control Options. This image illustrates both the Bluetooth connectivity for smartphone app control (left) and the 2.4GHz remote control (right) for operating the CaDA Red Blade Sport Car.

CaDA programmable sports car model app interface

Figure 5.2: App Control Interface. This image shows the CaDA Smart+ app interface on a smartphone, demonstrating the drag-and-drop programming environment for controlling the Red Blade Sport Car model.

6. Matengenezo

Kusafisha: Wipe the model with a soft, dry cloth. Do not use water or cleaning solutions, as this may damage electronic components.
Hifadhi: Store the model in a cool, dry place away from direct sunlight and extreme temperatures.
Utunzaji wa Betri: If the model will not be used for an extended period, remove the AA batteries from the remote control to prevent leakage. Ensure the vehicle's internal battery is fully charged before long-term storage.
Uadilifu wa Sehemu: Periodically check for any loose or damaged parts. Reattach or replace as necessary.

7. Utatuzi wa shida

Tatizo	Sababu inayowezekana	Suluhisho
Vehicle does not respond to remote/app.	Low batteries in remote or vehicle; Vehicle/remote not powered on; Not paired.	Replace/charge batteries; Ensure power switches are ON; Re-pair remote/app with vehicle.
Magari yanaendeshwa kwa njia iliyopinda.	Trim ya usukani inahitaji marekebisho.	Adjust the steering trim on the Smart Power Module.
App cannot connect to vehicle.	Bluetooth off; App/OS version incompatible; Vehicle not powered on.	Ensure Bluetooth is on; Check app/OS compatibility; Power on vehicle; Restart app/phone.
Sehemu zilizopotea au zilizoharibiwa.	Manufacturing defect; Accidental loss/damage.	Contact CaDA customer support for replacement parts.

8. Vipimo

Product dimensions and specifications table

Kielelezo cha 8.1: Vipimo vya Bidhaa na Maelezo Muhimu. This image provides a visual representation of the assembled model's dimensions (length, width, height) and a summary table of its technical specifications.

Kipengele	Maelezo
Jina la Bidhaa	Red Blade Sport Car
Nambari ya Mfano	C51304W
Chapa	CaDA
Idadi ya Vipande	405
Umri uliopendekezwa	Miaka 6+
Nyenzo	Plastiki
Betri ya Gari	3.7V 500mAh (Rechargeable, integrated)
Betri ya Kidhibiti cha Mbali	2 x 1.5V AA Batteries (Not included)
Umbali wa RC	Hadi mita 25
Kasi ya Gari	Takriban. 5.5 km / h
Vipimo vya Bidhaa (L x W x H)	Takriban. Sentimita 32.0 x 16.0 x sentimita 8.0
Uzito wa Bidhaa	1 Kilo
Njia za Kudhibiti	2.4GHz Remote Control, Bluetooth App Control

Note: All data and product parameters are obtained by CaDA Lab for reference only and are subject to the material received by customers. CaDA Bricks reserves the right of final interpretation.

9. Udhamini na Msaada

CaDA products are manufactured to high quality standards. For warranty information, please refer to the documentation included with your purchase or visit the official CaDA website. If you encounter any issues or require assistance with assembly or operation, please contact CaDA customer support.

Usaidizi kwa Wateja: Please visit the official CaDA website for contact information, FAQs, and additional resources. You may also contact the retailer where you purchased this product.

Sehemu za Uingizwaji: In case of missing or damaged parts, please contact CaDA customer support with your product model number (C51304W) and details of the required parts.
