PUR Faucet Mount Water Filtration System User Manual

Model: e0d21695-f6e6-403d-b633-a3d05cdf4577

Utangulizi

This manual provides instructions for the installation, operation, and maintenance of your PUR Faucet Mount Water Filtration System. This system is designed to provide filtered water directly from your faucet, reducing various contaminants for improved water quality.

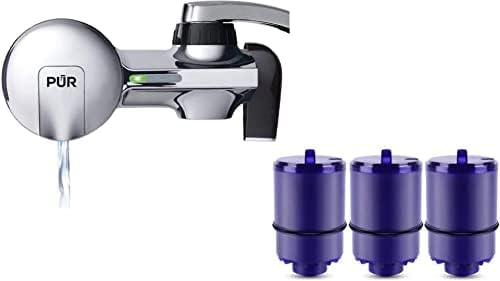

PUR Faucet Mount Water Filtration System with three replacement filters

Image: The PUR Faucet Mount Water Filtration System attached to a faucet, with water flowing from it. Three purple replacement filters are shown next to the main unit.

Nini Pamoja

Your PUR Faucet Mount Water Filtration System package includes the following components:

  • One (1) PUR Faucet Mount Filtration System unit
  • One (1) PUR filter pre-installed or for initial setup
  • Three (3) additional generic replacement filters

Kuweka na Kuweka

The PUR Faucet Mount Water Filtration System is designed for easy installation without the need for special tools. Please follow these steps:

  1. Fungua Vipengee: Ondoa kwa uangalifu vitu vyote kutoka kwa kifurushi.
  2. Prepare Faucet: Ensure your faucet is clean and free from debris. This system is compatible with most standard faucets, but not with pull-out or hand-held faucet types.
  3. Attach Filter System: Align the faucet mount system with your faucet's aerator. Twist or secure the system onto the faucet according to the specific adapter type provided (if any). Ensure a snug fit to prevent leaks.
  4. Kichujio cha Flush: Once installed, turn on the cold water and allow it to run through the filter for approximately 5 minutes. This flushes out carbon dust and prepares the filter for use.
  5. Angalia Uvujaji: After flushing, inspect all connections for any signs of leakage. Tighten if necessary.

For detailed visual instructions, refer to the diagrams in the quick start guide included with your product.

Maagizo ya Uendeshaji

Using your PUR Faucet Mount Water Filtration System is straightforward:

  • Maji Yaliyochujwa: To dispense filtered water, activate the filter lever or button on the unit. Water will flow through the filter, providing clean drinking water.
  • Unfiltered Water: To dispense unfiltered water for washing dishes or other non-drinking purposes, switch the lever or button to the unfiltered setting. This extends the life of your filter.
  • Joto la Maji: Always use cold water when operating the filter. Hot water can damage the filter media and reduce its effectiveness.

Matengenezo

Regular maintenance ensures optimal performance and longevity of your filtration system. The primary maintenance task is filter replacement.

Ubadilishaji wa Kichujio

Filters should be replaced approximately every 2-3 months, or after filtering 100 gallons of water, whichever comes first. The system may have an indicator light that changes color to signal when a filter change is needed.

  1. Zima Maji: Ensure the water supply to the faucet is turned off.
  2. Ondoa Kichujio cha Zamani: Locate the filter housing on the unit. Twist or unclip the housing to remove the used filter cartridge.
  3. Ingiza Kichujio Kipya: Insert a new PUR replacement filter into the housing. Ensure it is seated correctly.
  4. Nyumba salama: Reattach and secure the filter housing.
  5. Flush New Filter: Turn on the cold water and flush the new filter for 5 minutes to remove any carbon dust.
  6. Reset Indicator (if applicable): If your unit has a filter life indicator, follow the manufacturer's instructions to reset it.

Always use genuine PUR replacement filters or compatible generic filters to ensure proper filtration and system function.

Kutatua matatizo

If you encounter issues with your PUR Faucet Mount Water Filtration System, refer to the following common problems and solutions:

TatizoSababu inayowezekanaSuluhisho
Slow Water FlowClogged filter; low water pressure.Badilisha katriji ya kichujio. Angalia shinikizo la maji ya nyumbani.
Leaking from Unit/Faucet ConnectionLoose connection; damaged washer/gasket.Ensure the unit is securely tightened to the faucet. Check and replace any damaged washers or O-rings.
Water Tastes/Smells UnfilteredFilter expired or improperly installed.Replace the filter. Ensure the filter is correctly seated and the unit is set to filtered mode.
Kiashiria cha Kichujio Haifanyi kaziBattery issue (if applicable); sensor malfunction.Refer to the specific product manual for battery replacement or contact customer support.

Vipimo

  • Chapa: PUR
  • Jina la Mfano: Faucet Mount
  • Nambari ya Mfano wa Kipengee: e0d21695-f6e6-403d-b633-a3d05cdf4577
  • UPC: 328785002096
  • Kipengele Maalum: Chlorine Reduction, Lead Reduction
  • Aina ya Usakinishaji: Faucet Mount
  • Chanzo cha Nguvu: Mwongozo
  • Kichujio cha Maisha: Approximately 100 gallons or 2-3 months (typical)

Udhamini na Msaada

For warranty information, product registration, or technical support, please visit the official PUR webtovuti au wasiliana na idara yao ya huduma kwa wateja. Weka risiti yako ya ununuzi kama uthibitisho wa ununuzi.

PUR Customer Support:

  • Webtovuti: www.pur.com
  • Simu: Refer to the PUR webtovuti kwa nambari za sasa za mawasiliano.
