1. Utangulizi
Thank you for choosing the OREiN 4500LM/30W Hardwired Motion Sensor LED Flood Light. This manual provides essential information for the safe installation, operation, and maintenance of your new flood light. Please read these instructions thoroughly before installation and retain them for future reference.
2. Taarifa za Usalama
ONYO: Hatari ya mshtuko wa umeme. Kata umeme kwenye fyuzi au kivunja mzunguko kabla ya usakinishaji au ukarabati.
- Installation must be performed by a qualified electrician or person familiar with the construction and operation of the product and the hazards involved.
- Hakikisha ujazo wa usambazajitage ni sahihi (AC ya 120V).
- Usisakinishe karibu na vifaa vinavyoweza kuwaka.
- Vaa glasi za usalama na glavu wakati wa ufungaji.
- Kifaa hiki kimeundwa kwa matumizi ya nje na kimepimwa kwa IP65 bila maji.
3. Yaliyomo kwenye Kifurushi
Thibitisha kuwa vipengele vyote vipo kabla ya kuanza usakinishaji:
- Mpangilio wa Mwanga (1)
- Kupakia Bracket (1)
- Screws (saizi mbalimbali)
- Karanga Waya (3)
- Mwongozo wa maagizo (1)
4. Bidhaa Imeishaview
The OREiN Flood Light features three adjustable LED heads and a motion sensor for comprehensive outdoor illumination and security.

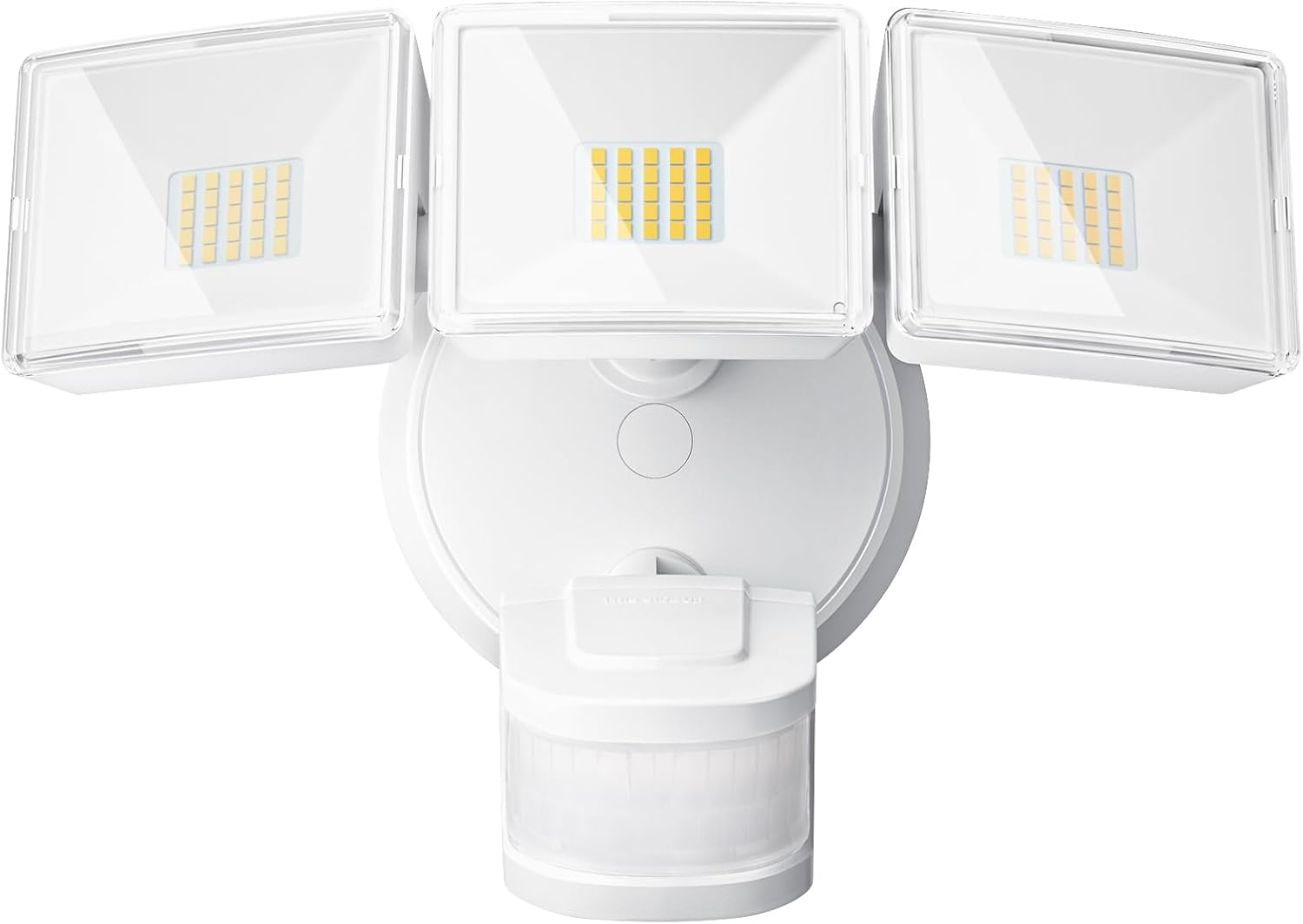

Kielelezo 1: Mbele view of the OREiN 4500LM/30W Hardwired Motion Sensor LED Flood Light, showing the three adjustable light heads and the motion sensor below.
Figure 2: Diagram illustrating the flexible adjustment angles of the three light heads (340°) and the motion sensor (270° horizontally, 120° vertically).
5. Ufungaji
This flood light is designed for hardwired installation on a standard junction box (2.75” / 3.5”). It supports both wall and eave mounting.
Hatua za Ufungaji:
- Zima Nguvu: Disconnect power at the circuit breaker before starting.
- Mabano Salama ya Kupachika: Attach the metal mounting bracket to your existing junction box using the provided screws.
- Unganisha Waya: Connect the household wiring to the fixture wires using the provided wire nuts. Typically, black to black (live), white to white (neutral). This light belongs to secondary luminaires, so no extra ground wire connection is needed.
- Linda Mpangilio wa Mwanga: Align the light fixture with the mounting bracket and secure it with the appropriate screws.
- Ingiza Kiziba Kisichopitisha Maji: Ensure the waterproof plug is properly inserted to prevent moisture ingress.
- Rekebisha Vichwa vya Mwanga na Kihisi: Position the three light heads and the motion sensor to cover the desired areas.
- Rejesha Nguvu: Washa tena nguvu kwenye kikatiza mzunguko.

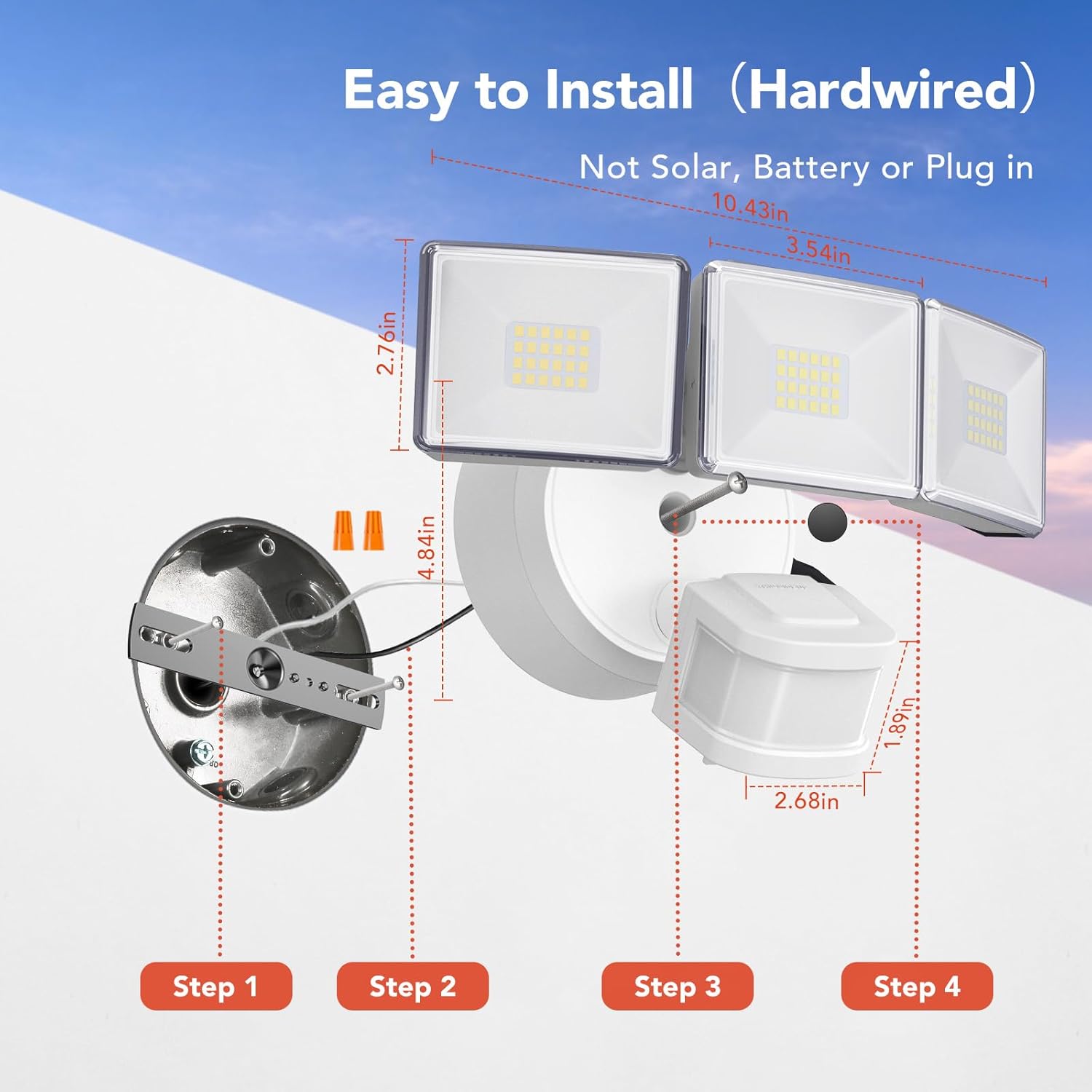

Figure 3: Step-by-step diagram for hardwired installation, showing mounting bracket, wire connections, and securing the fixture.
Kielelezo 4: Kutamples of wall-mounted and soffit-mounted installations for the flood light.
6. Njia za Uendeshaji
The OREiN Flood Light offers three operational modes, selectable via a switch on the motion sensor unit:
- Hali ya Mtihani: The light turns on for 5 seconds when motion is detected, regardless of ambient light. Useful for testing sensor coverage during installation.
- Hali ya Jioni hadi Alfajiri (D2D): The light automatically turns on at night and off during the day. In this mode, the motion sensing function is inactive.
- Njia ya Hifadhi: The light turns on only at night when motion is detected. The duration the light stays on (1, 5, or 10 minutes) can be adjusted.
Figure 5: Visual representation of Test, Dusk to Dawn, and Auto modes in operation.
Figure 6: Illustration of the Dusk to Dawn mode, showing the light automatically activating when surroundings are dark and deactivating when bright.
7. Kurekebisha Mipangilio
The motion sensor unit includes dials for adjusting the light's duration and sensitivity:
- Time Adjustment (Timer Minutes): Set the duration the light stays on after motion detection in Auto Mode (1, 5, or 10 minutes).
- Sensitivity Adjustment (Sensitivity): Adjust the motion detection range (10ft, 20ft, 30ft, 40ft). Max setting provides up to 40ft detection.
Figure 7: Close-up of the motion sensor with dials for adjusting mode, timer minutes, and sensitivity.
Video 1: Official OREiN video demonstrating the motion sensor outdoor lights, including features like wide detection, adjustable sensing distance, heat dissipation, adjustable time/sensitivity, flexible adjustment, and easy installation.
8. Matengenezo
- Kusafisha: Safisha kifaa kwa laini, damp kitambaa. Usitumie visafishaji vya abrasive au vimumunyisho.
- Ukaguzi: Periodically check for any damage to the wiring or housing.
- Kubadilisha Balbu: The LED bulbs are integrated and not user-replaceable. The fixture has a lifespan of up to 50,000 hours.
Figure 8: Illustration demonstrating the IP65 waterproof rating, showing the light functioning reliably under rain.
Figure 9: Diagram showing the heat dissipation design of the light heads, contributing to the product's longevity.
9. Utatuzi wa shida
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Nuru haiwashi. | No power; incorrect wiring; sensor settings. | Check circuit breaker. Verify wiring connections. Adjust sensor mode/sensitivity. |
| Nuru inakaa kila wakati. | Sensor in D2D mode; continuous motion detected; sensitivity too high. | Switch to Auto mode. Check for constant heat sources or movement in detection zone. Reduce sensitivity. |
| Mwanga huwaka wakati wa mchana. | Sensor in Test mode; ambient light sensor blocked. | Switch to Auto or D2D mode. Ensure the ambient light sensor is not obstructed. |
| Motion detection range is too short/long. | Mpangilio wa unyeti si sahihi. | Adjust the sensitivity dial on the motion sensor. |
10. Vipimo
| Kipengele | Maelezo |
|---|---|
| Jina la Mfano | OL3600354 |
| Chapa | OREiN |
| Mwangaza | 4500 Lumens |
| Wattage | 30 Watts |
| Joto la Rangi | 5000 Kelvin (Mchana) |
| Voltage | 120 Volts |
| Nyenzo | Acrylonitrile Butadiene Styrene (ABS) |
| Kiwango cha Upinzani wa Maji | IP65 Inayozuia maji |
| Pembe ya Kugundua Mwendo | 240° |
| Umbali wa Kugundua Mwendo | Hadi futi 40 |
| Marekebisho ya Kichwa nyepesi | 340° Chanjo |
| Muda wa Maisha uliokadiriwa | 50,000 masaa |
| Aina ya Ufungaji | Hardwired (Wall Mount, Eave Mount) |
| Vipimo vya Bidhaa | 7.6"L x 8"W x 6"H |
| Uzito wa Kipengee | Pauni 1.87 |
11. Udhamini na Msaada
OREiN offers an extended warranty for this product. For specific warranty details, please refer to the product packaging or contact OREiN customer support.
Usaidizi kwa Wateja:
- For assistance, contact OREiN directly through Amazon or search for the brand name online.
- If you encounter any issues, it is recommended to contact customer support before initiating a return.
Figure 10: Image representing OREiN customer support, available for assistance.
