Mwongozo wa Maelekezo wa Ukuta wa Ndoto wa UniFi Gateway (UDW)

1. Utangulizi

The UniFi Gateway Dream Wall (UDW) is an enterprise-grade UniFi OS Console designed for wall-mounted deployments. It integrates a high-performance security gateway, a UniFi Network Controller, and a multi-port switch with PoE capabilities, providing a comprehensive solution for managing and securing your network infrastructure. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your UDW device.

2. Taarifa za Usalama

Tafadhali soma, fuata, na ufuate maagizo haya. Zingatia maonyo yote. Tumia viambatisho/vifaa vilivyoainishwa na mtengenezaji pekee.

• Usitumie bidhaa hii karibu na maji.
• Do not disassemble the product. Refer all servicing to qualified service personnel.
• Usizuie fursa yoyote ya uingizaji hewa.
• Use only the power supply provided by the manufacturer.
• Hakikisha msingi sahihi kwa usalama.
• Linda waya wa umeme dhidi ya kutembezwa au kubanwa.

3. Yaliyomo kwenye Kifurushi

Thibitisha kuwa bidhaa zote zilizoorodheshwa hapa chini zipo kwenye kifurushi chako:

• UniFi Gateway Dream Wall (UDW)
• Power Cord (region-specific)
• Mabano ya Mlima wa Ukuta
• Screw za Kuweka na Nanga za Ukutani
• Mwongozo wa Kuanza Haraka

Image: The UniFi Gateway Dream Wall device shown alongside its power cord, wall mount bracket, and mounting hardware.

4. Bidhaa Imeishaview

The UDW features a robust design with various ports and indicators for comprehensive network management.

Picha: Mbele view of the UniFi Gateway Dream Wall, showcasing its sleek white design and central display screen.

Picha: Upande view of the UniFi Gateway Dream Wall, highlighting its slim profile when mounted.

Image: The UniFi Gateway Dream Wall with its front cover opened, revealing internal components and the touchscreen display.

4.1 Jopo la mbele

• 4.7" Touchscreen Display: Provides real-time status, network statistics, and allows for basic device management.
• Kiashiria cha LED: Indicates device status (e.g., booting, online, error).

4.2 Bandari na Viunganishi

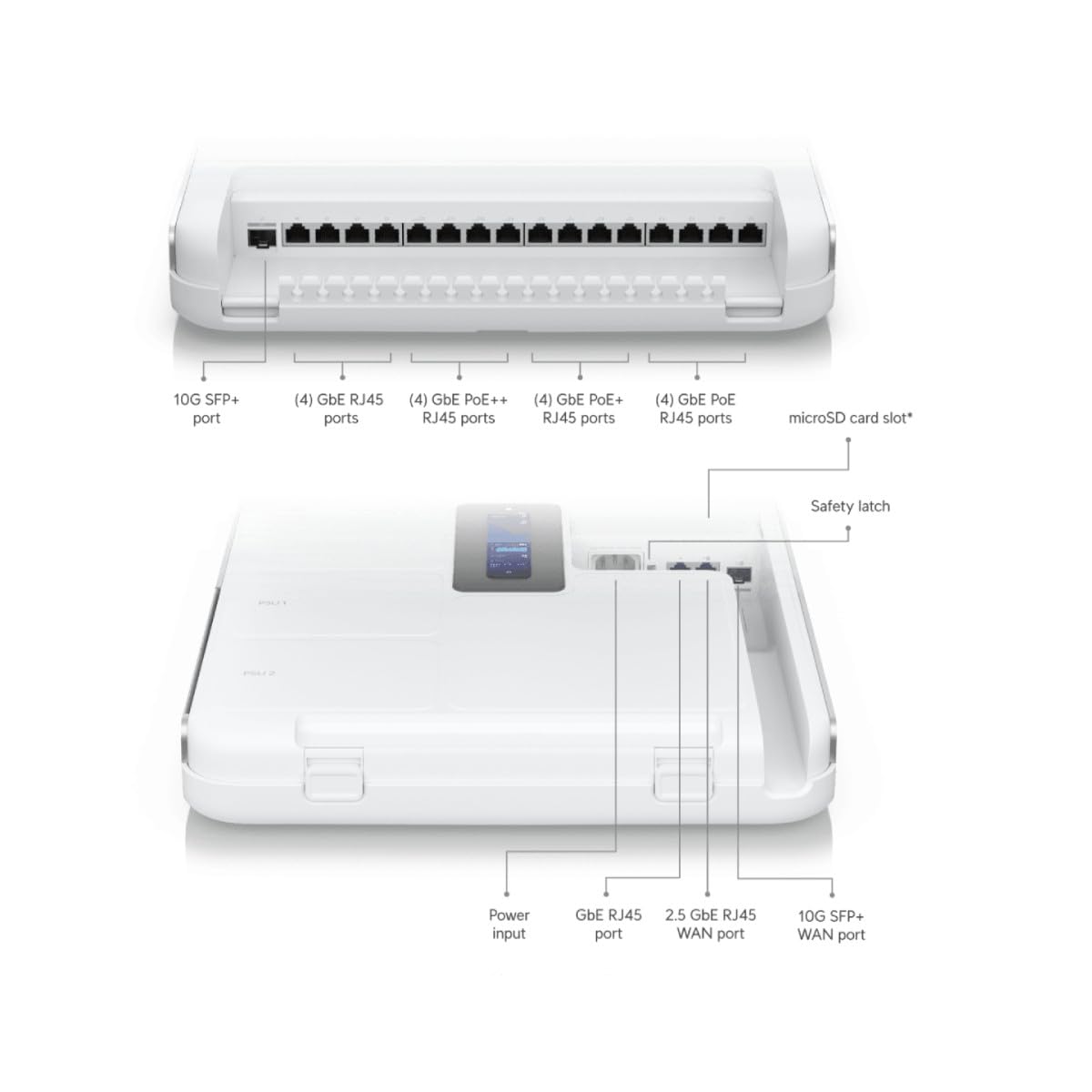

Image: Detailed diagram illustrating the various ports and connectors on the UniFi Gateway Dream Wall, including SFP+, RJ45, and power inputs.

5. Kuweka

5.1 Kuweka Kifaa

1. Choose a suitable wall location, ensuring adequate ventilation and access to power outlets.
2. Use the wall mount bracket as a template to mark drilling points.
3. Toboa mashimo ya majaribio na uingize nanga za ukutani ikiwa ni lazima.
4. Secure the wall mount bracket to the wall using the provided screws.
5. Carefully align the UDW with the bracket and slide it into place until it clicks securely.

Image: The UniFi Gateway Dream Wall shown mounted on a wall, with its cover open to reveal the internal structure and mounting points.

5.2 Nguvu ya Kuunganisha

Connect the included power cord to the power input port on the UDW and then to a grounded electrical outlet. The device will power on automatically.

5.3 Miunganisho ya Mtandao

Connect your internet service provider's modem or router to one of the WAN ports (GbE RJ45 WAN, 2.5 GbE RJ45 WAN, or 10G SFP+ WAN) on the UDW. Connect your local network devices (e.g., computers, switches, UniFi Access Points) to the available LAN ports (GbE RJ45, GbE PoE, GbE PoE+, GbE PoE++).

Image: A network diagram illustrating how the UniFi Dream Wall integrates into a network, connecting to the internet, security cameras, access points, phone systems, and door access.

5.4 Usanidi wa Awali

The UDW can be configured via the UniFi mobile app or a web kivinjari.

1. Using UniFi Mobile App: Download the UniFi Network application from your mobile app store. Ensure Bluetooth is enabled on your mobile device. The app should discover the UDW. Follow the on-screen prompts to complete the setup, including naming the device, setting up Wi-Fi, and creating an administrator password.
2. Kutumia Web Kivinjari: Connect a computer directly to one of the UDW's LAN ports. Open a web browser and navigate to the default IP address (usually 192.168.1.1). Follow the setup wizard to configure your network.

6. Kufanya kazi

6.1 Accessing the UniFi Interface

Once configured, you can manage your UDW and UniFi network through the UniFi Network Controller interface. Access it via the UniFi mobile app or by navigating to the UDW's IP address in a web browser from a device on your local network.

6.2 Usimamizi wa Mtandao

The UniFi Network Controller provides a centralized dashboard for managing all aspects of your network, including:

• Monitoring network performance and connected devices.
• Configuring VLANs and firewall rules.
• Managing user access and guest networks.
• Adopting and managing other UniFi devices (e.g., access points, switches).

6.3 Usanidi wa Wi-Fi

The UDW includes integrated Wi-Fi 6 capabilities. You can configure Wi-Fi networks (SSIDs), security settings, and advanced wireless features directly from the UniFi Network Controller.

7. Matengenezo

Regular maintenance ensures optimal performance and longevity of your UDW.

• Sasisho za Firmware: Regularly check for and install the latest firmware updates through the UniFi Network Controller. This ensures you have the latest features, security patches, and bug fixes.
• Kusafisha: Keep the device clean and free of dust. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
• Uingizaji hewa: Hakikisha kwamba nafasi za uingizaji hewa hazizuiwi ili kuzuia joto kupita kiasi.
• Usanidi wa Hifadhi nakala: Periodically back up your UniFi Network Controller configuration to a safe location.

8. Utatuzi wa shida

This section addresses common issues you might encounter with your UDW.

• Kifaa Kisichowashwa: Ensure the power cord is securely connected to both the UDW and a working electrical outlet. Verify the outlet has power.
• "Check Connection" Message on Display: If the UDW is stuck on a "Check Connection" screen after initialization, ensure your WAN connection is active and properly connected. If using the UniFi mobile app for setup, ensure Bluetooth is enabled and the app can discover the device. Sometimes, a factory reset (see below) may be required if initial setup fails repeatedly.
• Hakuna Ufikiaji wa Mtandao: Verify that your modem/ISP service is active. Check the WAN port connection on the UDW. Ensure proper network configuration within the UniFi Network Controller.
• Cannot Access UniFi Interface: Ensure your device is connected to the UDW's network. Try accessing the interface using the UDW's IP address. Restart the UDW.
• Utendaji wa Mtandao Polepole: Check for high network utilization in the UniFi Network Controller. Ensure firmware is up to date. Verify cable integrity.
• Kiwanda Rudisha: To perform a factory reset, locate the reset button (often a small pinhole) on the device. With the UDW powered on, use a paperclip or similar thin object to press and hold the reset button for approximately 10-15 seconds until the device reboots. This will revert all settings to their factory defaults.

9. Vipimo

Key technical specifications for the UniFi Gateway Dream Wall (UDW):

Picha: ya ndani view of the UniFi Gateway Dream Wall with key features and dimensions highlighted, including integrated SSD, Wi-Fi 6, routing speed, and power supply units.

10. Taarifa za Udhamini

Ubiquiti products are covered by a limited warranty. For detailed warranty terms and conditions, please refer to the official Ubiquiti webtovuti au kadi ya udhamini iliyojumuishwa na bidhaa yako. Weka uthibitisho wako wa ununuzi kwa madai ya udhamini.

11. Msaada

For technical support, product documentation, and community forums, please visit the official Ubiquiti support webtovuti:

https://community.ui.com/

You can also find additional resources and contact support directly through the UniFi Network Controller interface or the UniFi mobile app.
