Mwongozo wa Mtumiaji wa Ugavi wa Umeme wa Mbali wa Fire-Lite HPF-PS6

1. Utangulizi

This manual provides essential information for the proper installation, operation, and maintenance of the Fire-Lite HPF-PS6 Remote Power Supply. Please read this manual thoroughly before attempting to install or operate the unit. Retain this manual for future reference.

2. Taarifa Muhimu za Usalama

ONYO: Hatari ya Mshtuko wa Umeme. Kata umeme kabla ya kuhudumia.

Ufungaji na huduma lazima zifanywe na wafanyakazi waliohitimu pekee.
Observe all local and national electrical codes and regulations.
Hakikisha ugavi wa umeme umewekwa msingi vizuri.
Usiweke kifaa kwenye unyevu au halijoto kali.
Thibitisha ujazo wa uingizajitage matches the unit's specifications (120VAC).

3. Bidhaa Imeishaview

The Fire-Lite HPF-PS6 is a 6.0 Amp, 120VAC remote power supply designed to provide reliable power for fire alarm and security systems. Its robust design ensures stable operation in critical applications.

3.1 Sifa Muhimu

6.0 Amps output current capacity.
120VAC pembejeo ujazotage.
Red enclosure for easy identification in fire safety installations.
Designed for remote power applications in fire detection signaling service.

3.2 Vipengele

The HPF-PS6 unit consists of a durable red metal enclosure housing the power supply circuitry and terminal blocks for connections.

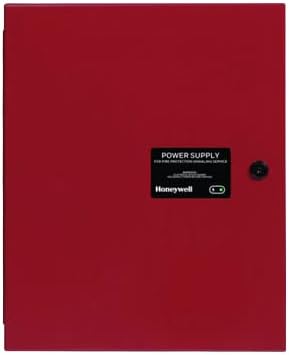

Fire-Lite HPF-PS6 Remote Power Supply, Red enclosure

Figure 1: Fire-Lite HPF-PS6 Remote Power Supply, showing the red enclosure and Honeywell branding.

4. Kuweka na Kuweka

Proper installation is crucial for the safe and reliable operation of the HPF-PS6. Always consult a qualified electrician or fire alarm technician for installation.

4.1 Kufungua

Ondoa kwa uangalifu usambazaji wa umeme kutoka kwa kifungashio chake.
Kagua kitengo hicho kwa dalili zozote za uharibifu wa usafirishaji. Ripoti uharibifu wowote kwa muuzaji wako mara moja.
Hakikisha kwamba vipengele vyote vilivyoorodheshwa kwenye karatasi ya kufungashia vipo.

4.2 Kuweka

Select a suitable location that is dry, well-ventilated, and within the specified operating temperature range.
Mount the unit securely to a wall or other stable surface using appropriate fasteners. Ensure the mounting surface can support the weight of the unit.
Allow adequate clearance around the unit for ventilation and access to wiring terminals.

Wiring

All wiring must comply with local and national electrical codes. Refer to the wiring diagram inside the unit's enclosure for specific connection points.

Nguvu ya Kuingiza: Connect the 120VAC input power to the designated terminals. Ensure the power source is protected by an appropriate circuit breaker.
Nguvu ya Pato: Connect the output terminals to the devices requiring power, observing correct polarity.
Kutuliza: Ensure the unit is properly grounded to a reliable earth ground.
Battery Connections (if applicable): If the unit supports backup batteries, connect them according to the internal wiring diagram, observing polarity.

5. Maagizo ya Uendeshaji

Once properly installed and wired, the HPF-PS6 operates automatically to provide regulated power.

5.1 Kuwasha

After all wiring is complete and verified, apply 120VAC power to the unit.
The unit should power up and begin supplying regulated DC power to connected devices.

Viashiria vya Hali

The HPF-PS6 may include LED indicators to show its operational status. Refer to the label on the unit or internal documentation for specific indicator meanings (e.g., Power ON, Fault, Battery Low).

6. Matengenezo

The Fire-Lite HPF-PS6 is designed for minimal maintenance. However, periodic checks are recommended to ensure continued reliable operation.

Ukaguzi wa Mwaka: Annually inspect the unit for any signs of physical damage, loose connections, or excessive dust accumulation.
Kusafisha: If necessary, gently clean the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners or solvents.
Ukaguzi wa Betri (ikiwa inafaa): If backup batteries are used, check their condition and voltage periodically as per battery manufacturer recommendations. Replace batteries as needed.

7. Utatuzi wa shida

This section provides solutions to common issues. For problems not listed here, contact Fire-Lite technical support.

Tatizo	Sababu inayowezekana	Suluhisho
Hakuna Pato la Nguvu	No 120VAC input power; Blown fuse/breaker; Internal fault.	Check input power source and circuit breaker. Verify fuses. If problem persists, contact support.
Fault Indicator ON	Overload; Short circuit on output; Battery fault (if applicable).	Check connected devices for short circuits or overloads. Inspect battery connections and condition.
Kuongeza joto kwa kitengo	Insufficient ventilation; Overload.	Ensure adequate airflow around the unit. Reduce load if exceeding specifications.

8. Maelezo ya kiufundi

Vipimo	Thamani
Jina la Mfano	HPF-PS6
Mtengenezaji	FIRE-LITE
Nambari ya Sehemu	GHPFPS6
Uingizaji Voltage	120VAC
Ukadiriaji wa Sasa wa Pato	6 Amps
Pato Wattage	720 Watts
Mbinu ya Kupoeza	Hewa
Kiasi cha Kifurushi cha Bidhaa	1

9. Udhamini na Msaada

Fire-Lite products are manufactured to high standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Fire-Lite webtovuti.

For technical support, service, or replacement parts, please contact your authorized Fire-Lite distributor or customer service representative. Provide the model number (HPF-PS6) and serial number (if applicable) when contacting support.
