Mwongozo wa Maelekezo ya Ngazi ya Dock ya Alumini ya VEVOR FT-06 yenye Hatua 6 Inayoweza Kurekebishwa

1. Bidhaa Imeishaview

This manual provides detailed instructions for the VEVOR FT-06 6-Step Adjustable Aluminum Dock Ladder. Designed for safe and convenient access to and from water, this ladder features dual handrails, non-slip pedals, and adjustable height to suit various water depths. It is constructed from thickened 6063 aluminum alloy for durability and corrosion resistance.

Figure 1: VEVOR FT-06 6-Step Adjustable Aluminum Dock Ladder

2. Taarifa za Usalama

Before installation and use, please read all instructions carefully.

• Angalia mara kwa mara: Before each use, check all components for damage, wear, or loose connections. Do not use if any part is compromised.
• Ufungaji Salama: Ensure the ladder is securely mounted to the dock, pool edge, or vessel according to the installation instructions. Improper installation can lead to instability and injury.
• Kikomo cha Uzito: Usizidi kiwango cha juu cha uwezo wa mzigo wa lbs 500 (kilo 227).
• Footing: Always maintain three points of contact (two hands and one foot, or two feet and one hand) when ascending or descending.
• Watoto na Usimamizi: Children should always be supervised by an adult when using the ladder.
• Kina cha Maji: Ensure the ladder feet touch the bottom of the pool or lake to provide stable support. Adjust height as necessary.
• Eneo wazi: Keep the area around the ladder clear of obstructions.

3. Maagizo ya Kuweka

The VEVOR FT-06 dock ladder is designed for straightforward assembly and installation. Follow these steps for proper setup:

1. Sakinisha Pedals: Attach the non-slip pedals to the main ladder frame using the provided hardware. Ensure they are securely fastened.
2. Install Straight Rods: Connect the straight support rods to the ladder frame.
3. Install Support Feet: Attach the adjustable support feet to the bottom of the ladder. These feet are crucial for stability and height adjustment.
4. Sakinisha Handrails: Secure the dual handrails to the upper section of the ladder frame. These provide essential grip and stability.
5. Install Ladder to Dock Mounting Plate: Mount the ladder to your dock, pool edge, or vessel using appropriate fasteners (not included, as specific mounting hardware depends on the surface). Ensure the mounting is robust and can support the ladder's load capacity.

Kumbuka: Always ensure all bolts and connections are tightened before use to prevent wobbling or instability.

Figure 2: Visual guide for the 5-step installation process.

4. Maagizo ya Uendeshaji

This VEVOR dock ladder is designed for ease of use and safety.

• Ascending and Descending: Always face the ladder when climbing up or down. Use the dual handrails for support and maintain a firm grip. The wide, non-slip pedals are designed for comfortable and secure footing.
• Marekebisho ya Urefu: The ladder's height can be adjusted between 43-51.2 inches (109-130 cm) to accommodate varying water depths. Ensure the support feet are firmly on the bottom surface (lakebed, pool floor) for maximum stability. Adjustments should be made when the ladder is not in use and securely fastened.
• Uwekaji: Position the ladder in an area free from underwater obstructions and where there is sufficient water depth for safe entry and exit.

Figure 3: Adjustable height feature for varying water depths.

Figure 4: Detail of the 4-inch widened non-slip pedals.

Figure 5: Reinforced dual handrails for enhanced safety and grip.

5. Matengenezo

Regular maintenance will extend the life and ensure the safe operation of your VEVOR dock ladder.

• Kusafisha: Rinse the ladder with fresh water after each use, especially in saltwater environments, to prevent corrosion and buildup. Use a mild soap and soft brush for deeper cleaning if necessary. Avoid abrasive cleaners or tools that could damage the aluminum finish.
• Ukaguzi: Periodically inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners. Check the aluminum frame for any signs of cracks, bends, or corrosion. Inspect the non-slip pads on the pedals for wear or damage and replace if needed.
• Hifadhi: During off-season or periods of non-use, remove the ladder from the water, clean it thoroughly, and store it in a dry, protected area away from direct sunlight and extreme temperatures.

6. Utatuzi wa shida

If you encounter issues with your VEVOR dock ladder, refer to these common solutions.

• Ladder Feels Unstable:
  • Ensure all mounting bolts are securely tightened to the dock or vessel.
  • Verify that the adjustable support feet are firmly resting on the bottom surface and are correctly adjusted for the water depth.
  • Check for any damage to the frame or connections that might compromise stability.
• Ugumu wa kurekebisha urefu:
  • Ensure the ladder is not under load when attempting to adjust the height.
  • Check for any debris or corrosion in the adjustment mechanism. Clean and lubricate if necessary.
• Excessive Wear on Non-slip Pedals:
  • Non-slip pads are subject to wear over time. Replace them if they become smooth or damaged to maintain safety.

If problems persist or you have concerns not addressed here, please contact VEVOR customer support.

7. Vipimo

The following table details the specifications for the VEVOR FT-06 6-Step Adjustable Aluminum Dock Ladder.

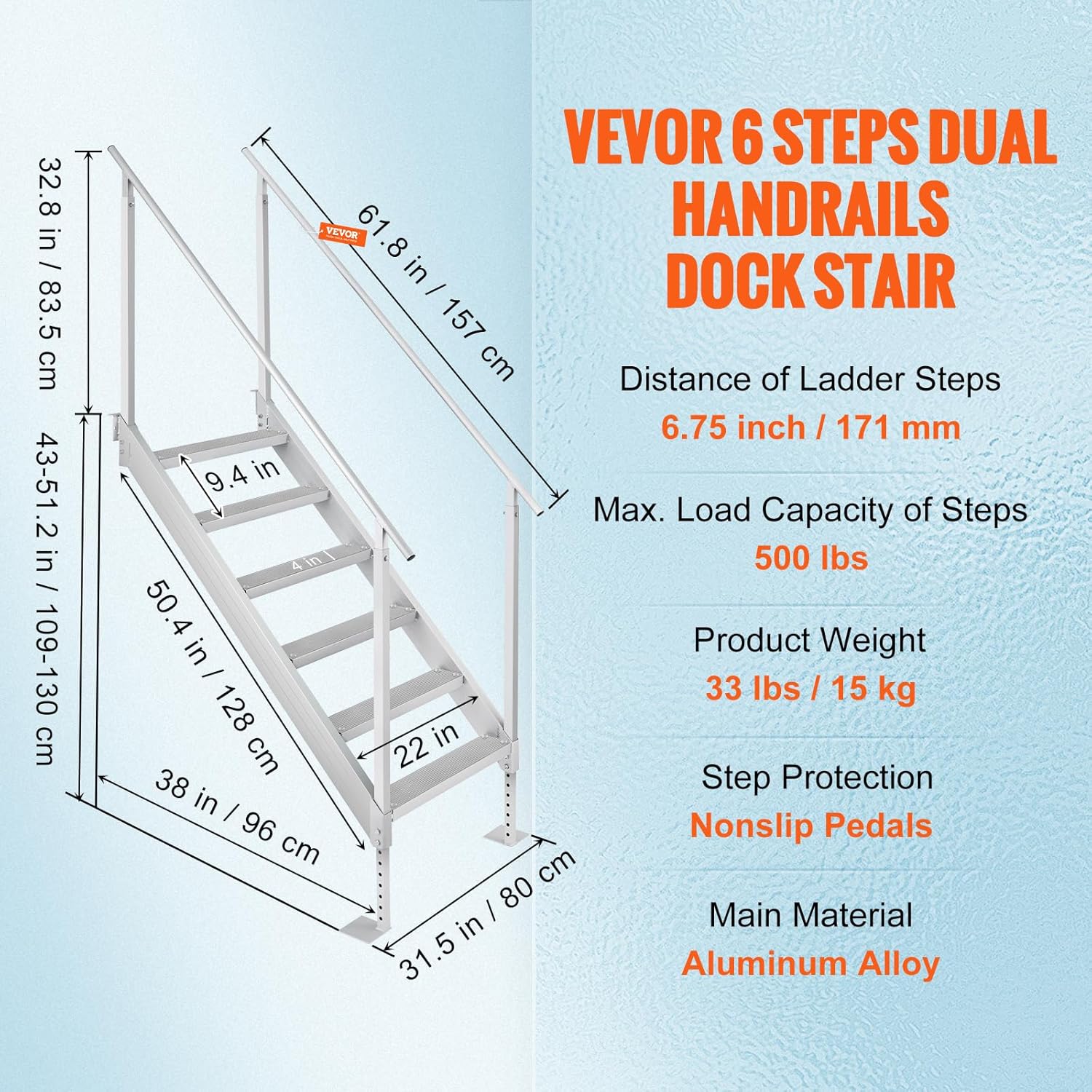

Mchoro 6: Vipimo vya kina na vipimo muhimu.

8. Udhamini na Msaada

For warranty information or technical assistance, please refer to the product packaging or contact VEVOR customer support directly. Keep your purchase receipt for warranty claims.
