Mwongozo wa Mtumiaji wa llano HDMI 2.1 Switcher (LL-HDMI2.1-SWITCH)

1. Zaidiview

The llano HDMI 2.1 Switcher is designed to expand the HDMI input capabilities of your display device. It allows you to connect up to four HDMI source devices to a single HDMI input on your television, monitor, or projector. This device supports advanced HDMI 2.1 features, including high resolutions and refresh rates, ensuring optimal performance for modern entertainment and gaming setups.

llano HDMI 2.1 Switcher with remote and power cable

Image: The llano HDMI 2.1 Switcher, showing its compact design, multiple HDMI ports, and included remote control and USB power cable.

2. Sifa Muhimu

Utiifu wa HDMI 2.1: Supports the latest HDMI 2.1 standard for high-bandwidth data transmission.
High Resolution & Refresh Rate: Capable of handling video resolutions up to 8K@60Hz and 4K@120Hz.
4-Input, 1-Output Configuration: Connects up to four HDMI source devices to a single display.
Chaguzi nyingi za Udhibiti: Features manual button switching, IR remote control, and automatic switching via CEC.
Teknolojia za Video za Kina: Supports CEC (Consumer Electronics Control), HDCP2.3, 3D video, HDR10+ (High Dynamic Range), VRR (Variable Refresh Rate), and ALLM (Auto Low Latency Mode) for enhanced viewuzoefu wa michezo na uchezaji.
Usaidizi wa Sauti: Compatible with various audio formats including Dolby Atmos and PCM 7.1.

Diagram illustrating HDMI 2.1 capabilities with 8K@60Hz and 48Gbps bandwidth compared to older HDMI versions.

Image: Visual representation of HDMI 2.1's superior bandwidth and resolution capabilities, supporting up to 8K@60Hz.

Gaming setup showing a console connected to a TV via the llano HDMI switch, highlighting 4K@120Hz refresh rate with VRR, ALLM, and QFT.

Image: A gaming console connected through the switch to a display, emphasizing support for 4K@120Hz, VRR, and ALLM for smooth gameplay.

3. Vipengele vya Bidhaa

The llano HDMI 2.1 Switcher package includes the following items:

llano HDMI 2.1 Switcher Unit
Udhibiti wa Mbali wa IR
USB-C Power Cable (for power supply, adapter not included)
Mwongozo wa Mtumiaji (hati hii)

Video: An official product video demonstrating the llano HDMI 2.1 Switcher's features, including its 8K intelligent chip, 48Gbps data transfer, ARC support, 4K 120Hz VRR, and various switching methods.

4. Maagizo ya Kuweka

Follow these steps to set up your llano HDMI 2.1 Switcher:

Muunganisho wa Nishati: Connect the provided USB-C power cable to the DC 5V port on the switch. Connect the other end of the USB-C cable to a suitable USB power adapter (e.g., a 5V/2A phone charger, not included). Ensure the switch receives stable power.
Muunganisho wa Kifaa cha Kuingiza: Connect your HDMI source devices (such as gaming consoles like PS5 or Xbox, Blu-ray players, PCs, or streaming devices) to the HDMI INPUT 1, INPUT 2, INPUT 3, and INPUT 4/ARC ports on the switch. Use high-quality HDMI 2.1 compatible cables for optimal performance.
Output Display Connection: Connect your television, monitor, or projector to the HDMI OUTPUT port on the switch. Again, use an HDMI 2.1 compatible cable.
ARC Connection (Optional): If you intend to use the Audio Return Channel (ARC) feature, ensure your television and audio receiver both support ARC. Connect an HDMI cable from your TV's ARC-enabled HDMI port to the INPUT 4/ARC port on the switch. Note that only this specific input port supports ARC functionality.

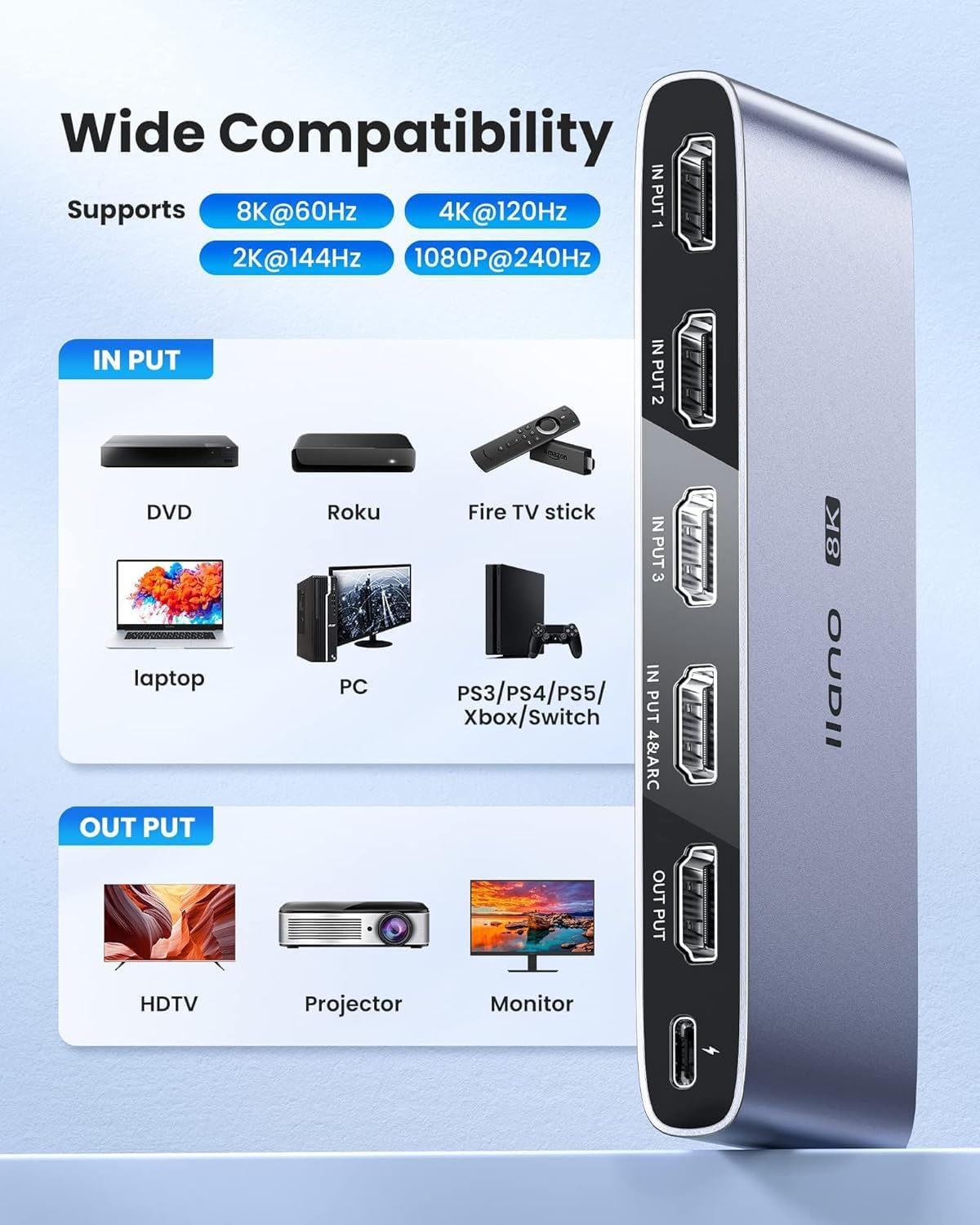

Diagram showing various input devices like DVD, Roku, Fire TV stick, laptop, PC, PS3/PS4/PS5/Xbox/Switch connecting to the llano HDMI switch, and outputting to HDTV, Projector, or Monitor.

Image: Illustration of wide compatibility, showing various input devices connecting to the switch and outputting to different display types.

5. Maagizo ya Uendeshaji

The llano HDMI 2.1 Switcher offers multiple ways to select your desired input source:

Kubadilisha Mwongozo: Press the 'SELECT' button located on the front panel of the switch to cycle through the connected HDMI input sources (Input 1, 2, 3, 4). The corresponding LED indicator will light up to show the active input.
Udhibiti wa Mbali wa IR: Use the included IR remote control to directly select an input source. Press the '1', '2', '3', or '4' button on the remote to switch to the respective HDMI input. Ensure there is a clear line of sight between the remote and the IR receiver on the switch for proper operation.
Automatic Switching (CEC): The switch supports Consumer Electronics Control (CEC). When a connected HDMI source device is powered on or begins playback, the switch may automatically detect the active signal and switch to that input. This functionality depends on the CEC compatibility and settings of your connected devices.
Taa za Viashiria: Observe the LED indicators on the front panel to identify the currently active input source.

Illustration of three switching methods: Automatic Switching, Remote Switching, and Manual Switching via the select button on the llano HDMI switch.

Image: Depiction of the three available input switching methods: automatic, remote, and manual button.

6. Matengenezo

To ensure the longevity and optimal performance of your llano HDMI 2.1 Switcher, please observe the following maintenance guidelines:

Kusafisha: Use a soft, dry cloth to clean the exterior of the device. Avoid using liquid cleaners or abrasive materials, as these can damage the finish or internal components.
Mazingira: Place the switch in a well-ventilated area, away from direct sunlight, heat sources, and excessive humidity. Ensure no objects block the ventilation openings.
Kushughulikia: Shikilia kifaa kwa uangalifu. Epuka kuiangusha au kuiweka kwenye athari kali.
Nguvu: Disconnect the power adapter when the device is not in use for extended periods.

7. Utatuzi wa shida

If you encounter issues with your llano HDMI 2.1 Switcher, refer to the following common troubleshooting steps:

Hakuna Video/Sauti Iliyotolewa:
- Hakikisha kebo zote za HDMI zimeunganishwa salama kwenye vifaa chanzo, swichi, na skrini.
- Verify that the correct input source is selected on the switch (check LED indicators).
- Confirm that the switch is receiving power from the USB-C power cable and adapter.
- Test with different HDMI cables, especially high-quality HDMI 2.1 certified cables, as lower quality cables may not support high resolutions/refresh rates.
- Bypass the switch and connect the source device directly to the display to confirm the source device and display are functioning correctly.
Flickering Screen or Intermittent Signal:
- This can often be caused by cable quality. Replace HDMI cables with certified HDMI 2.1 cables.
- Hakikisha usambazaji wa umeme ni thabiti na wa kutosha.
- Punguza ubora au kiwango cha kuburudisha cha kifaa chanzo ili kuona kama tatizo linaendelea.
IR Remote Control Not Responding:
- Check and replace the battery in the remote control.
- Hakikisha hakuna vizuizi kati ya rimoti na kipokezi cha IR kwenye swichi.
- Note that the effective range of the remote control may be limited.
ARC (Audio Return Channel) Not Functioning:
- Confirm that both your TV and audio receiver are ARC-enabled and that ARC is activated in their respective settings.
- Ensure the HDMI cable is connected to the INPUT 4/ARC port on the switch and the designated ARC HDMI port on your TV.
- Some TV brands (e.g., Sony) may have specific ARC compatibility considerations with external switches. Consult your TV's manual.
Automatic Switching (CEC) Issues:
- CEC functionality can be inconsistent across different brands and devices. Ensure CEC is enabled on all connected devices.
- Try disabling and re-enabling CEC on your devices and the switch (if applicable).

8. Vipimo

Kipengele	Maelezo
Nambari ya Mfano	LL-HDMI2.1-SWITCH
Toleo la HDMI	HDMI 2.1
Azimio la Max	8K@60Hz, 4K@120Hz
Ingizo	4 x HDMI
Matokeo	1 x HDMI
Msaada wa ARC	Yes (on INPUT 4/ARC port)
Toleo la HDCP	HDCP2.3
Teknolojia Zinazotumika	CEC, 3D, HDR10+, VRR, ALLM
Ugavi wa Nguvu	DC 5V (via USB-C)
Uzito wa Kipengee	9.2 wakia
Vipimo vya Kifurushi	Inchi 5.87 x 4.25 x 1.14

9. Udhamini na Msaada

For warranty information and technical support, please refer to the official llano webtovuti au wasiliana na idara yao ya huduma kwa wateja. Hifadhi risiti yako ya ununuzi kwa madai ya udhamini.
