1. Utangulizi
The EDISION Picco S2 Pro is a Full HD DVB-S2 H.265/HEVC digital satellite receiver designed for receiving satellite signals. This dynamically designed receiver features a built-in card reader, Multistream support, and on-board Wi-Fi for accessing various internet applications. It also includes a 2-in-1 universal remote control and H.265 media player capabilities.
Image: EDISION Picco S2 Pro product packaging.
2. Bidhaa Imeishaview
2.1 Sifa Muhimu
- DVB-S2 H.265/HEVC digital satellite receiver for satellite channels.
- On-board Wi-Fi, card reader, Multistream, Unicable & SCR Unicable 2 support.
- USB connection for PVR (Personal Video Recorder), Timeshift, Playback, software updates, and backup function.
- Internet connection for applications: YouTube, Stalker TV, Xtream, WebTV, Shoutcast, Dailymotion, Weather.
- H.265 media player (supports MP3/AC3/AAC/JPEG/PNG/MP4/MOV/AVI/MKV/MPG/MPEG/Xvid/DviX).
- Ergonomic 2-in-1 universal remote control for set-top box and TV, with 4 programmable buttons for TV.
2.2 Yaliyomo kwenye Kifurushi
Hakikisha bidhaa zote zipo kwenye kifurushi:
Image: EDISION Picco S2 Pro package contents.
- EDISION Picco S2 Pro Receiver
- 2-in-1 Kidhibiti cha Mbali cha Universal
- Power Supply Unit (PSU 12V/1A)
- 2x Betri za AAA
- Mwongozo wa Mtumiaji wa Haraka

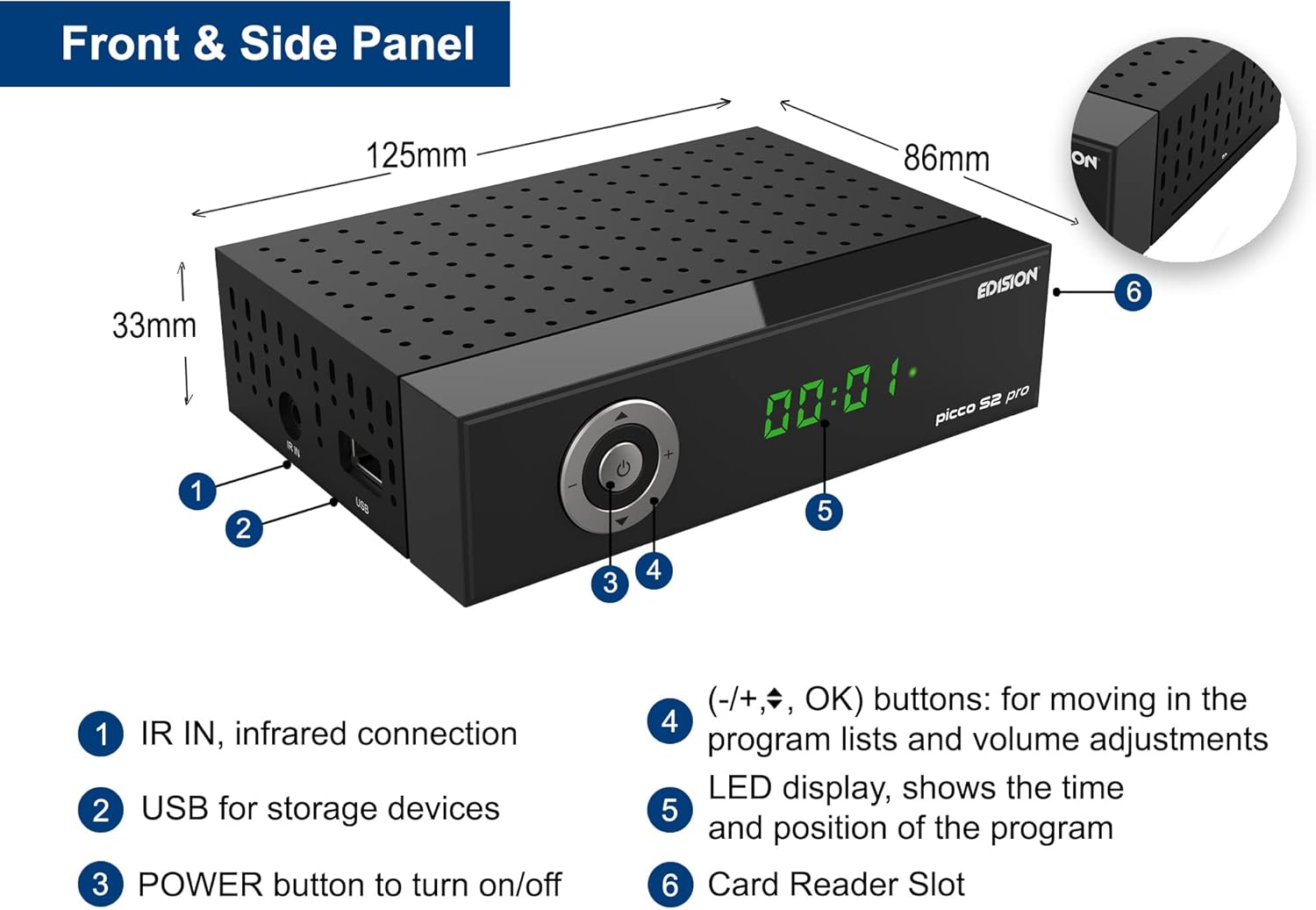

2.3 Front & Side Panel
Image: Front and side panel layout with dimensions and labeled components.
- IR KATIKA: Infrared connection for external IR sensor.
- USB: For storage devices (PVR, media playback, software updates).
- Kitufe cha NGUVU: Ili kuwasha/kuzima kifaa.
- (-/+, OK) buttons: For navigating program lists and adjusting volume.
- Maonyesho ya LED: Shows the time and current program position.
- Card Reader Slot: For conditional access cards.
2.4 Viunganisho vya Paneli ya Nyuma
Image: Rear panel connections with labeled ports.
- LNB IN (13V/18V 400mA Max): DVB-S2 tuner to receive satellite channels.
- S/PDIF: Coaxial audio connection.
- HDMI: HDMI connection, up to Full HD 1080p.
- KIWANGO: Uunganisho wa Runinga ya Analog.
- DC 12V: Connection for external power supply.
2.5 2-in-1 Kidhibiti cha Mbali cha Universal
Image: EDISION 2-in-1 Universal Remote Control.
The remote control is designed for both the set-top box (STB) and your TV. It comes pre-programmed with the 4 most important functions for SAMSUNG and LG TVs. You can program these 4 buttons as desired for other TV brands.
3. Kuweka
3.1 Kuunganisha Kipokezi
Follow these steps to connect your EDISION Picco S2 Pro receiver:
- Muunganisho wa Sahani ya Setilaiti: Connect the LNB cable from your satellite dish to the 'LNB IN' port on the rear panel of the receiver.
- Muunganisho wa TV:
- For High Definition (HD) output, connect an HDMI cable from the 'HDMI' port on the receiver to an HDMI input on your television.
- For Standard Definition (SD) output, connect a SCART cable from the 'SCART' port on the receiver to the SCART input on your television.
- Muunganisho wa Mfumo wa Sauti (Si lazima): If you have an external audio system, connect it to the 'S/PDIF' coaxial audio output for digital audio.
- Muunganisho wa Nishati: Connect the provided 12V/1A power adapter to the 'DC 12V' input on the receiver, then plug the adapter into a wall outlet.
Image: Receiver connected to a television, showing the main menu interface.
3.2 Umewasha Awali
After connecting all cables, press the POWER button on the front panel or the remote control to turn on the receiver. The LED display will show the current status. Follow the on-screen instructions for initial setup, which typically includes language selection, country, and satellite scanning.
4. Maagizo ya Uendeshaji
4.1 Operesheni ya Msingi
- Utafutaji wa Kituo: Access the 'Installation' menu to perform an automatic or manual channel scan for available satellite channels.
- Urambazaji wa Kituo: Use the CH+/CH- buttons on the remote to change channels. Use the numeric keypad to directly enter channel numbers.
- Udhibiti wa Sauti: Use the VOL+/VOL- buttons to adjust the volume.
- Ufikiaji wa Menyu: Press the 'MENU' button to access the main menu for settings, applications, and other functions.
4.2 Wi-Fi & Internet Applications
The built-in Wi-Fi allows you to connect the receiver to your home network and access various online applications:
- YouTube
- Stalker TV
- Xtream
- WebTV
- Kupiga kelele
- Dailymotion
- Utabiri wa hali ya hewa
Image: Stalker TV application logo, one of the supported internet applications.
4.3 Media Playback & PVR
Connect a USB storage device to the USB port on the front panel to utilize the following functions:
- PVR (Kinasa Video cha Kibinafsi): Record live TV programs.
- Nyakati za saa: Pause, rewind, and fast-forward live TV.
- Uchezaji wa media: Play various media files including MP3, AC3, AAC, JPEG, PNG, MP4, MOV, AVI, MKV, MPG, MPEG, Xvid, and DviX.
- Software Updates & Backup: Use the USB port for convenient software updates and system backups.
5. Matengenezo
To ensure optimal performance and longevity of your receiver:
- Kusafisha: Use a soft, dry cloth to clean the exterior of the receiver. Do not use liquid cleaners or aerosols.
- Uingizaji hewa: Ensure the receiver has adequate ventilation. Do not block the ventilation holes.
- Masasisho ya Programu: Regularly check for and install online software updates to improve performance and add new features. These can typically be found in the system settings menu or via USB.
- Zima umeme: If the receiver will not be used for an extended period, disconnect it from the power supply.
6. Utatuzi wa shida
If you encounter issues with your EDISION Picco S2 Pro, consider the following basic troubleshooting steps:
- Hakuna Nguvu: Check if the power adapter is securely connected to both the receiver and the wall outlet. Ensure the outlet is functional.
- Hakuna Ishara: Verify that the satellite LNB cable is correctly connected to the 'LNB IN' port. Check your satellite dish alignment.
- Hakuna Picha/Sauti: Ensure the HDMI or SCART cable is securely connected to both the receiver and the TV. Check the TV's input source selection.
- Kidhibiti cha Mbali hakifanyi kazi: Check the batteries in the remote control and replace them if necessary. Ensure there are no obstructions between the remote and the receiver's IR sensor.
- Masuala ya Muunganisho wa Mtandao: Verify your Wi-Fi network is active and the receiver is correctly connected. Re-enter Wi-Fi credentials if needed.
- System Freeze/Unresponsive: Try restarting the receiver by unplugging it from the power outlet for a few seconds and then plugging it back in.
For persistent issues, consult the detailed user manual (if available) or contact EDISION customer support.
7. Vipimo
| Kipengele | Vipimo |
|---|---|
| Chapa | Toleo |
| Rangi | Nyeusi |
| Teknolojia ya Uunganisho | HDMI, SCART, USB, Wi-Fi |
| Jumla ya Bandari za USB | 1 |
| Jumla ya Bandari za HDMI | 1 |
| Njia ya Pato la Sauti | Stereo |
| Vifaa Sambamba | Television with HDMI, SCART, or 3RCA connection |
| Miundo ya Sauti Inayotumika | Various formats (MP3/AC3/AAC) |
| Voltage | Volti 12 (DC) |
| Matumizi ya Bidhaa Yanayopendekezwa | Watching high-definition satellite channels |
| Nambari ya Mfano wa Kipengee | 01-07-0028 |
| Mtengenezaji | TOLEO |
| Nchi ya Asili | China |
| Muundo wa Betri | Alkali |
| Betri Inayoweza Kuchajiwa tena | Hapana |
| Upatikanaji wa Vipuri | Taarifa hazipatikani |
| Masasisho ya Programu Yamehakikishwa Hadi | Taarifa hazipatikani |
8. Udhamini na Msaada
Information regarding specific warranty terms and conditions for the EDISION Picco S2 Pro is not available in the provided product details. For warranty claims or technical support, please refer to the documentation included with your purchase or contact EDISION customer service directly.
Spare parts availability and guaranteed software update periods are also not specified in the available information.
