Mwongozo wa Mtumiaji wa EIZO ColorEdge CS2400S

1. Utangulizi na Zaidiview

The EIZO ColorEdge CS2400S is a high-performance 24.1-inch color management LCD monitor designed for professionals in digital photography, illustration, and graphic design. It offers exceptional color accuracy and advanced features to ensure precise visual representation.

Key features of the ColorEdge CS2400S include:

Wide color gamut covering 99% of Adobe RGB.
USB Type-C connectivity for video display, USB signal transmission, and up to 70W power delivery to connected notebooks.
Smooth gradation display and reduced brightness/chromaticity unevenness through digital uniformity correction.
Compatibility with ColorNavigator 7 color management software.
Support for Quick Color Match tool for easy photo print color matching.
Designed for use in Japan with AC100V, 50/60Hz input voltage.

Figure 1.1: The EIZO ColorEdge CS2400S monitor, showcasing its display capabilities including 24.1-inch WUXGA resolution, Adobe RGB, and USB Type-C connectivity.

2. Kuweka

2.1 Kufungua na Yaliyomo

Carefully remove the monitor and all accessories from the packaging. Ensure all components are present before proceeding with setup.

2.2 Kuunganisha Monitor

The ColorEdge CS2400S offers versatile connectivity options, including USB Type-C, DisplayPort, and HDMI. For optimal performance and convenience, USB Type-C is recommended for compatible devices.

USB Type-C connection diagram for EIZO monitor

Figure 2.1: Diagram illustrating USB Type-C connection. This single cable handles video display, USB signal transmission, and power delivery (up to 70W) to a connected notebook PC.

To connect your notebook PC using a single USB Type-C cable:

Connect one end of the USB Type-C cable to the USB Type-C port on the monitor.
Connect the other end of the USB Type-C cable to a compatible USB Type-C port on your notebook PC.
Connect the monitor's power cable to an AC outlet (AC100V, 50/60Hz).

This connection method allows for video output, USB data transfer, and charging of your notebook PC simultaneously, reducing cable clutter.

EIZO monitor connected to MacBook Pro with single cable

Figure 2.2: A clean desk setup showing the EIZO ColorEdge CS2400S monitor connected to a MacBook Pro with a single USB Type-C cable, simplifying the workspace.

2.3 Kurekebisha Stendi

The monitor stand allows for height, tilt, swivel, and pivot adjustments to achieve an ergonomic viewing position. Gently adjust the monitor to your preferred angle and height.

3. Uendeshaji wa Monitor

3.1 Washa/Zima

Press the power button located on the front bezel of the monitor to turn it on or off.

3.2 Color Management and Calibration

The ColorEdge CS2400S is designed for precise color reproduction. It covers 99% of the Adobe RGB color space, ensuring accurate display of a wide range of colors, crucial for professional creative work.

Adobe RGB 99% coverage color gamut diagram

Figure 3.1: Color gamut comparison showing the EIZO CS2400S's wide color coverage, including 99% of Adobe RGB, for faithful color reproduction.

For consistent and accurate color, it is recommended to regularly calibrate your monitor using the dedicated ColorNavigator 7 software. This software allows for precise adjustment of brightness, white point, and gamma settings.

3.3 Smooth Gradation and Uniformity

Each ColorEdge CS2400S monitor is adjusted at the factory to ensure smooth gradation and minimize brightness and chromaticity unevenness across the screen. This is achieved through a digital uniformity correction circuit.

Grayscale comparison and uniformity correction diagram

Figure 3.2: Comparison of grayscale display, demonstrating how the ColorEdge monitor achieves smooth gradations and reduces unevenness compared to typical monitors, thanks to its correction circuit.

3.4 Quick Color Match

The monitor supports the free "Quick Color Match" software, which simplifies the process of matching colors between your monitor and photo prints. This tool helps ensure that what you see on screen closely matches your printed output.

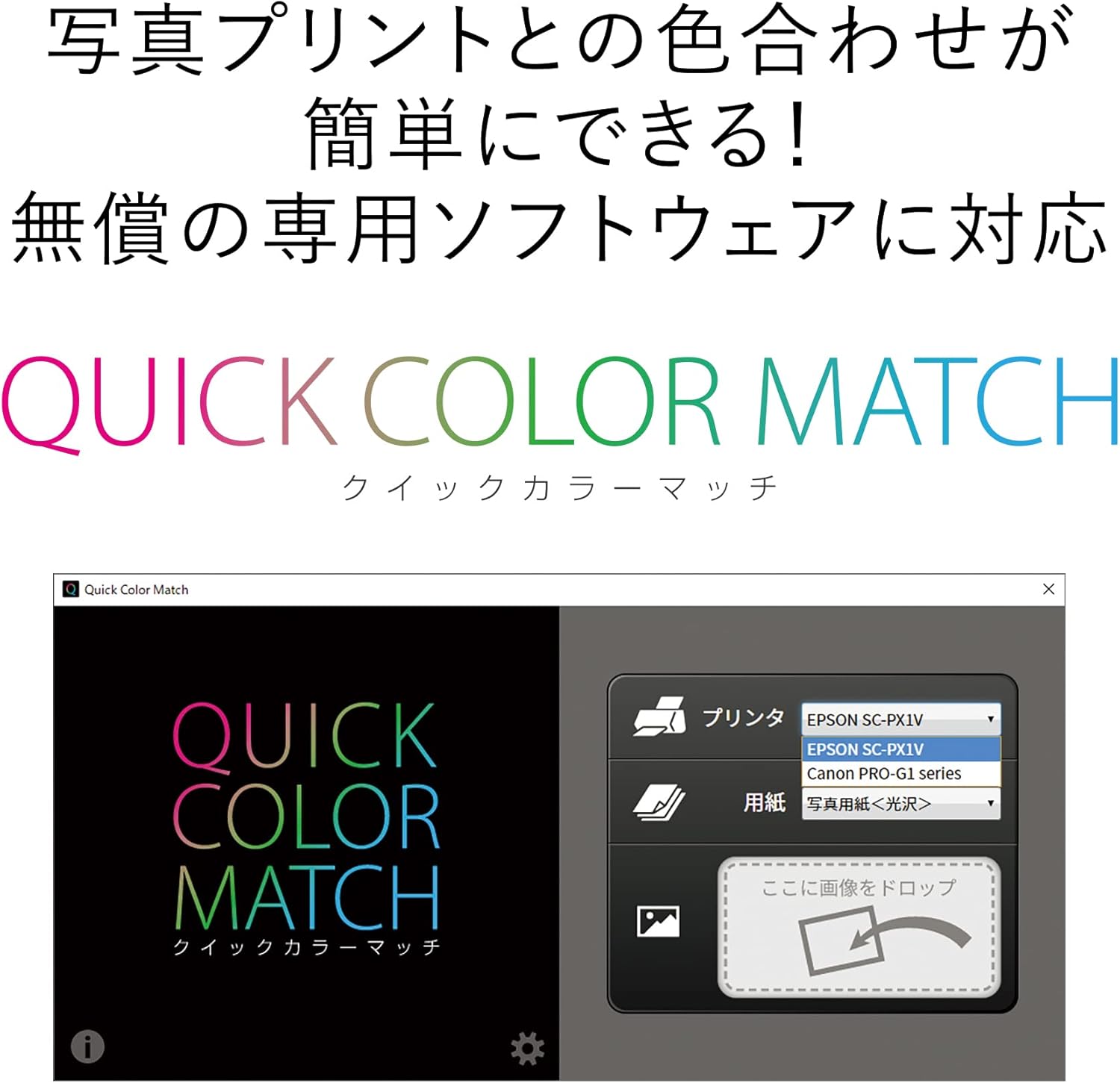

Figure 3.3: Screenshot of the Quick Color Match software interface, designed to simplify color matching for photo printing.

4. Matengenezo

4.1 Kusafisha Monitor

Ili kusafisha skrini ya kufuatilia, uifute kwa upole kwa kitambaa laini, kisicho na pamba. Kwa alama za ukaidi, kidogo dampen the cloth with water or a mild, non-abrasive screen cleaner. Avoid using alcohol, benzene, or strong chemical cleaners.

4.2 Utunzaji wa jumla

Keep the monitor in a well-ventilated area, away from direct sunlight, excessive heat, or moisture. Do not block the ventilation openings. Avoid placing heavy objects on the monitor or its cables.

5. Utatuzi wa shida

If you encounter issues with your EIZO ColorEdge CS2400S monitor, please refer to the following common troubleshooting steps:

Hakuna Nguvu: Ensure the power cable is securely connected to both the monitor and a working electrical outlet. Check if the power indicator light is on.
Hakuna Picha: Verify that the video cable (USB Type-C, DisplayPort, or HDMI) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected on the monitor. Try restarting your computer.
Picha Inayopepesuka au Iliyopotoka: Check the video cable for damage or loose connections. Ensure your graphics card drivers are up to date. Try adjusting the display resolution and refresh rate on your computer.
Usahihi wa Rangi: Perform a monitor calibration using ColorNavigator 7 software. Ensure your operating system's color profile mipangilio ni sahihi.
USB Type-C Power Delivery Issues: Confirm your notebook PC supports power delivery via USB Type-C. Check that the USB Type-C cable is fully inserted and functional.

If the problem persists after attempting these steps, please contact EIZO customer support for further assistance.

6. Vipimo

Kipengele	Vipimo
Chapa	EIZO
Nambari ya Mfano	CS2400S-LE
Ukubwa wa skrini	inchi 24.1
Azimio	1920 x 1200 (WUXGA)
Uwiano wa kipengele	16:10
Aina ya Paneli	IPS (implied by color management features)
Rangi ya Gamut	99% Adobe RGB coverage
Uingizaji Voltage	AC100V, 50/60Hz (Japan only)
Muunganisho	USB Type-C (70W power delivery), DisplayPort, HDMI, 4x USB ports
Vipimo vya Bidhaa (W x H x D)	55.4 x 55.1 x 24.5 cm (pamoja na stendi)
Uzito wa Bidhaa	8.2 kg
Surface Description	Isiyo na mwako

7. Udhamini na Msaada

7.1 Dhamana ya Bidhaa

The EIZO ColorEdge CS2400S monitor comes with a 5-year warranty. This warranty is valid only in Japan. Additionally, a 6-month warranty for zero bright pixels is provided from the date of purchase.

EIZO 5-year warranty and zero bright pixel warranty

Figure 7.1: Visual representation of the 5-year warranty and the zero bright pixel warranty offered by EIZO.

Figure 7.2: Important notice regarding the product's input voltage (AC100V, 50/60Hz) and warranty validity, which are exclusively for use in Japan.

7.2 Usaidizi kwa Wateja

For technical support, warranty claims, or any inquiries regarding your EIZO ColorEdge CS2400S monitor, please contact EIZO customer service in Japan. Refer to the official EIZO website or the documentation included with your product for contact details.

Please note that this product is intended for use only in Japan, and the warranty is valid exclusively within Japan.
