Mwongozo wa Mtumiaji wa Kisanduku cha Msimbo wa Wakati wa Waya cha Deity TC-1 KIT

1. Utangulizi

The Deity TC-1 KIT Wireless Timecode Box is a professional solution for synchronizing audio and video across multiple devices. This kit includes three TC-1 units, offering advanced features such as long-range wireless control, frame-accurate timecode generation, and versatile mounting options. Designed for filmmakers and audio professionals, the TC-1 simplifies post-production workflows by ensuring precise timecode synchronization.

Three Deity TC-1 wireless timecode boxes and included accessories laid out on a white surface.

Image: The Deity TC-1 KIT, showcasing three timecode boxes and various cables and mounting accessories.

2. Ni nini kwenye Sanduku

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako:

3x Deity TC-1 Wireless Timecode Boxes
3x Deity C15 TRS to BNC Cables (for timecode output)
1x Deity C13 TRS to TRS Cable
1x USB-C to USB-A Charging Cable (3-way splitter for simultaneous charging)
1x USB-C hadi Adapta ya USB-A
3x Cold Shoe Mounts
Hook-n-loop pads
Mwongozo wa Mtumiaji (hati hii)

Contents of the Deity TC-1 KIT laid out, including three TC-1 units, various cables, cold shoe mounts, and hook-n-loop pads.

Image: A visual representation of all components included in the Deity TC-1 KIT.

3. Vipengele vya Bidhaa na Udhibiti

Familiarize yourself with the key parts and controls of the Deity TC-1 unit:

Diagram of Deity TC-1 showing Function Wheel, Power/Back Button, USB-C Charging Port, Removable Cold Shoe Mount, Power LED, Sync LED, Bluetooth LED, Locking 3.5mm Timecode Port, Built-In Microphone, and OLED Display.

Image: Labeled diagram illustrating the various ports, buttons, and indicators on the Deity TC-1 timecode box.

Onyesho la OLED: Shows timecode, battery status, and operational modes.
Function Wheel: Inatumika kwa menyu za kusogeza na kurekebisha mipangilio.
Kitufe cha Nguvu / Nyuma: Powers the unit on/off and navigates back in menus.
Mlango wa Kuchaji wa USB-C: Kwa kuchaji betri ya ndani.
Locking 3.5mm Timecode Port (I/O): Connects to cameras or audio recorders for timecode input/output.
Maikrofoni Iliyojengwa Ndani: Scratch microphone for reference audio.
Removable Cold Shoe Mount: For attaching to cameras or rigs.
Viashiria vya LED: Power, Sync, and Bluetooth status.

4. Mwongozo wa Kuweka

4.1 Charging the TC-1

Before initial use, fully charge all TC-1 units. Connect the provided USB-C charging cable to the USB-C port on each TC-1 unit and to a USB power source. The Power LED will indicate charging status.

Close-up of the Deity TC-1 showing the USB-C charging port and the 3.5mm timecode I/O port.

Image: The USB-C charging port and 3.5mm timecode port on the Deity TC-1.

4.2 Mounting the TC-1

The TC-1 offers multiple mounting options:

Mlima wa Viatu Baridi: Attach the removable cold shoe mount to the bottom of the TC-1, then slide it onto a camera's cold shoe or a rig.
1/4" or 3/8" Threaded Mount: Beneath the cold shoe mount, there are standard threaded mounts for direct attachment to tripods, arms, or other accessories.
Hook-n-loop Pads: Use the included hook-n-loop pads for flexible attachment to various surfaces.

Nyuma view of the Deity TC-1 showing the removable cold shoe mount with a 1/4 inch thread.

Image: The removable cold shoe mount and threaded attachment point on the Deity TC-1.

4.3 Mipangilio ya Awali ya Kuwasha na Mipangilio ya Msingi

Bonyeza na ushikilie Kitufe cha Nguvu / Nyuma to turn on the TC-1.
The OLED display will show the current timecode and battery status.
Tumia Function Wheel ili kupitia chaguzi za menyu.
Adjust settings such as frame rate, timecode mode (e.g., Free Run, Record Run), and output level as required for your production.

5. Maagizo ya Uendeshaji

5.1 Timecode Synchronization

The TC-1 offers multiple methods for precise timecode synchronization:

Bit Connectify™ Wireless Control: Control up to 20 TC-1 units from a master unit up to 250 feet away. This proprietary technology ensures robust and long-range synchronization.
Secondary RF Chip: For closer range synchronization (up to 30 feet) between TC-1 devices, a secondary RF chip provides reliable connectivity.
Bluetooth 5.0 & Sidus Audio™ App: Connect your TC-1 units to a smartphone or laptop via Bluetooth and use the Sidus Audio™ app for comprehensive control, monitoring, and simultaneous syncing of all units.

A smartphone displaying the Sidus Audio app interface, with two Deity TC-1 units visible in the background, demonstrating app control.

Image: The Sidus Audio app controlling Deity TC-1 units, showing settings for timecode and frame rate.

To sync, designate one TC-1 as the master and the others as slaves. Initiate the sync process via the master unit's menu or the Sidus Audio™ app. The Sync LED will confirm successful synchronization.

5.2 Connecting to Devices (Cameras/Recorders)

Use the provided C15 TRS to BNC cables or other compatible 3.5mm TC cables to connect the TC-1 to your recording equipment. The locking 3.5mm port ensures a secure connection during operation.

A Deity TC-1 unit connected via its 3.5mm locking timecode port to a camera or audio recorder, with the timecode display visible.

Image: A Deity TC-1 connected to a recording device, displaying active timecode.

5.3 Using the Built-In Scratch Microphone

For cameras or action cameras that only feature a stereo mic input, the TC-1's built-in scratch microphone can provide a reference audio track. This is useful for quickly aligning audio in post-production, especially when a dedicated audio recorder is not used.

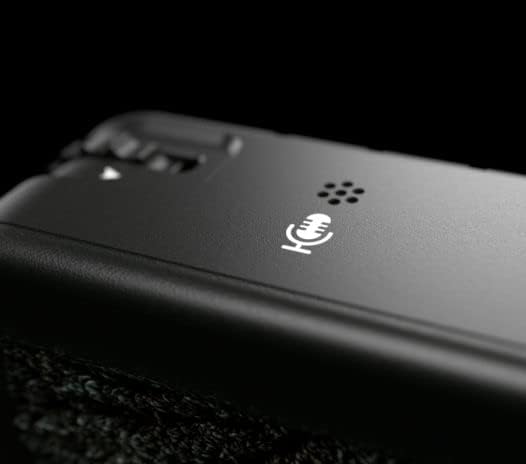

Close-up of the Deity TC-1 showing the integrated scratch microphone grille.

Image: The built-in scratch microphone on the Deity TC-1 unit.

6. Matengenezo

Kusafisha: Use a soft, dry cloth to clean the exterior of the TC-1 units. Avoid using harsh chemicals or abrasive materials.
Hifadhi: Hifadhi vifaa hivyo mahali pakavu na penye baridi, mbali na jua moja kwa moja na halijoto kali.
Utunzaji wa Betri: For optimal battery life, avoid fully discharging the units frequently. If storing for extended periods, charge the batteries to approximately 50%.
Sasisho za Firmware: Periodically check the Deity website or the Sidus Audio™ app for firmware updates to ensure optimal performance and access to new features.

7. Utatuzi wa shida

Tatizo	Sababu inayowezekana	Suluhisho
Kitengo hakiwashi.	Betri ya chini au iliyoisha.	Charge the unit using the provided USB-C cable.
Timecode not syncing.	Units out of range; incorrect master/slave setup; interference.	Ensure units are within range (250ft for Bit Connectify, 30ft for RF). Verify master/slave settings. Check for sources of wireless interference.
Timecode drift.	Prolonged operation without re-sync; extreme temperature changes.	Re-sync units periodically, especially after long takes or significant environmental changes. The TC-1 is designed for minimal drift (less than 1 frame in 72 hours).
Udhibiti wa programu haufanyi kazi.	Bluetooth haijawashwa; programu haijasasishwa; kifaa hakiwezi kugunduliwa.	Ensure Bluetooth is active on your device and the TC-1. Update the Sidus Audio™ app. Restart the TC-1 unit.
No timecode output to camera/recorder.	Incorrect cable; incorrect output settings on TC-1; camera input misconfigured.	Verify cable connection and type. Check TC-1 output settings. Ensure camera/recorder is set to receive external timecode.

8. Vipimo

Kipengele	Maelezo
Mfano	Deity TC-1
Usahihi wa Msimbo wa Muda	±0.5ppm (less than 1 frame drift in 72 hours)
Wireless Control Range (Bit Connectify™)	Hadi futi 250 (mita 76)
Wireless Sync Range (TC-1 to TC-1 RF)	Hadi futi 30 (mita 9)
Toleo la Bluetooth	5.0
Vituo	8
Timecode Connection	Locking 3.5mm TRS (I/O)
Kuchaji Bandari	USB-C
Chaguzi za Kuweka	Removable Cold Shoe, 1/4" and 3/8" Threaded Mounts, Hook-n-loop
Maikrofoni Iliyojengwa ndani	Yes (Scratch Mic)
Vipimo vya Kifurushi	Inchi 9.49 x 7.68 x 2.64
Uzito wa bidhaa (kwa kila kitengo)	Approximately 0.43 pounds (1.3 pounds / 3 units)
Mtengenezaji	Deity

9. Udhamini na Msaada

For detailed warranty information, technical support, and service inquiries, please refer to the official Deity webtovuti au wasiliana na usaidizi kwa wateja wao moja kwa moja. Weka uthibitisho wako wa ununuzi kwa madai ya udhamini.

Deity Official Webtovuti: www.deitymic.com
