Mwongozo wa Mtumiaji wa Chaja ya Betri ya HiQuick 8 Bay Smart

1. Utangulizi

Thank you for choosing the HiQuick 8 Bay Smart Battery Charger. This intelligent charger is designed to efficiently and safely charge Ni-MH/Ni-Cd AA and AAA rechargeable batteries. With its advanced features and multiple protection mechanisms, it ensures optimal performance and longevity for your batteries. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to help you get the most out of your product.

HiQuick 8 Bay Smart Battery Charger with AA and AAA batteries

Figure 1: HiQuick 8 Bay Smart Battery Charger with included AA and AAA rechargeable batteries.

2. Maagizo ya Usalama

Please read these safety instructions carefully before using the charger to prevent injury and damage to the product or connected devices. Keep this manual for future reference.

Use only with compatible Ni-MH/Ni-Cd AA and AAA rechargeable batteries. Do not attempt to charge alkaline, carbon-zinc, or other non-rechargeable battery types, as this may lead to leakage, rupture, or explosion.
Do not disassemble, modify, or repair the charger. Refer all servicing to qualified personnel.
Avoid exposing the charger to water, moisture, high temperatures, or direct sunlight.
Usitumie chaja ikiwa imeharibiwa kwa njia yoyote.
Hakikisha uingizaji hewa mzuri wakati wa kuchaji. Usifunike chaja.
Weka mbali na watoto na kipenzi.
Unplug the charger from the power source when not in use or before cleaning.
Dispose of batteries and the charger according to local regulations. Do not dispose of batteries in fire.

3. Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi:

1 x HiQuick 8 Bay Smart Battery Charger
4 x HiQuick AA Ni-MH Rechargeable Batteries (2800mAh)
20 x HiQuick AAA Ni-MH Rechargeable Batteries (1100mAh)
1 x USB Charging Cable (Power adapter not included)
1 x Mwongozo wa Mtumiaji

4. Bidhaa za Bidhaa

Nafasi 8 za Kuchaji Huru: Allows simultaneous charging of 1 to 8 AA or AAA Ni-MH/Ni-Cd batteries.
Onyesho Mahiri la LED: Individual LED indicators for each slot show charging status (Red for Charging, Green for Fully Charged).
Teknolojia ya Kuchaji Haraka: Utilizes pulse current charging for efficient and rapid charging. Charges 1-8 AAA 1100mAh batteries in approximately 2 hours and 1-8 AA 2800mAh batteries in approximately 4.5 hours.
Vipengele vingi vya Ulinzi: Built-in microcomputer control technology provides protection against overcharge, overcurrent, overvoltage, overheat, and short circuit conditions.
Utangamano wa Universal: Supports various devices requiring AA/AAA batteries.
Low Self-Discharge Batteries: Included HiQuick Ni-MH batteries retain 80% capacity after 36 months of non-use.
Long-Life Rechargeable Batteries: Batteries can be cycled up to 1200 times.

HiQuick charger with multiple protection icons

Figure 2: The charger features multiple protection mechanisms including overcharge, overcurrent, overvoltage, overheat, and short circuit protection.

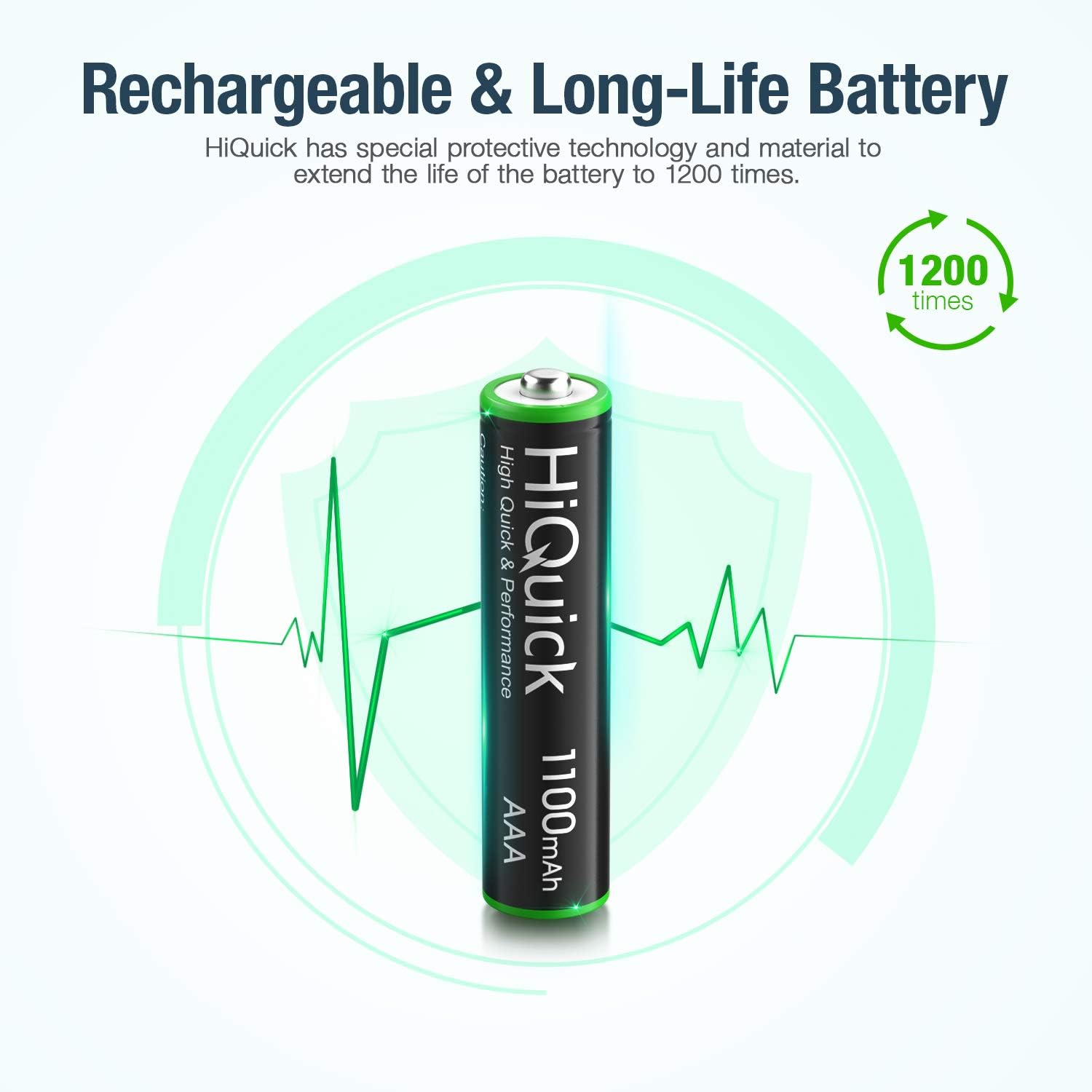

HiQuick rechargeable battery with 1200 times cycle life

Figure 3: HiQuick rechargeable batteries are designed for long life, supporting up to 1200 charge cycles.

5. Kuweka

Fungua Chaja: Ondoa chaja na vifaa vyote kwa uangalifu kutoka kwenye kifungashio.
Unganisha Nguvu: Connect the provided USB charging cable to the charger's 5V2A input port. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a USB port on a computer. Ensure the power source provides 5V/2A for optimal charging speed.
Weka Betri: Insert 1 to 8 AA or AAA Ni-MH/Ni-Cd rechargeable batteries into the charging slots. Ensure the positive (+) and negative (-) ends of the batteries align correctly with the markings on the charger. Incorrect insertion can prevent charging or damage the batteries/charger.

HiQuick charger with AA and AAA batteries inserted

Figure 4: The charger supports hybrid charging of both AA and AAA Ni-MH/Ni-Cd rechargeable batteries.

6. Maagizo ya Uendeshaji

Anzisha Kuchaji: Once batteries are correctly inserted and the charger is connected to a power source, the LED indicator for each slot will illuminate RED, indicating that charging has begun.
Fuatilia Hali ya Kuchaji: The intelligent LED screen will show the charging process.
- Mwanga NYEKUNDU: Betri inachaji.
- Mwanga wa KIJANI: Betri imechajiwa kikamilifu.
Muda wa Kuchaji:
- AAA 1100mAh batteries: Approximately 2 hours for 1-8 batteries.
- AA 2800mAh batteries: Approximately 4.5 hours for 1-8 batteries.
Ondoa Betri: Once the LED indicator turns GREEN, the battery is fully charged. You can safely remove the batteries from the charger. Unplug the charger from the power source when all batteries are removed or charging is complete.

HiQuick charger showing red and green LED indicators

Figure 5: The intelligent LED screen indicates charging status: Red for charging, Green for fully charged.

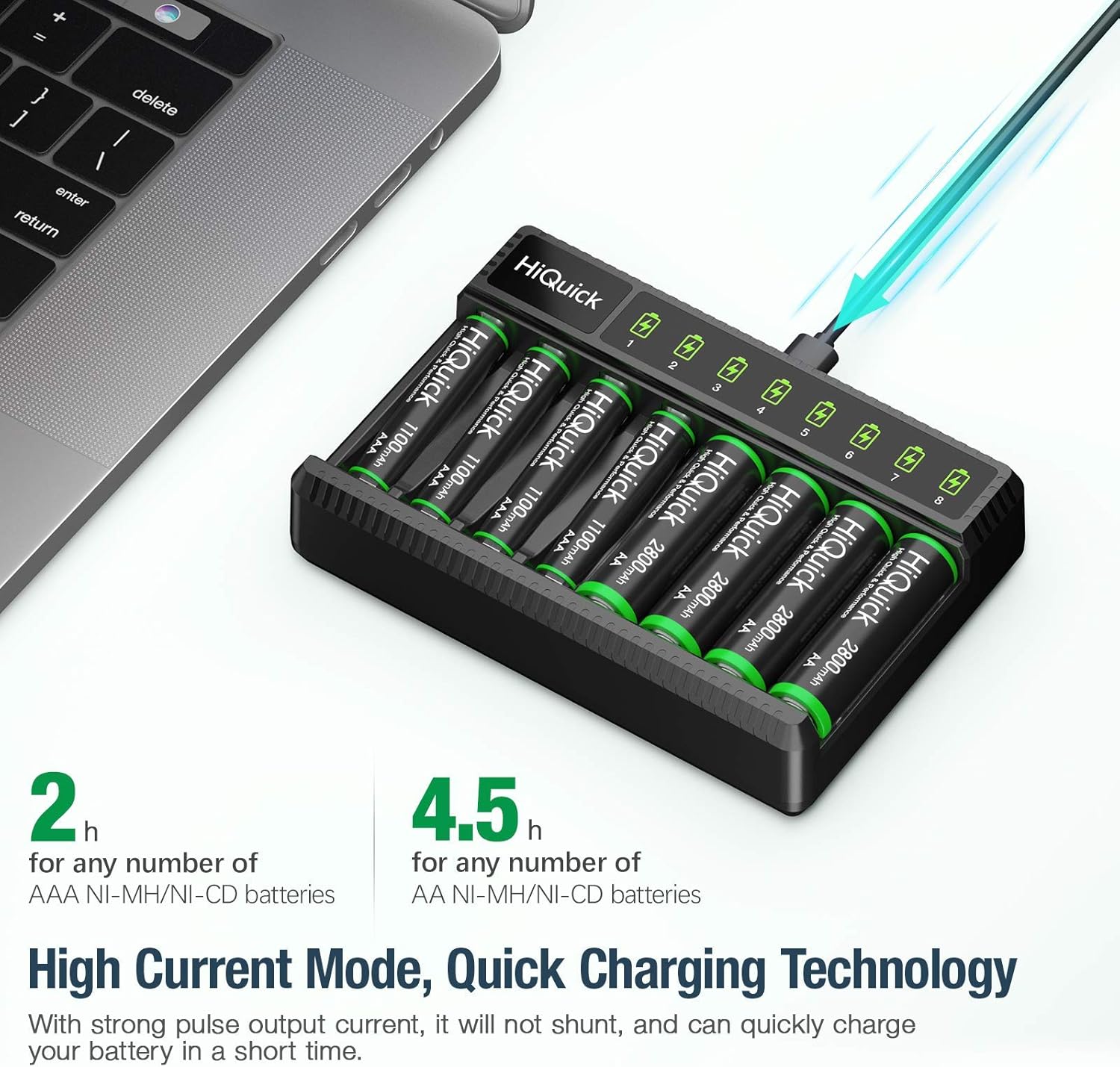

HiQuick charger illustrating fast charging technology

Figure 6: The charger utilizes high current mode and quick charging technology for efficient power restoration.

7. Matengenezo

Kusafisha: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface of the charger. Do not use abrasive cleaners or solvents.
Hifadhi: Hifadhi chaja na betri mahali pakavu na penye baridi mbali na jua moja kwa moja na halijoto kali.
Utunzaji wa Betri: For optimal battery life, it is recommended to charge HiQuick Ni-MH batteries at least once every 3 months if they are not in use, to maintain their low self-discharge properties.

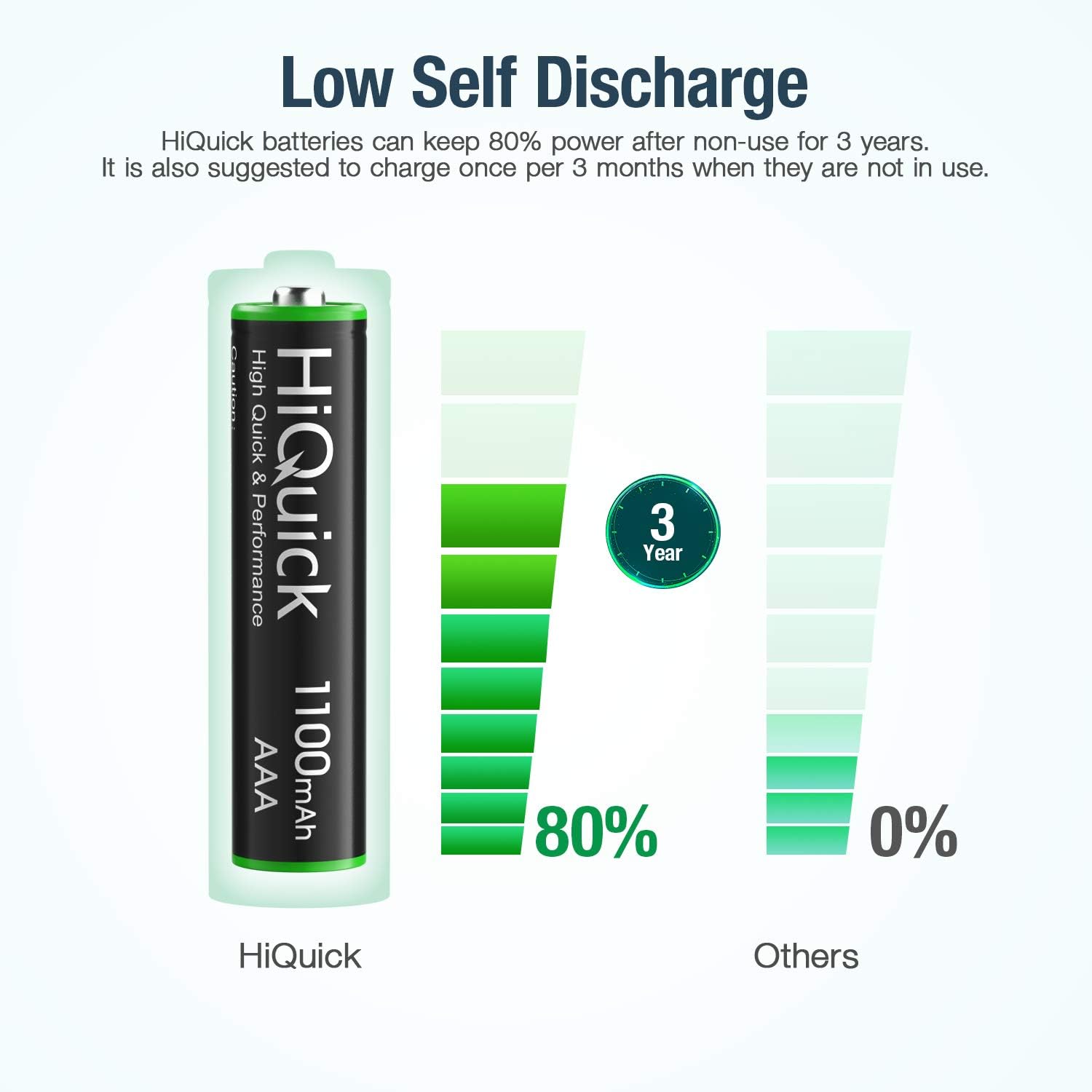

HiQuick battery showing low self-discharge over 3 years

Figure 7: HiQuick batteries maintain 80% of their capacity after 3 years of non-use, demonstrating low self-discharge.

8. Utatuzi wa shida

Tatizo	Sababu inayowezekana	Suluhisho
LED light does not turn on when battery is inserted.	Betri imeingizwa vibaya. Battery is not rechargeable or is damaged. Chaja haijaunganishwa kwa nishati. Power source insufficient.	Hakikisha polarity sahihi (+/-). Verify battery type (Ni-MH/Ni-Cd) and condition. Check USB cable connection and power adapter. Use a 5V/2A power adapter.
Battery does not fully charge or charges slowly.	Low current power source. Battery capacity is very high. Battery is old or degraded.	Use a 5V/2A power adapter. Allow more time for charging. Consider replacing old batteries.
Charger or batteries become hot during charging.	Normal during fast charging. Uingizaji hewa mbaya. Betri iliyoharibika.	Ensure adequate airflow around the charger. Remove any excessively hot batteries and discontinue use.

9. Vipimo

Mfano: HiQuick 8 Bay Smart Battery Charger
Ingizo: 5V / 2A
Pato: 1.4V (Individual slot output current not specified, but implied by 2A input)
Aina za Betri Zinazolingana: Ni-MH / Ni-Cd AA, AAA rechargeable batteries
Nafasi za Kuchaji: Nafasi 8 huru
Charging Time (Approx.):
- AAA 1100mAh: 2 hours
- AA 2800mAh: 4.5 hours
Ulinzi: Overcharge, Overcurrent, Overvoltage, Overheat, Short Circuit
Betri Zilizojumuishwa: 4 x AA 2800mAh, 20 x AAA 1100mAh

10. Udhamini na Msaada

HiQuick products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or customer service, please refer to the contact information provided on the product packaging or visit the official HiQuick webtovuti. Tafadhali hifadhi uthibitisho wako wa ununuzi kwa madai ya udhamini.

Kwa usaidizi zaidi, unaweza pia kuwasiliana na muuzaji moja kwa moja kupitia jukwaa ambalo bidhaa ilinunuliwa.
