DIYmall ESP32 Programming Module Test Board, XH-S3E N16R8

DIYmall ESP32 Programming Module Test Board and XH-S3E N16R8 Wi-Fi BLE Module User Manual

Model: ESP32 Programming Module Test Board, XH-S3E N16R8

1. Utangulizi

This manual provides essential information for the proper setup, operation, and maintenance of your DIYmall ESP32 Programming Module Test Board and XH-S3E N16R8 Wi-Fi BLE Module. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

2. Vipengele vya Bidhaa

Kifurushi ni pamoja na vitu vifuatavyo:

  • 1 x ESP32 Programming Module Test Board Burning Fixture
  • 1 x XH-S3E N16R8 Wi-Fi BLE Module
DIYmall ESP32 Programming Module Test Board and XH-S3E N16R8 Wi-Fi BLE Module
Figure 1: The ESP32 Programming Module Test Board and the XH-S3E N16R8 Wi-Fi BLE Module.

3. Setup and Module Installation

The ESP32 Programming Module Test Board is designed for burning various ESP32 modules. It supports the following module types:

  • ESP32-WROOM-32D
  • ESP32-WROOM-32E
  • ESP-S2-WROOM
  • ESP-S3-WROOM
  • ESP-32S
  • XH-S3E

To install a module onto the test board, carefully align the module's pins with the corresponding sockets on the burning fixture. Ensure a secure connection without applying excessive force.

Upande view of the ESP32 Programming Module Test Board with pins
Kielelezo 2: Upande view of the test board, showing the pin headers for module installation.

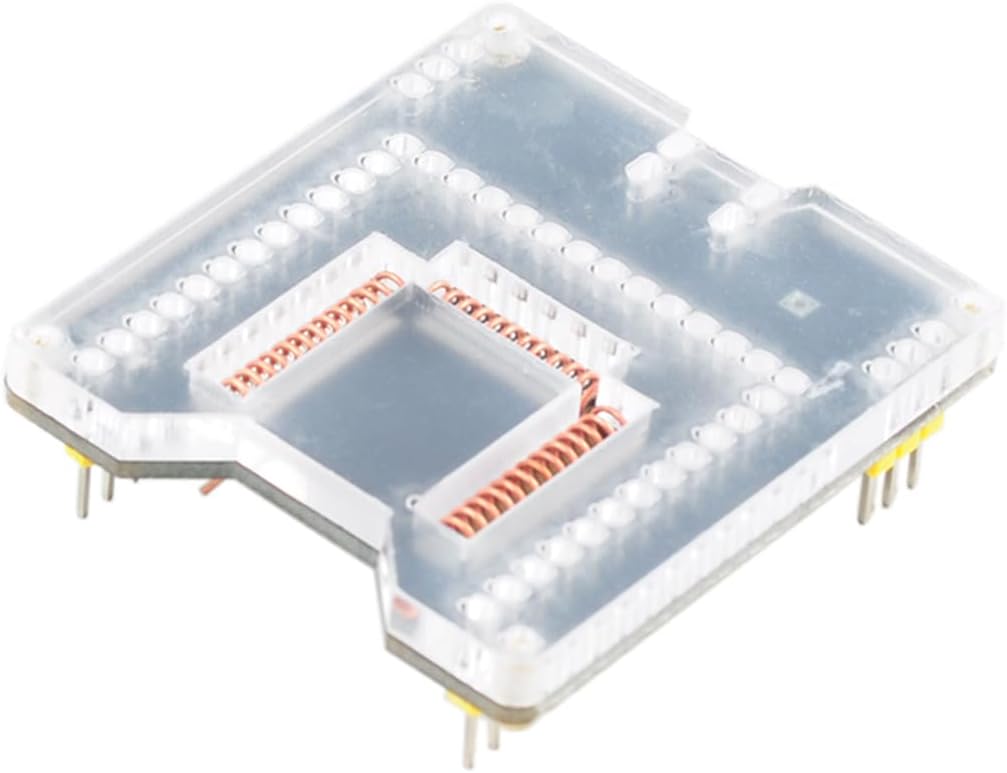

Chini view of the ESP32 Programming Module Test Board
Kielelezo 3: Chini view of the test board, illustrating the clear acrylic base.

4. Maagizo ya Uendeshaji

4.1. Module Power Supply and Connections

  • Ugavi wa nguvu wa moduli: 3.3V
  • Wi-Fi module IO max output current: 12mA
  • Wi-Fi module RST pin is low level active.
  • When connecting the Wi-Fi module to an external MCU, ensure connections are: RXD to TXD, TXD to RXD.

4.2. FLASH Download Mode

To enter different operating modes, control the state of the IO0 pin during reset and power-on:

  • FLASH download mode: IO0 is at a kiwango cha chini when the module is reset and powered on.
  • Hali ya kawaida ya kufanya kazi: IO0 is at a kiwango cha juu when the module is reset and powered on.

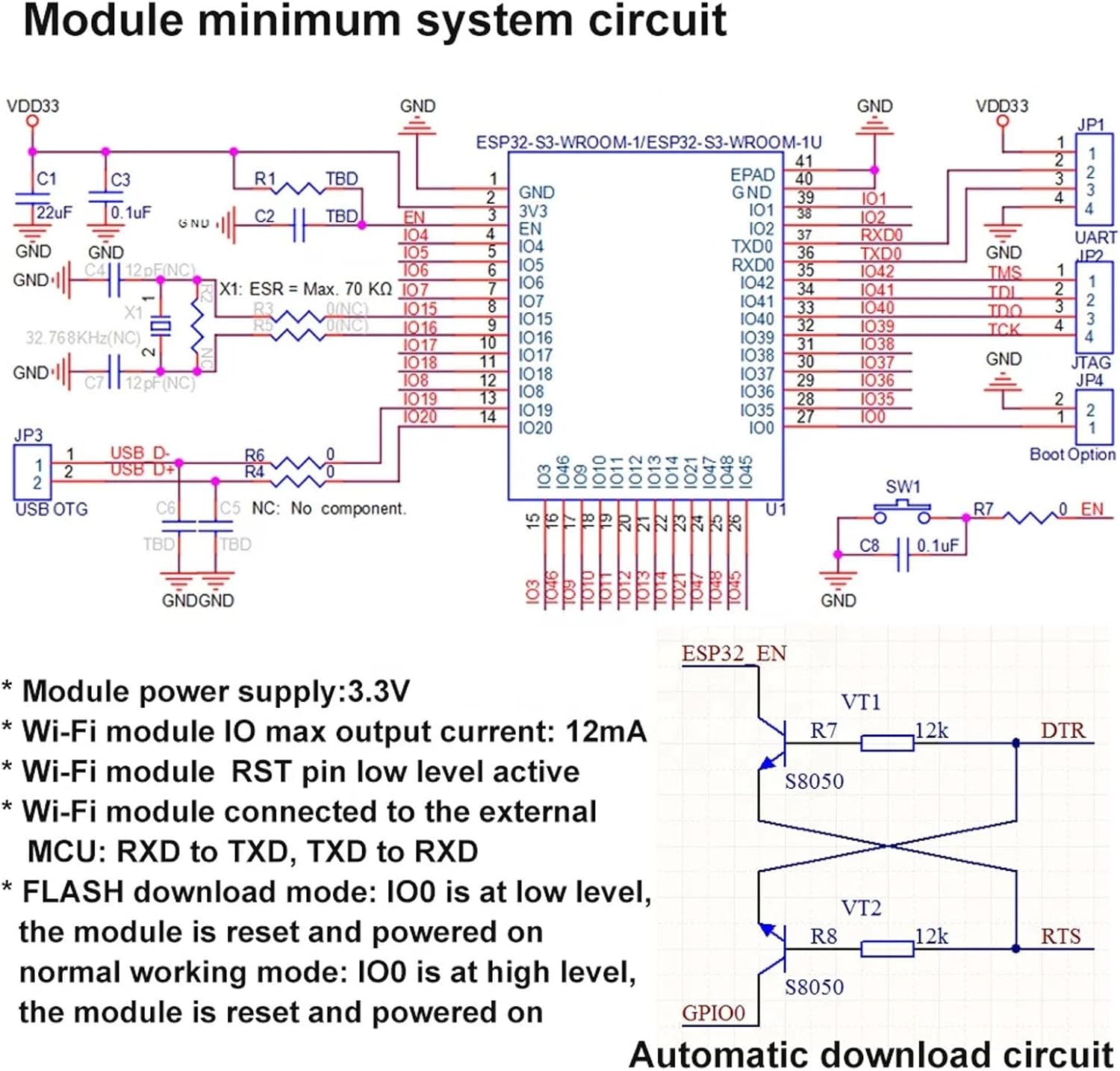

Module minimum system circuit diagram for ESP32-S3-WROOM-1
Figure 4: Minimum system circuit diagram for the ESP32-S3-WROOM-1 module, including USB OTG and boot option details.

5. Sifa na Maelezo

5.1. XH-S3E N16R8 Module Overview

The XH-S3E N16R8 module is based on ESP32-S3R8 SoCs, featuring a dual-core 32-bit LX7 microprocessor. It supports an RTC frequency up to 240MHz.

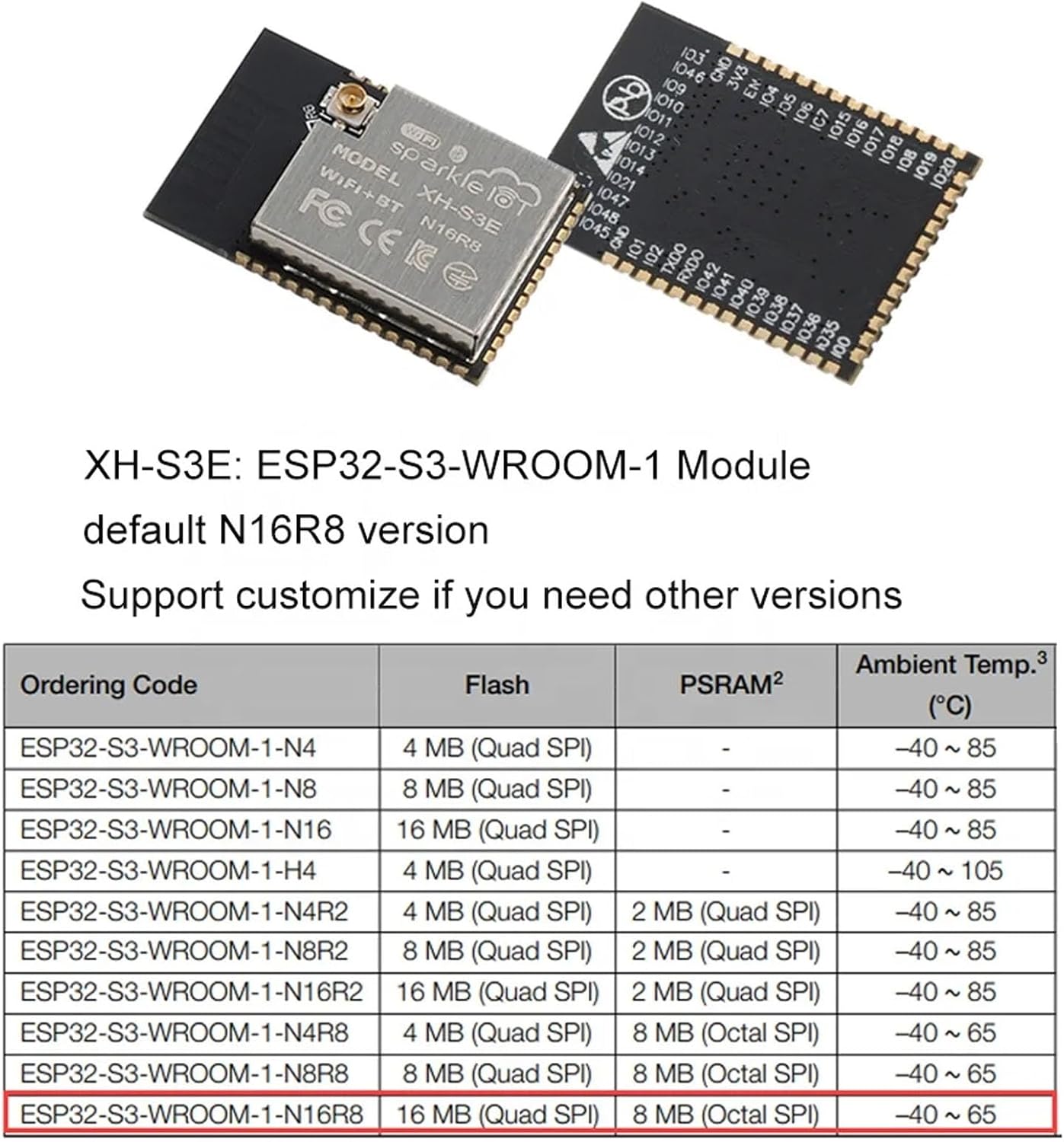

XH-S3E: ESP32-S3-WROOM-1 Module details and specifications table
Figure 5: Details of the XH-S3E: ESP32-S3-WROOM-1 Module, including default N16R8 version and customization options.

5.2. Maelezo ya kiufundi

Kipengele Maelezo
CPU Dual-core 32-bit LX7 microprocessor (ESP32-S3R8 SoCs), up to 240MHz RTC frequency
Uendeshaji Voltage 3.0V ~ 3.6V
ROM 384 KB
SRAM 512 KB
RTC SRAM 16 KB
Kiwango cha SPI 16 MB
PSRAM 8 MB
Wi-Fi 802.11 b/g/n (up to 150 Mbps), A-MPDU and A-MSDU aggregation, STA/APO/STA+AP modes, 2412 MHz ~ 2484 MHz
Bluetooth Low power BLE 5, BLE mesh (125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps)
Vifaa vya pembeni GPIO, SPI, LCD, Camera, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature sensor, timers, watchdogs
Joto la Uendeshaji -40°C ~ 105°C
Ukubwa wa Moduli 18x25.5x3mm

5.3. General Product Specifications

  • Chapa: DIYmall
  • Series: DIYmall ESP32 Test Board
  • RAM: LPDDR4
  • Operating System: Linux (compatible)
  • Processor Brand: Espressif
  • Idadi ya Wachakataji: 1
  • Teknolojia ya Uunganisho: USB
  • Uzito wa bidhaa: wakia 0.634
  • Vipimo vya Kifurushi: inchi 4.25 x 3.58 x 0.67

6. Maombi

The ESP32 Programming Module Test Board and XH-S3E N16R8 Wi-Fi BLE Module are suitable for a wide range of applications, including but not limited to:

  • Vifaa vya Smart Home
  • Smart Building systems
  • Webkamera
  • Elektroniki zinazoweza kuvaliwa
  • Wireless Location System Beacons
  • Udhibiti wa Wireless wa Viwanda
  • Generic Low-power IoT Sensor Hubs
  • Smart Agriculture solutions
  • Smart Bus systems
  • Vichezeo vinavyowezeshwa na Wi-Fi

7. Utatuzi wa shida

If you encounter issues with your module or test board, consider the following general troubleshooting steps:

  • Ugavi wa Nguvu: Ensure the module is receiving a stable 3.3V power supply. Incorrect voltage can lead to malfunction.
  • Viunganisho: Verify all connections, especially between the module and the test board, and any external MCU. Ensure RXD and TXD lines are correctly crossed.
  • IO0 State: Confirm the IO0 pin is set to the correct level (low for FLASH download, high for normal operation) during reset/power-on for the desired mode.
  • Programu/Firmware: Check your development environment and firmware for errors. Ensure the correct drivers are installed for USB connectivity.
  • Module Seating: Re-seat the ESP32 module on the test board to ensure all pins make proper contact.

8. Matengenezo

To ensure the longevity and reliable operation of your DIYmall ESP32 Programming Module Test Board and XH-S3E N16R8 Wi-Fi BLE Module, follow these maintenance guidelines:

  • Hifadhi: Store the board and module in a dry, anti-static environment, away from direct sunlight and extreme temperatures.
  • Kusafisha: Ikiwa ni lazima, safisha ubao kwa upole kwa brashi laini na kavu au hewa iliyoshinikizwa ili kuondoa vumbi. Epuka kutumia vimiminika au vifaa vya kukwaruza.
  • Kushughulikia: Handle the components by their edges to avoid touching sensitive electronic parts. Use anti-static precautions when working with the module.

9. Udhamini na Msaada

For warranty information and technical support, please refer to the DIYmall official webtovuti au wasiliana na sehemu yako ya ununuzi. Weka risiti yako ya ununuzi kama uthibitisho wa ununuzi.

Kwa msaada zaidi, unaweza kutembelea DIYmall Store on Amazon.
