FEASYCOM FSC-BT1026D

Mwongozo wa Maelekezo ya Moduli ya Sauti ya FEASYCOM QCC3034 Bluetooth 5.1

Model: FSC-BT1026D

1. Utangulizi

This manual provides essential information for the FEASYCOM QCC3034 Bluetooth 5.1 Audio Module (Model: FSC-BT1026D). This compact, high-performance module is designed for integration into various audio applications, offering advanced Bluetooth connectivity and audio processing capabilities.

FEASYCOM QCC3034 Bluetooth 5.1 Audio Module front view

Picha 1.1: Mbele view of the FEASYCOM QCC3034 Bluetooth 5.1 Audio Module, showing the FEASYCOM logo and model number.

Sifa Muhimu:

  • Qualified Bluetooth v5.1 specification for reliable wireless connectivity.
  • Integrated 120MHz Qualcomm Kalimba audio DSP for advanced audio processing.
  • Supports aptX, aptX HD, aptX Low Latency, SBC, and AAC audio codecs.
  • Compact size: 13mm (W) x 26.9mm (L) x 1.7mm (H).
  • Inasaidia pro mbalimbalifiles: A2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT.
  • Certifications: BQB, FCC, IC, CE, TELEC, KC, NCC.
  • Integrated PMU with dual SMPS and Li-ion battery charger.

2. Kuweka na Kuunganisha

The FSC-BT1026D is a module designed for integration into host devices. Detailed integration instructions, including pinout diagrams and software development kits (SDKs), are typically provided by the manufacturer for developers. This section outlines general considerations for integration.

2.1. Supported Interfaces:

The module offers flexible connectivity options for integration:

  • UART: Kipokeaji-Kipokeaji cha Ulimwenguni Kisicholingana kwa ajili ya mawasiliano ya mfululizo.
  • Bit Serializer (I²C/SPI): For inter-integrated circuit and serial peripheral interface communication.
  • USB 2.0: For data transfer and debugging.
  • IIS/SPDIF: Digital audio input/output.
  • Sauti ya Analogi: High-performance 24-bit stereo audio interface.
  • Digital and Analog Microphone Interfaces: For voice input capabilities.
  • PIO Controller and LED Pins with PWM Support: For general purpose input/output and indicator control.

2.2. Maombi ya Kawaida:

This module is suitable for a wide range of audio products, including:

  • Bluetooth stereo headsets and headphones.
  • Qualcomm TrueWireless stereo earbuds.
  • Spika za Bluetooth.
  • Automotive audio systems.
FEASYCOM QCC3034 Bluetooth 5.1 Audio Module internal components

Picha ya 2.1: View of the module highlighting internal components such as the 120 MHz Audio DSP and 32 MHz Developer Processor.

3. Kanuni za Uendeshaji

The FSC-BT1026D functions as a Bluetooth audio receiver module, enabling wireless audio streaming and communication for integrated devices. Its operation is governed by the host device's firmware and application.

3.1. Muunganisho wa Bluetooth:

The module utilizes Bluetooth 5.1 technology, offering enhanced range (up to 50m/165ft), improved speed, and lower power consumption compared to previous versions. It supports dual-mode operation, compatible with both iOS and Android devices.

3.2. Audio Codecs and Profiles:

For high-quality audio transmission, the module supports a range of audio codecs:

  • aptX, aptX HD, aptX Low Latency: Qualcomm's proprietary codecs for high-fidelity and low-latency audio.
  • SBC (Subband Coding): Standard Bluetooth audio codec.
  • AAC (Advanced Audio Coding): Commonly used for Apple devices and streaming services.

Bluetooth inayotumika profiles include A2DP (Advanced Audio Distribution Profile), AVRCP (Udhibiti wa Remote / Sauti ya Videofile), HFP (Hands-Free Profile), HSP (Headset Profile), PBAP (Phone Book Access Profile), SPP (Serial Port Profile), and GATT (Generic Attribute Profile).

4. Matengenezo

As an electronic module, the FSC-BT1026D requires minimal user maintenance. Proper handling and environmental conditions are crucial for its longevity and performance.

  • Masharti ya Mazingira: Avoid exposing the module to extreme temperatures, high humidity, dust, or corrosive environments.
  • Kushughulikia: Handle the module with care, preferably using anti-static precautions, to prevent damage to sensitive electronic components.
  • Kusafisha: If necessary, gently clean the module's exterior with a dry, soft cloth. Do not use liquid cleaners or solvents.

5. Utatuzi wa shida

If you encounter issues with a device integrating the FSC-BT1026D module, consider the following general troubleshooting steps. For specific issues related to the host device, refer to its dedicated manual.

5.1. Masuala ya Muunganisho:

  • Nguvu: Ensure the module and host device are receiving adequate power.
  • Masafa: Verify that the Bluetooth source device is within the module's operational range (up to 50m/165ft). Obstacles can reduce range.
  • Kuoanisha: Confirm that the module is correctly paired with the source device. If issues persist, try unpairing and re-pairing.
  • Kuingilia: Minimize interference from other 2.4 GHz wireless devices (e.g., Wi-Fi routers, microwaves).

5.2. Masuala ya Ubora wa Sauti:

  • Ubora wa Chanzo: Ensure the audio source (e.g., music file, huduma ya utiririshaji) ni ya ubora wa juu.
  • Codec Compatibility: Verify that both the source device and the module support the desired audio codec (e.g., aptX HD).
  • Viwango vya sauti: Check volume settings on both the source device and the host device.

6. Vipimo

Detailed technical specifications for the FEASYCOM QCC3034 Bluetooth 5.1 Audio Module (FSC-BT1026D).

FEASYCOM QCC3034 Bluetooth 5.1 Audio Module dimensions

Image 6.1: Diagram illustrating the dimensions of the FSC-BT1026D module.

KipengeleMaelezo
Nambari ya MfanoFSC-BT1026D
Toleo la Bluetooth5.1 (Dual Mode)
ChipsetQualcomm QCC3034
Vipimo (L x W x H)mm 26.9 x 13 mm x 1.7 mm (inchi 0.51 x 1.06 x 0.06)
UzitoGramu 1 (wakia 0.035)
Kusambaza Nguvu9 dBm
Safu ya ChanjoHadi mita 50 (futi 165)
Kiwango cha Uhamisho wa DataMegabiti 50 kwa Sekunde
Kodeki za Sauti ZinazotumikaaptX, aptX HD, aptX Low Latency, SBC, AAC
Pro inayoungwa mkonofilesA2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT
ViolesuraUART, I²C/SPI, USB 2.0, IIS, SPDIF, Analogue Audio, Digital/Analog Mic
VyetiBQB, FCC, IC, CE, TELEC, KC, NCC
UPC768253192452

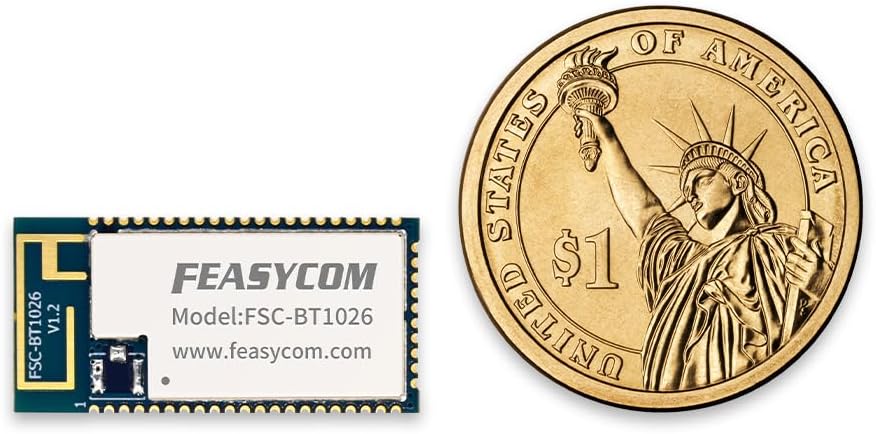

FEASYCOM QCC3034 Bluetooth 5.1 Audio Module next to a US dollar coin for size comparison

Image 6.2: The FSC-BT1026D module shown alongside a US dollar coin, illustrating its compact size.

7. Udhamini na Msaada

FEASYCOM provides technical support and resources for its products. For detailed warranty information, technical documentation, and developer resources, please refer to the official FEASYCOM webtovuti au wasiliana na timu yao ya usaidizi moja kwa moja.
