OREI UHDS-404VW 4K 4x4 HDMI Matrix Switch & Video Wall Controller Instruction Manual

1. Utangulizi

The OREI UHDS-404VW is a versatile 4K 4x4 HDMI Matrix Switch and Video Wall Controller designed to manage and distribute HDMI signals. This device allows users to switch between four HDMI input sources and display them across four HDMI output displays. It also features advanced video wall capabilities, supporting various configurations such as 2x2, 1x4, and 4x1, enabling a single source to be spread across multiple screens or multiple sources to be displayed individually. This manual provides detailed instructions for the proper installation, operation, and maintenance of your UHDS-404VW unit.

2. Yaliyomo kwenye Kifurushi

Baada ya kufungua kifurushi, tafadhali thibitisha kuwa vitu vyote vifuatavyo vimejumuishwa:

1x OREI UHDS-404VW HDMI Matrix Switch & Video Wall Controller
Adapta ya Nguvu 1x
Udhibiti wa Kijijini wa 1x IR
1x RS-232 Phoenix Connector
1x Kebo ya Kipokea IR
1x Mounting Ear Set
1x Mwongozo wa Mtumiaji

OREI UHDS-404VW package contents including the main unit, remote, power adapter, and cables.

Image: The OREI UHDS-404VW unit with its included accessories, such as the power adapter, remote control, and various cables.

3. Bidhaa Imeishaview

3.1 Jopo la mbele

Front panel of the OREI UHDS-404VW showing LED indicators for power, input, loop, and output status.

Image: The front panel of the UHDS-404VW unit, displaying LED indicators for power, input status (HD A, HD B), loop status (LP A, LP B), and output status (HD 1, HD 2, HD 3, HD 4).

The front panel features a series of LED indicators that provide real-time status of the device:

LED ya PWR: Huangazia kitengo kinapowashwa.
INPUT LEDs (HD A, HD B): Indicate active HDMI input sources.
LOOP LEDs (LP A, LP B): Indicate active local loop-out connections.
OUTPUT LEDs (HD 1-4): Indicate active HDMI output displays.

3.2 Paneli ya Nyuma

Rear panel of the OREI UHDS-404VW showing various input, output, control, and audio ports.

Image: The rear panel of the UHDS-404VW unit, showing ports for LAN, RS-232 control, service (Micro USB), audio outputs (analog 3.5mm, digital Toslink), HDMI inputs (HD A, HD B), loop outputs (LP A, LP B), HDMI outputs (HD 1-4), ground, and DC 12V power input.

The rear panel houses all the necessary connection ports:

Mlango wa LAN: For network control via TCP/IP.
RS-232 CTL Ports: For serial control via RS-232.
SERVICE Port (Micro USB): Kwa sasisho za firmware.
MATOKEO YA SAUTI: Includes analog (3.5mm) and digital (Toslink) options for external audio systems.
HDMI INPUTS (HD A, HD B): Unganisha vifaa vyako vya chanzo cha HDMI.
LOOP OUT Ports (LP A, LP B): For local monitoring of input signals.
HDMI OUTPUTS (HD 1-4): Connect to your display monitors for video wall or matrix configurations.
ARDHI: Terminal ya kutuliza.
DC 12V: Ingizo la umeme kwa adapta ya umeme iliyojumuishwa.

4. Maagizo ya Kuweka

Follow these steps to set up your OREI UHDS-404VW:

Unganisha Maonyesho ya Towe ya HDMI: Connect your four display monitors to the HDMI OUTPUTS (HD 1-4) on the rear panel of the UHDS-404VW. Ensure correct sequencing for video wall functionality (e.g., top-left to HD1, top-right to HD2, bottom-left to HD3, bottom-right to HD4 for a 2x2 setup).
Unganisha Vyanzo vya Ingizo vya HDMI: Connect your HDMI source devices (e.g., Blu-ray player, gaming console, laptop) to the HDMI INPUTS (HD A, HD B) on the rear panel.
Connect Local Loop Out (Optional): If you wish to monitor the input signal locally, connect an additional monitor to one of the LOOP OUT ports (LP A or LP B).
Unganisha Towe la Sauti (Hiari): If using external audio, connect your amplifier or audio system to the desired AUDIO OUTPUT (analog or digital).
Connect Control (Optional): For advanced control, connect an Ethernet cable to the LAN port for TCP/IP control, or use the provided RS-232 Phoenix connector for serial control.
Tumia Nguvu: Connect the included 12V DC power adapter to the DC 12V port on the rear panel and plug it into a standard wall outlet. The PWR LED on the front panel will illuminate, and the unit will perform a self-test.

Diagram illustrating a 4x4 matrix configuration with four HDMI inputs connected to the OREI UHDS-404VW and four distinct images displayed on four separate screens.

Picha: Example of a 4x4 matrix configuration, where each of the four input sources is displayed on a different output screen.

Diagram illustrating a 2x2 video wall configuration with four HDMI inputs connected to the OREI UHDS-404VW and a single large image spread across four screens.

Picha: Example of a 2x2 video wall configuration, where a single input source is seamlessly displayed across four screens.

5. Njia za Uendeshaji

The UHDS-404VW supports multiple display modes, configurable via the IR remote, Web GUI, or RS-232 commands:

2x2 Video Wall: A single source is displayed across four screens, forming one large image.
Hali ya Matrix: Each display shows a different source, allowing for independent viewing.
1x2 Horizontal: One source displayed on two horizontal screens, or two sources on two displays each.
2x1 Vertical: One source displayed on two vertical screens, or two sources on two displays each.
1x3 Horizontal: Three displays spread horizontally.
1x4 Horizontal: Four displays spread horizontally.
3x1 Vertical: Three displays spread vertically.
4x1 Vertical: Four displays spread vertically.

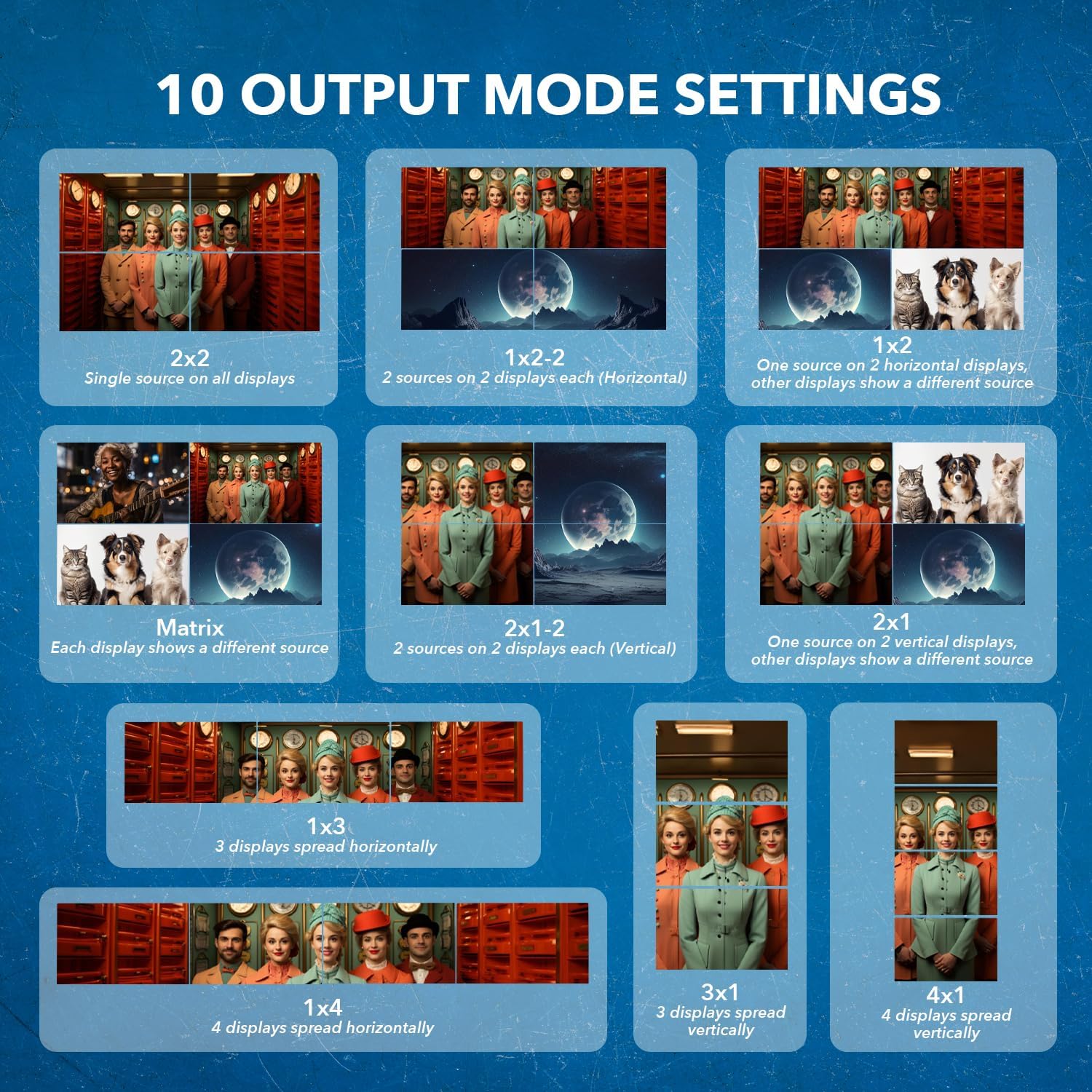

Image showing 10 different output mode settings for the OREI UHDS-404VW, including 2x2, 1x2, 2x1, 1x3, 1x4, 3x1, and 4x1 configurations.

Image: Visual representation of the ten different output mode settings available for the UHDS-404VW, demonstrating various ways to arrange content across multiple screens.

5.1 Bezel Adjustment

The unit's software allows for horizontal and vertical bezel adjustment to minimize the visible lines where displays overlap in video wall configurations. This feature helps create a more seamless viewuzoefu.

OREI UHDS-404VW unit with remote, highlighting horizontal and vertical bezel adjustment for video walls.

Image: The UHDS-404VW unit with its remote control, illustrating the concept of horizontal and vertical bezel adjustment for optimizing video wall displays.

6. Vipimo

Ingizo: 4 HDMI
Matokeo: 4 HDMI
Usaidizi wa Azimio: Up to 4K@60Hz 4:4:4 (4096x2160), backward compatible with 1080p/720p.
HDMI Standard: HDMI 2.0
Uzingatiaji wa HDCP: HDCP 2.2
Usaidizi wa Sauti: Pass-through for PCM, Dolby Digital, Dolby TrueHD, DTS-HD Master.
Chaguzi za Kudhibiti: IR Remote, Front Panel buttons, TCP/IP, RS-232.
Local Loopback Function: Allows monitoring of input content.
Usimamizi wa EDID: Advanced EDID settings for device compatibility.
Vipimo: Inchi 14 x 1.25 x 3
Uzito wa Kipengee: Pauni 2
Uzio: Full metal for durability.

7. Utatuzi wa shida

If you encounter issues with your OREI UHDS-404VW, please refer to the following common troubleshooting steps:

Hakuna Video/Sauti: Ensure all HDMI cables are securely connected and are of high quality (HDMI 2.0 or higher for 4K content). Verify that the power adapter is correctly connected and the PWR LED is illuminated. Check the input and output status LEDs on the front panel.
Incorrect Display/Resolution: Confirm that your source device and displays support the selected resolution. Utilize the EDID management features via the control software to optimize compatibility.
Video Wall Alignment Issues: Use the bezel adjustment feature in the control software to fine-tune the alignment of your video wall displays. Ensure monitors are physically arranged correctly.
Masuala ya Kudhibiti: Verify network connectivity for TCP/IP control or serial cable connection for RS-232. Ensure the correct control software/commands are being used.
Sasisho la Firmware: If persistent issues occur, check the OREI website for the latest firmware updates and follow the provided instructions for updating via the SERVICE port.

8. Matengenezo

To ensure the longevity and optimal performance of your UHDS-404VW, follow these maintenance guidelines:

Kusafisha: Use a soft, dry cloth to clean the unit. Avoid using liquid or aerosol cleaners.
Uingizaji hewa: Ensure the unit has adequate ventilation. Do not block the ventilation slots on the sides to prevent overheating.
Hifadhi: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
Usimamizi wa Cable: Weka nyaya zikiwa zimepangwa vizuri na bila mikwaruzo au mvutano mwingi ili kuzuia uharibifu.

9. Udhamini na Msaada

The OREI UHDS-404VW comes with a Udhamini Kamili wa Miaka 1. For technical assistance or warranty claims, please contact OREI Support. Refer to the included warranty card for detailed terms and conditions.

10. Jinsi-Ya Video

For a visual guide on setting up and using your OREI UHDS-404VW, please watch the official instructional video below:

Video: An instructional video demonstrating the unboxing, features, and setup of the OREI UHD-204VW (UHDS-404VW) Video Wall Processor.
