1. Utangulizi
Thank you for choosing the ABBREE HF-3 Multi-Band HF VHF Telescopic Antenna. This antenna is designed for amateur mobile radio use, offering wideband frequency coverage from 3.5 MHz to 50 MHz. This manual provides essential information for the proper setup, operation, and maintenance of your antenna to ensure optimal performance.
2. Bidhaa Imeishaview
The ABBREE HF-3 is a high-performance, portable mobile antenna featuring a telescopic whip and a base coil with multiple sockets for frequency band selection. Its design allows for quick adjustments across various HF and VHF bands.
Picha 2.1: Juuview of the ABBREE HF-3 Multi-Band Antenna, highlighting its frequency range of 3.5-50MHz and maximum power capacity of 200 Watts S.S.B.

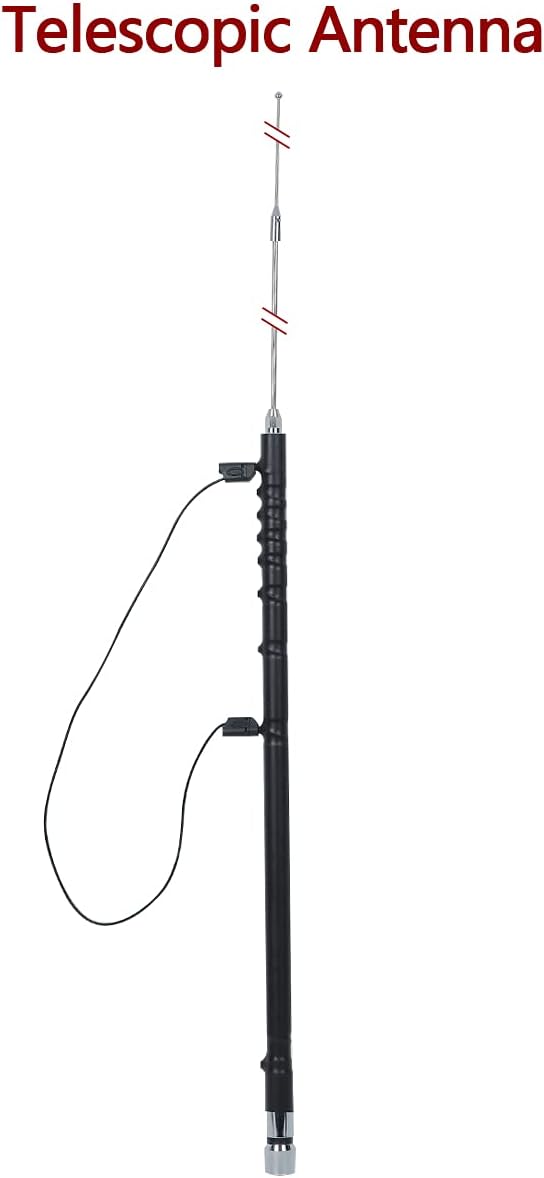

Image 2.2: The telescopic antenna fully extended, ready for operation.
Sifa Muhimu:
- Wideband Frequency Coverage: 3.5-50 MHz (80M / 40M / 30M / 20M / 17M / 15M / 12M / 10M / 6M)
- Connector Type: UHF Male (PL-259)
- Maximum Power Capacity: 200 Watts
- Uzuiaji: 50 OHM
- Urefu kwa jumla: 180 cm (70.87 inchi)
- Detachable Interface for easy installation
Picha 2.3: Kina view of the wire connector and the PL259 connector for antenna attachment.
3. Yaliyomo kwenye Kifurushi
Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako:
- 1 x ABBREE HF-3 Multi-Band Antenna Main Body
- 1 x Telescopic Whip
- 1 x Wire Lead for frequency adjustment
- 1 x Hex Key (for securing connections, if applicable)
- 1 x Instruction Sheet (for quick reference)

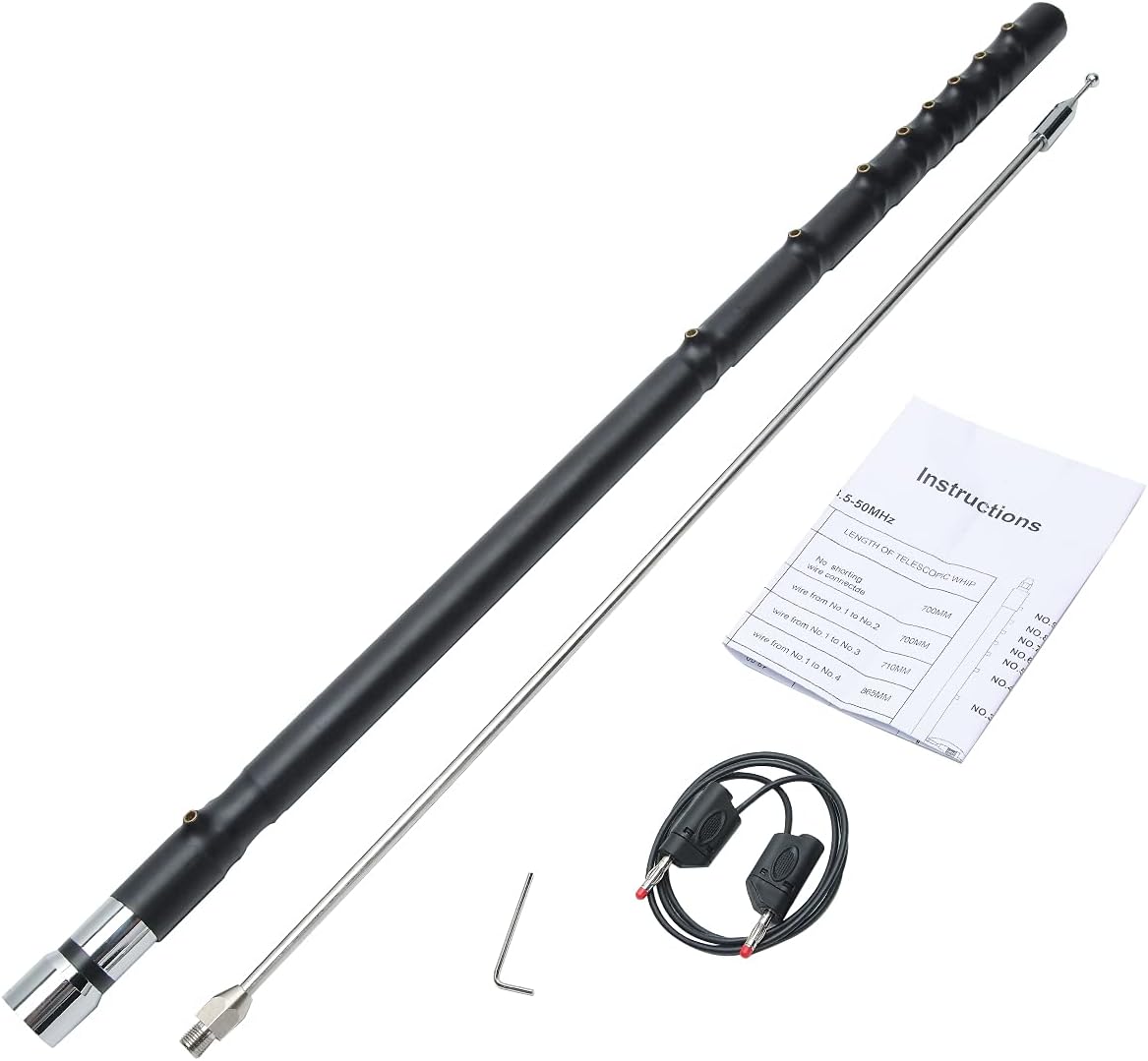

Image 3.1: All components of the ABBREE HF-3 antenna as received in the package.
4. Kuweka
The ABBREE HF-3 antenna features a detachable interface designed for easy assembly without the need for specialized tools. Follow these steps to set up your antenna:
- Attach the Telescopic Whip: Carefully screw the telescopic whip onto the top of the main antenna body. Ensure it is finger-tight to prevent loosening during use.
- Unganisha kwa Redio: Connect the UHF Male (PL-259) connector at the base of the antenna to your mobile radio or antenna mount.
- Prepare for Frequency Adjustment: The wire lead will be used to select the desired frequency band by inserting it into the appropriate socket on the base coil.
Image 4.1: Illustration of the detachable interface, emphasizing tool-free installation.
5. Maagizo ya Uendeshaji
Operating the ABBREE HF-3 antenna involves selecting the correct frequency band and fine-tuning the telescopic whip for optimal performance.
5.1 Uteuzi wa Bendi ya Marudio
The antenna's base coil features multiple sockets. To change the operating frequency band, insert the provided wire lead into the socket corresponding to your desired band. Refer to the table below for guidance.
Image 5.1: The base coil showing the sockets for inserting the wire lead to select different frequency bands.
5.2 Telescopic Whip Adjustment
After selecting the frequency band with the wire lead, fine-tune the antenna by adjusting the length of the telescopic whip. Extend or retract the whip until the lowest Standing Wave Ratio (SWR) is achieved for your specific operating frequency within the chosen band. The following table provides approximate starting lengths for the telescopic whip for various frequency bands. These measurements are approximate and may vary based on installation environment and vehicle.

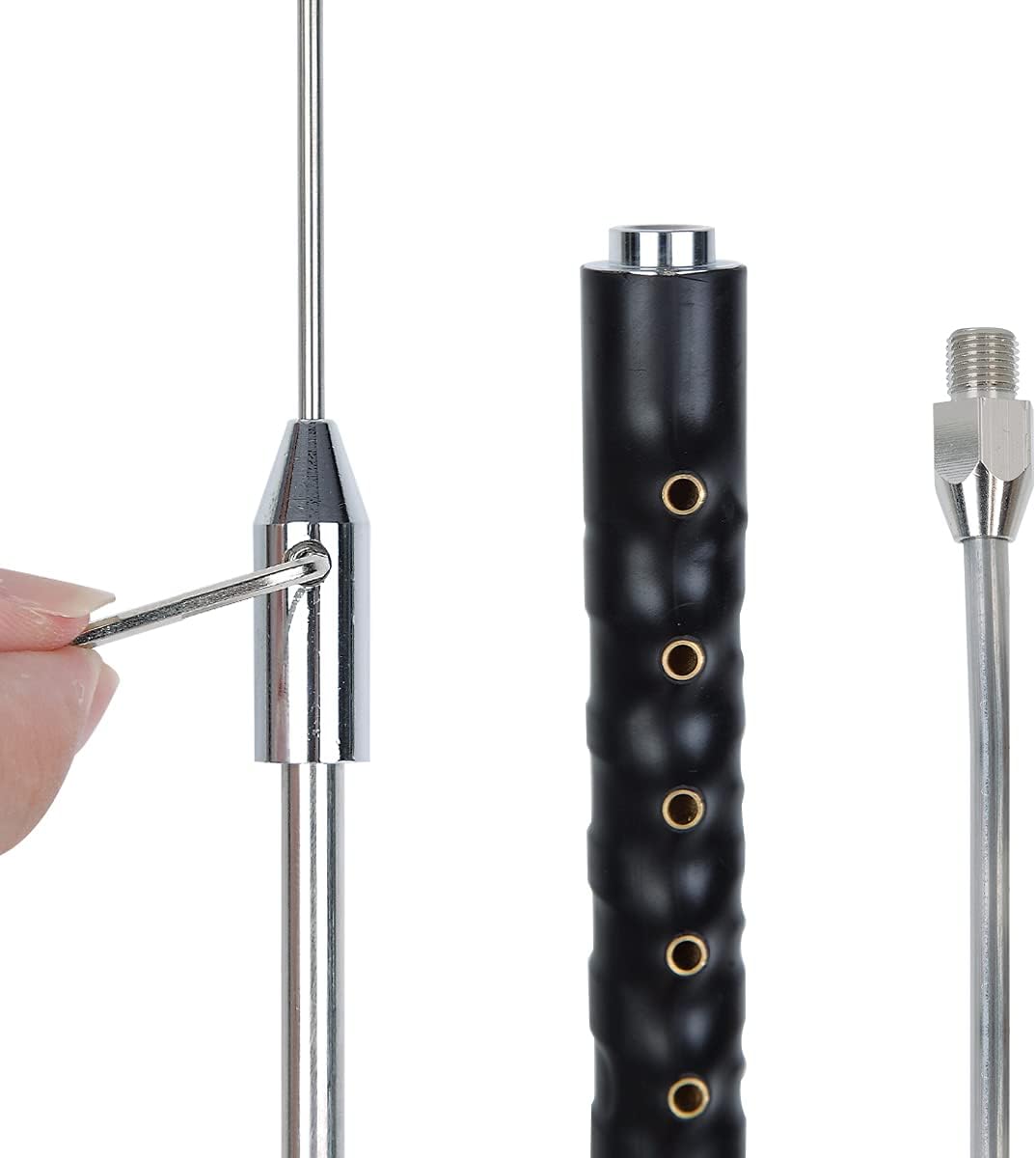

Image 5.2: A hand demonstrating the adjustment of the telescopic whip for fine-tuning.
Frequency Adjustment Table (Approximate)
| Frequency (MHz) | Uunganisho wa Kiongozi wa waya | Length of Telescopic Whip (Approx.) | Soketi No. |
|---|---|---|---|
| 3.5 | No shorting wire connected | 700 mm | Na.9 |
| 7.00 | Wire from No.1 to No.2 | 700 mm | Na.8 |
| 10.10 | Wire from No.1 to No.3 | 710 mm | Na.7 |
| 14.00 | Wire from No.1 to No.4 | 865 mm | Na.6 |
| 18.00 | Wire from No.1 to No.5 | 925 mm | Na.5 |
| 21.00 | Wire from No.1 to No.6 | 925 mm | Na.4 |
| 24.90 | Wire from No.1 to No.7 | 825 mm | Na.3 |
| 28.00 | Wire from No.1 to No.8 | 700 mm | Na.2 |
| 50.00 | Wire from No.1 to No.9 | 700 mm | Na.1 |
Note: These measurements are approximate starting points. Fine adjustment with an SWR meter is recommended for optimal performance.
6. Matengenezo
Proper maintenance ensures the longevity and reliable performance of your antenna.
- Kusafisha mara kwa mara: Periodically clean the antenna elements and connectors with a soft, dry cloth to remove dirt, dust, and moisture. Avoid abrasive cleaners.
- Kagua Viunganisho: Regularly check all connections, especially the telescopic whip and the PL-259 connector, to ensure they are secure and free from corrosion.
- Hifadhi: When not in use, store the antenna in a dry, protected environment. Retract the telescopic whip fully to prevent accidental damage.
- Epuka kukaza kupita kiasi: Do not overtighten the telescopic whip or other threaded connections, as this can cause damage.
7. Utatuzi wa shida
If you encounter issues with your ABBREE HF-3 antenna, consider the following troubleshooting steps:
- Kiwango cha juu cha SWR:
- Ensure the wire lead is correctly inserted into the appropriate socket for your desired frequency band.
- Adjust the length of the telescopic whip incrementally while monitoring SWR with an SWR meter.
- Angalia miunganisho yote ya kebo kwa ajili ya kukazwa na kuketi vizuri.
- Verify that your antenna mount and grounding are adequate for mobile operation.
- Mapokezi/Usambazaji Mbaya wa Mawimbi:
- Confirm the antenna is tuned to the correct frequency band.
- Ensure the antenna is mounted in a clear location, away from obstructions that could block the signal.
- Inspect the coaxial cable for damage or kinks.
- Uharibifu wa Kimwili:
- If any part of the antenna appears damaged, discontinue use and contact support for assistance.
8. Vipimo
| Vipimo | Thamani |
|---|---|
| Masafa ya Marudio | 3.5-50 MHz (80M / 40M / 30M / 20M / 17M / 15M / 12M / 10M / 6M) |
| Aina ya kiunganishi | UHF Male (PL-259) |
| Uwezo wa Nguvu ya Juu | 200 Watts |
| Impedans | 50 OHM |
| Urefu wa Jumla | sentimita 180 (inchi 70.87) |
| Uzito | 0.87 KG |
| Idadi ya Vituo | 9 (referring to adjustment points) |
9. Udhamini na Msaada
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries, please visit the official ABBREE webtovuti au wasiliana na idara yao ya huduma kwa wateja.
