Mwongozo wa Mtumiaji wa Grill ya Barbecue ya Napoleon COS1902473 ya inchi 22 ya Mkaa

1. Utangulizi

Thank you for choosing the Napoleon COS1902473 22-inch Charcoal Kettle Barbecue Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new grill. Please read these instructions thoroughly before using the grill for the first time and retain them for future reference.

Figure 1: Napoleon COS1902473 Charcoal Kettle Grill. This image displays the complete grill assembly, highlighting its spherical kettle design, lid with temperature gauge, and wheeled stand.

2. Taarifa Muhimu za Usalama

Failure to follow these safety instructions could result in fire, explosion, or burn hazards, which could cause property damage, personal injury, or death.

• Matumizi ya Nje Pekee: This grill is designed for outdoor use only. Do not operate indoors or in enclosed areas.
• Kibali: Maintain a minimum distance of 3 feet (1 meter) from combustible materials (e.g., wooden decks, fences, trees, bushes).
• Uso Imara: Daima weka grill kwenye uso mgumu, usawa, usioweza kuwaka.
• Watoto na Wanyama wa Kipenzi: Weka watoto na wanyama wa kipenzi mbali na grill wakati wote, haswa wakati wa operesheni.
• Nyuso za Moto: The grill becomes very hot during use. Use heat-resistant gloves or mitts when handling hot components.
• Mafuta: Use only charcoal briquettes or lump charcoal as fuel. Do not use gasoline, kerosene, or alcohol to light or relight charcoal.
• Utupaji wa majivu: Allow charcoal to cool completely before disposing of ash. Never dispose of hot ashes in combustible containers.
• Uingizaji hewa: Ensure adequate airflow for charcoal combustion. Do not block air vents.
• Kamwe Usiache Bila Kutunzwa: Usiache grill iliyowaka bila kutunzwa.

3. Parts List and Assembly Overview

Before beginning assembly, ensure all parts are present and undamaged. Refer to the assembly diagram (if provided in packaging) for detailed component identification.

• Kettle Bowl (Main body)
• Lid with ACCU-PROBE Temperature Gauge and Cool Touch Handle
• Chrome Plated Steel Cooking Grid
• Hinged Cooking Grids (for easy charcoal access)
• Stainless Steel Heat Diffuser
• Stainless Steel Air Vents (top and bottom)
• Removable Heavy Steel Ash Catcher
• Built-in Lid Hanger
• Rugged Weather-Proof Wheels
• Legs and Bottom Shelf

Mkutano Juuview:

Assembly typically involves attaching the legs to the kettle bowl, securing the bottom shelf, mounting the wheels, installing the ash catcher, and placing the cooking grids. Tools required are usually a screwdriver and wrench (not included).

4. Kuanzisha na Matumizi ya Kwanza

4.1 Usafishaji wa Awali

Before first use, wash the cooking grid with warm, soapy water. Rinse thoroughly and dry. This removes any manufacturing residues.

4.2 Seasoning the Grill (Optional but Recommended)

To enhance non-stick properties and protect the cooking grid, lightly coat it with high-heat cooking oil (e.g., vegetable oil) and heat the grill for 15-20 minutes at medium heat. Allow to cool before cooking.

5. Maagizo ya Uendeshaji

5.1 Kuwasha Mkaa

1. Open all air vents (top and bottom) to ensure maximum airflow.
2. Place charcoal briquettes or lump charcoal on the charcoal grate at the bottom of the kettle. Arrange them in a pyramid shape.
3. Use a charcoal chimney starter or solid fire starters to ignite the charcoal. Do not use lighter fluid.
4. Once the charcoal is covered in a light gray ash (approximately 15-20 minutes), spread the charcoal evenly or arrange for direct/indirect cooking.
5. Place the cooking grid back onto the grill.

5.2 Udhibiti wa Halijoto

The grill's temperature is primarily controlled by adjusting the air vents:

• Increase Heat: Open the top and bottom air vents wider to allow more oxygen flow to the charcoal.
• Decrease Heat: Close the top and bottom air vents partially to restrict oxygen flow.
• The ACCU-PROBE Temperature Gauge on the lid provides an accurate reading of the internal grill temperature.

5.3 Kupika

Place food on the chrome-plated steel cooking grid. Use the hinged sections of the cooking grid to add more charcoal or wood chips during cooking without removing the entire grate.

Figure 2: Grill with Lid Open. This image shows the interior of the kettle grill, featuring the chrome-plated steel cooking grid and the charcoal grate below. The hinged design of the cooking grid is visible.

6. Matunzo na Matengenezo

6.1 Kusafisha Baada ya Kila Matumizi

• Cooking Grid: After cooking, while the grill is still warm, use a grill brush to scrape off any food residue from the cooking grid.
• Utupaji wa majivu: Once the grill and charcoal are completely cool, remove the removable heavy steel ash catcher and dispose of the ashes safely. Ensure no hot embers remain.
• Mambo ya Ndani: Periodically brush out any accumulated ash or debris from the kettle bowl.

6.2 Usafishaji wa Jumla

• Futa nyuso za nje kwa damp kitambaa na sabuni kali. Epuka cleaners abrasive.
• Clean the ACCU-PROBE Temperature Gauge with a soft cloth.
• Hakikisha matundu yote ya hewa hayana vizuizi.

6.3 Hifadhi

Store the grill in a dry, protected area when not in use. Using a grill cover is recommended to protect it from weather elements and extend its lifespan.

7. Utatuzi wa shida

8. Vipimo

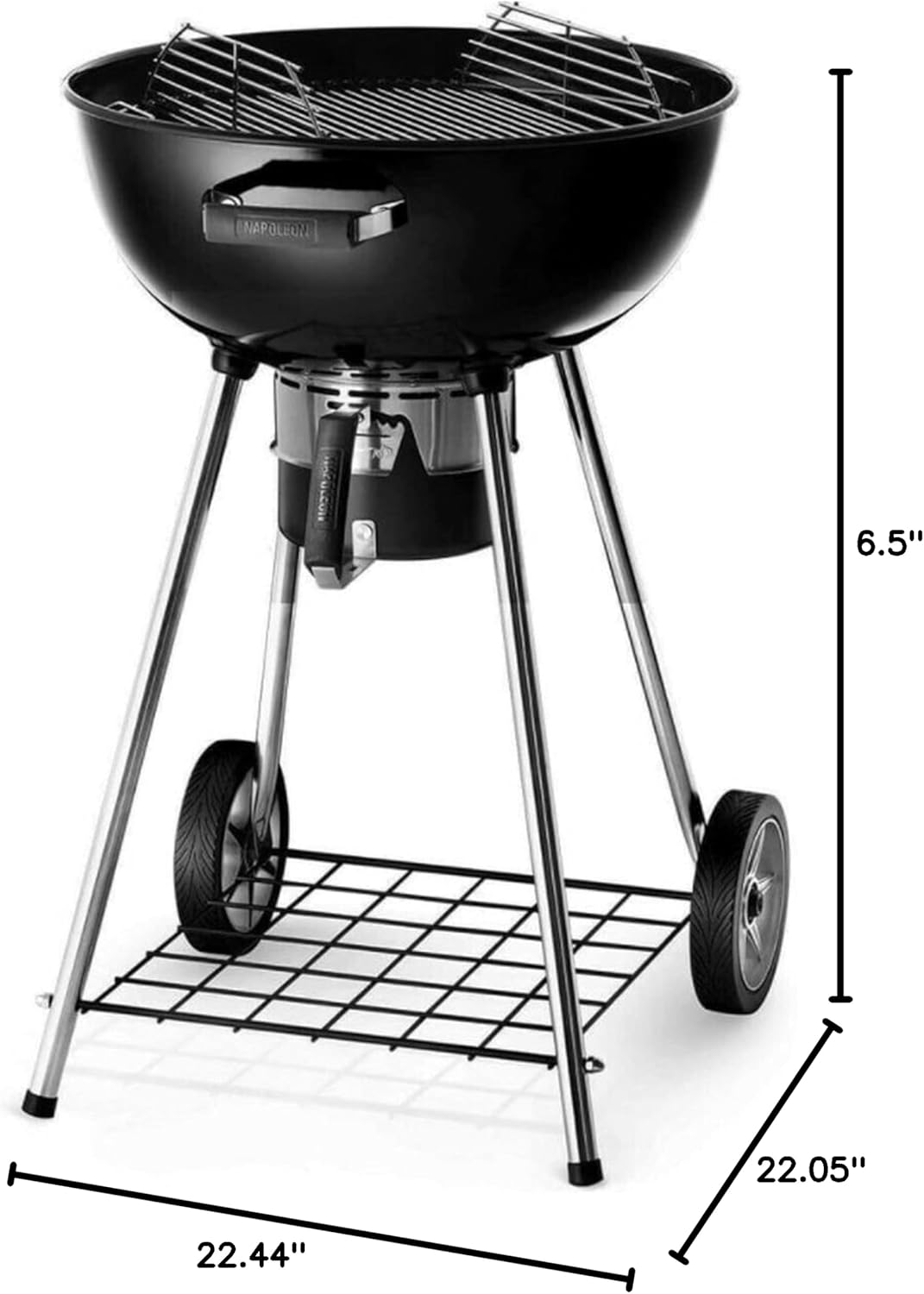

Figure 3: Product Dimensions. This image illustrates the key dimensions of the grill, including its width and depth. Note that the listed height of 6.5" likely refers to the kettle depth, not the overall assembled height.

9. Udhamini na Msaada

This product comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. For technical support, replacement parts, or warranty claims, please contact the manufacturer directly.

Mtengenezaji: Napoleon

Kwa usaidizi zaidi, tembelea Char-Broil rasmi website or contact their customer service department. (Note: While the product title mentions Napoleon, the brand is listed as Char-Broil in specifications. Please refer to your product packaging for the most accurate support contact information.)
