Mwongozo wa Mtumiaji wa Mota ya Pazia la Waya 5 ya Dooya DT-72-EV-75/20

1. Utangulizi

This manual provides essential instructions for the safe installation, operation, and maintenance of your Dooya DT-72-EV-75/20 5-Wire Curtain Motor. Please read this manual thoroughly before installation and retain it for future reference. This motor is designed to automate two-way drawn curtain systems, capable of handling curtains up to 100 kg.

2. Taarifa za Usalama

Ensure all electrical connections are performed by a qualified electrician in accordance with local regulations.
Kata umeme kabla ya kufanya usakinishaji, matengenezo, au utatuzi wowote.
Keep children and pets away from the curtain system during operation.
Do not attempt to modify the motor or its components. Unauthorized modifications may void the warranty and pose safety risks.
Ensure the curtain track is securely mounted and capable of supporting the curtain weight plus the motor.
Avoid operating the motor if any part of the system is damaged.

3. Bidhaa Imeishaview

The Dooya DT-72-EV-75/20 is a robust 5-wire motor designed for reliable and quiet operation of automated curtain systems. It integrates seamlessly with compatible curtain tracks to provide smooth opening and closing of heavy curtains.

Picha ya 3.1: The Dooya DT-72-EV-75/20 5-Wire Curtain Motor. This image shows the cylindrical motor unit, highlighting its compact design and the drive shaft for connecting to the curtain track.

Dooya Curtain Motor with power cable and packaging

Picha ya 3.2: Dooya Curtain Motor with its power cable and original packaging. This view provides context for the motor's size and the typical wiring configuration.

Ililipuka view of a motorized curtain track system

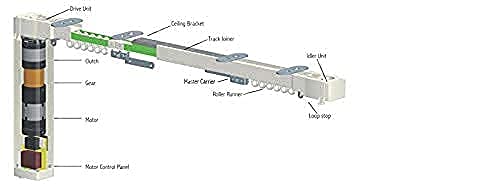

Picha ya 3.3: Exploded diagram illustrating the components of a motorized curtain track system. Key parts include the Drive Unit, Ceiling Bracket, Track Joiner, Idler Unit, Master Carrier, Roller Runner, Clutch, Gear, Motor, and Motor Control Panel. This diagram helps in understanding the internal structure and assembly of the system.

4. Vipimo

Kipengele	Vipimo
Nambari ya Mfano	DT-72-EV-75/20
Aina ya Magari	5-Waya
Max. Curtain Weight	100 kg
Maombi	Two-Way Drawn Curtains
Chapa	Dooya (Generic Manufacturer)
ASIN	B093ZPCH56

5. Kuweka na Kuweka

Proper installation is crucial for the optimal performance and longevity of your curtain motor. It is recommended that installation be performed by a professional.

5.1 Hundi za Kusakinisha Kabla

Verify that all components of the curtain track system are present and undamaged.
Ensure the mounting surface (wall or ceiling) is strong enough to support the entire curtain system, including the motor and curtains.
Confirm that the electrical wiring for the 5-wire connection is accessible and meets local electrical codes.

5.2 Mounting the Track and Motor

Mount the curtain track securely using appropriate brackets and fasteners. Ensure the track is level and moves freely.
Integrate the motor into the designated section of the curtain track, typically at one end. Ensure the motor's drive shaft engages correctly with the track mechanism.

Dooya Curtain Motor integrated into a curtain track system

Picha ya 5.1: The Dooya Curtain Motor shown integrated into a complete curtain track system. This illustrates how the motor connects to the track to drive the curtain carriers.

5.3 Electrical Connection (5-Wire)

The DT-72-EV-75/20 motor uses a 5-wire connection for power and control. Consult a qualified electrician for wiring. Typical connections include:

Moja kwa moja (L): Ingizo la nguvu.
Si upande wowote (N): Kurudi kwa nguvu.
Earth (GND): Safety ground.
Open (UP): Control wire for opening the curtain.
Close (DOWN): Control wire for closing the curtain.

Ensure correct polarity and secure connections to prevent electrical hazards and ensure proper motor function.

6. Maagizo ya Uendeshaji

Once installed and powered, the motor can be operated via a compatible wall switch, remote control, or smart home system connected to its 5-wire control inputs.

6.1 Operesheni ya Msingi

Fungua: Activate the 'Open' or 'UP' control input to fully open the curtains.
Funga: Activate the 'Close' or 'DOWN' control input to fully close the curtains.
Acha: Most control systems allow for a 'Stop' command, which can be achieved by momentarily activating the opposite direction command or a dedicated stop button.

6.2 Setting Limits (if applicable)

Some control systems or motor models allow for setting open and close limits. Refer to your specific control system's manual for instructions on how to program these limits. This ensures the curtains stop precisely at the desired open and closed positions.

7. Matengenezo

The Dooya DT-72-EV-75/20 motor is designed for low maintenance. Regular checks can help ensure its longevity and smooth operation.

Kusafisha: Periodically wipe the motor and track with a dry, soft cloth to remove dust. Do not use abrasive cleaners or solvents.
Ukaguzi wa Njia: Regularly inspect the curtain track for any obstructions, debris, or signs of wear. Ensure the curtain runners move freely.
Curtain Condition: Ensure curtains are not excessively heavy or snagging, which can put undue strain on the motor.
Viunganisho vya Umeme: Periodically check electrical connections for tightness and signs of corrosion. (Ensure power is disconnected before inspection).

8. Utatuzi wa shida

If you encounter issues with your Dooya curtain motor, refer to the following common problems and solutions:

Tatizo	Sababu inayowezekana	Suluhisho
Motor haina kujibu	No power supply; Loose wiring; Faulty control switch/system.	Check power connection; Verify wiring connections; Test control switch/system.
Curtains stop mid-way	Obstruction in track; Overload (curtain too heavy); Incorrect limit settings.	Remove obstructions; Reduce curtain weight if possible; Reset/adjust limit settings.
Motor hufanya kelele isiyo ya kawaida	Track obstruction; Worn components; Motor malfunction.	Inspect track for debris; Contact support if noise persists after clearing track.
Curtains move slowly	Friction in track; Overload.	Clean track and runners; Ensure curtain weight is within limits.

Tatizo likiendelea baada ya kujaribu suluhu hizi, tafadhali wasiliana na usaidizi kwa wateja.

9. Udhamini na Msaada

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For technical support, service, or warranty inquiries, please contact your retailer or the manufacturer.

For additional product information and support, you may visit the Phoenix Enterprise webtovuti:

Phoenix Enterprise Product Page

Click the link above for product details and support from Phoenix Enterprise.
