Mwongozo wa Mtumiaji wa TP-Link AC1900 Smart WiFi (Archer A8).

1. Utangulizi

This manual provides detailed instructions for installing, configuring, and operating your TP-Link AC1900 Smart WiFi Router, model Archer A8. Please read this guide thoroughly to ensure proper setup and optimal performance of your device.

2. Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako:

• TP-Link AC1900 Smart WiFi Router (Archer A8)
• Adapta ya Nguvu
• Cable ya Ethernet ya RJ45
• Mwongozo wa Ufungaji wa Haraka

3. Kimwili Zaidiview

Jizoeshe na vipengele na viashiria vya kipanga njia.

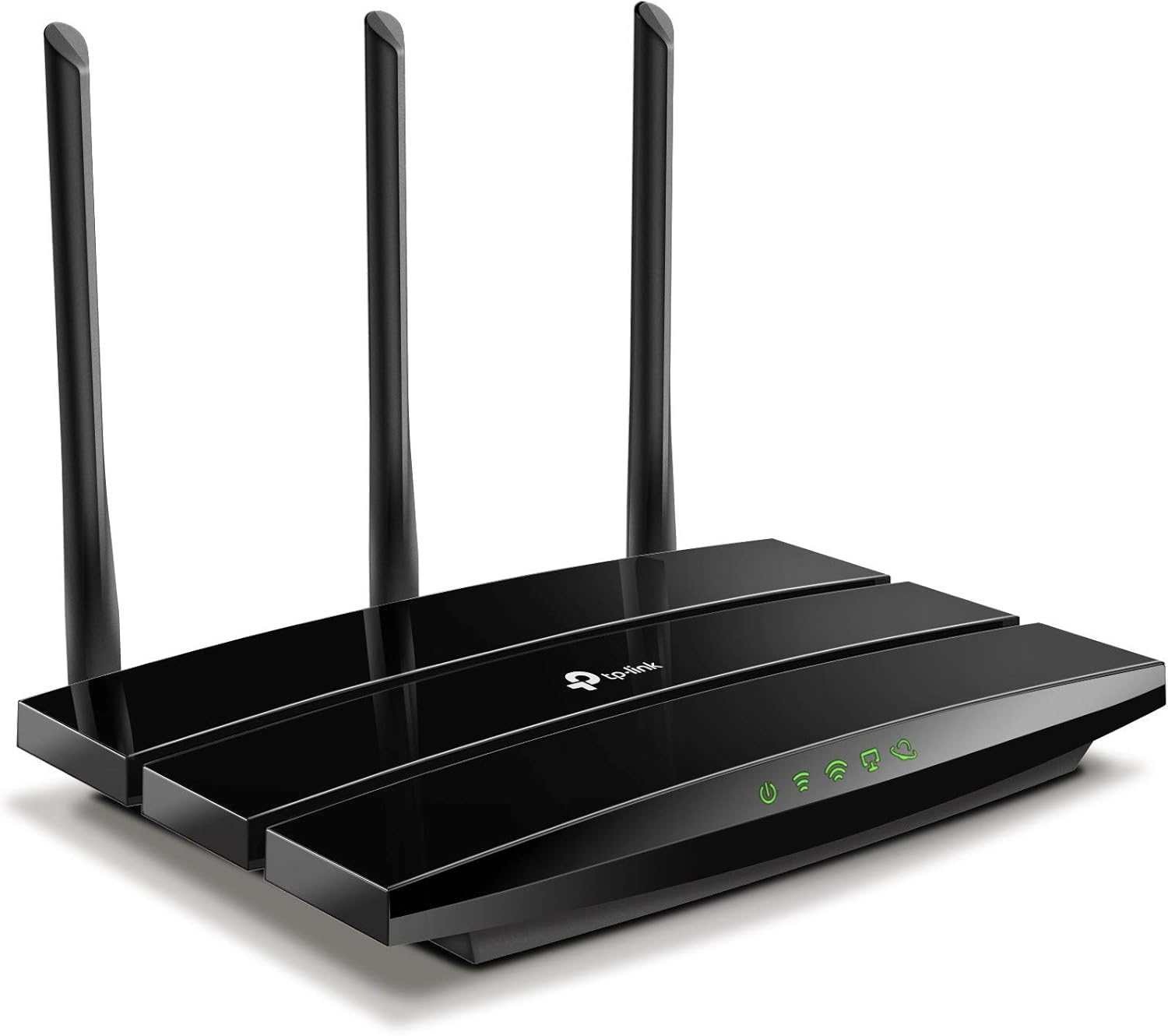

Kielelezo 3.1: Mbele View of TP-Link Archer A8 Router. Picha hii inaonyesha sehemu ya juu-chini view of the TP-Link Archer A8 router, featuring its sleek black design and three external antennas. The front panel includes LED indicators for power, internet connectivity, Wi-Fi status, and Ethernet port activity.

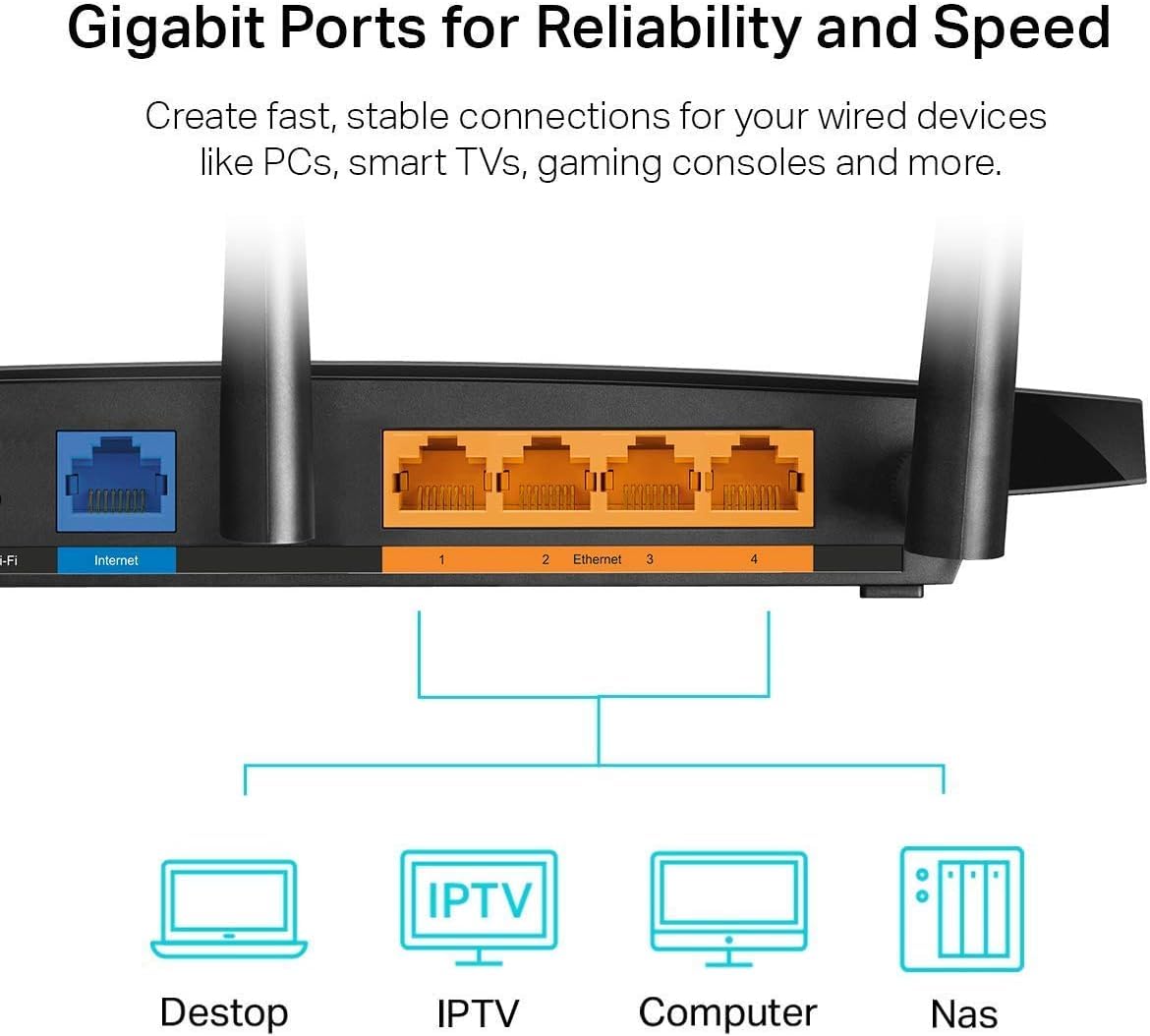

Figure 3.2: Rear Panel of TP-Link Archer A8 Router. This image shows the rear panel of the router, highlighting the Gigabit WAN port (blue) and four Gigabit LAN ports (orange). These ports are used for wired connections to your modem and other network devices.

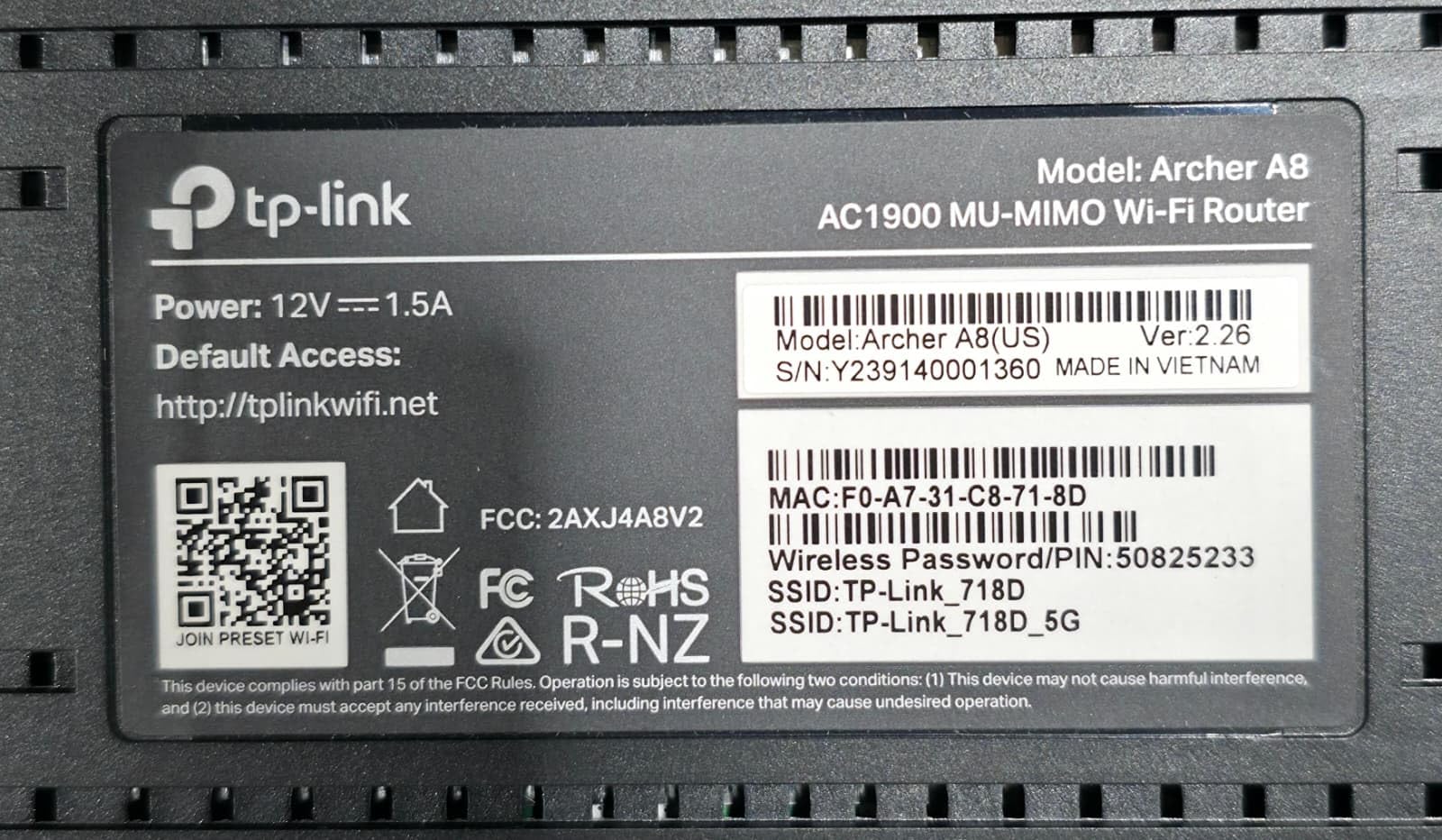

Figure 3.3: Router Bottom Label. This label provides essential information including the model (Archer A8, AC1900 MU-MIMO Wi-Fi Router), power specifications (12V===1.5A), default access URL (http://tplinkwifi.net), MAC address (F0:A7:31:C8:71:8D), serial number (Y239140001360), and default Wi-Fi network names (SSID: TP-Link_718D, TP-Link_718D_5G) with the default wireless password (50825233). It also includes FCC and RoHS compliance marks.

4. Maagizo ya Kuweka

1. Zima Modem Yako: Ondoa nishati kutoka kwa modemu yako iliyopo.
2. Unganisha Kipanga njia:
   • Unganisha kebo ya Ethaneti ya modemu yako kwenye Bandari ya WAN (blue) on the Archer A8 router.
   • Unganisha adapta ya nguvu kwenye kipanga njia na uichomeke kwenye kituo cha umeme.
   • Power on your modem, then power on the router. Wait for the LED indicators to stabilize.
3. Unganisha kwa Kipanga njia:
   • Muunganisho wa Waya: Connect your computer or mobile device to the router's default Wi-Fi network. The default SSIDs (e.g., TP-Link_718D, TP-Link_718D_5G) and Wireless Password (e.g., 50825233) are printed on the router's bottom label (refer to Figure 3.3).
   • Muunganisho wa Waya: Connect your computer to one of the router's Bandari za LAN (orange) using an Ethernet cable.
4. Sanidi Kipanga njia:
   • Fungua a web browser and enter the default access URL: http://tplinkwifi.net.
   • Follow the on-screen instructions in the Quick Setup wizard to configure your internet connection and Wi-Fi settings. You will be prompted to create a new login password for the router.
   • Alternatively, use the TP-Link Tether App for mobile-based setup.

5. Maagizo ya Uendeshaji

5.1. Kuunganisha Vifaa

Once the router is set up, you can connect your devices:

• Vifaa Visivyotumia Waya: Tafuta jina la mtandao wako wa Wi-Fi (SSID) kwenye kifaa chako na uweke nenosiri uliloweka wakati wa kusanidi.
• Vifaa vya Waya: Connect devices like PCs, Smart TVs, or gaming consoles to the router's Gigabit LAN ports using Ethernet cables.

5.2. Dual-Band Wi-Fi

The Archer A8 operates on two frequency bands:

• Bendi ya GHz 2.4: Provides wider coverage and better penetration through walls, ideal for general internet use and older devices. Offers speeds up to 600Mbps.
• Bendi ya GHz 5: Offers faster speeds (up to 1300Mbps) and lower latency, suitable for bandwidth-intensive activities like 4K streaming and online gaming. Has a shorter range and is more susceptible to obstacles.

The router supports Smart Connect, which automatically assigns devices to the best available band for optimal performance.

5.3. Teknolojia ya MU-MIMO

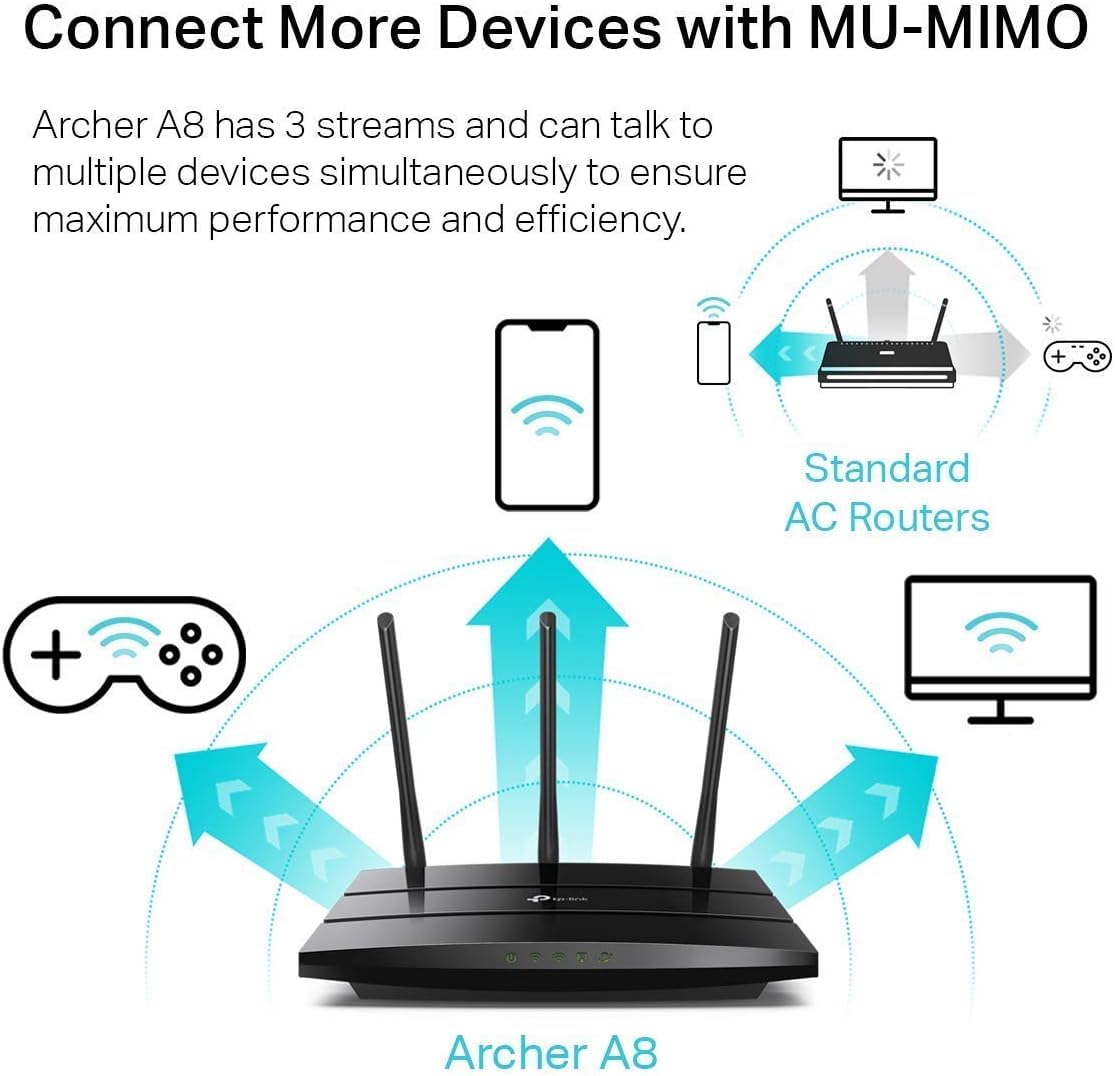

Figure 5.1: MU-MIMO Operation. This diagram illustrates how the Archer A8 router, equipped with MU-MIMO technology, can communicate with multiple devices simultaneously, unlike standard AC routers that communicate with one device at a time. This improves network efficiency and performance for all connected devices.

MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) allows the Archer A8 to communicate with multiple devices simultaneously, rather than sequentially. This significantly improves network efficiency and throughput, especially in environments with many connected devices. For MU-MIMO to function, client devices must also support MU-MIMO.

5.4. Beamforming Technology

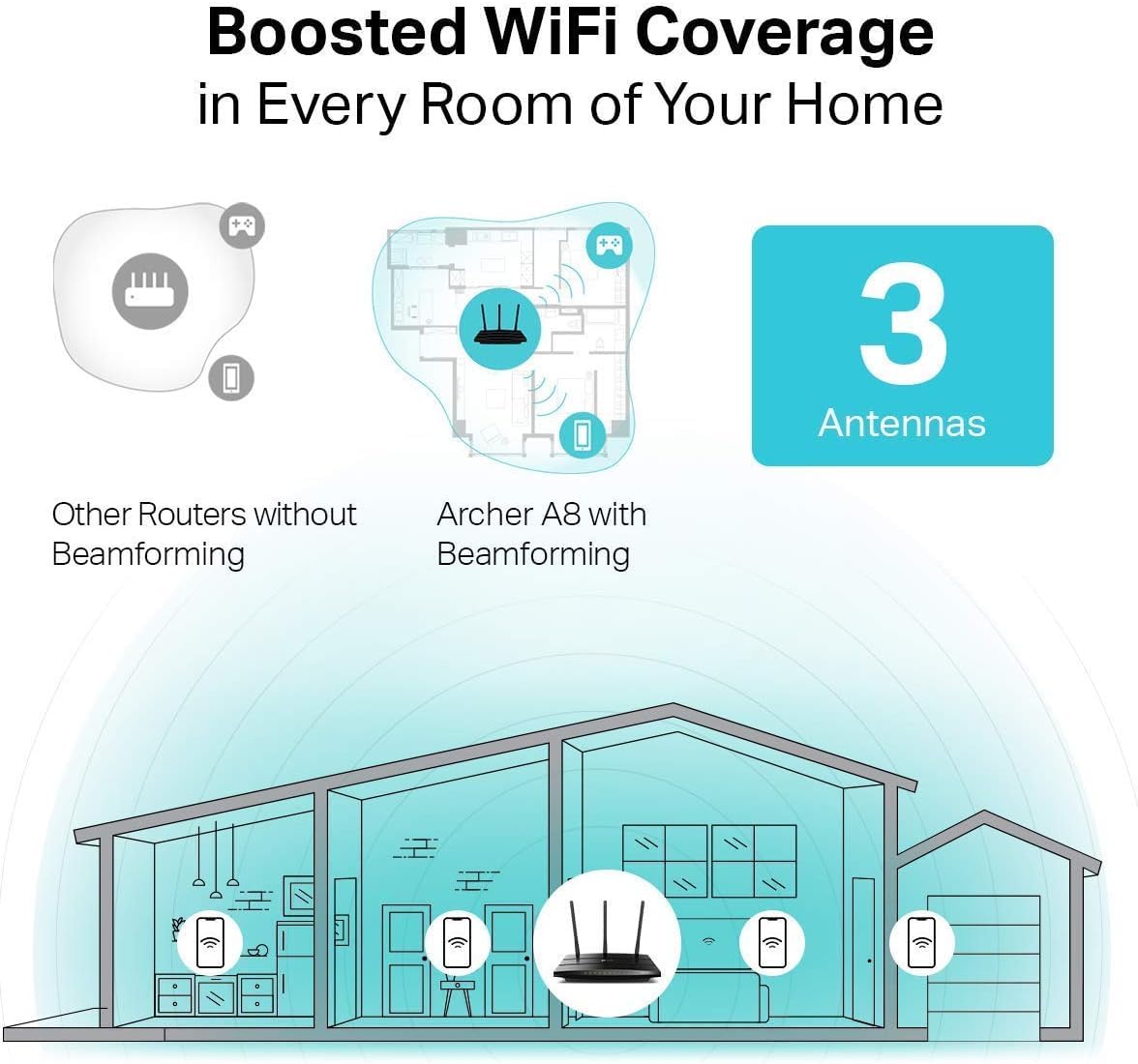

Figure 5.2: Beamforming Coverage. This image compares Wi-Fi coverage between a router without Beamforming and the Archer A8 with Beamforming. The Archer A8 directs stronger, more focused Wi-Fi signals towards connected devices, extending coverage and improving signal strength throughout your home.

Beamforming technology detects the location of your connected devices and concentrates the Wi-Fi signal directly towards them. This results in a more efficient and stronger wireless connection, extending Wi-Fi coverage and improving reliability, particularly for long-range connections.

5.5. Guest Wi-Fi Network

The router allows you to create a separate guest network, providing internet access to visitors without granting them access to your main network resources. This enhances security for your primary network.

5.6. Udhibiti wa Wazazi

Utilize the Parental Controls feature to manage internet access for children. You can block inappropriate content and set daily time limits for online activity.

6. Matengenezo

• Sasisho za Firmware: Angalia mara kwa mara na usakinishe sasisho za firmware kupitia router web management interface or the TP-Link Tether App. Updates often include performance improvements, security patches, and new features.
• Uwekaji wa Ruta: Place the router in a central location, away from obstructions and devices that emit electromagnetic interference (e.g., microwaves, cordless phones) to maximize Wi-Fi coverage.
• Inawasha upya: Washa upya kipanga njia chako mara kwa mara (chomoa na uchomee tena adapta ya umeme) ili kufuta kumbukumbu yake na kuonyesha upya miunganisho ya mtandao, ambayo inaweza kutatua matatizo madogo ya utendakazi.
• Usalama: Use strong, unique passwords for your Wi-Fi network and router administration. Enable WPA2/WPA3 encryption for your wireless network.

7. Utatuzi wa shida

If you encounter issues with your router, consider the following steps:

• Hakuna Ufikiaji wa Mtandao:
  • Angalia ikiwa modem yako inafanya kazi vizuri.
  • Ensure all cables are securely connected to the correct ports (WAN port to modem, LAN ports to devices).
  • Washa upya modem na kipanga njia chako.
  • Thibitisha mipangilio yako ya mtandao kwenye kipanga njia web kiolesura cha usimamizi.
• Weak Wi-Fi Signal or Dropouts:
  • Hamisha kipanga njia hadi mahali pa kati zaidi, mbali na vikwazo na vyanzo vya kuingiliwa.
  • Rekebisha antena za kipanga njia kwa mwelekeo bora wa mawimbi.
  • Consider using a Wi-Fi analyzer app to identify channel interference and switch to a less congested channel.
• Haiwezi Kufikia Ukurasa wa Kudhibiti Kidhibiti:
  • Hakikisha kifaa chako kimeunganishwa kwenye mtandao wa kipanga njia (waya au pasiwaya).
  • Verify you are using the correct access URL (http://tplinkwifi.net) or IP address.
  • Futa akiba ya kivinjari chako au jaribu kivinjari tofauti.
• Umesahau Nenosiri la Kuingia kwenye Kipanga Njia:
  • Perform a factory reset on the router. This will revert all settings to default, including the login password (which you will then set up again via the Quick Setup wizard). To factory reset, press and hold the reset button on the router (usually a small pinhole button) for about 10 seconds while the router is powered on.

8. Vipimo

Kumbuka: Maximum wireless transmission rates are physical rates derived from IEEE 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary due to network conditions, environmental factors, and client limitations. Use of MU-MIMO requires client devices to also support MU-MIMO.

9. Udhamini na Msaada

TP-Link provides an industry-leading 2-year warranty for this product. For technical assistance, please contact TP-Link's 24/7 technical support.

For the most up-to-date information, support resources, and contact details, please visit the official TP-Link webtovuti.

Kanusho la Kisheria:

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition. 2. Use of MU-MIMO requires clients to also support MU-MIMO.
