Utangulizi
This manual provides comprehensive instructions for the safe installation, optimal operation, and proper maintenance of your CLOUDY BAY Dimmable Upgraded 3 Color 120V LED Indoor Outdoor Step Lights. Please read this manual thoroughly before proceeding with installation and retain it for future reference. Adherence to these guidelines will ensure the longevity and performance of your product.
Image: Six CLOUDY BAY Dimmable LED Step Lights. These lights feature an adjustable color temperature, ranging from warm white to cool white, suitable for various indoor and outdoor applications.
Taarifa za Usalama
To prevent electric shock, fire, or personal injury, always follow these safety precautions:
- ONYO: Hatari ya mshtuko wa umeme. Tenganisha nguvu kwenye fuse au kikatiza mzunguko kabla ya kusakinisha au kuhudumia.
- All electrical connections must be in accordance with local and National Electrical Code (NEC) standards. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- This product is designed for 120V AC power supply. Do not attempt to connect to other voltagvyanzo.
- Ensure all wiring is securely connected and insulated to prevent short circuits.
- Usiweke kwenye nyuso ambazo hazina msimamo au zinazoweza kutetemeka.
- Do not modify the fixture in any way. Any modifications may void the warranty and create a safety hazard.
- The LED chips are integrated and not replaceable.
Vipengele vya Bidhaa
The CLOUDY BAY Dimmable LED Step Lights offer advanced features for versatile lighting solutions:
- Selectable Color Temperature (CCT): Choose between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight) to match your desired ambiance. The CCT must be set using a toggle switch on the fixture prior to installation.
- Optimized Light Projection: Designed to project light downwards, illuminating each step without causing direct glare, enhancing safety and comfort.
- Sleek and Ultra-Thin Design: The white finish face plate (2-7/8" height, 4-3/4" length) blends seamlessly with walls, providing a minimalist aesthetic.
- Maombi ya ndani na nje: Constructed for durability, these lights are suitable for both indoor and outdoor use, including stairways, pathways, driveways, and patios.
- LED Inayotumia Nishati: Each light consumes only 3W of power, producing 100 lumens of brightness, ensuring low energy consumption and a long operational lifespan.
- Utendaji Unaofifia: Compatible with most standard dimmers, allowing for adjustable brightness from 10% to 100%.
- Inastahimili Hali ya Hewa: Engineered to withstand various environmental conditions, including heat, storms, water, and frost, with an operating temperature range of -4°F to 104°F.
- Ujenzi wa kudumu: Features an aluminum body and an Acrylonitrile Butadiene Styrene shade for robust performance.

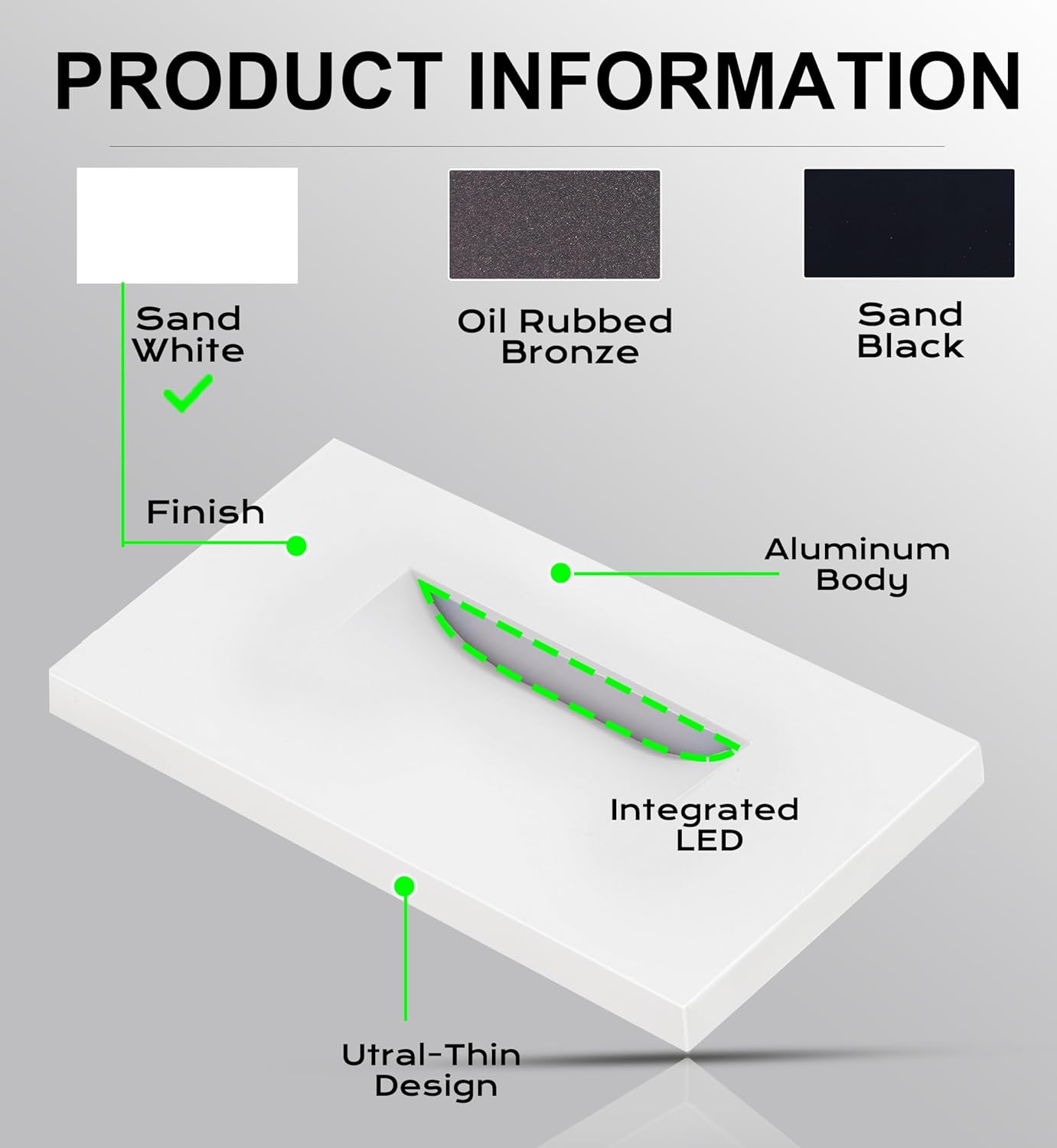

Image: Product Information. This diagram illustrates the key components and design elements of the step light, highlighting its sand white finish, aluminum body, integrated LED, and ultra-thin profile.

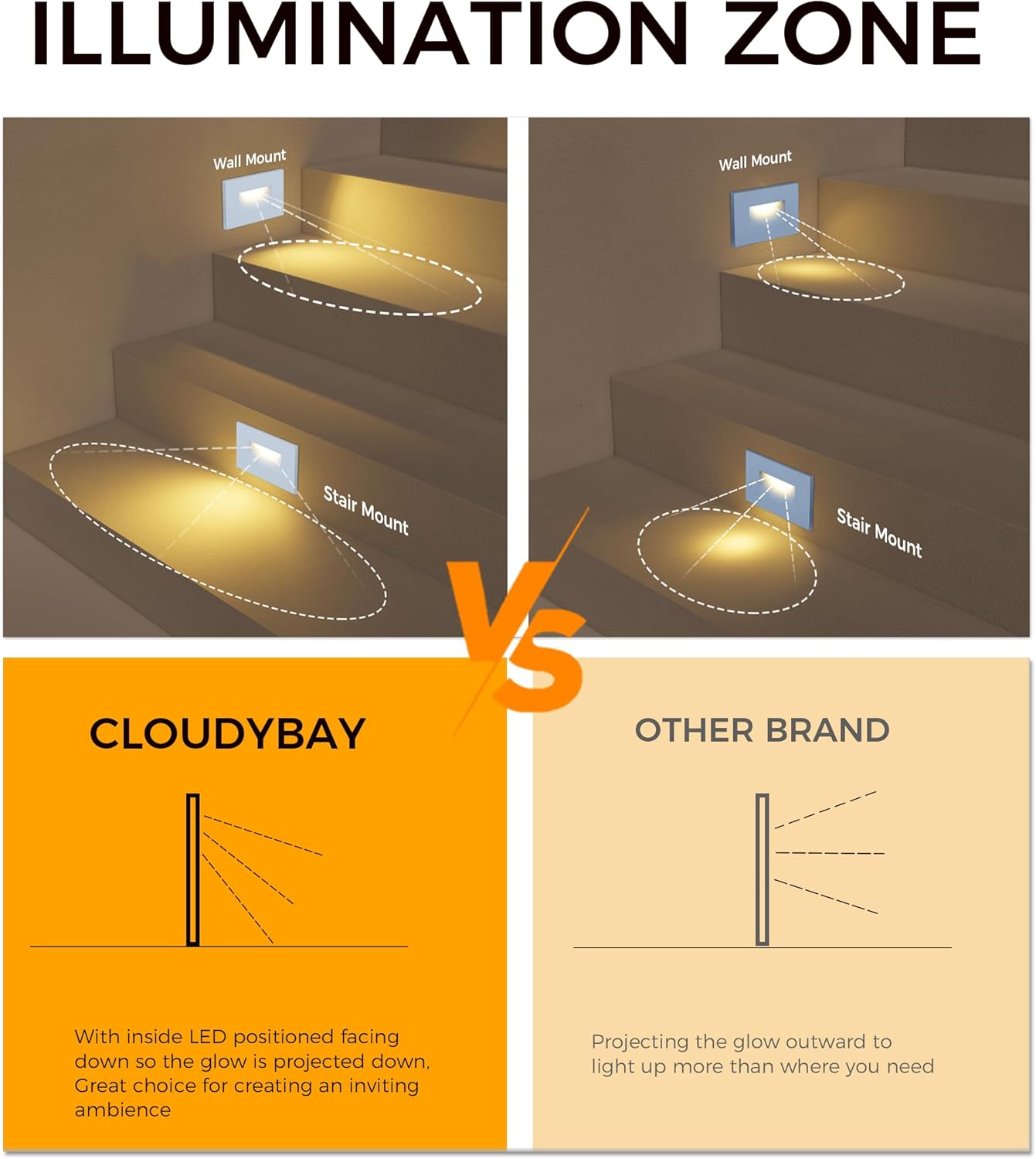

Image: Illumination Zone Comparison. This graphic demonstrates how CLOUDY BAY step lights project light downwards to illuminate treads without glare, contrasting with other brands that project light outwards.
Vipimo
| Sifa | Thamani |
|---|---|
| Chapa | CLOUDY BAY |
| Nambari ya Mfano | CBST003WH3C-6PK |
| Rangi | White (3000K/4000K/5000K selectable) |
| Nyenzo | Aluminum (Body), Acrylonitrile Butadiene Styrene (Shade) |
| Mtindo | Kisasa |
| Fomu ya Kurekebisha Mwanga | Ukuta |
| Aina ya Chumba | Ngazi |
| Vipimo vya Bidhaa | 4.6"L x 2.8"W x 1.5"H |
| Matumizi Mahususi Kwa Bidhaa | Matumizi ya Ndani na Nje |
| Chanzo cha Nguvu | Umeme wa Cord |
| Aina ya Ufungaji | Mlima wa Ukuta |
| Kipengele Maalum | Huzimika |
| Njia ya Kudhibiti | Toggle Switch (for CCT selection) |
| Aina ya Chanzo cha Mwanga | LED (Imeunganishwa) |
| Voltage | 120 Volts |
| Wattage | 3 watts |
| Mwangaza | 100 Lumen |
| Kiwango cha Upinzani wa Maji | Sugu ya Maji |
| Joto la Uendeshaji | -4 ° F ~ 104 ° F |
| Vipengee vilivyojumuishwa | Mounting Hardware, Rubber Gasket |
| Uthibitisho | ETL Imeorodheshwa |

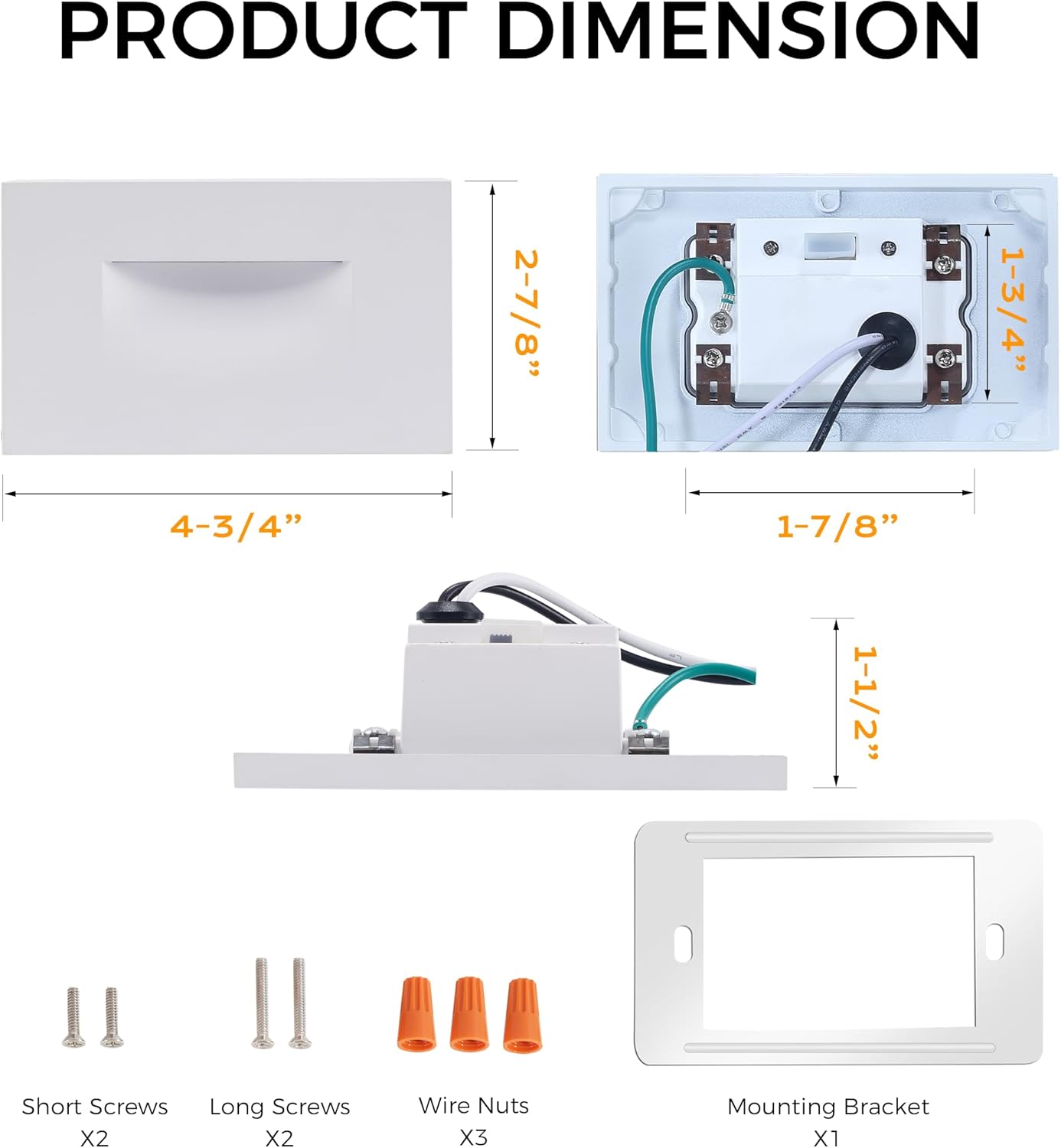

Image: Product Dimensions and Included Hardware. This image provides precise measurements of the step light and illustrates the short screws, long screws, wire nuts, and mounting bracket supplied for installation.
Mwongozo wa Ufungaji
These step lights are designed for easy installation into a standard gang box (screw holes 3-1/4" apart). Ensure power is disconnected before beginning installation.
- Prepare the Junction Box: Ensure the electrical junction box is properly installed and secured in the desired location.
- Fix the Mounting Bracket: Secure the provided mounting bracket to the junction box using the appropriate screws.
- Tengeneza Viunganisho vya Wiring: Connect the step light's wires to the 120V power supply wires using the provided wire nuts. Ensure proper polarity (Live to Live, Neutral to Neutral, Ground to Ground).
- Set Color Temperature (CCT): Before fully inserting the light, locate the CCT toggle switch on the back of the fixture. Select your desired color temperature (3000K, 4000K, or 5000K).
- Insert Wiring and Push Light Body: Carefully tuck all wiring into the junction box. Then, push the light body firmly into the mounting bracket until it sits flush with the wall.
- Seal for Wet Locations (Optional but Recommended): For outdoor or wet location usage, it is suggested to apply caulking to seal the upper two-thirds between the light fixture and the mounting surface after installation. This enhances water seal performance.
Image: Installation Guide. This visual guide illustrates the four main steps for installing the step light: fixing the mounting bracket, making wire connections, inserting wiring into the junction box, and pushing the light body into place.
Maagizo ya Uendeshaji
Once installed, operating your CLOUDY BAY LED Step Lights is straightforward:
- Washa/Zima: Control the lights using your standard wall switch connected to the 120V power supply.
- Uteuzi wa Joto la Rangi: The desired color temperature (3000K, 4000K, or 5000K) must be selected using the CCT toggle switch located on the back of the fixture kabla ya ufungaji. This setting cannot be changed after the light is fully installed without removing it.
- Kazi ya Kufifisha: If connected to a compatible dimmer switch, you can adjust the brightness of the step lights from 10% to 100%. Ensure your dimmer is suitable for LED fixtures.
Image: 3 CCT Selectable. This image displays the CCT toggle switch for selecting between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight) color temperatures, along with visual representations of each light output.
Image: Smooth Dimming. This graphic demonstrates the dimming range from 10% to 100% brightness and shows examples of compatible CLOUDY BAY dimmer series switches (CBLD001WH, CBLD003WHA, CBLD001A, CBLD006WH).
Image: Dimmer List. This table provides a list of compatible dimmer models from various brands, along with their specifications and dimming ranges, for use with CLOUDY BAY step lights.
Matengenezo
The CLOUDY BAY LED Step Lights require minimal maintenance:
- Kusafisha: Hakikisha umeme umezimwa kabla ya kusafisha. Futa kifaa kwa kutumia kifaa laini, damp kitambaa. Usitumie visafishaji au viyeyusho vyenye kukwaruza, kwani vinaweza kuharibu umaliziaji au vipengele vya umeme.
- Ukaguzi: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician or contact customer support.
- Muda mrefu wa LED: The integrated LED chips are designed for a long lifespan and do not require replacement.
Kutatua matatizo
If you encounter issues with your CLOUDY BAY LED Step Lights, refer to the following common problems and solutions:
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Mwanga hauwashi | Hakuna usambazaji wa umeme Uunganisho wa waya uliolegea Swichi yenye hitilafu | Angalia kivunja mzunguko na swichi ya ukutani. Hakikisha umeme umewashwa. Verify all wiring connections are secure (ensure power is off before checking). Test the switch with another device or replace if faulty. |
| Mwanga huzima au hufifia bila mpangilio | Swichi ya dimmer isiyoendana Wiring huru Voltage kushuka kwa thamani | Ensure the dimmer switch is compatible with LED fixtures. Refer to the dimmer list in the operating instructions. Check all wiring connections for tightness (power off). Consult an electrician to check for stable voltage ugavi. |
| Joto la rangi isiyo sahihi | Swichi ya CCT imewekwa vibaya | The CCT switch must be set before installation. If the light is already installed, disconnect power, carefully remove the fixture, adjust the CCT toggle switch on the back, and reinstall. |
| Water ingress (for outdoor use) | Kufungwa kwa kutosha | Ensure proper caulking was applied around the fixture during installation, especially for outdoor or wet locations. Reapply sealant if necessary. |
Udhamini & Msaada
Udhamini: CLOUDY BAY Lighting offers a dhamana ya mwaka 5 on this product, based on 3-5 hours of everyday use. This warranty covers defects in materials and workmanship under normal use.
Usaidizi: If you have any questions, require technical assistance, or need to claim warranty service, please contact CLOUDY BAY customer support. Please have your model number (CBST003WH3C-6PK) and proof of purchase ready when contacting support.
For further assistance, please visit the official CLOUDY BAY webtovuti au wasiliana na idara yao ya huduma kwa wateja.
