Sunsun Biochemical Aquarium Sponge Filter JF-160 User Manual

1. Utangulizi

Thank you for choosing the Sunsun Biochemical Aquarium Sponge Filter JF-160. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new aquarium filter. Please read these instructions carefully before use and retain them for future reference.

2. Bidhaa Imeishaview

2.1. Vipengele

Lifting Design: Facilitates easy inspection and cleaning of the filter sponge.
Drawer Filter Basket: Allows for the placement of various filter media to enhance biochemical filtration.
Mbalimbalitage Filtering: Incorporates drip, tide, and waterfall filtering methods for effective water purification and quiet operation.
Inaweza kupanuliwa: Multiple filters can be connected to accommodate larger aquariums or increased filtration needs.
Uchujaji Bora: Designed to provide both mechanical and biological filtration for a healthy aquatic environment.

2.2. Vipengele

The Sunsun Biochemical Aquarium Sponge Filter JF-160 typically includes the following main components:

Sponge Filter Units (x2)
Central Riser Tube with Air Outlet
Filter Base with Integrated Pump
Suction Cups for attachment

Sunsun Biochemical Aquarium Sponge Filter JF-160 components

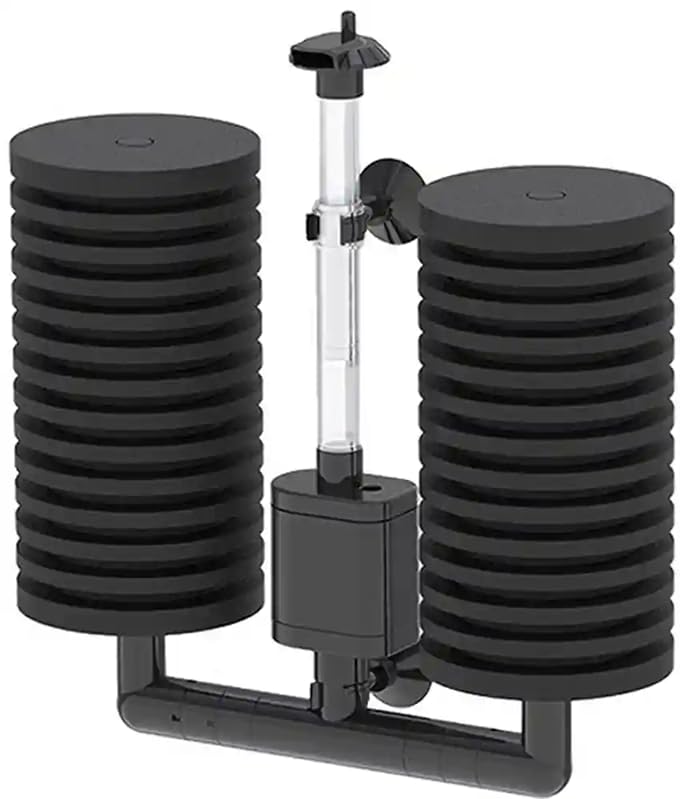

Image 1: Sunsun Biochemical Aquarium Sponge Filter JF-160, showing its main components including the two sponge filters, central tube, and base with integrated pump.

3. Maagizo ya Usalama

Always disconnect power to all aquarium equipment before performing any maintenance or handling the filter.
Ensure your hands are dry before plugging or unplugging any electrical devices.
This filter is designed for submersible use only within an aquarium. Do not operate it dry.
Weka mbali na watoto.
Do not use if any part of the filter or its components are damaged.
Ensure the filter is fully submerged in water during operation.

4. Kuweka

Follow these steps to set up your Sunsun Biochemical Aquarium Sponge Filter JF-160:

Ondoa: Ondoa kwa uangalifu vifaa vyote kutoka kwa kifurushi. Chunguza uharibifu wowote.
Kusanya:
- Attach the two sponge filter units to the filter base/connector.
- Insert the central riser tube into the designated opening on the filter base.
- Ensure the air outlet/diffuser is securely placed at the top of the central tube.
Position in Aquarium: Place the assembled filter inside your aquarium. Use the provided suction cups to securely attach the filter to the aquarium glass, ensuring it is fully submerged.
Check Submersion: Verify that the entire filter, especially the sponge units and pump intake, is completely underwater.
Unganisha Nguvu: Plug the filter's power cord into a suitable electrical outlet. Ensure a drip loop is formed to prevent water from traveling along the cord to the outlet.

Sunsun Biochemical Aquarium Sponge Filter JF-160 in packaging

Image 2: The Sunsun Biochemical Aquarium Sponge Filter JF-160 packaging. The filter is designed to be removed from this packaging and assembled for use.

5. Maagizo ya Uendeshaji

Uanzishaji wa Awali: Once the filter is correctly assembled, fully submerged, and plugged in, the internal pump will begin to draw water through the sponge filters and expel filtered water, often with aeration bubbles from the air outlet.
Operesheni inayoendelea: The filter is designed for continuous operation. Ensure the water level in your aquarium is always maintained above the minimum operating level for the pump to prevent dry running.
Adjust Air Flow (if applicable): Some models may have an adjustable air intake to control the amount of aeration.

The sponge filters provide mechanical filtration by trapping debris and biological filtration by providing a large surface area for beneficial bacteria to colonize, breaking down harmful ammonia and nitrites.

6. Matengenezo

Regular maintenance is crucial for the optimal performance and longevity of your filter and the health of your aquarium inhabitants.

Ondoa Nguvu: Always unplug the filter from the power outlet before performing any maintenance.
Ondoa Kichujio: Carefully remove the filter from the aquarium.
Clean Sponge Filters: Gently squeeze and rinse the sponge filters in a bucket of old aquarium water (water removed during a water change). Do not use tap water directly, as chlorine can kill beneficial bacteria. Rinse until most visible debris is removed.
Clean Filter Basket (if applicable): If you have added additional filter media to the drawer basket, rinse it gently in old aquarium water as well.
Clean Pump and Riser Tube: Periodically check and clean the pump impeller and the central riser tube to ensure no blockages from algae or debris.
Unganisha tena na usakinishe upya: Reassemble the filter and place it back into the aquarium, ensuring it is fully submerged before plugging it back into the power outlet.

Mara kwa mara: Clean the sponge filters every 1-2 weeks, or more frequently if water flow is noticeably reduced or the sponges appear heavily soiled. Avoid cleaning all filter media thoroughly at once to preserve beneficial bacteria.

7. Utatuzi wa shida

Tatizo	Sababu inayowezekana	Suluhisho
Reduced water flow/bubbles	Clogged air intake/outlet Dirty sponge filters Clogged pump impeller Kiwango cha chini cha maji	Clean air intake/outlet. Clean sponge filters as per maintenance section. Clean pump impeller. Ensure water level is above minimum operating level.
Filter not operating	Nguvu wewetage or unplugged Pump impeller jammed or faulty Severe blockage	Angalia muunganisho wa nguvu na plagi. Clean pump impeller; if still not working, pump may be faulty. Disassemble and thoroughly clean all components.
Maji yanabaki kuwa na mawingu	Sponge filters are too dirty Insufficient filtration for tank size New tank syndrome (biological imbalance)	Clean sponge filters more frequently. Consider adding another filter or upgrading to a larger model if tank is too big for JF-160 alone. Perform regular water changes and allow beneficial bacteria to establish.

8. Vipimo

Mfano	JF-160
Vipimo (LxWxH)	22 x 6.5 x 28 cm
Uzito wa Kipengee	336 g
Matumizi ya Nguvu	3W
Kiwango cha Juu cha Mtiririko	350 L/H
Nchi ya Asili	China

9. Udhamini na Msaada

Specific warranty information for the Sunsun Biochemical Aquarium Sponge Filter JF-160 may vary by region and retailer. Please refer to your purchase documentation or contact the seller directly for details regarding warranty coverage and claims.

For technical support or further assistance, please contact the Sunsun customer service or the retailer from whom you purchased the product.
