Imou IOT-ZL1-EU

Imou ZL1 ZigBee Smart Water Leak Sensor Instruction Manual

Model: IOT-ZL1-EU

1. Bidhaa Imeishaview

The Imou ZL1 ZigBee Smart Water Leak Sensor is designed to detect water leaks and alert you to potential flooding, helping to prevent water damage in your home or office. This compact and discreet sensor uses ZigBee technology for reliable wireless communication with your compatible smart home hub.

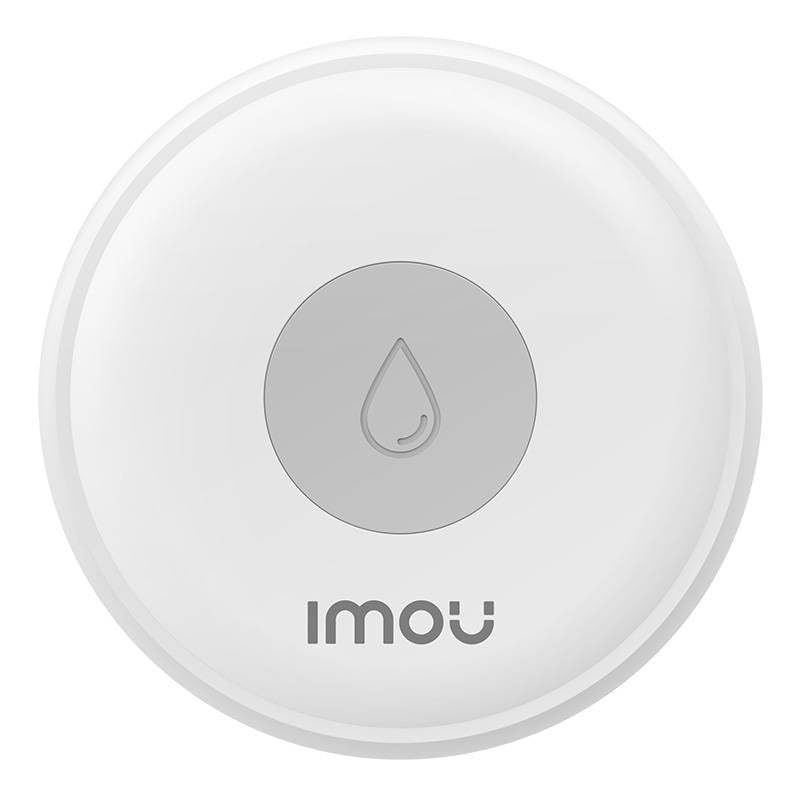

Imou ZL1 ZigBee Smart Water Leak Sensor
Imou ZL1 ZigBee Smart Water Leak Sensor. This image shows the compact, white, glossy acrylic sensor with its contact points visible at the bottom.

2. Maagizo ya Kuweka

Follow these steps to set up your Imou ZL1 Smart Water Leak Sensor:

  1. Tayarisha Mazingira Yako: Ensure you have a compatible ZigBee hub (e.g., Imou Smart Hub) and the Imou Life app installed on your smartphone. Make sure your Wi-Fi network is 2.4GHz.
  2. Weka Betri: The sensor requires batteries (not included). Open the sensor's casing (refer to the diagram below for battery compartment location) and insert the required batteries, ensuring correct polarity.
  3. Open Imou Life App: Launch the Imou Life app on your smartphone and log in to your account.
  4. Ongeza Kifaa: Tap the '+' icon or 'Add Device' option in the app. Select 'Sensor' or 'Water Leak Sensor' from the device list.
  5. Pair with Hub: Follow the on-screen instructions to put your ZigBee hub into pairing mode. Then, activate the sensor's pairing mode (usually by pressing a button inside the battery compartment or on the device itself for a few seconds until an indicator light flashes).
  6. Thibitisha Muunganisho: Once the sensor is detected and paired, the app will confirm the successful connection. You may be prompted to name the sensor and assign it to a specific room.
  7. Uwekaji: Place the sensor on a flat surface in areas prone to water leaks, such as near water heaters, washing machines, sinks, or in basements. Ensure the contact points on the bottom of the sensor are facing downwards and can come into contact with water.
Imou ZL1 Sensor Placement
Proper placement of the Imou ZL1 sensor on a floor near a potential water leak source. The sensor is white and designed for floor mounting.

Video: Imou Home Alarm Kit Interaction (General Sensor Pairing)

This video demonstrates the general process of adding sensors and configuring an alarm kit within the Imou Life app. While it features different types of sensors (motion, door/window), the app pairing steps are similar for the ZL1 water leak sensor.

3. Maagizo ya Uendeshaji

Once your Imou ZL1 sensor is set up and paired with your ZigBee hub, it will continuously monitor for water leaks.

  • Utambuzi wa Maji: When the sensor's contact points detect water, it will trigger an alert.
  • Arifa za Programu: You will receive instant notifications on your smartphone via the Imou Life app when a water leak is detected.
  • Mitambo otomatiki: Through the Imou Life app, you can set up smart automations, such as triggering an alarm siren (if connected to an Imou alarm system) or sending alerts to other family members when a leak is detected.
  • Ukaguzi wa Hali: You can check the current status of your water leak sensor (e.g., battery level, last detection) at any time through the Imou Life app.

4. Matengenezo

Regular maintenance ensures optimal performance of your water leak sensor:

  • Ubadilishaji wa Betri: The sensor is battery-powered. When the battery level is low, you will receive a notification in the Imou Life app. Replace the batteries promptly to ensure continuous protection. Use the specified battery type (refer to the sensor's internal markings or packaging).
  • Kusafisha: Periodically clean the sensor's exterior and especially the water contact points with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
  • Jaribio: It is recommended to periodically test the sensor by placing its contact points in a small amount of water to ensure it triggers an alert correctly.

5. Utatuzi wa shida

If you encounter issues with your Imou ZL1 Smart Water Leak Sensor, try the following:

  • Kihisi Hakiunganishi:
    • Ensure your ZigBee hub is powered on and connected to your network.
    • Verify that the sensor has fresh batteries installed.
    • Move the sensor closer to the ZigBee hub to improve signal strength.
    • Try resetting the sensor (refer to the device's specific reset procedure, usually a small button press) and re-pairing it with the app.
  • No Alerts on Water Detection:
    • Check the sensor's battery level in the Imou Life app.
    • Ensure the sensor's contact points are clean and free from debris.
    • Verify that app notifications are enabled for the Imou Life app on your smartphone.
    • Confirm that the sensor is still paired and online in the Imou Life app.
  • Kengele za Uongo:
    • Ensure the sensor is placed on a dry, stable surface and not in an area where it might accidentally come into contact with moisture or condensation.
    • Clean the sensor's contact points thoroughly.

6. Vipimo

KipengeleVipimo
Rejea ya MfanoIOT-ZL1-EU
ChapaImou
Njia ya KudhibitiMaombi
Aina ya KuwekaMlima wa Sakafu
Teknolojia ya SensorKihisi cha Mawasiliano
Chanzo cha NguvuBattery Powered (Batteries required, not included)
NyenzoAcrylic
MalizaInang'aa
RangiNyeupe

7. Udhamini na Msaada

For warranty information, please refer to the documentation included with your product or visit the official Imou website. For technical support, troubleshooting assistance, or to access the latest user guides, please visit the Imou support page or contact their customer service directly.
