1. Utangulizi
This user manual provides comprehensive instructions for the MoesGo Wi-FI Floor Heating Thermostat, Model BHT-002-GBLWW-MG. This device is designed to control electric underfloor heating systems, offering both manual and smart control options. Please read this manual thoroughly before installation and operation to ensure proper use and optimal performance.
2. Bidhaa Imeishaview
2.1 Sifa Muhimu
- Manual and Automatic Control: Operate the thermostat manually or connect to a Wi-Fi network for control via a smartphone application.
- Electric Underfloor Heating: Specifically designed for 16A electric underfloor heating systems.
- Uhifadhi wa Data: Features anti-stop protection to retain date, language, address, and time zone settings during power interruptions.
- Voice Control and Device Sharing: Compatible with voice assistants like Amazon Alexa and Google Home. Supports device sharing for multi-user access.
- Programmable Scheduling: Offers six programmable intervals for weekdays and weekends (5+1+1 day modes) to optimize heating schedules.
- Udhibiti Sahihi wa Halijoto: Provides accurate temperature control within 0.5°C, with a programming range of 5-35°C.
- Kiolesura cha Mtumiaji: Equipped with an LCD display and touch buttons for clear readability and ease of use.
Image: MoesGo Thermostat displaying its key features such as LCD display, temperature setting, 6-period programming, 5+2 programmable mode, app control, device sharing, power-off memory, and manual/auto mode.
2.2 Yaliyomo kwenye Kifurushi
- Thermostat (pc 1)
- Screws (1 pc)
- User Guide (1 pc)
- QC Certificate (1 pc)
- Floor Sensor (2.5m) (1 pc)
2.3 Vipimo vya Bidhaa

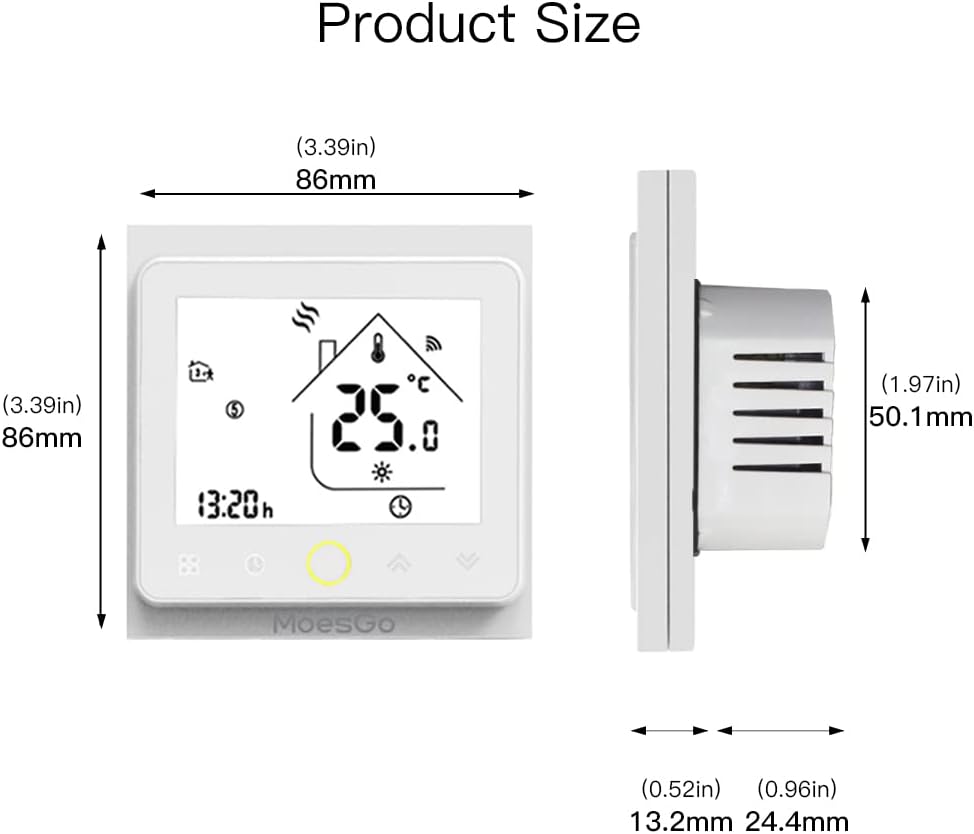

The thermostat measures approximately 86mm x 86mm x 50.1mm (3.39in x 3.39in x 1.97in) with a mounting depth of 24.4mm (0.96in).
Image: Diagram showing the front and side dimensions of the MoesGo thermostat, indicating 86mm width and height, and 50.1mm total depth with a 24.4mm mounting depth.
3. Ufungaji na Usanidi
3.1 Miongozo ya Jumla ya Ufungaji
The thermostat requires a 2.4GHz Wi-Fi connection for smart features. It can be installed in a standard junction box or a 60 mm European format connection box. For optimal display visibility, install the thermostat at a height of 1.2 to 1.4 meters from the floor.
Image: Illustration demonstrating the recommended installation height for the thermostat, showing it positioned between 1.2 and 1.4 meters from the floor for clear viewing.
Maagizo 3.2 ya Wiring
This thermostat is designed for electric heating systems (GB type). Refer to the wiring diagram for correct connection. Ensure power is disconnected before performing any wiring.
Image: Wiring diagram for the MoesGo GB type thermostat for electric heating, showing connections for AC90-240V (N, L), Load (1, 2), and NTC sensor (3, 4).
3.3 System Type Identification
The MoesGo thermostat series includes different models for various heating systems:
- GA: For underfloor water heating systems.
- GB: For underfloor electric heating systems (this model).
- GC: For water/gas boiler heating systems.
Ensure you have the correct model (GB) for your electric underfloor heating.
Image: Visual representation of different heating system types (GA for water, GB for electric, GC for boiler) and their corresponding thermostat applications.
4. Uendeshaji
4.1 Udhibiti wa Mwongozo
The thermostat can be operated directly using the touch buttons on its front panel to adjust temperature settings and modes.
4.2 Udhibiti wa Programu ya Smart Life
Connect the thermostat to your Wi-Fi network to enable remote control via the Smart Life app on your smartphone. This allows you to adjust heating settings from anywhere.
Image: A person using a smartphone app to remotely control the MoesGo thermostat, illustrating the Wi-Fi connectivity and convenience of app-based temperature management.
4.3 Muunganisho wa Udhibiti wa Sauti
Integrate the thermostat with Amazon Alexa or Google Home systems for hands-free voice control of your heating. Simply use voice commands to adjust the room temperature.
Image: A person interacting with smart speakers (Amazon Alexa and Google Home) to control the MoesGo thermostat using voice commands, demonstrating its compatibility with popular voice assistants.
4.4 Njia Zinazoweza Kupangwa
The thermostat supports programmable modes (5+2, 6+1, or 7 days) allowing you to set specific heating schedules for different times of the day and week. This helps maintain comfort and manage energy consumption.
Image: A visual representation of the thermostat's programmable mode, showing time slots (e.g., 6:00-8:00, 11:00-12:00) and an accompanying smartphone app interface for setting timers and schedules.
5. Matengenezo
To maintain the thermostat, gently wipe the screen and casing with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Ensure no liquids enter the device. Regular cleaning helps maintain optimal performance and appearance.
6. Utatuzi wa shida
If the thermostat is not functioning as expected, first check the power supply and Wi-Fi connection. Ensure the device is correctly wired according to the installation instructions. For persistent issues, consult the manufacturer's support resources or a qualified electrician.
7. Maelezo ya kiufundi
| Vipimo | Thamani |
|---|---|
| Chapa | MoesGo |
| Nambari ya Mfano | BHT-002-GBLWW-MG |
| Rangi | white&blue |
| Vipimo vya Bidhaa | 3.76 x 8.6 x 8.6cm; 282g |
| Nguvu / Wattage | 3.84E+3 W |
| Voltage | 240 Volts |
| Nyenzo | Polycarbonate (PC) |
| Vipengele Maalum | Inaweza kupangwa |
| Mtengenezaji | WENZHOU NOVA NEW ENERGY CO.,LTD |
| Matumizi maalum ya bidhaa | Warmth, Heating |
| Teknolojia ya uunganisho | Wi-Fi |
| Vipengele vilivyojumuishwa | Thermostat, screws, user guide, QC certificate, floor sensor (2.5m) |
| Chanzo cha nguvu | Umeme wa Cord |
8. Udhamini na Msaada
For warranty information and technical support, please refer to the documentation provided with your purchase or contact MoesGo customer service. Keep your purchase receipt for warranty claims.
