The Hawk EC Lapel Microphone by Earphone Connection is designed for professional communication, offering a concealable and lightweight solution. It features the Easy-Connect System for secure radio connection and includes a clear acoustic audio tube with a Fin Ultra Ambi ear tip for enhanced comfort and ambient sound awareness.
This lapel headset mic is specifically engineered for compatibility with various Motorola walkie-talkie models, ensuring clear and reliable audio transmission in demanding environments.

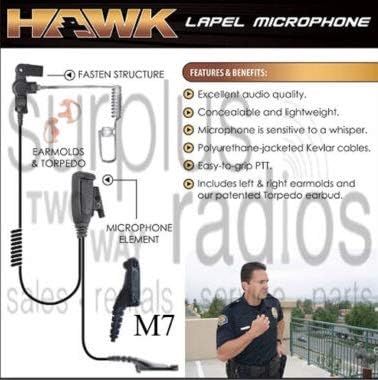

Kielelezo cha 1: Components and features of the Hawk EC Lapel Microphone. This diagram illustrates the fasten structure, earmolds & torpedo, microphone element, and highlights key benefits such as excellent audio quality, concealability, whisper-sensitive microphone, Kevlar cables, and easy-to-grip PTT.
Kielelezo cha 2: Kina view of the Hawk EC Lapel Microphone, showing the acoustic tube, lapel microphone unit, and radio connector. This image provides a clear visual of the product's physical design.
Sifa Muhimu
- Concealable and Lightweight: Designed for discreet and comfortable wear during extended periods.
- Maikrofoni Nyeti: Capable of picking up even a whisper, ensuring clear communication in various environments.
- Excellent Audio Quality: Provides clear and crisp audio transmission and reception.
- Faraja Iliyoimarishwa: Includes the Fin Ultra Ambi ear tip, which fits both left and right ears and allows for ambient sound awareness.
- Ujenzi wa kudumu: Features polyurethane-jacketed Kevlar cables for increased longevity and resistance to wear and tear.
- Easy-Connect System: Two guide arrows on the strain relief cable connector and EC Easy-Connect adapter ensure immediate and secure radio connection, reducing wear.
Utangamano
The EP1334-M7 Hawk EC Lapel Microphone is compatible with the following Motorola walkie-talkie models:
- Motorola APX6000
- Motorola APX6000XE
- Motorola APX7000
- Motorola APX7000XE
- Motorola APX8000
- Motorola XPR6300
- Motorola XPR6350
- Motorola XPR6500
- Motorola XPR6550
- Motorola XPR7550
Maagizo ya Kuweka
- Tambua Viunganishi: Locate the Easy-Connect System on your Hawk EC Lapel Microphone and the corresponding EC Easy-Connect adapter on your Motorola radio. Note the two guide arrows on both parts.
- Panga na Unganisha: Align the guide arrows on the microphone's connector with the arrows on the radio's adapter. Gently push the microphone connector into the radio's adapter until it clicks securely into place. Do not force the connection.
- Maikrofoni ya nafasi: Clip the lapel microphone unit to your clothing, ideally near your collar or lapel, ensuring it is positioned to capture your voice clearly and is easily accessible for the Push-To-Talk (PTT) button.
- Insert Earpiece: Insert the Fin Ultra Ambi ear tip into your ear. This ear tip can be worn in either the left or right ear. Adjust for comfort and secure fit.
- Usimamizi wa Cable: Route the cable discreetly under your clothing to prevent snagging and maintain a professional appearance.
Maagizo ya Uendeshaji
- Washa Redio: Ensure your Motorola radio is powered on and properly configured for communication.
- Sambaza (PTT): To transmit, press and hold the Push-To-Talk (PTT) button located on the lapel microphone unit. Speak clearly into the microphone. Release the PTT button when you have finished speaking.
- Receive Audio: Audio from the radio will be heard through the acoustic tube earpiece. Adjust the radio's volume control for comfortable listening.
- Jaribio: Before critical use, perform a communication test with another radio user to ensure proper functionality and audio clarity.
Matengenezo
- Kusafisha: Regularly wipe the microphone unit, PTT button, and cables with a soft, damp kitambaa. Usitumie kemikali kali au visafishaji vya abrasive.
- Usafi wa Kisikio: Clean the Fin Ultra Ambi ear tip and acoustic tube regularly with mild soap and water. Ensure they are completely dry before reassembly and use. Replace ear tips periodically for optimal hygiene and performance.
- Huduma ya Cable: Avoid sharp bends, kinks, or excessive pulling on the cables to prevent internal damage. Store the unit neatly when not in use.
- Hifadhi: Store the lapel microphone in a cool, dry place away from direct sunlight and extreme temperatures.
Kutatua matatizo
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Hakuna sauti kutoka kwa kifaa cha masikioni. |
|
|
| Transmit audio is unclear or weak. |
|
|
| Uunganisho wa mara kwa mara. |
|
|
Vipimo
- Mfano: EP1334-M7
- Chapa: Muunganisho wa earphone
- Aina: Lapel Headset Microphone
- Rangi: Nyeusi
- Aina ya Kiunganishi: Male-to-Female (Easy-Connect System)
- Nyenzo za Cable: Polyurethane-jacketed Kevlar
- Kitambaa cha mapema: Fin Ultra Ambi (medium, clear acoustic tube)
- Utangamano: Motorola APX6000, APX6000XE, APX7000, APX7000XE, APX8000, XPR6300, XPR6350, XPR6500, XPR6550, XPR7550 series radios.
Taarifa ya Udhamini
The Hawk EC Lapel Microphone comes with a Udhamini wa Uingizwaji wa Mwaka 1 kuanzia tarehe ya ununuzi. Udhamini huu unashughulikia kasoro katika nyenzo na utengenezaji chini ya matumizi ya kawaida. Haijumuishi uharibifu unaosababishwa na matumizi mabaya, ajali, urekebishaji usioidhinishwa, au sababu za nje.
For warranty claims, please retain your proof of purchase and contact customer support.
Msaada
For further assistance, technical support, or to inquire about replacement parts, please visit the official Earphone Connection webtovuti au wasiliana na idara yao ya huduma kwa wateja.
Rasilimali za Mtandaoni: www.earphoneconnection.com
Please have your product model (EP1334-M7) and purchase details ready when contacting support.
