Mwongozo wa Mtumiaji wa Hikvision DS-7204HUHI-F1/N TurboHD Tribrid DVR ya Vituo 4

1. Utangulizi

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Hikvision DS-7204HUHI-F1/N 4-Channel TurboHD Tribrid Digital Video Recorder (DVR). Please read this manual thoroughly before using the device to ensure proper functionality and safety.

The Hikvision DS-7204HUHI-F1/N is a versatile DVR supporting 4-channel analog video input (HDTVI up to 3MP/1080p30, 720p60, CVBS 960H) and 2-channel IP video input (up to 4MP cameras). This renewed product has been professionally inspected and tested to work and look like new.

2. Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako:

Hikvision DS-7204HUHI-F1/N DVR Unit
Adapta ya Nguvu
Panya ya USB
Kidhibiti cha Mbali (na betri)
BNC Connectors / Power Splitters (for cameras)
Mounting Screws for HDD (HDD not included)

Hikvision DVR accessories including power adapter, mouse, remote, and cables

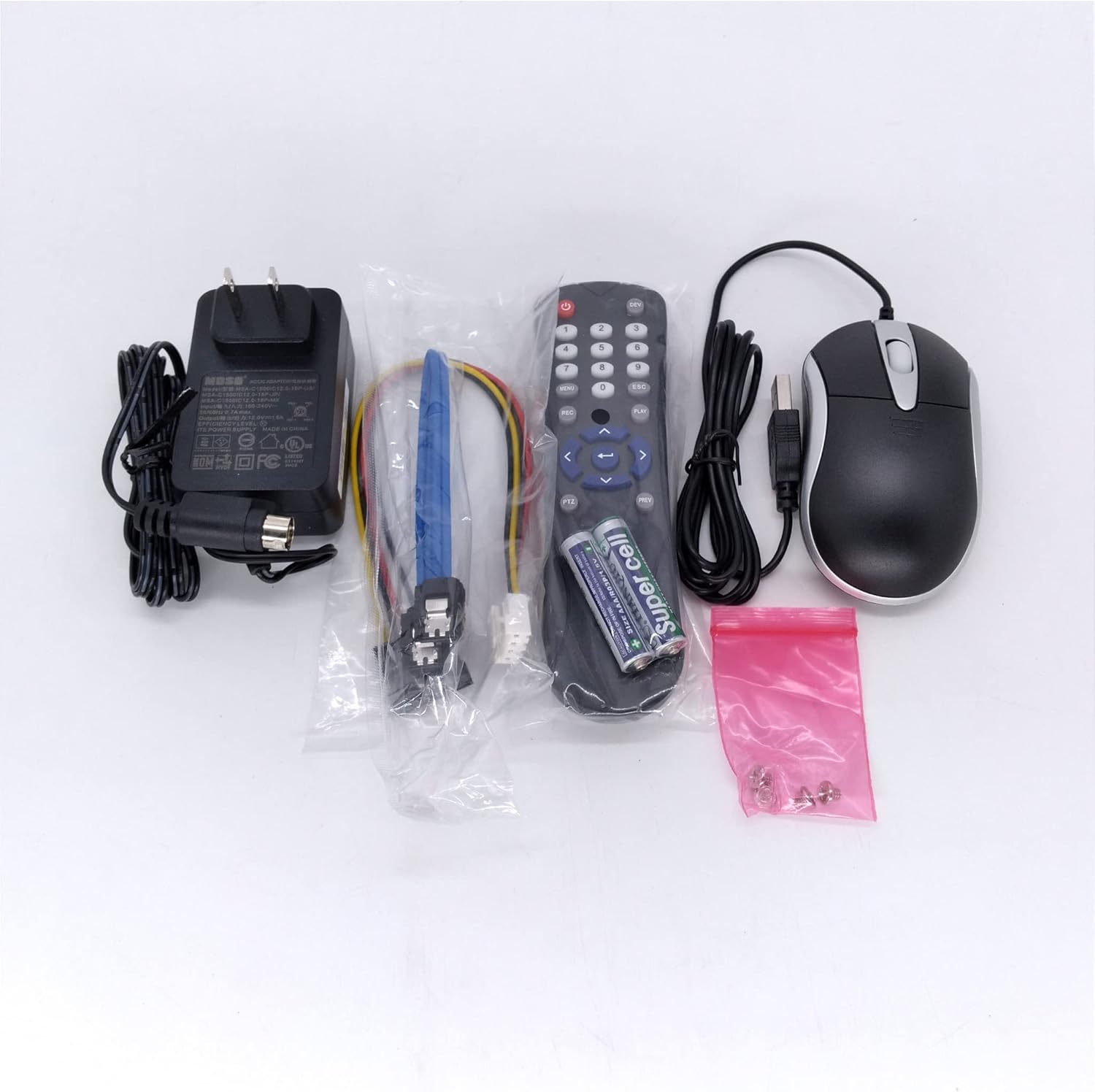

Image 2.1: Included accessories for the DVR system.

3. Kuweka

3.1. Viunganishi vya Kimwili

Follow these steps to connect your DVR system. Refer to the provided videos for visual guidance.

Unganisha Nguvu: Connect the power supply to the 12V DC Power Input port on the DVR.
Unganisha Kipanya: Plug the USB mouse into one of the USB input ports on the DVR.
Unganisha kwa Monitor: Connect the DVR to a monitor using an HDMI cable or a VGA cable.
Network Connection (for IP Cameras/Remote Access):
- Connect the DVR to your router using an Ethernet cable.
- If using a PoE switch for IP cameras, connect the DVR to the PoE switch via an Ethernet cable.
- Connect the Ethernet cable from the PoE switch to the camera's RJ45 Network Port.
Camera Connections (Analog Cameras):
- Connect the power input interface of the BNC cable to the power supply of the cameras.
- Connect the video cable to the DVR's video input ports.
- Connect the video cable to the camera's BNC video output and the DC cable to the camera's DC power input.

Picha 3.1: Mbele na nyuma views of the Hikvision DVR, showing various ports.

Rear panel of Hikvision DVR with BNC, HDMI, VGA, USB, LAN, and power ports

Picha 3.2: Kina view of the DVR's rear panel connections.

3.2. Video Guides for Setup

These videos demonstrate the connection process for different camera types:

Video 3.1: Instructions on connecting a PoE camera to a Hiseeu 4K DVR system. This video demonstrates the general setup process for IP cameras with a DVR.

Video 3.2: Instructions on connecting analog cameras to a Hiseeu 4K DVR. This video is relevant for connecting HDTVI/CVBS cameras to your DVR.

4. Kuendesha DVR

4.1. Initial Setup and Camera Addition

After connecting all hardware, power on the DVR. The system will boot up and display on the connected monitor.

Menyu ya Ufikiaji: Right-click with the connected USB mouse on the monitor screen to bring up the main menu.
Navigate to Camera Settings: Select the 'Camera' option from the menu.
Refresh Camera List: In the 'Camera' interface, click the 'Refresh' button to scan for connected cameras.
Ongeza Kamera: Once cameras are discovered, click the '+' icon next to each camera to add it to the DVR system.

4.2. Kuishi View na Uchezaji

Once cameras are added, you can view live feeds and access recorded footage.

Ishi View: The main screen will display the live feeds from your connected cameras.
Uchezaji: Access the 'Playback' option from the main menu to review recorded video. A 3.5-inch SATA hard disk drive (HDD) is required for recording and playback functionality.

5. Matengenezo

Matengenezo ya mara kwa mara huhakikisha utendaji bora na uimara wa mfumo wako wa DVR.

Kusafisha: Safisha sehemu ya nje ya DVR mara kwa mara kwa kitambaa laini na kikavu. Hakikisha fursa za uingizaji hewa hazina vumbi na vizuizi.
Sasisho za Firmware: Check the official Hikvision US website for available firmware updates. Keeping your firmware updated can improve system stability and add new features.
Ukaguzi wa Muunganisho: Kagua mara kwa mara miunganisho yote ya kebo (umeme, video, mtandao) ili kuhakikisha kuwa iko salama na haina uharibifu.
Afya ya HDD: If an HDD is installed, monitor its health through the DVR's system settings. Back up important recordings regularly.

6. Utatuzi wa shida

Sehemu hii inashughulikia masuala ya kawaida ambayo unaweza kukutana nayo.

"No Signal" on Monitor:
- Verify that the DVR is powered on and the power adapter is securely connected.
- Check the HDMI or VGA cable connection between the DVR and the monitor.
- Ensure the monitor is set to the correct input source (HDMI/VGA).
"Camera Offline" or "Network Error":
- Check the Ethernet cable connection between the DVR/PoE switch and the router.
- Verify the Ethernet cable connection between the PoE switch and the camera.
- Hakikisha kuwa kamera inapokea nishati.
- In the DVR's 'Camera' settings, try clicking 'Refresh' to rediscover cameras.
Hakuna Kurekodi/Kucheza tena:
- Confirm that a 3.5-inch SATA HDD is installed in the DVR.
- Check the HDD status in the DVR's 'Storage' settings. The HDD may need to be initialized or formatted.
Difficulty Installing HDD: Some renewed units may have chassis screws that are difficult to remove. If you encounter this, contact support for assistance. Do not force screws as this may damage the unit.

7. Vipimo

Kipengele	Maelezo
Nambari ya Mfano	DS-7204HUHI-F1/N
Ingizo la Video ya Analogi	4-channel (HDTVI up to 3MP/1080p30, 720p60, CVBS 960H)
Ingizo la Video ya IP	2-channel (up to 4MP cameras supported)
Usaidizi wa HDD	3.5 inch SATA drive required for recording (HDD not included)
Teknolojia ya Uunganisho	BNC, Ethernet
Vifaa Sambamba	Kamera
Uzito wa Kipengee	Pauni 4.44
Vipimo vya Kifurushi	Inchi 19.2 x 11.7 x 3.2

8. Udhamini

This Hikvision DVR is a renewed product and is covered by the Dhamana Iliyofanywa upya ya Amazon. If you are not satisfied with your purchase, renewed products are eligible for replacement or refund under this guarantee. Additionally, the product includes a US warranty from Hikvision.

9. Msaada

For technical assistance or inquiries, please utilize the following resources:

Msaada wa Merika: This product comes with US support from Hikvision. Refer to the official Hikvision US webtovuti kwa maelezo ya mawasiliano.
Barua pepe ya Usaidizi: You may also contact support via email at Upendo@Hiseeu.com.
