Sundirect MD300Plus Infrared Mirror Heater with Smart Plug Thermostat User Manual

1. Utangulizi

This manual provides comprehensive instructions for the safe and efficient operation of your Sundirect MD300Plus Infrared Mirror Heater and its accompanying Smart Plug Thermostat. Please read this manual thoroughly before installation and use, and retain it for future reference. This product is designed to provide efficient heating and a clear mirror surface, particularly suitable for bathrooms and other living spaces.

2. Maagizo ya Usalama

Daima zingatia tahadhari zifuatazo za usalama ili kupunguza hatari ya moto, mshtuko wa umeme au majeraha:

• Hakikisha ugavi wa umeme ujazotage matches the specifications of the heater.
• Usiendeshe hita kwa kamba iliyoharibika au kuziba.
• Do not immerse the heater or Smart Plug in water or other liquids.
• Weka vifaa vinavyoweza kuwaka moto kwa umbali salama kutoka kwa hita.
• Usifunike heater wakati wa operesheni.
• Installation must be performed by a qualified professional if hardwiring is required.
• Kifaa hiki hakikusudiwa kutumiwa na watu (pamoja na watoto) walio na uwezo mdogo wa kimwili, hisi au kiakili, au wasio na uzoefu na ujuzi, isipokuwa wamepewa usimamizi au maagizo kuhusu matumizi ya kifaa na mtu anayehusika na usalama wao.
• Watoto wanapaswa kusimamiwa ili kuhakikisha kwamba hawachezi na kifaa.

3. Yaliyomo kwenye Kifurushi

Thibitisha kuwa bidhaa zote zilizoorodheshwa hapa chini zipo kwenye kifurushi chako:

• 1 x Sundirect MD300Plus Infrared Mirror Heater (300 Watt)
• 1 x Smart Plug Thermostat
• 1 x Mounting Accessories Set
• 1 x Mwongozo wa Mtumiaji (hati hii)

Picha ya 3.1: The Sundirect MD300Plus Infrared Mirror Heater shown with the Smart Plug WiFi Thermostat.

4. Bidhaa Imeishaview

The Sundirect MD300Plus is an infrared mirror heater designed for efficient and comfortable heating, particularly in spaces like bathrooms. It features a high-quality carbon crystal heating element and is insulated with two layers of high-temperature fiberglass material for minimal heat loss. The mirror surface also helps prevent fogging in humid environments.

Picha ya 4.1: Mbele view of the Sundirect MD300Plus Infrared Mirror Heater.

The Smart Plug Thermostat provides convenient control over your heater. It features a touch display, WiFi connectivity, and 7-day programming. It is compatible with smart home systems like Amazon Alexa and Google Home, offering various operating modes including holiday, smart, and manual.

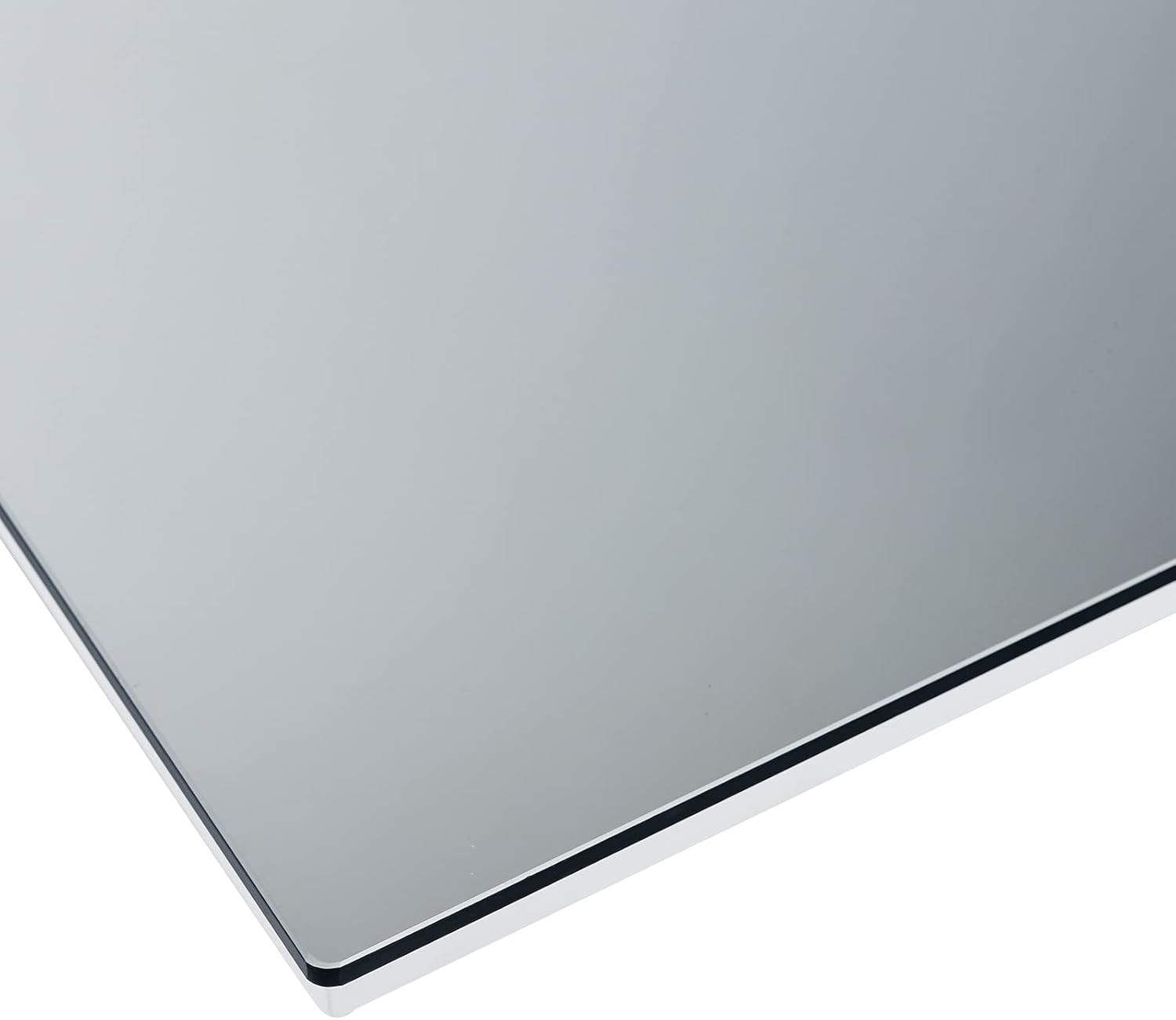

Picha ya 4.2: Maelezo ya kina view of the sleek edge design of the mirror heater.

5. Kuweka na Kuweka

The MD300Plus mirror heater is designed for wall installation. The Smart Plug Thermostat requires no assembly and simply plugs into a standard electrical outlet.

5.1 Mirror Heater Installation

1. Chagua Mahali: Select a suitable wall location, ensuring it is within reach of a power outlet and away from flammable materials. Consider the desired heating area (3-6 m²).
2. Mabano ya Kupachika: Use the provided mounting accessories to securely attach the wall mount bracket to the wall. Ensure the bracket is level and firmly fixed.

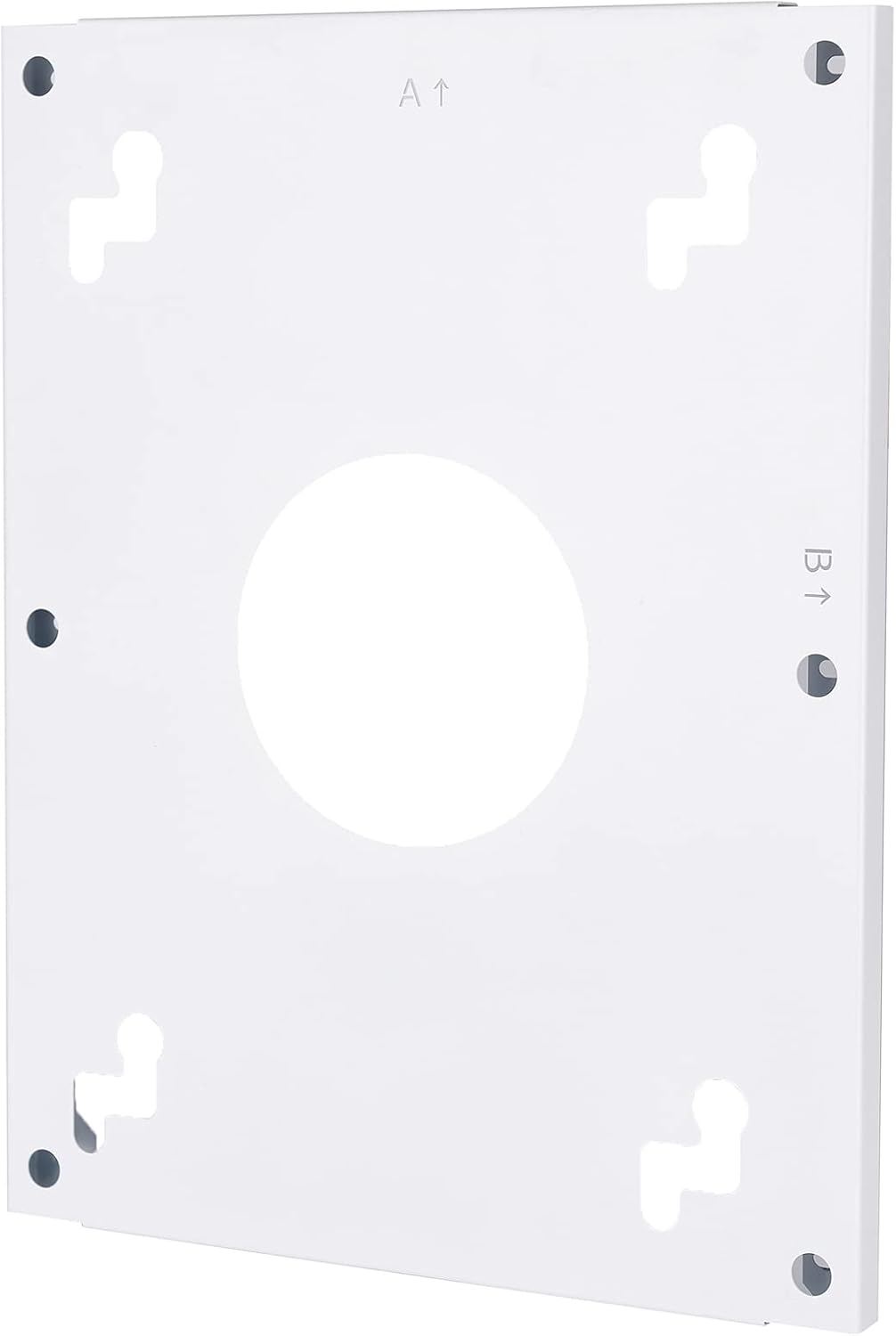

Picha ya 5.1: The wall mount bracket with designated mounting points.
3. Attach Heater: Carefully lift the mirror heater and align the mounting points on the back of the heater with the bracket. Secure the heater to the bracket according to the instructions provided with the mounting kit.


Picha ya 5.2: Nyuma view of the heater, illustrating the mounting points and power connection.

4. Muunganisho wa Nishati: Plug the heater's power cable into a standard EU-compliant electrical outlet. Ensure the power switch on the heater's connection box is in the OFF position before plugging in.


Picha ya 5.3: Detail of the power switch and connection box on the heater's rear.

5.2 Smart Plug Thermostat Setup

1. Chomeka: Insert the Smart Plug Thermostat into a standard electrical outlet.
2. Unganisha Hita: Plug the mirror heater's power cable into the Smart Plug Thermostat.
3. Washa: Turn on the power switch on the heater's connection box.
4. Kuoanisha: Follow the instructions provided with the Smart Plug Thermostat to pair it with the heater and connect it to your home WiFi network via the Sundirect Smart app.

6. Maagizo ya Uendeshaji

The Smart Plug Thermostat offers multiple ways to control your infrared mirror heater.

6.1 Manual Control (Touch Display)

Use the touch display on the Smart Plug Thermostat to manually adjust the desired temperature. The display will show the current room temperature and the set temperature.

6.2 WiFi Control (Sundirect Smart App)

Download the Sundirect Smart app (or Tuya Smart App as indicated in specifications) on your smartphone or tablet. Once connected to your home WiFi network, you can:

• Set and adjust target temperatures remotely.
• Program a 7-day heating schedule for each day of the week.
• Switch between different operating modes:
  • Njia ya Smart: Automatically adjusts heating based on your programmed schedule.
  • Hali ya Mwongozo: Maintains a constant temperature set by the user.
  • Hali ya Likizo: Sets a lower, energy-saving temperature for extended periods when you are away.

6.3 Udhibiti wa Sauti (Alexa na Google Home)

Integrate the Smart Plug Thermostat with your Amazon Alexa or Google Home device. Once linked, you can control the heater using voice commands, such as "Alexa, set bathroom heater to 22 degrees" or "Hey Google, turn off the mirror heater."

7. Matengenezo na Matunzo

Regular maintenance ensures optimal performance and longevity of your mirror heater.

• Kusafisha kioo: Ensure the heater is switched off and unplugged before cleaning. Use a soft, damp cloth and a mild glass cleaner to wipe the mirror surface. Avoid abrasive cleaners or harsh chemicals.
• Usafishaji wa jumla: Periodically wipe the frame and back of the heater with a dry or slightly damp kitambaa ili kuondoa vumbi.
• Ukaguzi: Regularly check the power cord and plug for any signs of damage. If damage is found, discontinue use and contact customer support.
• Do not attempt to open or repair the heater or thermostat yourself. Refer all servicing to qualified personnel.

8. Utatuzi wa shida

If you encounter issues with your Sundirect MD300Plus, refer to the following common troubleshooting steps:

• Hita Isiyowashwa:
  • Check if the heater is properly plugged into the Smart Plug Thermostat and the thermostat is plugged into a live outlet.
  • Ensure the power switch on the heater's connection box is in the ON position.
  • Verify that the Smart Plug Thermostat is powered on and set to a temperature higher than the current room temperature.
  • Angalia kikatiza mzunguko wa nyumba yako.
• Hakuna Pato la Joto:
  • Confirm the thermostat is set to an active heating mode (Smart, Manual) and the target temperature is above the ambient temperature.
  • Allow some time for the infrared heater to reach its operating temperature.
• Masuala ya Muunganisho wa WiFi:
  • Ensure your router is working and the WiFi signal is strong where the thermostat is located.
  • Restart your router and the Smart Plug Thermostat.
  • Follow the pairing instructions in the Sundirect Smart app again.
• Ukungu wa Kioo:
  • While the heater helps reduce fogging, in extremely humid conditions, some condensation may still occur. Ensure the heater has been on for a sufficient period.

Ikiwa tatizo litaendelea baada ya kujaribu hatua hizi, tafadhali wasiliana na huduma kwa wateja kwa usaidizi zaidi.

9. Maelezo ya kiufundi

9.1 Mirror Heater Specifications

Picha ya 9.1: Visual representation of the 60x60cm dimensions of the mirror heater.

Picha ya 9.2: Pro wa upandefile illustrating the depth of the heater (2.2cm) and the wall mount (1.6cm), totaling 3.8cm.

9.2 Smart Plug Thermostat Specifications

10. Udhamini na Msaada

Information regarding specific warranty terms and conditions for the Sundirect MD300Plus Infrared Mirror Heater and Smart Plug Thermostat was not provided in the product data. For warranty details, technical support, or service inquiries, please refer to the documentation included with your purchase or contact the manufacturer/seller directly.

Mtengenezaji: infrarot-fussboden-de
