Mwongozo wa Maelekezo ya Hayward W3H150FDN Universal H-Series 150,000 BTU ya Bwawa la Gesi Asilia na Hita ya Spa

1. Utangulizi

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hayward W3H150FDN Universal H-Series 150,000 BTU Natural Gas Pool and Spa Heater. Please read this manual thoroughly before attempting to install, operate, or service the unit. Retain this manual for future reference.

Figure 1: Hayward W3H150FDN Universal H-Series Pool and Spa Heater, front view.

2. Taarifa za Usalama

ONYO: Usakinishaji usiofaa, marekebisho, mabadiliko, huduma, au matengenezo yanaweza kusababisha uharibifu wa mali, majeraha, au kifo. Soma maagizo ya usakinishaji, uendeshaji na matengenezo kwa makini kabla ya kusakinisha au kuhudumia kifaa hiki.

Always ensure the unit is installed by a qualified professional in accordance with local codes and ordinances.
Usihifadhi au kutumia petroli au mvuke na vimiminiko vingine vinavyoweza kuwaka karibu na kifaa hiki au kingine chochote.
Never attempt to repair or service the heater yourself unless you are qualified and authorized.
Keep all parts of the heater clear of debris and obstructions.
Ensure adequate ventilation around the heater.

3. Bidhaa Imeishaview

The Hayward Universal H-Series 150,000 BTU Natural Gas Heater is designed to provide reliable and efficient heating for in-ground pools and spas. Its robust construction and advanced features ensure consistent performance and longevity.

Hayward W3H150FDN Universal H-Series Pool and Spa Heater highlighting features

Figure 2: Key features of the Hayward Universal H-Series heater, including energy efficiency, durable construction, and quick heating capabilities.

Sifa Muhimu:

Premium Heating Performance: Delivers consistent and reliable heat for extended comfort.
Durable Cupro Nickel Heat Exchanger: Provides exceptional protection against corrosion and premature failure due to unbalanced water chemistry.
Hydraulic Design: Industry-leading design reduces circulation pump run time, contributing to energy savings.
User-Friendly Control Pad: Intuitive front-panel access for easy operation, service, and maintenance.
Uzalishaji wa chini wa NOx: Meets air quality standards in all low-NOx areas, ensuring minimal environmental impact.

4. Kuweka na Kuweka

Installation of the Hayward W3H150FDN heater requires professional expertise due to gas, water, and electrical connections. Consult a licensed professional for proper installation to ensure safety and compliance with all local codes.

Sizing Your Heater:

To select the appropriate heater size, determine your pool's surface area in square feet. The W3H150FDN model is suitable for pools with a surface area of up to 450 square feet. For indoor pool installations, divide the pool's surface area by 3.

Diagram for selecting the right pool heater size based on surface area

Figure 3: Guide for calculating pool surface area and selecting the correct heater model.

Pointi za Muunganisho:

The heater requires connections for natural gas, water inlet, and water outlet. Ensure all connections are secure and leak-free. The unit is designed for easy integration into existing pool plumbing systems.

Hayward W3H150FDN Universal H-Series Pool and Spa Heater with plumbing connections

Kielelezo cha 4: Nyuma view of the heater showing water and gas line connections.

5. Maagizo ya Uendeshaji

The Hayward W3H150FDN features an intuitive control pad for straightforward operation.

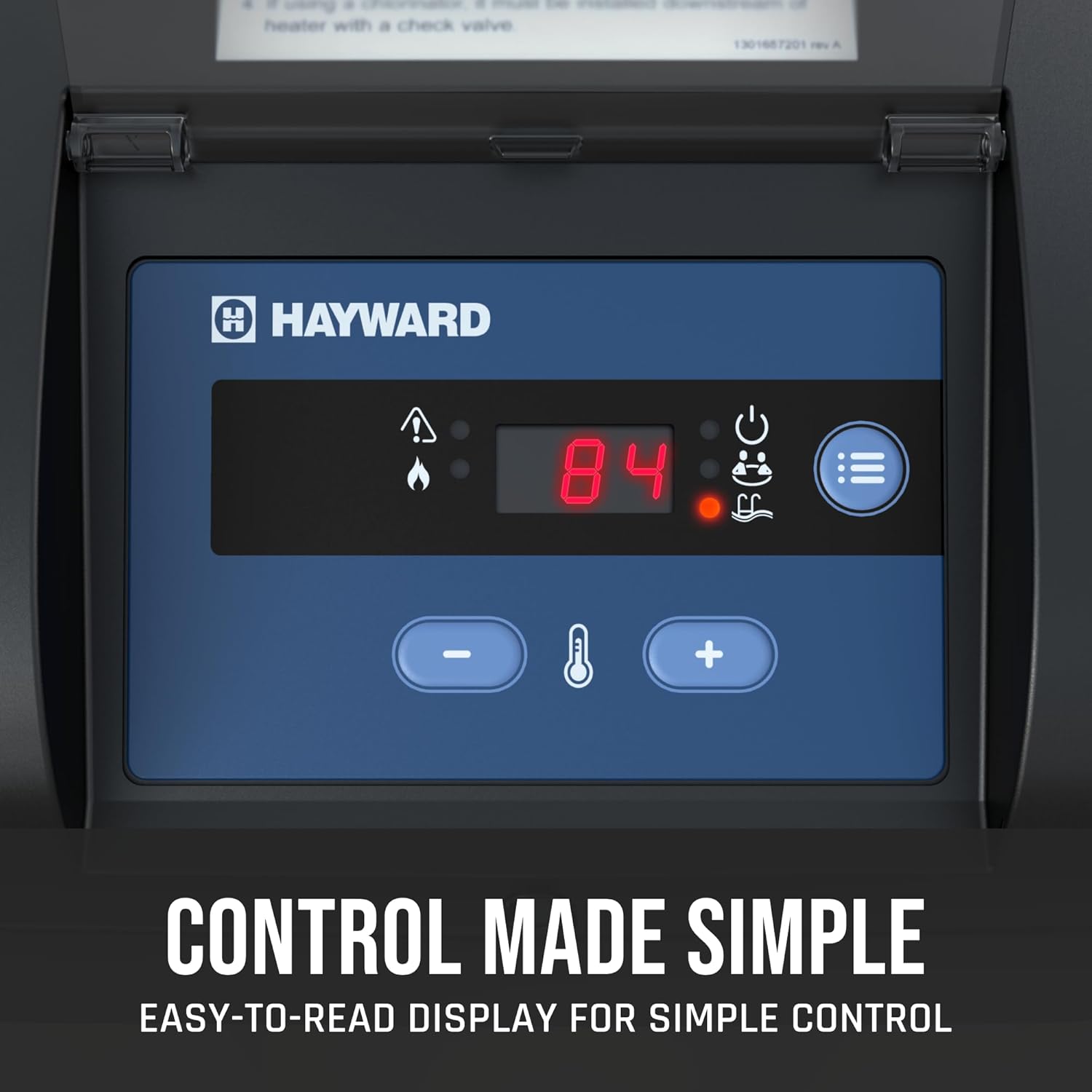

Close-up of the Hayward W3H150FDN control panel

Figure 5: The easy-to-read digital control panel for temperature and mode selection.

Operesheni ya Msingi:

Washa/Zima: Use the designated power button on the control panel to turn the heater on or off.
Weka Joto: Use the '+' and '-' buttons to adjust your desired water temperature. The current temperature and set temperature will be displayed.
Uteuzi wa Hali: Select between pool or spa heating modes if applicable to your setup.
Kiashiria cha Kupasha joto: A light or icon on the display will indicate when the heater is actively heating the water.

For optimal energy efficiency, it is recommended to activate the heater a few hours before planned use rather than running it continuously, especially in cooler climates.

6. Matengenezo

Regular maintenance ensures the longevity and efficient performance of your Hayward W3H150FDN heater. Always disconnect power to the unit before performing any maintenance.

Ukaguzi wa Kawaida:

Kagua uchafu: Regularly check and clear any debris from the heater's vents and surrounding area to ensure proper airflow.
Kemia ya Maji: Maintain balanced pool/spa water chemistry to prevent corrosion of internal components, especially the cupro nickel heat exchanger.
Ukaguzi wa Visual: Periodically inspect all plumbing and gas connections for any signs of leaks or damage.
Huduma ya Kitaalamu: It is recommended to have a qualified technician perform annual inspections and maintenance to ensure all components are functioning correctly.

7. Utatuzi wa shida

This section provides solutions for common issues you might encounter with your heater. For complex problems, contact a qualified service technician.

Tatizo	Sababu inayowezekana	Suluhisho
Hita haiwashi	No power, gas supply off, low water flow, control panel error.	Check power supply, ensure gas valve is open, verify pump operation and filter cleanliness, check control panel for error codes.
Inapokanzwa haitoshi	Incorrect temperature setting, low gas pressure, dirty heat exchanger, undersized heater for pool volume.	Verify temperature setting, check gas supply, clean heat exchanger (professional service recommended), ensure heater is appropriately sized.
Kelele zisizo za kawaida	Loose components, pump cavitation, fan obstruction.	Inspect for loose parts, check water level and pump for air leaks, clear any obstructions from the fan.

8. Vipimo

Nambari ya Mfano: W3H150FDN
Chapa: Hayward
Pato la BTU: 150,000 BTU
Aina ya Mafuta: Gesi Asilia
Vipimo vya Bidhaa: Inchi 33.3 x 32.8 x 30.6
Uzito wa Kipengee: Pauni 150
Joto Exchanger: Cupro Nickel
Uzalishaji wa NOx: Inatii NOx kidogo

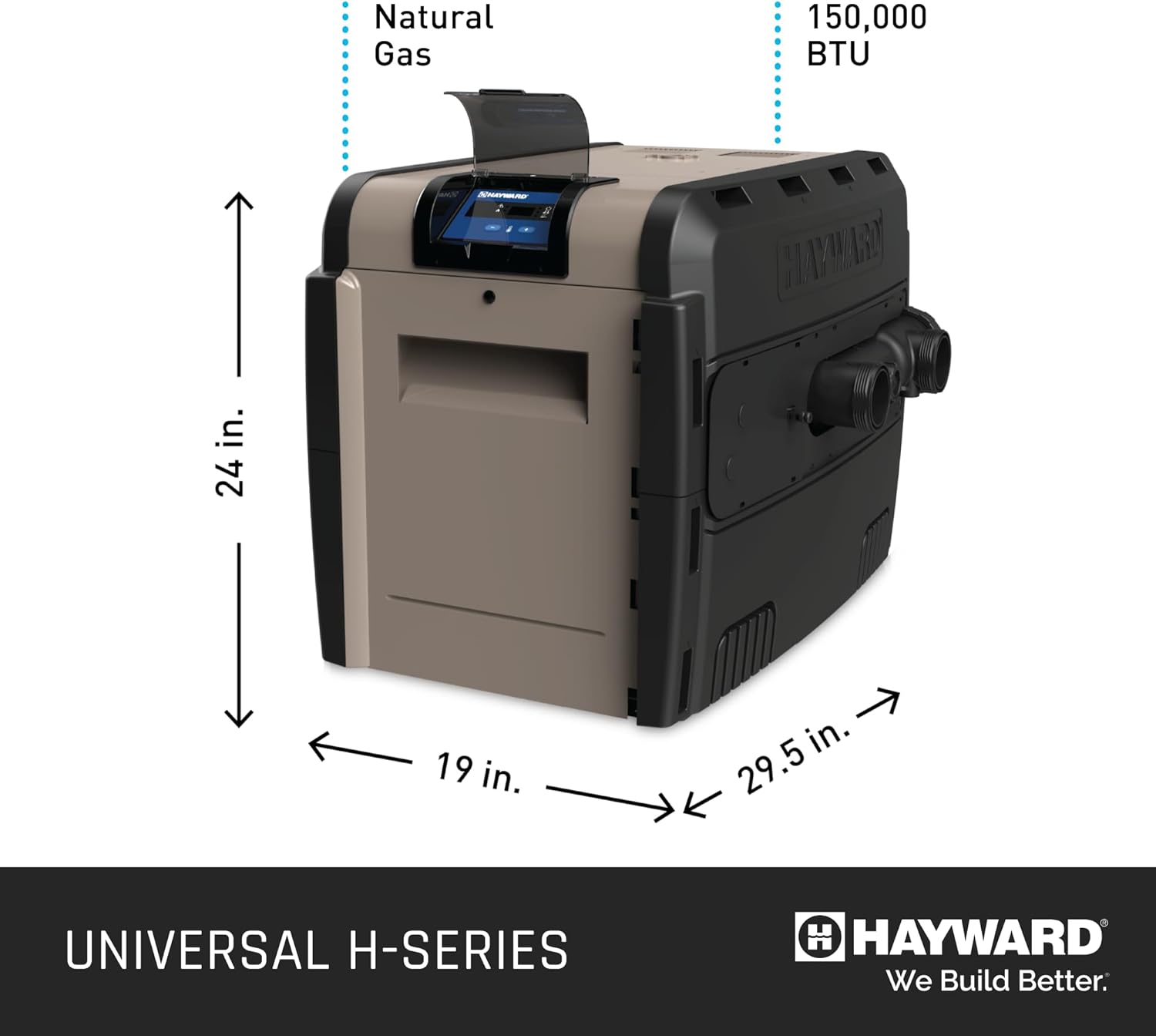

Hayward W3H150FDN Universal H-Series Pool and Spa Heater with dimensions labeled

Figure 6: Dimensions of the Hayward W3H150FDN heater.

9. Udhamini na Msaada

For specific warranty details, please refer to the official warranty documentation provided with your Hayward W3H150FDN heater or visit the Duka la Hayward. Customer support is available for assistance with product inquiries, troubleshooting, and service requests.

It is important to note that manufacturer warranties may require professional installation by a certified dealer to remain valid.
