Torin Hydraulic Welded Bottle Jack 12 Ton (Model TH91204X) User Manual

1. Utangulizi

This manual provides essential information for the safe and effective operation and maintenance of your Torin Hydraulic Welded Bottle Jack, Model TH91204X. This hydraulic bottle jack is designed for residential and commercial use, offering a robust lifting capacity of 12 Ton (24,000 lbs.). Its welded construction ensures durability and dependability for various lifting tasks.

Vipengele muhimu ni pamoja na:

Lifting range of 8.94" to 17.99" for versatile applications.
Adjustable screw top extension with a heat-treated screw for precise low pickup height adjustment and maximum lift.
Serrated, heat-treated saddle for a large lifting area and secure grip.
Wide, rugged base for enhanced stability and strength.
Reinforced critical stress points for extended life beyond 5000 lifting cycles.

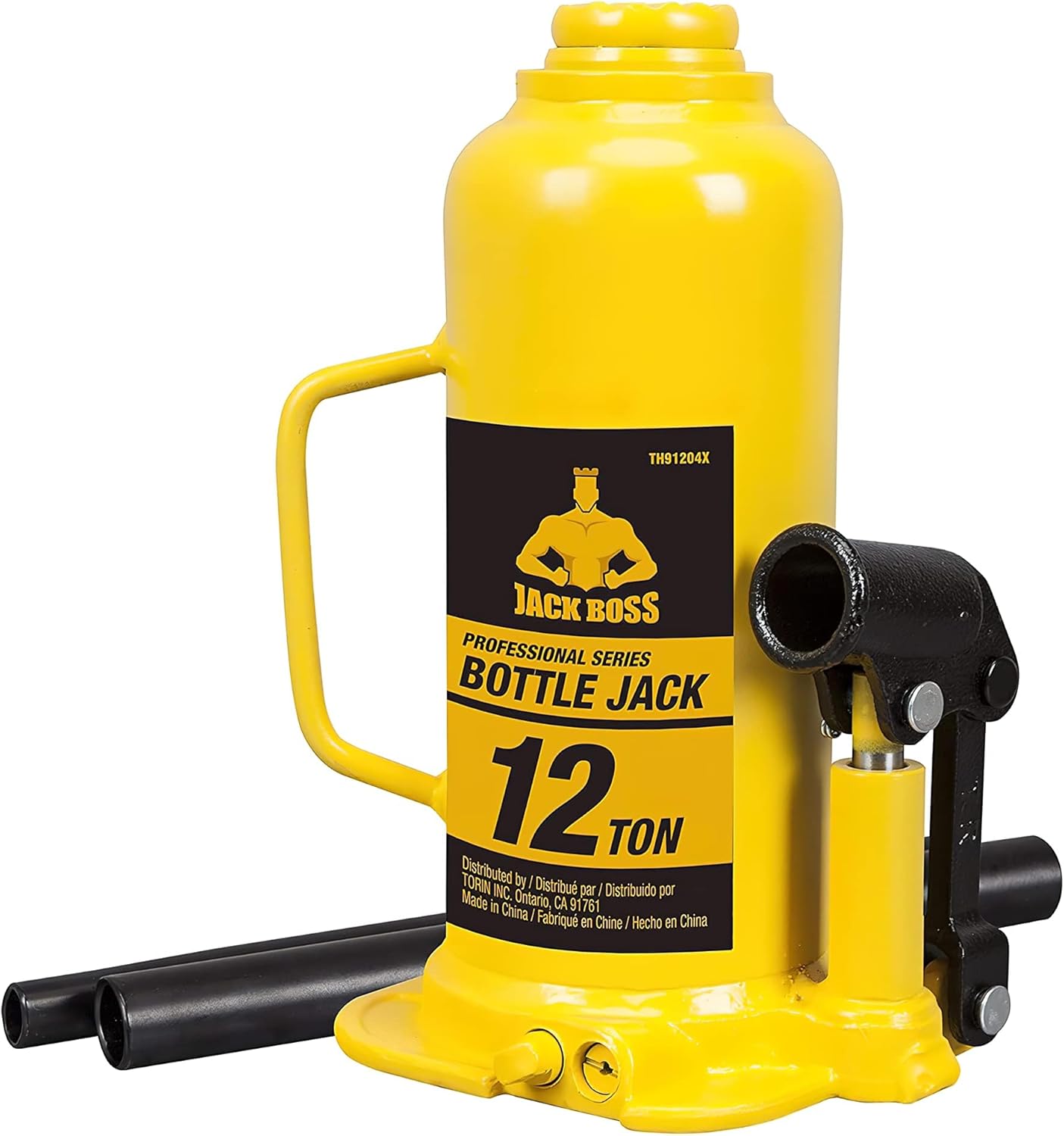

Torin Hydraulic Welded Bottle Jack 12 Ton, Yellow — Figure 1: Torin Hydraulic Welded Bottle Jack 12 Ton (Model TH91204X) in yellow, showcasing its robust design and pump handle.

2. Taarifa za Usalama

Always prioritize safety when operating hydraulic lifting equipment. Failure to follow these instructions may result in personal injury or property damage.

Soma Mwongozo: Understand all operating instructions and warnings before use.
Uwezo uliokadiriwa: Never exceed the jack's rated capacity of 12 tons (24,000 lbs.).
Uso Imara: Always use the jack on a hard, level surface. Soft or uneven surfaces can cause the jack to shift or tip.
Center Load: Position the jack saddle directly under the load's lifting point. Off-center loads can cause instability.
Support the Load: Once the load is lifted, immediately support it with appropriate jack stands. Do not rely solely on the hydraulic jack to hold the load.
Eneo wazi: Ensure the area around the jack and load is clear of personnel and obstructions during lifting and lowering.
Vifaa vya Kinga ya Kibinafsi: Vaa vifaa vya usalama vinavyofaa, kama vile glavu na kinga ya macho.
Kagua Kabla ya Kutumia: Check the jack for any signs of damage, leaks, or wear before each use. Do not use a damaged jack.
Epuka Marekebisho: Do not modify the jack or use it for purposes other than its intended design.

3. Bidhaa za Bidhaa

The Torin Hydraulic Welded Bottle Jack TH91204X incorporates several design elements for enhanced performance and safety:

Adjustable Screw Top: Allows for fine-tuning of the lifting height to match various vehicle or load requirements.
Serrated Saddle: Provides a secure contact point with the load, reducing the risk of slippage.
Ujenzi wa Welded: Ensures a reliable structure with consistent welds, minimizing the risk of oil leakage and enhancing overall durability.
Safety Bypass Valve: Prevents over-extension of the hydraulic ram, protecting the jack from damage.

Diagram showing Safety Bypass Valve, Adjustable Screw Top, and Leak Free Welded Cylinder features of the bottle jack. — Figure 2: Illustration of the jack's unique features, including the Safety Bypass Valve, Adjustable Screw Top, and Leak-Free Welded Cylinder.

Images depicting Robotic Welding, Powder Coating, Heavy Duty Steel, and Lift with Ease features. — Figure 3: Visual representation of manufacturing processes and material quality, highlighting Robotic Welding, Powder Coating, Heavy Duty Steel, and ease of lifting.

4. Kuweka

Before using the jack, ensure it is placed on a firm, level surface. The package includes the bottle jack and its pump handle. No assembly is required for the main jack unit, but the handle needs to be assembled for operation.

Ondoa: Remove the bottle jack and handle components from the packaging.
Kuunganisha Hushughulikia: The pump handle typically consists of two interlocking pieces. Slide the smaller handle piece into the larger piece until it is securely connected.
Ukaguzi wa Awali: Before first use, ensure the release valve is fully closed by turning it clockwise. Pump the handle a few times to ensure the ram extends smoothly. If the ram does not extend, check the hydraulic fluid level (refer to Maintenance section).

Comparison table of different Torin bottle jack models, showing capacity, weight, minimum height, and maximum height. — Figure 4: Product line comparison, illustrating various models and their specifications, including the TH91204X.

5. Maagizo ya Uendeshaji

Follow these steps for safe and effective operation of your hydraulic bottle jack:

5.1. Kuinua Mzigo

Kuandaa eneo la kazi: Ensure the vehicle or load is on a hard, level surface. Engage the parking brake if applicable and block wheels that are not being lifted.
Weka Jack: Place the jack directly under the vehicle manufacturer's recommended lifting point. Ensure the saddle is centered on the lifting point.
Funga Vali ya Kutoa: Insert the slotted end of the pump handle into the release valve. Turn the handle clockwise until the valve is firmly closed. Do not overtighten.
Adjust Screw Top (if needed): If additional height is required to reach the lifting point, rotate the adjustable screw top counter-clockwise to extend it to the desired height.
Pump the Handle: Insert the pump handle into the handle socket. Pump the handle steadily to raise the jack. Continue pumping until the load reaches the desired height.
Linda Mzigo: Immediately place appropriately rated jack stands under the load at the manufacturer's recommended support points. Slowly lower the load onto the jack stands (see 5.2. Lowering a Load).

5.2. Kupunguza Mzigo

Raise Slightly: If the load is resting on jack stands, slightly raise the load with the hydraulic jack to clear the jack stands.
Ondoa Viatu vya Jack: Carefully remove the jack stands from under the load.
Open Release Valve: Firmly grasp the pump handle. Slowly turn the release valve counter-clockwise to gradually lower the load. Do not open the valve too quickly, as this can cause the load to drop rapidly.
Retract Ram: Once the load is fully lowered and all weight is removed from the jack, manually push down on the saddle to fully retract the piston.

Video 1: This video demonstrates the basic setup and operation of a Torin Hydraulic Bottle Jack, including how to prepare the jack, lift a load, and safely lower it. It highlights the process of engaging the release valve and pumping the handle.

6. Matengenezo

Regular maintenance ensures the longevity and safe operation of your hydraulic bottle jack.

Kioevu cha Kioevu: Check the hydraulic fluid level periodically. To do this, ensure the ram is fully retracted and the jack is on a level surface. Remove the oil filler plug and add high-quality hydraulic jack oil if needed, ensuring the fluid level is just below the filler hole. Do not overfill.
Kusafisha: Keep the jack clean and free of dirt, grease, and debris. Wipe down the ram and other moving parts after each use.
Upakaji mafuta: Lightly lubricate moving parts, such as the pump mechanism and pivot points, with general-purpose grease or oil.
Hifadhi: Store the jack in a clean, dry place with the ram fully retracted.
Kutokwa na damu hewa: If the jack's performance is inconsistent (e.g., spongy feel, incomplete lift), it may need to be bled. With the ram fully retracted and the release valve open, remove the oil filler plug. Pump the handle several times to expel any trapped air. Close the filler plug and release valve, then test the jack.

Diagram illustrating the operating temperature range and properties of special hydraulic oil: Thermal Stable, Abrasion Resistant, Biodegradable. — Figure 5: Information on the recommended hydraulic oil, highlighting its thermal stability, abrasion resistance, and biodegradable properties, suitable for operating temperatures between -13°F and 140°F.

7. Utatuzi wa shida

Ifuatayo ni maswala ya kawaida na suluhisho zao zinazowezekana:

Tatizo	Sababu inayowezekana	Suluhisho
Jack hatainua mzigo.	Fungua vali; Maji kidogo ya majimaji; Hewa ndani ya mfumo; Uzito kupita kiasi.	Close release valve; Add hydraulic fluid; Bleed air from system; Reduce load.
Jack huinua polepole au kwa njia isiyo ya kawaida.	Low hydraulic fluid; Air in system; Dirty fluid.	Add hydraulic fluid; Bleed air from system; Replace hydraulic fluid.
Jack leaks fluid.	Fittings huru; Mihuri iliyoharibiwa.	Tighten fittings; Contact customer support for seal replacement.
Jack hatashika mzigo.	Release valve not fully closed; Internal seal damage.	Ensure release valve is fully closed; Contact customer support for repair.

8. Vipimo

Vipimo	Maelezo
Chapa	Torin
Nambari ya Mfano	TH91204X
Uwezo wa Kupakia	12 Ton (24,000 LBs)
Kiwango cha chini cha Kuinua Urefu	Inchi 8.94
Urefu wa Kuinua	Inchi 17.99
Vipimo vya Kipengee (L x W x H)	Inchi 5.3 x 4.53 x 9
Uzito wa Kipengee	Pauni 12.96
Nyenzo	Aloi ya chuma
Rangi	Njano
Aina ya Kifaa cha Magari	Universal Fit
Aina ya Huduma ya Gari	Car, Sport Utility Vehicle, Truck
UPC	615268912011

Diagram showing the dimensions of the Torin Hydraulic Bottle Jack, including minimum height, maximum height, and extension screw height. — Figure 6: Detailed dimensions of the bottle jack, illustrating its minimum height (9 inches), maximum height (18 inches), and the adjustable screw top extension.

9. Udhamini na Msaada

For warranty information, technical support, or to order replacement parts, please refer to the official documentation included with your product or visit the manufacturer's webtovuti. Weka risiti yako ya ununuzi kama dhibitisho la ununuzi kwa madai ya udhamini.

Ni nini kwenye Sanduku:

Jack ya chupa
Hushughulikia
Mwongozo wa Mtumiaji (hati hii)
