HUANUO HN-DSK1-1

Mwongozo wa Maelekezo ya Stendi ya HUANUO ya Kichunguzi Kiwili

Model: HN-DSK1-1

Chapa: HUANUO

1. Taarifa za Usalama

Tafadhali soma na uelewe maagizo yote kabla ya usakinishaji na matumizi. Kushindwa kufuata maagizo haya kunaweza kusababisha uharibifu wa mali, jeraha kubwa, au kifo.

  • Uwezo wa Uzito: Do not exceed the maximum weight capacity of 17.6 lbs (8 kg) per arm. This mount is designed for monitors between 13 and 27 inches.
  • Utangamano wa VESA: Ensure your monitors have VESA mounting patterns of 75x75mm or 100x100mm.
  • Unene wa Dawati: Verify your desk thickness is compatible with the chosen mounting method (C-clamp: 0.39-2.36 inches / 10-60mm; Grommet: 0.39-2.56 inches / 10-65mm).
  • Marekebisho ya Chemchemi ya Gesi: Adjust the gas spring tension ONLY when a monitor is attached to the arm. Failure to do so may cause the arm to spring up rapidly, leading to injury.
  • Mkutano: Some steps may require two people for safe assembly.
  • Matengenezo: Mara kwa mara angalia skrubu na miunganisho yote ili kuhakikisha kuwa zinasalia kuwa ngumu na salama.

2. Yaliyomo kwenye Kifurushi

Verify all parts are present and undamaged before proceeding with assembly. If any parts are missing or defective, contact HUANUO customer service.

SehemuMaelezo
Pole KuuVertical support pole for the monitor arms.
Monitor Arms (2)Gas spring articulating arms for monitor attachment.
Sahani za VESA (2)Plates for attaching monitors to the arms (75x75mm/100x100mm).
Kuweka MsingiBase for attaching the stand to the desk (supports C-clamp and Grommet).
C-Clamp / Grommet HardwareComponents for C-clamp au ufungaji wa grommet.
Cable Management SehemuClips to organize cables along the arms and pole.
Zana na VifungaHex keys, screws, and washers for assembly.
Unboxing HUANUO Dual Monitor Stand components

Maelezo ya Picha: A person unboxes the HUANUO Dual Monitor Stand, displaying various components including the VESA plates, mounting hardware, cable clips, and the main pole. This image illustrates the comprehensive set of parts included for assembly.

3. Maagizo ya Kuweka

Follow these steps carefully to assemble and install your HUANUO Dual Monitor Stand.

  1. Chagua Njia ya Kuweka:

    Decide between C-clamp or Grommet mounting based on your desk type and preference. Ensure your desk thickness is within the specified range for the chosen method.

    Two installation options: C-clamp and Grommet Mounting

    Maelezo ya Picha: This image shows two diagrams illustrating the C-clamp and Grommet mounting options for the monitor stand. The C-clamp is shown gripping the edge of a desk, while the Grommet mounting uses a hole in the desk surface.

  2. Kusanya Msingi:

    Attach the main pole to the chosen mounting base (C-clamp or Grommet). Secure all fasteners tightly using the provided tools.

  3. Ambatisha Bamba za VESA kwenye Vichunguzi:

    Place your monitor face down on a soft, clean surface. Attach a VESA plate to the back of each monitor using the appropriate screws and washers. Ensure the plate is securely fastened.

    Attaching VESA plate to the back of a monitor

    Maelezo ya Video: This video demonstrates the process of attaching the VESA plate to the back of a monitor. It shows how to align the plate with the monitor's mounting holes and secure it with screws, ensuring a stable connection for the monitor arm.

  4. Attach Arms to the Pole:

    Slide the monitor arms onto the main pole at your desired initial height. Secure them in place with the locking mechanisms.

  5. Vichunguzi vya Kuweka Kwenye Mikono:

    Carefully slide the monitors (with attached VESA plates) onto the ends of the monitor arms. Ensure they click securely into place. Tighten any safety screws if provided.

    Mounting monitors onto the dual monitor stand arms

    Maelezo ya Video: This video illustrates the final step of mounting the monitors onto the dual monitor stand arms. It shows how to carefully slide the VESA-mounted monitors onto the arm brackets and secure them, demonstrating the ease of installation.

4. Maagizo ya Uendeshaji

Stendi ya HUANUO Dual Monitor inatoa marekebisho makubwa kwa ajili ya ubora wa juu viewkuleta faraja na tija.

  • Marekebisho ya Urefu:

    The gas spring arms allow for smooth vertical height adjustment. To adjust, gently push or pull the monitor to the desired height. If the monitor does not stay in place, the gas spring tension may need adjustment (see below).

    Gas spring arm height adjustment mechanism

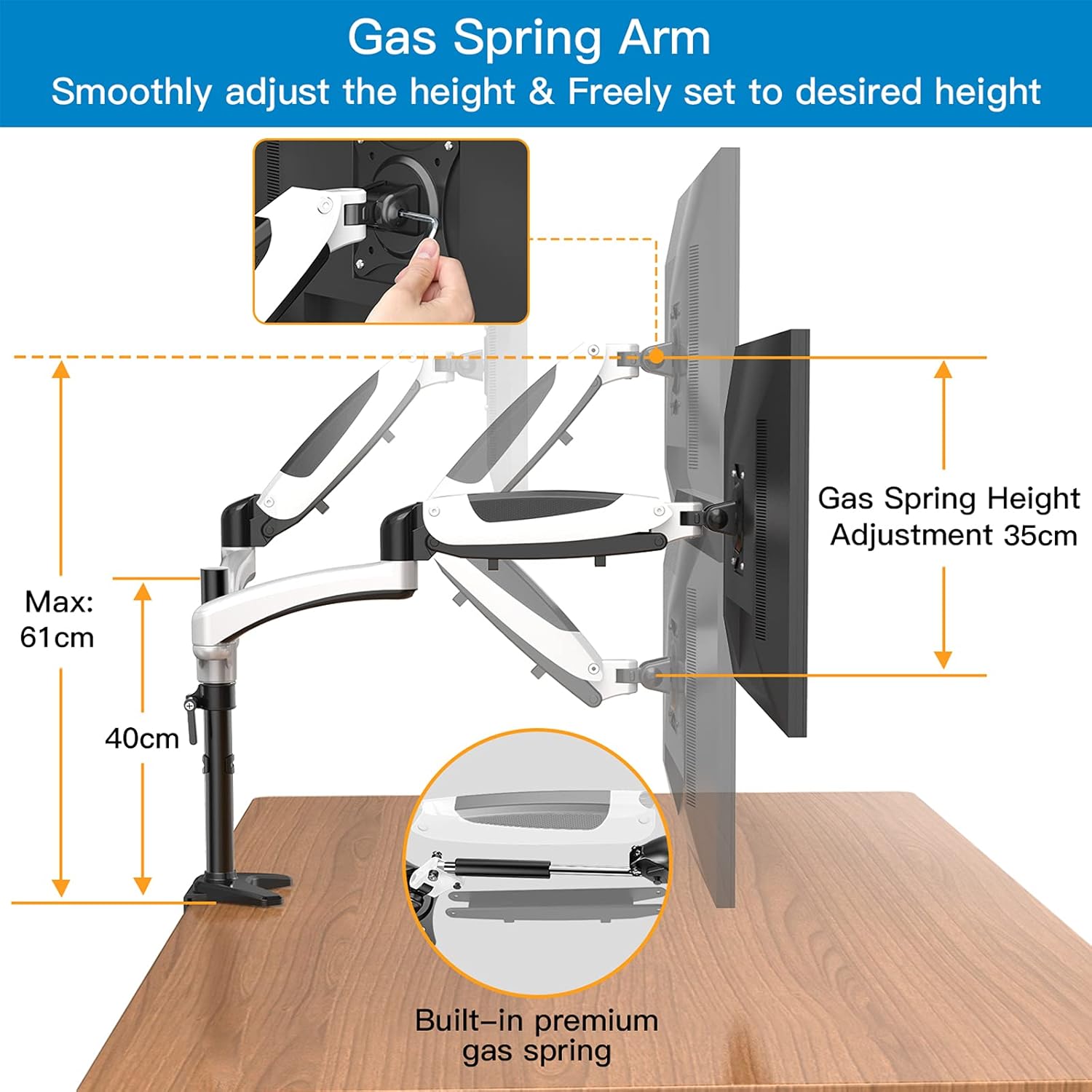

    Maelezo ya Picha: This image highlights the gas spring arm mechanism, showing how it allows for smooth and free height adjustment of the monitor. It illustrates the range of vertical movement and the internal gas spring system.

  • Marekebisho ya Mvutano wa Springi ya Gesi:

    If the monitor sags or springs up too easily, adjust the gas spring tension. Use the provided hex key to turn the adjustment screw on the arm. Turn clockwise to increase tension (for heavier monitors) or counter-clockwise to decrease tension (for lighter monitors). Adjust gradually until the monitor stays at any desired height.

    Adjusting gas spring arm tension for monitor stability

    Maelezo ya Video: This video demonstrates how to adjust the gas spring arm tension on the HUANUO HN-DSK1 dual monitor mount. It shows the use of a hex key to fine-tune the arm's resistance, ensuring the monitor remains stable at any height.

  • Tilt, Swivel, na Zungusha:

    Each monitor can be tilted (+85°/-90°), swiveled (±90°), and rotated (360°) to achieve the perfect viewing angle. Simply grasp the edges of the monitor and adjust as needed. The 360° rotation allows for easy switching between landscape and portrait modes.

    Diagram showing full motion capabilities: tilt, swivel, rotation

    Maelezo ya Picha: This image illustrates the full motion capabilities of the monitor stand, including diagrams for 360° swivel, +85°/-90° tilt, and 360° rotation, allowing users to customize their screen angle for optimal viewing.

  • Flexible Arm Extension:

    The articulating arms can extend up to 64cm (25.2 inches) or retract to 41cm (16.1 inches), providing flexibility for various desk depths and viewing distances. This also allows for combining arms for shallow or deep desktop configurations.

    Flexible arm installation showing maximum extension

    Maelezo ya Picha: This image demonstrates the flexible arm installation, showing two different configurations: one with a maximum extension of 41cm and another with a maximum extension of 64cm, suitable for various desktop setups.

  • Usimamizi wa Cable:

    Utilize the integrated cable management clips along the arms and pole to route and conceal monitor cables, maintaining a tidy and organized workspace.

5. Matengenezo

Regular maintenance ensures the longevity and safe operation of your monitor stand.

  • Ukaguzi wa Mara kwa Mara: Every few months, check all screws and connections to ensure they are tight. Re-tighten if necessary.
  • Kusafisha: Futa kibanda kwa kutumia laini, damp kitambaa. Epuka kutumia visafishaji vya abrasive au vimumunyisho ambavyo vinaweza kuharibu umalizio.
  • Chemchemi ya Gesi: The gas spring is designed for long-term use and generally does not require maintenance. If you notice a significant change in its performance, re-adjust the tension as described in the Operating Instructions.

6. Utatuzi wa shida

Ukikumbana na matatizo yoyote, rejelea matatizo na suluhisho zifuatazo za kawaida:

TatizoSuluhisho
Kifuatiliaji huanguka au hakibaki katika urefu unaotakiwa.Adjust the gas spring tension. Turn the adjustment screw clockwise to increase tension for heavier monitors.
Monitor springs up too easily.Adjust the gas spring tension. Turn the adjustment screw counter-clockwise to decrease tension for lighter monitors.
Monitor is wobbly.Ensure all mounting screws (desk clamp/grommet and VESA plate screws) are securely tightened. Check the stability of your desk surface.
Cannot tilt or swivel monitor.Check if the tilt/swivel mechanism screws are too tight. Loosen them slightly to allow movement, then re-tighten to hold position.
Cables do not fit in management clips.Ensure cables are routed individually or in small bundles. Some clips may be designed for specific cable sizes.

7. Vipimo

KipengeleMaelezo
Nambari ya MfanoHN-DSK1-1
Utangamano wa Ukubwa wa Kichunguzi13 - 27 inches (flat or curved)
Uwezo wa Uzito (kwa kila mkono)Pauni 17.6 (kilo 8)
Utangamano wa VESA75x75mm, 100x100mm
Chaguzi za KuwekaC-Clamp, Grommet
Desk Thickness (C-Clamp)0.39 - 2.36 inches (10 - 60mm)
Unene wa Dawati (Grommet)0.39 - 2.56 inches (10 - 65mm)
Safu ya Tilt+85° hadi -90°
Masafa ya kuzunguka±90°
Mzunguko360° (Landscape/Portrait)
NyenzoAlumini ya Metal
RangiWhite (as per product title, though images show black/white)
Uzito wa KipengeePauni 11.68
Vipimo vya BidhaaInchi 6.69 x 1.97 x 4.72

8. Udhamini na Msaada

HUANUO provides a limited warranty for this product. For specific warranty terms, technical support, or to report missing/defective parts, please contact HUANUO customer service directly through their official webtovuti au muuzaji ambapo bidhaa ilinunuliwa.

Tafadhali hifadhi uthibitisho wako wa ununuzi kwa madai ya udhamini.
