1. Utangulizi
The SFA Sanicubic 1 is a high-performance lifting station designed to efficiently manage and discharge all wastewater from a household or small commercial establishment. Equipped with a powerful motor and a durable Pro X K2 macerating system, it can handle wastewater from WCs, bathrooms, kitchens, and utility rooms. Its robust design ensures reliable operation and easy maintenance, making it an ideal solution for properties where gravity drainage is not feasible.
This manual provides essential information for the safe installation, operation, and maintenance of your Sanicubic 1 unit. Please read it thoroughly before proceeding with any steps.
2. Taarifa za Usalama
Always observe the following safety precautions to prevent injury and damage to the unit:
- Installation and maintenance should only be performed by qualified personnel in accordance with local plumbing and electrical codes.
- Always disconnect the power supply to the unit before performing any inspection, maintenance, or repair work.
- Do not operate the unit if it is damaged or if any electrical components are exposed to water.
- Ensure proper ventilation around the unit as specified in installation guidelines.
- The unit is designed for domestic and light commercial wastewater only. Do not discharge corrosive chemicals, solvents, or solid objects that could damage the macerator.
3. Yaliyomo kwenye Kifurushi
Baada ya kufungua, tafadhali thibitisha kuwa vipengele vyote vipo na havijaharibiwa:
- SFA Sanicubic 1 Lifting Station unit
- Valve iliyounganishwa isiyo ya kurudi
- Alarm box (with 5m cable)
- Installation accessories (e.g., clamps, connectors, flexible sleeves)
- Mwongozo wa Maagizo (hati hii)
Ikiwa vitu vyovyote vimepotea au vimeharibika, tafadhali wasiliana na muuzaji wako mara moja.
4. Bidhaa Imeishaview

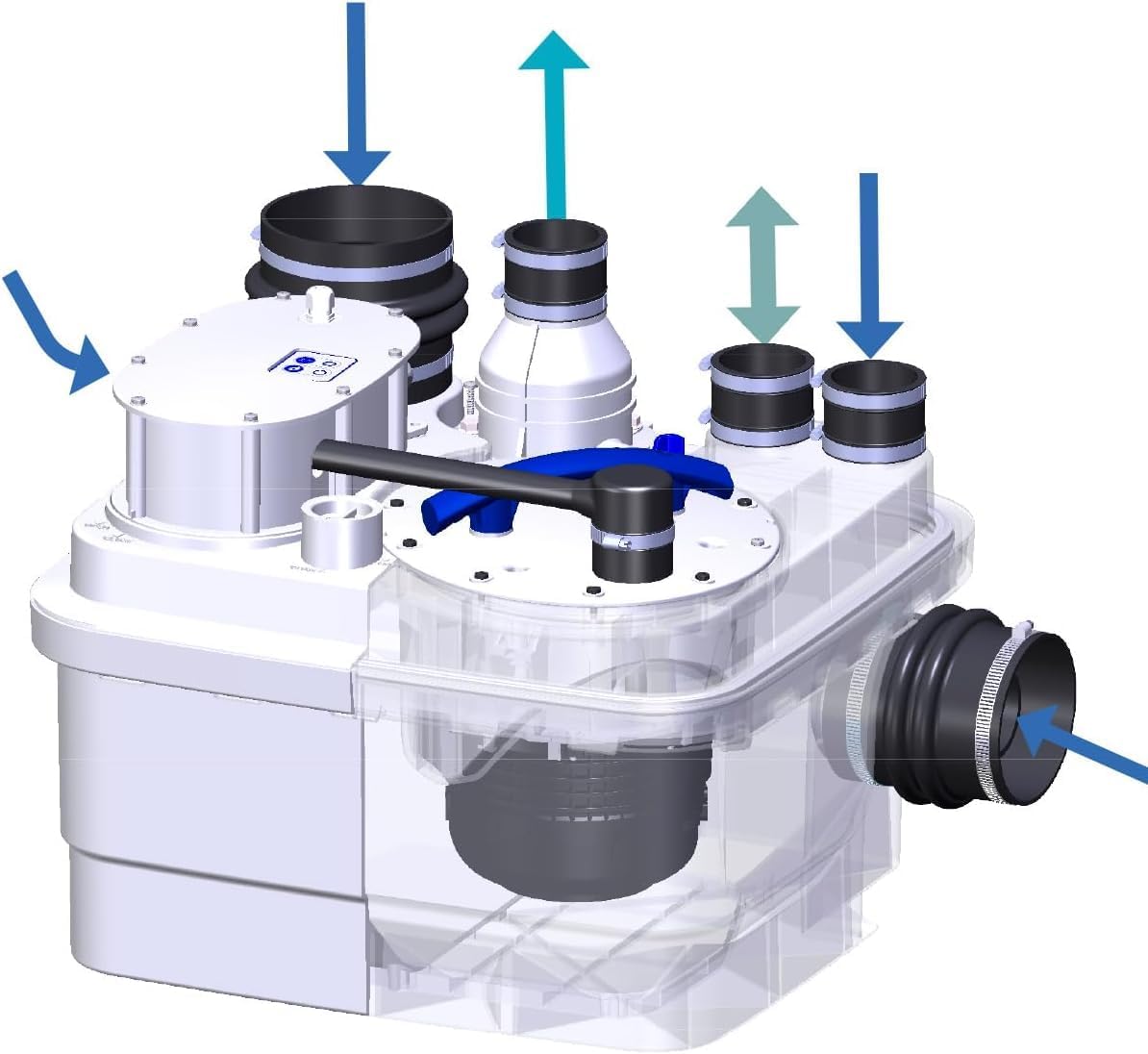

Familiarize yourself with the components and connections of the Sanicubic 1.
5. Kuweka na Kuweka
The Sanicubic 1 lifting station is designed for straightforward installation without requiring extensive construction work. It is suitable for floor mounting.
5.1. uwekaji
Choose a location that is level, stable, and provides sufficient space for connections and future maintenance access. The unit should be installed in a dry, frost-free environment.
5.2. Viunganisho vya mabomba
The Sanicubic 1 features four inlets, allowing connection of various wastewater sources. Its low inlets facilitate connection of WCs at the same level. The discharge outlet is DN 40/50. Ensure all connections are watertight and secured with appropriate clamps.
- Connect the wastewater pipes from WCs, sinks, showers, washing machines, etc., to the available inlets.
- Connect the discharge pipe to the unit's outlet. An integrated non-return valve prevents backflow.
- Ensure proper venting of the unit as per local regulations.
5.3. Uunganisho wa Umeme
The unit operates on 230 Volts and has a power consumption of 1500 Watts. The electrical connection must be performed by a qualified electrician.
- Connect the unit to a dedicated, properly grounded electrical circuit protected by a residual current device (RCD).
- Install the provided alarm box in a visible location. The alarm box connects to the unit via a 5-meter cable and provides acoustic and visual alerts in case of high water level.
6. Uendeshaji
The Sanicubic 1 operates automatically. Once properly installed and connected to power, it will activate when wastewater enters the tank and reaches a predetermined level. The macerator will then grind any solids, and the pump will discharge the wastewater through the outlet pipe.
6.1. Automatic Function
The unit is equipped with level sensors that detect the presence of wastewater. When the water level rises, the pump automatically starts. Once the water is discharged and the level drops, the pump will switch off.
6.2. Mfumo wa Kengele
The included alarm box provides an acoustic and visual warning if the water level in the tank becomes excessively high, indicating a potential issue such as a blockage or pump malfunction. Upon activation of the alarm, investigate the cause promptly.
7. Matengenezo
Regular maintenance ensures the longevity and efficient operation of your Sanicubic 1. The unit features a retractable motor and level sensors for easier servicing.
7.1. Ukaguzi wa Kawaida
Periodically check the unit for any signs of leaks, unusual noises, or reduced performance. Ensure that the ventilation is not obstructed.
7.2. Kusafisha
If the unit's performance degrades or unpleasant odors occur, a cleaning may be necessary. Always disconnect power before attempting any cleaning or maintenance.
- Flush the system with clean water.
- For more thorough cleaning, the motor assembly can be accessed by removing the top cover. Refer to Figure 4.3 for visual guidance.
- Use a mild, non-corrosive cleaning agent if necessary. Avoid harsh chemicals that could damage internal components.
7.3. Huduma ya Kitaalam
For complex issues or internal component inspection, it is recommended to contact a qualified service technician or SFA authorized service center.
8. Utatuzi wa shida
This section addresses common issues you might encounter with your Sanicubic 1.
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Kitengo hakianza | No power supply; Circuit breaker tripped; Motor fault | Check power connection; Reset circuit breaker; Contact service |
| Alarm activates frequently | Blockage in macerator/pump; Inlet/outlet pipe obstruction; Faulty level sensor | Disconnect power, check for blockages; Inspect pipes; Contact service |
| Kitengo kinaendelea kuendelea | Faulty level sensor; Continuous water inflow; Non-return valve issue | Check for leaks; Inspect non-return valve; Contact service |
| Kelele/mtetemo usio wa kawaida | Foreign object in macerator; Worn bearings | Disconnect power, check for foreign objects; Contact service |
Ikiwa tatizo litaendelea baada ya kujaribu suluhisho hizi, tafadhali wasiliana na huduma kwa wateja wa SFA au fundi aliyehitimu.
9. Vipimo

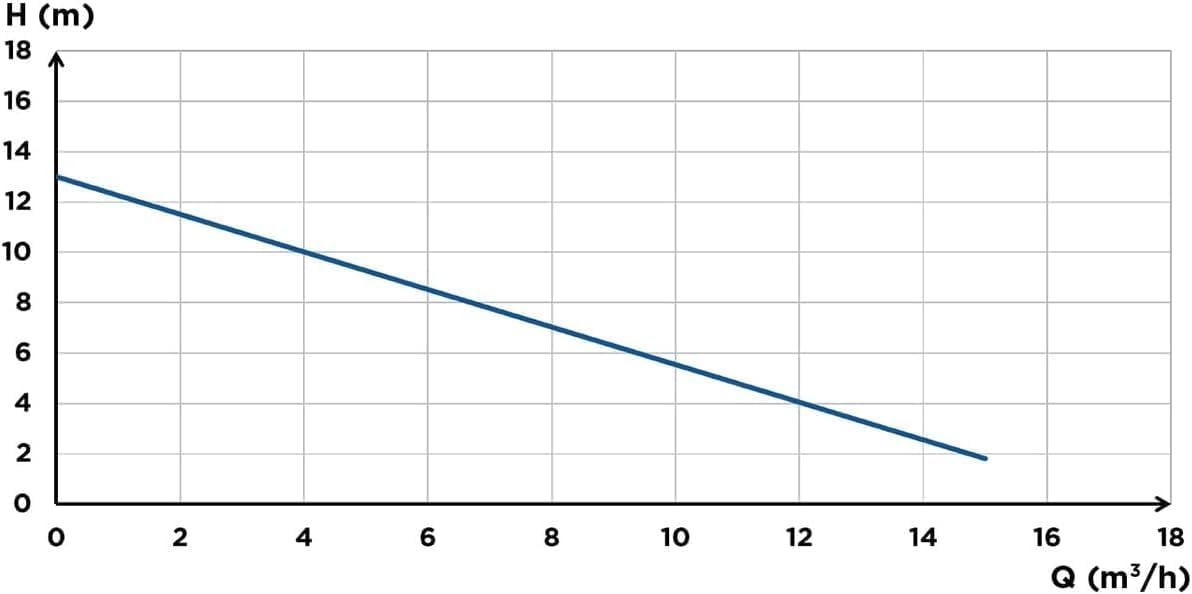

Technical data for the SFA Sanicubic 1 lifting station:
| Kipengele | Vipimo |
|---|---|
| Nambari ya Mfano | CUBIC1NM |
| Vipimo (L x W x H) | 47.8 x 42.6 x 39.3 cm |
| Uzito | Kilo 22 |
| Voltage | 230 Volts |
| Wattage | 1500 Watts |
| Nyenzo | PP (Polypropylene), PA 12 GF (Glass Fiber Reinforced Polyamid 12) |
| Max. Wastewater Temperature | 70 °C |
| Max. Kiwango cha mtiririko | 15 m³/saa |
| Viingilio | 4 |
| Kipenyo cha kutokwa | DN 40/50 |
| Njia ya Ufungaji | Kuinua sakafu |
| Vipengele vilivyojumuishwa | Integrated non-return valve, Alarm box (5m cable) |
10. Udhamini na Msaada
The SFA Sanicubic 1 comes with a dhamana ya miaka miwili kuanzia tarehe ya ununuzi. Udhamini huu unashughulikia kasoro za utengenezaji chini ya hali ya kawaida ya utumiaji.
The product is manufactured in the SFA factory in Hauts-de-France and carries the "Origine France Garantie" quality seal, ensuring its French origin and quality standards.
For warranty claims, technical assistance, or to locate an authorized service center, please contact SFA customer support through their official webtovuti au maelezo ya mawasiliano yaliyotolewa pamoja na hati zako za ununuzi.
