JOYO JE-63 Ukelele 3 Band Pickup Preamp Kisawazishi kwa kutumia Mwongozo wa Mtumiaji wa Kirekebishaji

1. Bidhaa Imeishaview

The JOYO JE-63 is a compact 3-band equalizer and tuner system designed specifically for ukuleles. It integrates a pickup, preamp, and a digital tuner into a single unit, providing enhanced sound control and convenient tuning capabilities for your instrument.

Sifa Muhimu:

3-Bendi Kusawazisha: Adjust Bass, Middle, and Treble frequencies to shape your ukulele's tone.
Udhibiti wa Sauti: Regulate the output level of your instrument.
Integrated Digital Tuner: Chromatic tuner with a clear LCD display for accurate tuning.
Kiashiria cha Betri: Huarifu wakati nguvu ya betri iko chini.

2. Ufungaji na Usanidi

2.1 Ufungaji wa Betri

The JE-63 requires a 9V battery for operation. Ensure correct polarity during installation.

Locate the battery compartment on the back or side of the preamp kitengo.
Fungua kifuniko cha sehemu ya betri.
Connect a 9V battery to the battery clip, observing the positive (+) and negative (-) terminals.
Weka betri kwenye sehemu na ufunge kifuniko kwa usalama.

2.2 Mounting the Preamp

The JE-63 is designed for flush mounting into the side of a ukulele. Professional installation is recommended to ensure proper fit and avoid damage to the instrument.

Carefully measure and cut the appropriate opening in the ukulele body according to the preampvipimo vya.
Salama kablaamp unit using the provided screws, ensuring it sits flush with the instrument's surface.
Connect the piezo pickup (not included with preamp, typically part of ukulele) to the designated input jack inside the preamp kitengo.

3. Maagizo ya Uendeshaji

Familiarize yourself with the control panel of the JOYO JE-63:

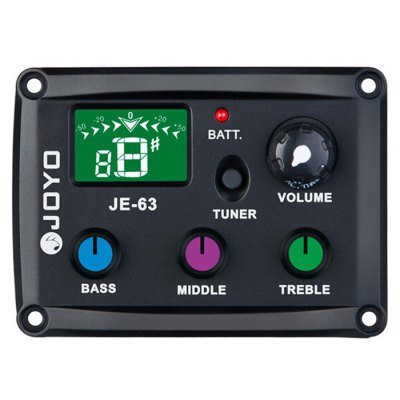

JOYO JE-63 Ukelele Preamp Equalizer with Tuner control panel

Figure 1: JOYO JE-63 Control Panel. This image displays the preamp's front panel, showing the digital tuner display, battery indicator (BATT.), volume knob, tuner button, and the bass, middle, and treble control knobs.

3.1 Kuwasha / Kuzima

The unit powers on automatically when a cable is plugged into the output jack. Unplugging the cable will power off the unit.

3.2 Using the Tuner

The integrated tuner allows for quick and accurate tuning of your ukulele.

Press the 'TUNER' button to activate the tuner function. The LCD display will illuminate.
Play a single string on your ukulele. The display will show the note being played and indicate if it is sharp, flat, or in tune.
Adjust your ukulele's tuning pegs until the display shows the correct note and the indicator is centered.
Press the 'TUNER' button again to deactivate the tuner and return to normal preamp operesheni.

3.3 Adjusting Equalization (EQ)

Use the three EQ knobs to sculpt your ukulele's tone:

BASI: Hudhibiti mwitikio wa masafa ya chini. Geuka kuelekea saa ili kuongeza besi, kinyume cha saa ili kupunguza.
KATIKATI: Controls the mid-range frequencies. Turn clockwise to boost mids, counter-clockwise to cut mids.
KUTEMBEA: Controls the high-frequency response. Turn clockwise to brighten the sound, counter-clockwise to soften it.

3.4 Udhibiti wa Kiasi

The 'VOLUME' knob adjusts the overall output level of the preamp. Turn clockwise to increase volume, counter-clockwise to decrease.

4. Matengenezo

4.1 Ubadilishaji wa Betri

When the 'BATT.' indicator light illuminates, it signifies that the 9V battery is low and requires replacement. Follow the steps in Section 2.1 for battery installation.

4.2 Kusafisha

To clean the unit, use a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and electronic components.

5. Utatuzi wa shida

Suala	Sababu inayowezekana	Suluhisho
Hakuna pato la sauti.	Battery low or dead. Cable not fully inserted. Pickup not connected. Volume knob turned down.	Replace battery. Ensure cable is securely plugged in. Check pickup connection. Increase volume.
Tuner not working.	Tuner not activated. Battery low.	Press the 'TUNER' button. Replace battery if 'BATT.' indicator is on.
Sauti iliyopotoka.	Volume too high. EQ settings extreme.	Reduce volume. Adjust EQ knobs to a more neutral position.
'BATT.' indicator is on.	Nguvu ya chini ya betri.	Badilisha betri ya 9V mara moja.

6. Maelezo ya kiufundi

Mfano: JE-63
Udhibiti: 3-Band EQ (Bass, Middle, Treble), Volume
Kitafuta sauti: Chromatic Digital Tuner
Nguvu: Betri ya 9V (haijajumuishwa)
Maisha ya Betri: Approximately 100 hours (alkaline battery, without tuner)
Uzuiaji wa Kuingiza: 10MΩ
Majibu ya Mara kwa mara: 20Hz - 20KHz

7. Udhamini na Usaidizi wa Wateja

For warranty information or technical support regarding your JOYO JE-63 preamp, please refer to the documentation provided with your purchase or contact your authorized JOYO dealer or the manufacturer directly. Keep your proof of purchase for warranty claims.
