Mwongozo wa Maelekezo ya Seti ya Gia ya Visteon MSHV35A688-7B

1. Utangulizi

This instruction manual provides guidance for the Visteon MSHV35A688-7B Gear Set Rebuild Kit. This kit is designed for the maintenance and repair of worm gear speed reducers, specifically those compatible with Boston Gear 57746 units. It includes essential components for restoring the functionality of your gear system. For detailed assembly and installation procedures, always refer to the specific manuals provided with your original equipment and this kit.

2. Yaliyomo ya Kit

The Visteon MSHV35A688-7B Gear Set Rebuild Kit typically includes the following components:

Worm Gear and Mating Ring Gear
Bearing Kit (e.g., BK426539)
Mihuri na Gaskets
Instruction Manuals for specific gear reducer models (e.g., Cone Drive, Boston Gear)

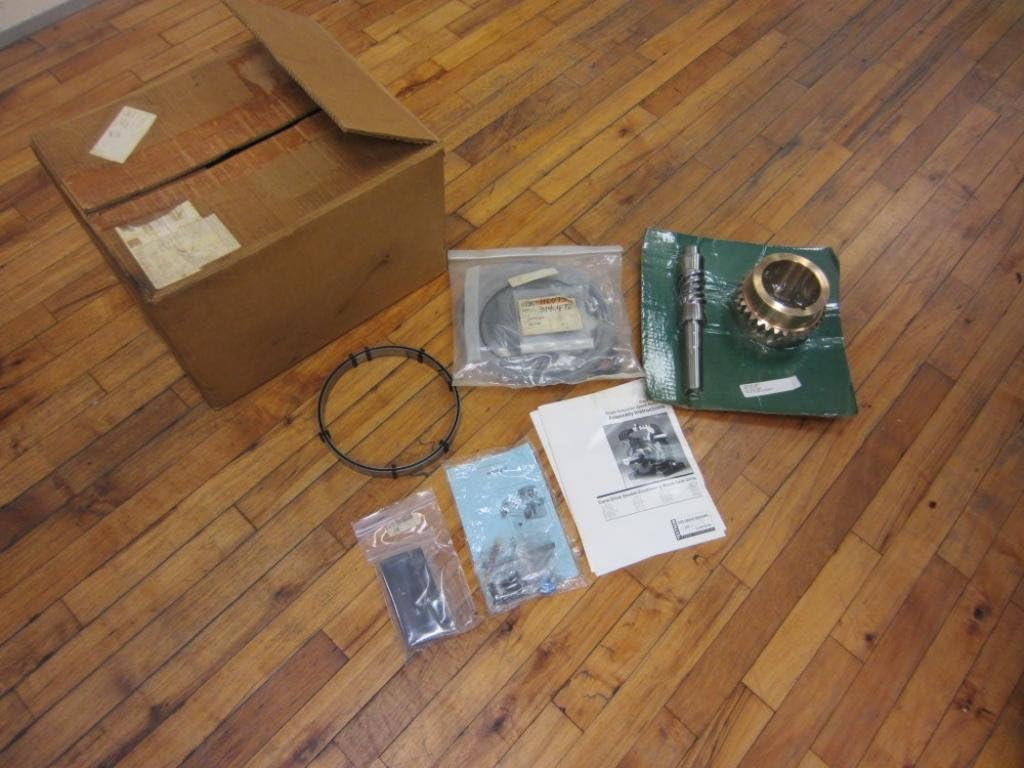

Visteon MSHV35A688-7B Gear Set Rebuild Kit components laid out — **Kielelezo cha 2.1:** Zaidiview of the Visteon MSHV35A688-7B Gear Set Rebuild Kit contents, including the main gear components, bearing kit, and instruction manuals.

A closer look at the primary gear components:

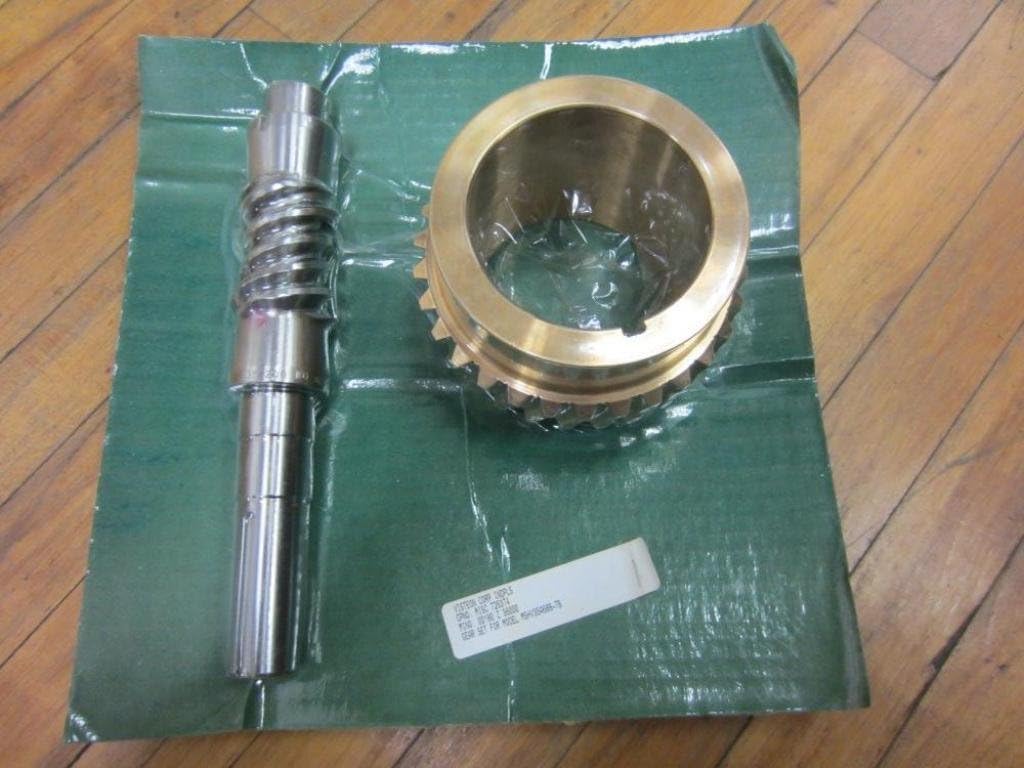

Worm gear and mating ring gear from the rebuild kit — **Kielelezo cha 2.2:** The worm gear and its corresponding ring gear, which are critical components for power transmission within the speed reducer.

The bearing kit is essential for smooth operation and longevity:

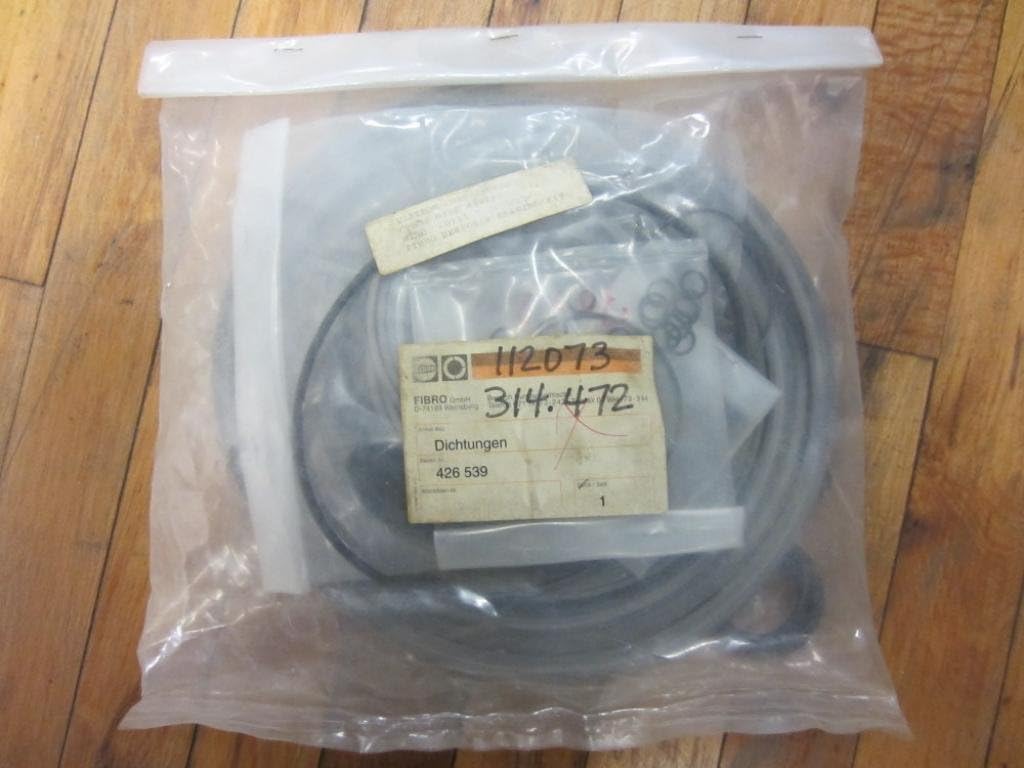

Sealed plastic bag containing the bearing kit components — **Kielelezo cha 2.3:** A sealed bag containing the bearing kit, labeled with part number 426 539, which includes various seals and bearings necessary for the rebuild.

Included documentation for assembly guidance:

Instruction manual for Cone Drive Double Enveloping Worm Gear Units — **Kielelezo cha 2.4:** An instruction manual for Cone Drive Double Enveloping Worm Gear Units, providing detailed assembly instructions for compatible systems.

Boston Gear Worm Gear Speed Reducers Installation and Operation manual — **Kielelezo cha 2.5:** A manual titled 'Boston Gear Worm Gear Speed Reducers Installation and Operation', Doc. No. 57746, offering guidance for 700 Series single and double reductions.

3. Kuweka na Kuweka

Installation of the Visteon MSHV35A688-7B Gear Set Rebuild Kit requires mechanical aptitude and adherence to safety protocols. It is crucial to consult the specific assembly instructions provided with your original gear reducer unit and any supplementary manuals included in this kit (e.g., Cone Drive, Boston Gear manuals).

3.1 Tahadhari za Usalama

Ensure the power supply to the machinery is disconnected and locked out before beginning any work.
Vaa vifaa vinavyofaa vya kinga ya kibinafsi (PPE), pamoja na miwani ya usalama na glavu.
Fanya kazi katika eneo safi, lenye mwanga.
Use proper lifting techniques and tools for heavy components.

3.2 General Installation Steps (Refer to specific manuals for details)

Kuvunja: Carefully disassemble the existing worm gear speed reducer, noting the position and orientation of all components. Document the process with photos if necessary.
Ukaguzi: Inspect all remaining components for wear, damage, or corrosion. Replace any worn parts not included in this kit as needed.
Kusafisha: Thoroughly clean the gear housing and all reusable components to remove old lubricant, debris, and contaminants.
Bearing Installation: Install the new bearings from the kit, ensuring proper seating and alignment. Use appropriate bearing installation tools to avoid damage.
Ufungaji wa Gia: Install the new worm gear and ring gear. Ensure correct mesh and backlash according to the manufacturer's specifications.
Seal and Gasket Replacement: Replace all seals and gaskets with new ones from the kit to prevent leaks.
Kukusanya upya: Reassemble the gear reducer, tightening fasteners to the specified torque values.
Upakaji mafuta: Fill the gear reducer with the recommended type and quantity of lubricant.
Jaribio: Perform initial run-in and testing according to manufacturer guidelines before placing the unit back into full service.

4. Uendeshaji

Once the gear set rebuild kit is installed and the speed reducer is reassembled, proper operation is key to its longevity. Always operate the unit within its specified load, speed, and temperature limits.

Uzinduzi wa Awali: Follow the manufacturer's recommendations for an initial run-in period, typically at reduced load, to allow components to seat properly.
Ufuatiliaji: Regularly monitor the gear reducer for unusual noises, vibrations, or excessive heat during operation.
Usimamizi wa Mzigo: Avoid overloading the unit beyond its rated capacity, as this can lead to premature wear and failure.

5. Matengenezo

Regular maintenance is crucial for the optimal performance and extended lifespan of your worm gear speed reducer.

5.1 Kulainisha

Aina ya Lubricant: Use only the type of lubricant specified by the gear reducer manufacturer.
Lubricant Level: Check the lubricant level regularly and maintain it within the recommended range.
Lubricant Change: Replace the lubricant at intervals recommended by the manufacturer, or more frequently under severe operating conditions.

5.2 Ukaguzi

Ukaguzi wa Visual: Periodically inspect the gear reducer for external leaks, loose fasteners, or signs of damage.
Kelele na Mtetemo: Listen for any abnormal noises or feel for excessive vibrations, which may indicate internal issues.
Halijoto: Monitor the operating temperature. Excessive heat can be a sign of lubrication issues or overloading.

6. Utatuzi wa shida

This section outlines common issues and potential solutions for worm gear speed reducers. Always refer to the original equipment manufacturer's troubleshooting guide for comprehensive assistance.

Tatizo	Sababu inayowezekana	Suluhisho
Kelele Zilizozidi	Insufficient lubrication, worn bearings, misaligned gears, incorrect backlash.	Check lubricant level and type. Inspect bearings and gears for wear. Verify gear alignment and backlash.
Kuzidisha joto	Incorrect lubricant, insufficient lubricant, overloading, restricted ventilation.	Ensure correct lubricant. Check lubricant level. Reduce load. Clear ventilation paths.
Kuvuja kwa Mafuta	Damaged seals or gaskets, loose fasteners, excessive internal pressure.	Replace seals and gaskets. Tighten fasteners. Check breather for blockage.
Kupungua kwa Ufanisi	Worn gears, improper lubrication, excessive load.	Inspect gears for wear. Verify lubricant type and level. Ensure operation within rated load.

7. Vipimo

The Visteon MSHV35A688-7B Gear Set Rebuild Kit is designed for specific applications. Key specifications related to the product are:

Nambari ya Sehemu: MSHV35A688-7B
Mtengenezaji: Visteon Corp
Kiasi cha Kifurushi cha Kipengee: 1
Compatible Bearing Kit: BK426539 (Boston Gear 426 539)
Compatible Speed Reducer: Boston Gear 57746 Worm Gear Speed Reducer

8. Udhamini na Msaada

For warranty information regarding the Visteon MSHV35A688-7B Gear Set Rebuild Kit, please refer to the terms and conditions provided by your original point of purchase or contact Visteon Corp directly. Specific warranty details are typically dependent on the seller and region.

For technical support or further inquiries, please contact the manufacturer or your authorized distributor. Always provide the model number (MSHV35A688-7B) and any relevant serial numbers when seeking assistance.
