1. Utangulizi
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Legrand LEG97605 300W Non-Flush Rotary Dimmer Switch. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Legrand LEG97605 is a 300W dimmer switch designed for surface mounting, featuring a rotary button for light intensity control and an integrated push-button for ON/OFF functionality. It is suitable for 1-way circuit applications.
Kielelezo 1: Mbele view of the Legrand LEG97605 Dimmer Switch.
2. Taarifa Muhimu za Usalama
WARNING: RISK OF ELECTRIC SHOCK. Always turn off power at the circuit breaker or fuse box before installing or servicing this device. Improper installation can result in serious injury or death.
- Ufungaji unapaswa kufanywa na fundi umeme aliyehitimu au kwa mujibu wa kanuni za umeme za ndani.
- Usizidi kiwango cha juu cha wattage rating ya 300W.
- Hakikisha miunganisho yote ya waya ni salama na imewekewa maboksi ipasavyo.
- Kifaa hiki kimeundwa kwa matumizi ya ndani tu.
- Do not use with incompatible load types (e.g., certain LED drivers, fluorescent fixtures) unless specified by the manufacturer.
3. Yaliyomo kwenye Kifurushi
Thibitisha kuwa vipengele vyote vipo kabla ya kuanza usakinishaji:
- Legrand LEG97605 300W Non-Flush Rotary Dimmer Switch (1 unit)
- Skurubu za Kupachika (Wingi unaweza kutofautiana)
- Mwongozo wa Maagizo (Hati hii)

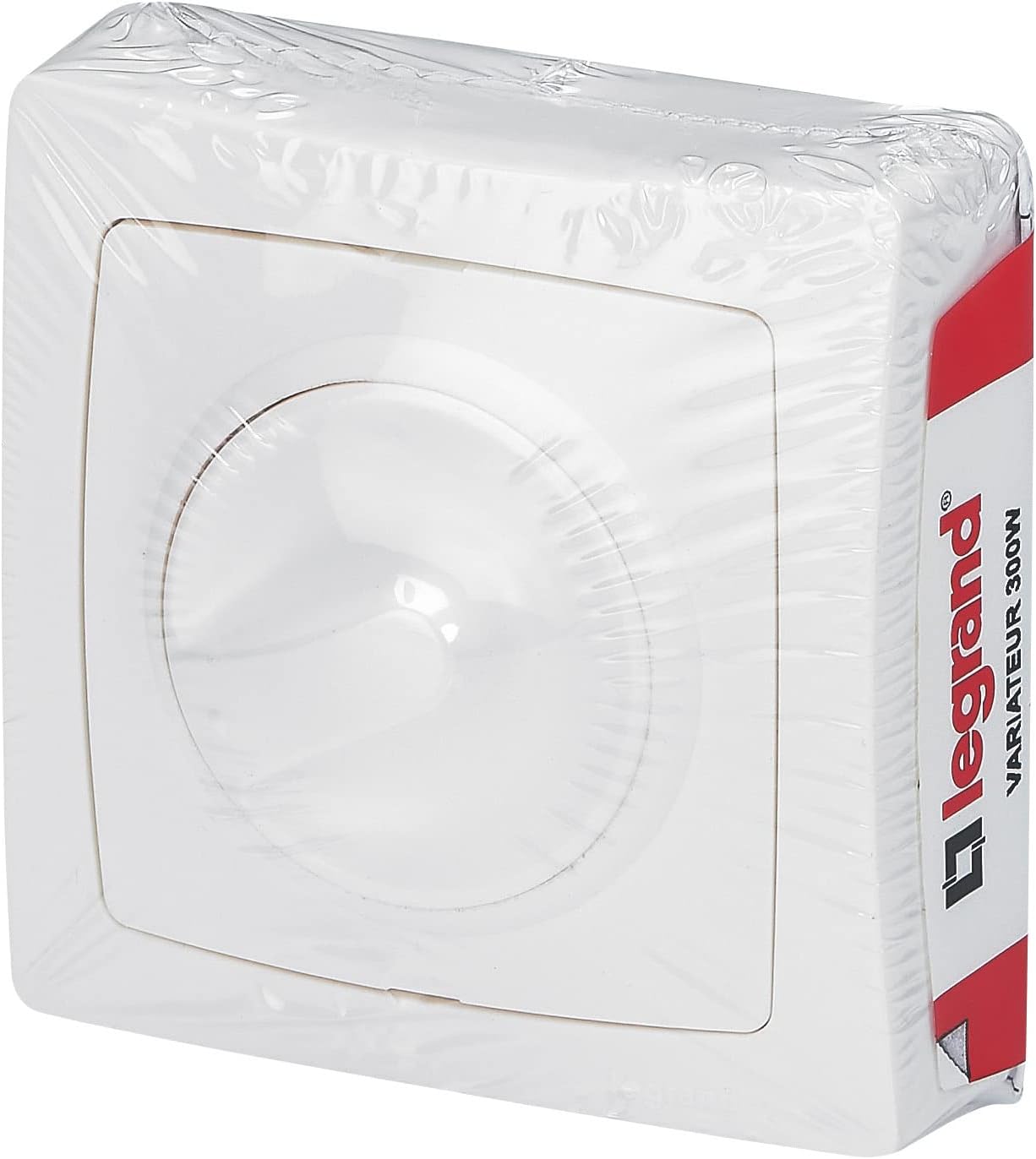

Figure 2: Legrand LEG97605 Dimmer Switch as packaged.
4. Maagizo ya Ufungaji
Follow these steps carefully to install your dimmer switch:
- Zima Nguvu: Locate the circuit breaker or fuse controlling the light fixture you intend to dim. Switch it to the OFF position. Verify power is off using a voltage tester kabla ya kuendelea.
- Tayarisha Mahali pa Kupachika: The LEG97605 is a non-flush, surface-mount dimmer. Choose a suitable wall location for mounting.
- Wiring:
- Identify the live (line) wire and the load wire (to the light fixture).
- Connect the incoming live wire to the terminal marked 'L' or 'Input' on the dimmer switch.
- Connect the wire going to the light fixture (load wire) to the terminal marked 'Load' or 'Output' on the dimmer switch.
- Ensure all connections are tight using the screw terminals.
- Kupachika: Secure the dimmer switch to the wall surface using the provided mounting screws. Ensure it is firmly attached and level.
- Rejesha Nguvu: Once installation is complete and all connections are secure, turn the power back on at the circuit breaker.
Kielelezo 3: Juu view of the dimmer switch, illustrating potential wiring points.
5. Operating Your Dimmer Switch
The Legrand LEG97605 dimmer switch features a rotary knob for dimming and an integrated push-button for ON/OFF control.
- Ili KUWASHA/KUZIMA: Press the rotary knob firmly. You will hear a click, and the light will turn on or off.
- Kupunguza/Kung'arisha: Rotate the knob clockwise to increase light intensity and counter-clockwise to decrease light intensity.
Kielelezo 4: Pembe view highlighting the rotary control knob.
6. Matengenezo
Your Legrand dimmer switch requires minimal maintenance.
- Kusafisha: To clean the surface of the dimmer, wipe with a soft, damp kitambaa. Usitumie visafishaji vya abrasive, vimumunyisho, au kemikali kali, kwani hizi zinaweza kuharibu umalizio.
- Ukaguzi: Periodically inspect the switch for any signs of damage or loose connections. If any issues are found, turn off power and consult a qualified electrician.
7. Utatuzi wa shida
If you experience issues with your dimmer switch, refer to the following common problems and solutions:
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Nuru haiwashi. | No power to the switch; incorrect wiring. | Check circuit breaker/fuse. Verify wiring connections are correct and secure. |
| Light does not dim or dims poorly. | Incompatible bulb type; minimum load not met. | Ensure all connected bulbs are dimmable. Check if the total wattage of bulbs meets the dimmer's minimum load requirement (if any). |
| Mwanga huzima au hupiga kelele. | Loose wiring connection; incompatible bulb type; electrical interference. | Turn off power and check all wire connections. Replace bulbs with high-quality dimmable types. Consult an electrician if problem persists. |
| Dimmer feels hot to the touch. | Overload or improper wiring. | Turn off power immediately. Verify total connected wattage does not exceed 300W. Consult a qualified electrician. |
If the problem persists after attempting these solutions, contact Legrand customer support or a qualified electrician.
8. Maelezo ya kiufundi
| Kipengele | Maelezo |
|---|---|
| Chapa | Legrand |
| Nambari ya Mfano | LEG97605 |
| Hali ya Uendeshaji | WASHA ZIMA |
| Ukadiriaji wa Sasa | 10 Amps |
| Wattage | 300 Watts |
| Aina ya Mawasiliano | Kawaida Fungua |
| Aina ya kiunganishi | Screws |
| Kituo | Parafujo |
| Aina ya Mzunguko | 1-njia |
| Aina ya Kitendaji | Rotary |
| Aina ya Kidhibiti | Bonyeza Kitufe |
| Nyenzo za Mawasiliano | Shaba |
| Ukadiriaji wa Ulinzi wa Kimataifa | IP54 |
| Aina ya Kuweka | Mlima wa Uso |
| Rangi | Nyeupe |
| Uzito wa Kipengee | 2.46 wakia |
| Tarehe ya Kwanza Inapatikana | Septemba 25, 2015 |
9. Udhamini na Usaidizi wa Wateja
For warranty information, technical assistance, or to report a problem, please contact Legrand customer support. Refer to the official Legrand webtovuti au ufungaji wa bidhaa kwa maelezo ya sasa ya mawasiliano.
Legrand Official Webtovuti: www.legrand.us
