VIWANDA VYA MUELLER 61430350 Seti ya Kiyoyozi cha Kawaida cha Kiyoyozi Mwongozo wa Mtumiaji

Utangulizi

This manual provides essential information for the proper handling, installation, and maintenance of the MUELLER INDUSTRIES 61430350 Standard Air Conditioner Liquid Line Set with Suction Line. This product is designed for quick and easy installation in split-system air conditioning units. It includes both a liquid line and a suction line, pre-insulated and nitrogen charged for optimal performance and protection.

Taarifa za Usalama

Always prioritize safety during installation and handling. HVAC systems operate under pressure and involve electrical components. Improper installation can lead to property damage, serious injury, or death. It is highly recommended that installation be performed by a qualified HVAC professional.

Ensure all power to the HVAC system is disconnected before beginning any work.
Vaa vifaa vinavyofaa vya kinga ya kibinafsi (PPE), ikijumuisha glavu na kinga ya macho.
Handle copper tubing carefully to avoid kinks or damage.
Fuata kanuni na kanuni zote za ujenzi wa eneo lako.
Refrigerant handling should only be performed by certified technicians.

Vipengele vya Bidhaa

The MUELLER INDUSTRIES 61430350 Line Set includes the following primary components:

Mstari wa Kioevu: Smaller diameter copper tubing, typically uninsulated.
Mstari wa Kunyonya: Larger diameter copper tubing, pre-insulated with 3/4 inch insulation.
Both lines are nitrogen charged and sealed to prevent contamination during shipping and storage.

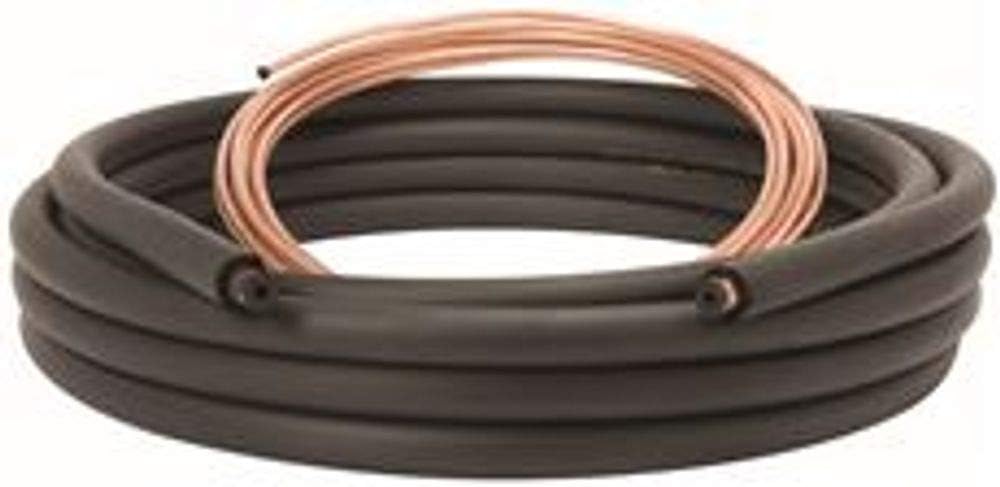

Coiled MUELLER INDUSTRIES 61430350 Standard Air Conditioner Liquid Line Set with Suction Line, showing insulated black tubing and inner copper lines.

This image displays the MUELLER INDUSTRIES 61430350 line set, consisting of a larger insulated black suction line and a smaller uninsulated copper liquid line, both coiled for packaging. The insulation is designed to protect the suction line and maintain refrigerant temperature.

Kuweka na Kuweka

Hatua zifuatazo hutoa jumla juuview for installing the line set. Consult your specific HVAC unit's installation manual for detailed instructions and torque specifications.

Fungua na Kagua: Carefully uncoil the line set. Inspect both the liquid and suction lines, as well as the insulation, for any signs of damage, kinks, or punctures. Ensure the nitrogen charge is intact (indicated by sealed ends).
Uelekezaji: Route the line set between the indoor evaporator coil and the outdoor condenser unit. Avoid sharp bends that could kink the copper tubing. Ensure the line set is adequately supported and protected from physical damage.
Cutting and Flaring (if necessary): If the line set needs to be shortened, use a proper tubing cutter to make clean, square cuts. Flare connections must be made precisely to prevent leaks.
Inaunganisha: Connect the liquid line and suction line to their respective ports on both the indoor and outdoor units. Use appropriate wrenches and follow manufacturer-recommended torque settings to ensure tight, leak-free connections.
Vacuum and Charge: After all connections are made, the system must be evacuated to remove air and moisture. This is a critical step for system efficiency and longevity. Once evacuated, the system can be charged with the appropriate refrigerant by a certified technician.
Uhamishaji joto: Ensure the suction line insulation is continuous and properly sealed to prevent condensation and energy loss. Additional insulation may be required for the liquid line depending on local codes and system design.

Insulation Application Reference

This video demonstrates the features and benefits of HVAC line set insulation, highlighting its flexibility and durability for horizontal installations. It shows how the insulation protects the copper tubing.

This video illustrates the application and resilience of HVAC line set insulation in vertical installations, emphasizing its ability to withstand environmental factors and prevent tearing.

Kanuni za Uendeshaji

The line set is a passive component of the air conditioning system, responsible for transporting refrigerant between the indoor and outdoor units. The liquid line carries high-pressure liquid refrigerant from the outdoor condenser to the indoor evaporator, while the insulated suction line carries low-pressure gaseous refrigerant from the indoor evaporator back to the outdoor condenser. Proper insulation on the suction line is crucial to prevent heat gain and maintain system efficiency.

Matengenezo

Regular inspection and maintenance of the line set can help ensure the longevity and efficiency of your HVAC system.

Ukaguzi wa Visual: Periodically check the entire length of the line set for any visible damage, such as kinks, corrosion, or deterioration of the insulation.
Uadilifu wa Insulation: Ensure the insulation on the suction line is intact and free from tears or gaps. Damaged insulation can lead to energy loss and condensation issues. Repair or replace damaged sections as needed.
Utambuzi wa kuvuja: If you suspect a refrigerant leak (e.g., reduced cooling performance, ice formation on lines), contact a qualified HVAC technician immediately. Leaks can be detected using specialized equipment.
Kusafisha: Keep the exterior of the line set clean from debris, dirt, and vegetation that could impede heat transfer or damage the insulation.

Kutatua matatizo

Issues related to the line set typically manifest as problems with the overall HVAC system performance.

Reduced Cooling/Heating: This could indicate a refrigerant leak in the line set, a kink restricting flow, or damaged insulation causing inefficient heat exchange.
Ice Formation on Lines: Often a sign of low refrigerant charge due to a leak, or a restriction in the line set.
Ufinyanzi Kupita Kiasi: If the suction line insulation is compromised, it can lead to condensation and dripping, potentially causing water damage.
Kelele zisizo za kawaida: While less common for line sets themselves, kinks or improper securing could contribute to system noises.

For any of these issues, it is recommended to consult a professional HVAC technician for diagnosis and repair.

Vipimo

Kipengele	Maelezo
Chapa	MUELLER
Nambari ya Mfano	61430350
Nyenzo	Shaba
Vipimo vya Bidhaa	420"L x 0.38"W (35 Feet Length)
Uzito wa Kipengee	Pauni 19.6
Unene wa Ukuta wa Jina	0.75 inch (Insulation)
UPC	685768301950
Inajumuisha	Liquid Line, Suction Line, 3/4 inch Insulation
Hali	Nitrogen charged and sealed

Udhamini na Msaada

For specific warranty information regarding the MUELLER INDUSTRIES 61430350 Line Set, please refer to the documentation provided at the time of purchase or contact MUELLER INDUSTRIES directly through their official website. For technical support or assistance with installation, it is recommended to consult a qualified HVAC professional.

MUELLER INDUSTRIES Contact: Please visit the official MUELLER INDUSTRIES website for contact details and further product information.
