1. Utangulizi
The Weintek MT8100iE is a 10.2-inch Human Machine Interface (HMI) designed for industrial automation applications. It features an 800 x 480 TFT industrial-grade LCD and is built to fully support major PLCs such as Rockwell, Siemens, Mitsubishi, and Omron. This manual provides essential information for the proper installation, operation, and maintenance of your MT8100iE HMI.
2. Taarifa za Usalama
Please read and understand all safety instructions before operating the device. Failure to comply may result in injury or damage to the equipment.
- Hakikisha ugavi wa umeme umekatika kabla ya kufanya usakinishaji au matengenezo yoyote.
- Only qualified personnel should install and service this equipment.
- Do not expose the device to excessive moisture, dust, or extreme temperatures.
- Verify correct wiring and connections to prevent electrical hazards.
- The front panel is NEMA4/IP65 compliant, but ensure proper sealing during installation to maintain this rating.
3. Yaliyomo kwenye Kifurushi
Thibitisha kuwa vipengee vyote vipo kwenye kifurushi:
- MT8100iE HMI Unit
- Mounting Brackets (4x)
- Kiunganishi cha Nguvu
- Mwongozo wa Mtumiaji (hati hii)
- CD-ROM with EasyBuilder Pro Software (or download link)
4. Bidhaa Imeishaview
Familiarize yourself with the components and interfaces of the MT8100iE HMI.
4.1 Mbele View
Kielelezo 4.1: Mbele view of the MT8100iE HMI, showing the 10.2-inch TFT LCD touchscreen and the power indicator LED at the top left.
Upande wa 4.2 View

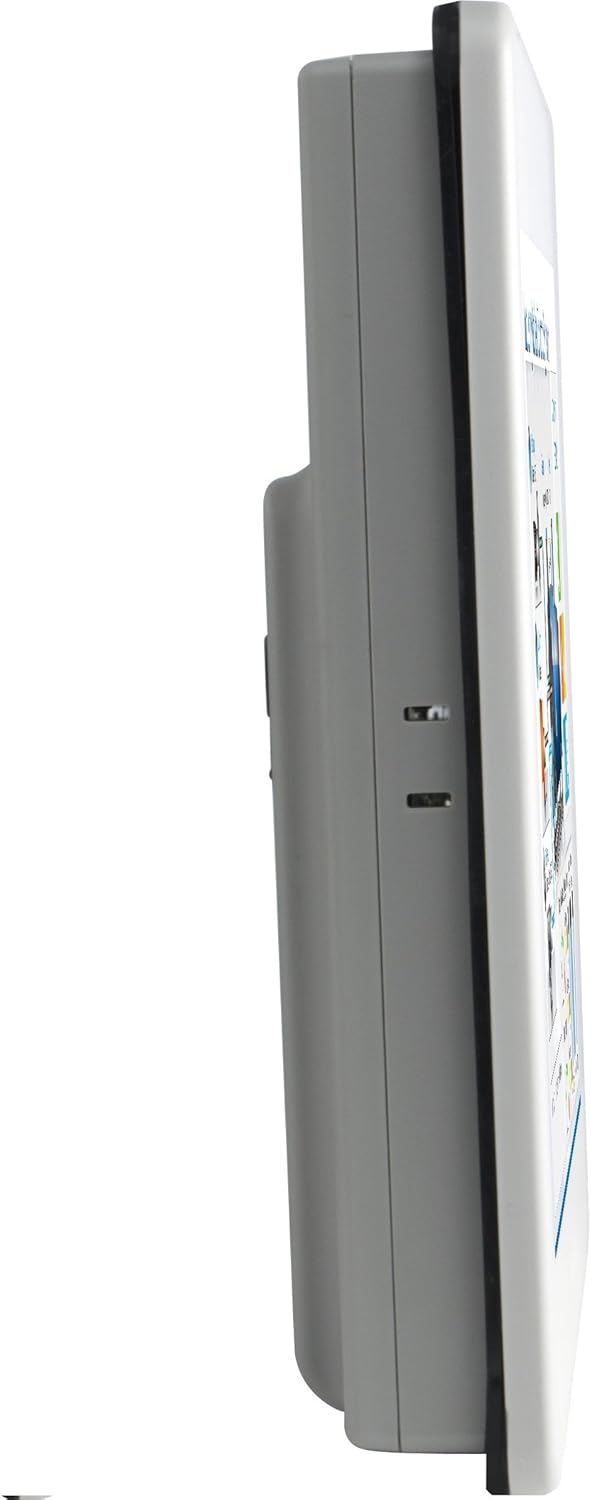

Mchoro 4.2: Side profile of the MT8100iE, illustrating its compact form factor suitable for panel mounting.
4.3 Nyuma View
Kielelezo cha 4.3: Nyuma view of the MT8100iE, highlighting the mounting holes for panel installation, the fuse holder for power protection, and the system reset button.
4.4 Bandari za Mawasiliano
Kielelezo 4.4: Chini view of the MT8100iE, detailing the various communication ports including USB, Ethernet, COM1 (RS-232), and COM2 (RS-485 2W/4W).
5. Kuweka
Uwekaji wa Paneli 5.1
- Cut an opening in the control panel according to the dimensions provided in the installation guide (refer to the separate installation template for precise measurements).
- Insert the MT8100iE HMI into the cutout from the front.
- From the rear of the panel, insert the four mounting brackets into the slots on the HMI unit.
- Tighten the screws on the mounting brackets evenly until the HMI is securely fastened to the panel. Do not overtighten.
Uunganisho wa Nguvu 5.2
- Connect a 24V DC power supply to the power input terminal block on the rear of the HMI.
- Ensure correct polarity (+ and -).
- Secure the connection firmly.
5.3 Miunganisho ya Mawasiliano
- Bandari za mfululizo: Use the COM1 (RS-232) and COM2 (RS-485 2W/4W) ports to connect to PLCs or other serial devices. Refer to your PLC's documentation for specific wiring diagrams.
- Bandari ya Ethernet: Connect an Ethernet cable to the RJ45 port for network communication with PLCs or for remote access.
- Bandari za USB: Use the USB host ports for connecting USB flash drives for project transfers or other peripherals.
6. Maagizo ya Uendeshaji
6.1 Kuwasha
Once all connections are secure, apply power to the HMI. The power indicator LED will illuminate, and the HMI will boot up, displaying the configured project.
6.2 Project Download
To load a new project or update an existing one:
- Create or modify your HMI project using the EasyBuilder Pro software on a PC.
- Connect the PC to the HMI via Ethernet or USB.
- In EasyBuilder Pro, use the 'Download' function to transfer the project to the HMI.
- The HMI will restart with the new project loaded.
6.3 Uendeshaji wa skrini ya kugusa
The MT8100iE features a resistive touchscreen. Use your finger or a non-sharp stylus to interact with the on-screen elements such as buttons, input fields, and displays.
6.4 PLC Communication
The HMI is designed to communicate with various PLCs. Ensure the communication settings (protocol, baud rate, station ID, etc.) configured in your EasyBuilder Pro project match those of your connected PLC.
7. Matengenezo
Regular maintenance ensures optimal performance and longevity of your HMI.
- Kusafisha: Tumia laini, damp cloth to clean the screen and casing. Do not use abrasive cleaners or solvents. Ensure no liquid enters the device.
- Sasisho za Firmware: Periodically check the Weintek website for firmware updates to ensure your HMI has the latest features and bug fixes.
- Uingizwaji wa Fuse: If the HMI does not power on, check the fuse located on the rear panel. Replace it with a fuse of the same type and rating if necessary. Always disconnect power before replacing the fuse.
- Masharti ya Mazingira: Hakikisha mazingira ya uendeshaji yanabaki ndani ya viwango maalum vya halijoto na unyevu ili kuzuia uharibifu.
8. Utatuzi wa shida
Sehemu hii hutoa suluhisho kwa masuala ya kawaida ambayo unaweza kukutana nayo.
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| HMI does not power on. | No power supply, incorrect wiring, blown fuse. | Check power connection, verify wiring polarity, replace fuse if blown. |
| Skrini ya kugusa haijibu. | Screen calibration issue, hardware fault. | Perform screen calibration (refer to EasyBuilder Pro documentation), contact support if issue persists. |
| Cannot communicate with PLC. | Incorrect communication settings, wrong cable, PLC offline. | Verify communication protocol, baud rate, and station ID in EasyBuilder Pro. Check cable connections. Ensure PLC is powered on and running. |
| Project download fails. | Network issue, incorrect IP address, firewall blocking. | Check network cable, verify HMI and PC IP addresses are in the same subnet. Temporarily disable firewalls for testing. |
9. Vipimo
| Kipengele | Maelezo |
|---|---|
| Nambari ya Mfano | eMT3070A1WK |
| Ukubwa wa skrini | Inchi 10.2 |
| Azimio | 800 x 480 |
| Uwiano wa kipengele | 1.66:1 |
| Uso wa Skrini | Inang'aa |
| Kumbukumbu | Kumbukumbu ya Flash 128 iliyojengwa ndani |
| Saa ya Muda Halisi (RTC) | Ndiyo |
| Ukadiriaji wa Paneli ya Mbele | NEMA4/IP65 Compliant |
| Bandari za mfululizo | COM1 RS-232 / COM2 RS-485 (2W/4W) |
| Arifa kwa Barua Pepe | Status e-Mail notification feature |
10. Udhamini na Msaada
Weintek products are manufactured to high quality standards. For warranty information and technical support, please refer to the official Weintek webtovuti au wasiliana na msambazaji wako aliyeidhinishwa. Weka risiti yako ya ununuzi kama uthibitisho wa ununuzi kwa madai ya udhamini.
For software downloads, drivers, and additional resources, visit the official Weintek support portal.
