TE Connectivity HE.24.STI.SC.B1-24 Product Instruction Manual

1. Bidhaa Imeishaview

This manual provides detailed instructions for the installation, operation, and maintenance of the TE Connectivity HE.24.STI.SC.B1-24 connector insert.

The HE.24.STI.SC.B1-24 is an insert from the HE.24 Series, designed with a product size of 8. It features a spring-clamp terminal contact type and a pin insert style, suitable for various industrial electrical applications.

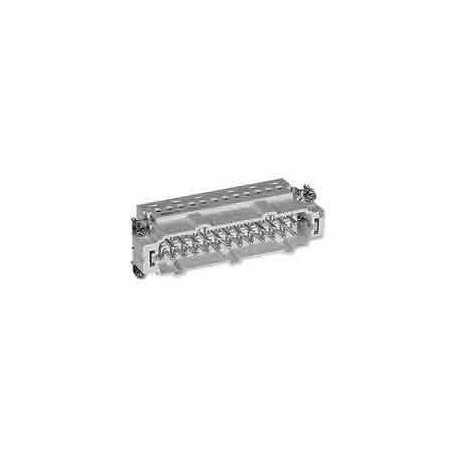

Figure 1: TE Connectivity HE.24 Series Insert (Model HE.24.STI.SC.B1-24). This image shows the overall structure of the connector insert, highlighting its compact design and the arrangement of its pin contacts.

TE Connectivity HE.24 Series Insert Components

Kielelezo 2: Kina view of the TE Connectivity HE.24 Series Insert. This image provides a closer look at the spring-clamp terminals and the pin configuration, essential for understanding the connection mechanism.

2. Taarifa za Usalama

Always observe the following safety precautions to prevent injury and damage to the product:

Ondoa Nguvu: Ensure all power sources are disconnected before installation, maintenance, or troubleshooting.
Wafanyakazi Waliohitimu: Installation and maintenance should only be performed by qualified and trained personnel.
Zana Sahihi: Use appropriate tools for installation and removal to avoid damage to the connector or injury.
Masharti ya Mazingira: Do not expose the connector to conditions outside its specified operating environment (e.g., extreme temperatures, excessive moisture, corrosive substances).
Chunguza Uharibifu: Before use, visually inspect the connector for any signs of damage. Do not use damaged components.

3. Vipengele vya Bidhaa

The TE Connectivity HE.24.STI.SC.B1-24 connector insert primarily consists of:

Insert Body: The main housing for the contacts.
Pin Contacts: The conductive elements designed for signal or power transmission.
Spring-Clamp Vituo: Mechanisms for securing wires without the need for screws, providing reliable and quick connections.

This insert is designed to be integrated into compatible HE.24 series housings (sold separately).

4. Kuweka na Kuweka

Follow these steps for proper installation of the HE.24.STI.SC.B1-24 insert:

Andaa waya: Strip the insulation from the wire ends according to the recommended length for spring-clamp terminals (typically 8-10mm, refer to specific wire gauge guidelines). Ensure the wire ends are clean and free of fraying.
Fungua Clamp: Use a small screwdriver or appropriate tool to open the spring-clamp terminal. Insert the tool into the designated opening next to the wire entry point and apply gentle pressure.
Ingiza Waya: Wakati clamp is open, carefully insert the stripped wire end into the terminal opening until it reaches the stop.
Waya Salama: Ondoa chombo kutoka kwa clamp opening. The spring mechanism will automatically close, securely clamping the wire. Gently pull on the wire to ensure it is firmly seated.
Repeat for all Wires: Repeat steps 2-4 for all necessary wire connections.
Mount Insert: Once all wires are connected, mount the HE.24.STI.SC.B1-24 insert into its corresponding HE.24 series housing. Ensure it clicks securely into place.
Connect Housing: Connect the assembled housing to its mating connector or panel, ensuring proper alignment and secure locking mechanisms are engaged.

Kumbuka: Always refer to the specific wiring diagrams and housing instructions provided with your complete connector system.

5. Maagizo ya Uendeshaji

The HE.24.STI.SC.B1-24 is a passive connector insert designed to facilitate electrical connections. Once properly installed within its housing and connected to mating components, it operates by providing a reliable conductive path for signals or power.

Uadilifu wa Muunganisho: Ensure all connections are secure and free from loose wires to maintain optimal performance.
Ulinzi wa Mazingira: The performance of the connector is dependent on the integrity of the housing it is installed in, which provides protection against environmental factors.

No active user operation is required for the insert itself beyond initial installation.

6. Matengenezo

Regular maintenance helps ensure the longevity and reliability of the HE.24.STI.SC.B1-24 insert:

Ukaguzi wa Visual: Periodically inspect the connector insert and its connections for any signs of wear, corrosion, discoloration, or physical damage.
Kusafisha: If necessary, gently clean the contact areas and the insert body using a lint-free cloth and a suitable non-abrasive, non-conductive cleaning solution. Ensure the connector is completely dry before re-energizing.
Ukaguzi wa Muunganisho: Verify that all wire connections remain secure within the spring-clamp terminals. Re-terminate any loose connections.
Ukaguzi wa Mazingira: Ensure the operating environment remains within the specified limits for temperature and humidity.

Tahadhari: Ondoa umeme kila wakati kabla ya kufanya matengenezo yoyote.

7. Utatuzi wa shida

If you encounter issues with the HE.24.STI.SC.B1-24 connector insert, consider the following:

Tatizo	Sababu inayowezekana	Suluhisho
Hakuna mwendelezo wa umeme	Uunganisho wa waya uliolegea Waya iliyoharibika Corroded contact Wiring isiyo sahihi	Re-secure wire in spring-clamp terminal Replace damaged wire Clean or replace insert Thibitisha mchoro wa nyaya
Uunganisho wa mara kwa mara	Mtetemo Partial wire insertion Degraded spring-clamp	Ensure housing is securely mounted Re-insert wire fully Replace insert if clamp ina kasoro
Difficulty inserting wire	Incorrect wire gauge Tool not fully opening clamp Frayed wire strands	Use specified wire gauge Ensure tool is fully inserted Re-strip wire cleanly

If problems persist after following these steps, contact TE Connectivity customer support.

8. Vipimo

Key specifications for the TE Connectivity HE.24.STI.SC.B1-24 insert:

Msururu: HE.24 Series
Ukubwa wa Bidhaa: 8
Aina ya Anwani: Spring-Clamp Kituo
Insert Style: Bandika
Mtengenezaji: Muunganisho wa TE
ASIN: B00FRBX6KI
Kwanza Inapatikana: Juni 6, 2014

Kumbuka: For detailed electrical ratings (voltage, current) and environmental specifications, please refer to the official TE Connectivity datasheet for the HE.24.STI.SC.B1-24 model.

9. Taarifa za Udhamini

Specific warranty details for the TE Connectivity HE.24.STI.SC.B1-24 are not provided within this document. For information regarding product warranty, please refer to the official TE Connectivity website or contact their customer service directly. Warranty terms typically cover defects in materials and workmanship under normal use.

10. Msaada kwa Wateja

For technical assistance, product inquiries, or support regarding the TE Connectivity HE.24.STI.SC.B1-24, please contact TE Connectivity through their official channels:

Webtovuti: Visit the official TE Connectivity website for product documentation, FAQs, and contact forms.
Usaidizi wa Kiufundi: Refer to the contact information provided on the TE Connectivity website for technical support lines specific to your region.

When contacting support, please have your product model number (HE.24.STI.SC.B1-24) and any relevant purchase information ready.
