1. Utangulizi
This manual provides essential instructions for the installation, configuration, and operation of your ASRock H77 PRO4/MVP LGA1155 ATX Motherboard. Designed for Intel 2nd and 3rd generation Core i7/i5/i3 processors, this motherboard offers robust performance and expandability for various computing needs. Please read this manual thoroughly before proceeding with installation to ensure proper setup and to maximize the lifespan of your components.
2. Ni nini kwenye Sanduku
Thibitisha kuwa vipengee vyote vipo kwenye kifurushi chako cha ubao-mama:
- ASRock H77 PRO4/MVP Motherboard
- Mwongozo wa Ufungaji wa Haraka
- CD ya usaidizi (kwa madereva na huduma za umma)
- Shirika la I / O
- 2 x Kebo za Data za SATA
3. Kuweka na Kuweka
Fuata hatua hizi kwa usakinishaji sahihi wa ubao wako wa mama na vifaa:
- Kuandaa Chassis: Install the I/O shield into the rear opening of your computer case.
- Sakinisha Ubao wa Mama: Weka ubao mama kwa uangalifu kwenye chasisi, ukiweka mashimo ya skrubu sawasawa. Ifunge kwa skrubu.
- Sakinisha CPU: Open the CPU socket lever, align the CPU with the socket (matching the golden triangle on the CPU to the triangle on the socket), gently place the CPU, and close the lever.
- Sakinisha Kipoozi cha CPU: Attach the CPU cooler according to its manufacturer's instructions.
- Sakinisha Kumbukumbu (RAM): Open the clips on the DDR3 DIMM slots. Align the memory modules with the slots, ensuring the notch on the module matches the notch in the slot. Press firmly until the clips lock into place. This motherboard supports up to 32GB of DDR3-1600/1333/1066 memory.
- Sakinisha Kadi za Upanuzi: Insert graphics cards into the PCI-Express 3.0 x16 or PCI-Express 2.0 x16 slots. Other expansion cards (e.g., sound cards, network cards) can be installed in the PCI-Express 2.0 x1 or PCI slots.
- Unganisha Vifaa vya Hifadhi: Use the provided SATA cables to connect your SATA3 (6Gb/s) and SATA2 (3Gb/s) storage devices (HDDs, SSDs) to the corresponding ports on the motherboard.
- Unganisha Ugavi wa Nishati: Connect the 24-pin ATX power connector and the 8-pin 12V power connector from your power supply to the motherboard.
- Unganisha Kebo za Paneli ya Mbele: Connect the power button, reset button, HDD LED, power LED, and front USB/audio headers to their respective pins on the motherboard. Refer to the detailed motherboard diagram in the full manual for exact pin locations.
Ufungaji wa Dereva
After installing your operating system, install the necessary drivers from the provided Support CD or download the latest versions from the ASRock official website. This includes chipset drivers, audio drivers, LAN drivers, and any other utility drivers.
General Motherboard Overview (LGA1155)
Video hii inatoa maelezo ya jumlaview of an LGA1155 motherboard, demonstrating common components and connections. While not specific to the H77 PRO4/MVP model, it offers helpful visual context for users unfamiliar with LGA1155 motherboard layouts and basic handling.
4. Kuendesha Motherboard yako
Usanidi wa BIOS/UEFI
Ili kuingiza huduma ya usanidi wa BIOS/UEFI, bonyeza kitufe cha Futa key during the Power-On Self-Test (POST) sequence. The BIOS/UEFI allows you to configure system settings such as boot order, CPU parameters, memory timings, and integrated peripherals. Save your changes before exiting.
Ufungaji wa Mfumo wa Uendeshaji
Insert your operating system installation media (USB drive or DVD) and set the boot priority in the BIOS/UEFI to boot from the media. Follow the on-screen instructions to install your preferred operating system.
5. Vipimo
| Kipengele | Maelezo |
|---|---|
| Soketi ya CPU | LGA1155 |
| CPU zinazoungwa mkono | 2nd/3rd generation Intel Core i7/i5/i3 Processors (Supports Intel Turbo Boost 2.0 Technology, Hyper-Threading Technology) |
| Chipset | Chipset ya Intel H77 |
| Kumbukumbu | 4x DDR3 DIMM Slots, Non-ECC, Unbuffered, Dual Channel, Max Capacity up to 32GB (DDR3-1600/1333/1066) |
| Upanuzi Slots | 1x PCI-Express 3.0 x16, 1x PCI-Express 2.0 x16 (runs at x4), 1x PCI-Express 2.0 x1, 3x PCI Slots |
| Hifadhi | 4x SATA3 Ports (6Gb/s), 4x SATA2 Ports (3Gb/s), Supports RAID 0, 1, 5, 10 |
| Bandari za USB | 10x USB 2.0 Ports (6 rear, 4 via headers), 4x USB 3.0 Ports (2 rear, 2 via headers) |

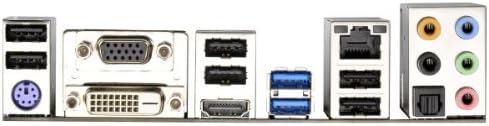

| Bandari za nyuma za I/O | 1x PS/2 Keyboard Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, 1x HDMI Port, 1x DVI Port, 1x VGA Port, Audio I/O Jacks |
| Kiunganishi cha Nguvu | 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector |
| Kipengele cha Fomu | ATX |
| Vipimo | Inchi 12 x 3 x 7.9 |
| Uzito | Pauni 3 |
6. Utatuzi wa shida
Ukikumbana na matatizo, zingatia hatua zifuatazo za kawaida za utatuzi:
- Hakuna Nguvu: Ensure all power cables (24-pin ATX, 8-pin 12V, and power supply to wall) are securely connected. Check the power supply unit (PSU) switch.
- Hakuna Onyesho: Verify that your monitor is connected to the correct video output on your graphics card or motherboard. Reseat your graphics card and RAM modules. Test with a single RAM stick if multiple are installed.
- Kukosekana kwa Uthabiti wa Mfumo/Kuacha Kufanya Kazi: Check CPU and GPU temperatures. Ensure all drivers are up to date. Test memory modules individually.
- Pembeni Haijagunduliwa: Ensure USB devices are connected to functional ports. Install necessary drivers for the peripheral.
- Matatizo ya BIOS/UEFI: If you cannot enter the BIOS or experience boot loops, try clearing the CMOS. This can usually be done by removing the CMOS battery for a few minutes or using a dedicated jumper on the motherboard (refer to the full manual for location).
For more detailed troubleshooting, consult the comprehensive user manual available on the ASRock support webtovuti.
7. Udhamini na Msaada
Your ASRock H77 PRO4/MVP Motherboard is covered by a manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official ASRock website. For technical support, driver downloads, and further assistance, please visit the ASRock support page:
