Mwongozo wa Maelekezo ya Koni ya Kubeba Roller ya Timken A2037

1. Utangulizi

This manual provides essential information for the proper installation, operation, and maintenance of the Timken A2037 Tapered Roller Bearing Cone. Adhering to these instructions will ensure optimal performance and longevity of the bearing.

The Timken A2037 is a single tapered roller bearing cone designed to be paired with a compatible cup (outer ring, sold separately) to form a complete bearing unit. This assembly is engineered to support both radial and axial loads in various industrial and automotive applications.

2. Bidhaa Imeishaview

The Timken A2037 Tapered Roller Bearing Cone features a high-alloy steel construction for durability and resistance to deformation under heavy loads. Its stamped steel cage maintains precise roller spacing, contributing to reduced friction, vibration, and noise during operation. The open design facilitates lubrication and allows for accurate adjustments during installation.

Kielelezo cha 1: Timken A2037 Tapered Roller Bearing Cone. This image shows the bearing cone with its rollers and inner ring.

Sifa Muhimu:

Single cone (inner ring) for assembly with compatible outer rings (cups).
Designed to support both radial and axial loads.
Kiwango cha joto cha uendeshaji: -54°C hadi 120°C (-65°F hadi 250°F).
Stamped steel cage for precise roller spacing, reducing friction and noise.
Open configuration for easy lubrication and adjustment.

3. Kuweka na Kuweka

Proper installation is crucial for the performance and lifespan of the tapered roller bearing. This bearing cone must be paired with a suitable cup (outer ring) to form a complete bearing unit. Consult your equipment's service manual for specific installation procedures and torque specifications.

3.1 Components Required:

Timken A2037 Tapered Roller Bearing Cone (included).
Compatible Tapered Roller Bearing Cup (outer ring, sold separately).
Appropriate lubricant (e.g., grease, as specified by equipment manufacturer).
Installation tools (e.g., bearing press, specialized drivers, torque wrench).

3.2 Ukaguzi wa Kabla ya Usakinishaji:

Inspect the bearing cone and cup for any signs of damage, corrosion, or manufacturing defects. Do not install damaged components.
Ensure all mating surfaces on the shaft and housing are clean, smooth, and free from burrs or foreign particles.
Verify that the shaft and housing dimensions are within specified tolerances for the A2037 bearing.

3.3 Utaratibu wa Usakinishaji:

Apply a thin, even coat of compatible lubricant to the bearing cone and cup surfaces.
Press the bearing cone onto the shaft using a bearing press or appropriate driver. Ensure even pressure is applied to the inner ring face to avoid damage. Never strike the rollers or cage directly.
Press the bearing cup into the housing bore, ensuring it is seated squarely and fully against the shoulder.
Assemble the shaft with the cone into the housing with the cup.
Adjust the bearing setting (preload or end play) according to the equipment manufacturer's specifications. This typically involves tightening a retaining nut to a specific torque value while rotating the shaft to seat the rollers.
Perform a final check to ensure smooth rotation and proper seating.

Mbele view technical drawing of Timken A2037 bearing cone

Kielelezo cha 2: Mbele view technical drawing of the Timken A2037 Tapered Roller Bearing Cone, showing internal dimensions and structure.

Upande view technical drawing of Timken A2037 bearing cone

Kielelezo cha 3: Upande view technical drawing of the Timken A2037 Tapered Roller Bearing Cone, illustrating its profile na upana.

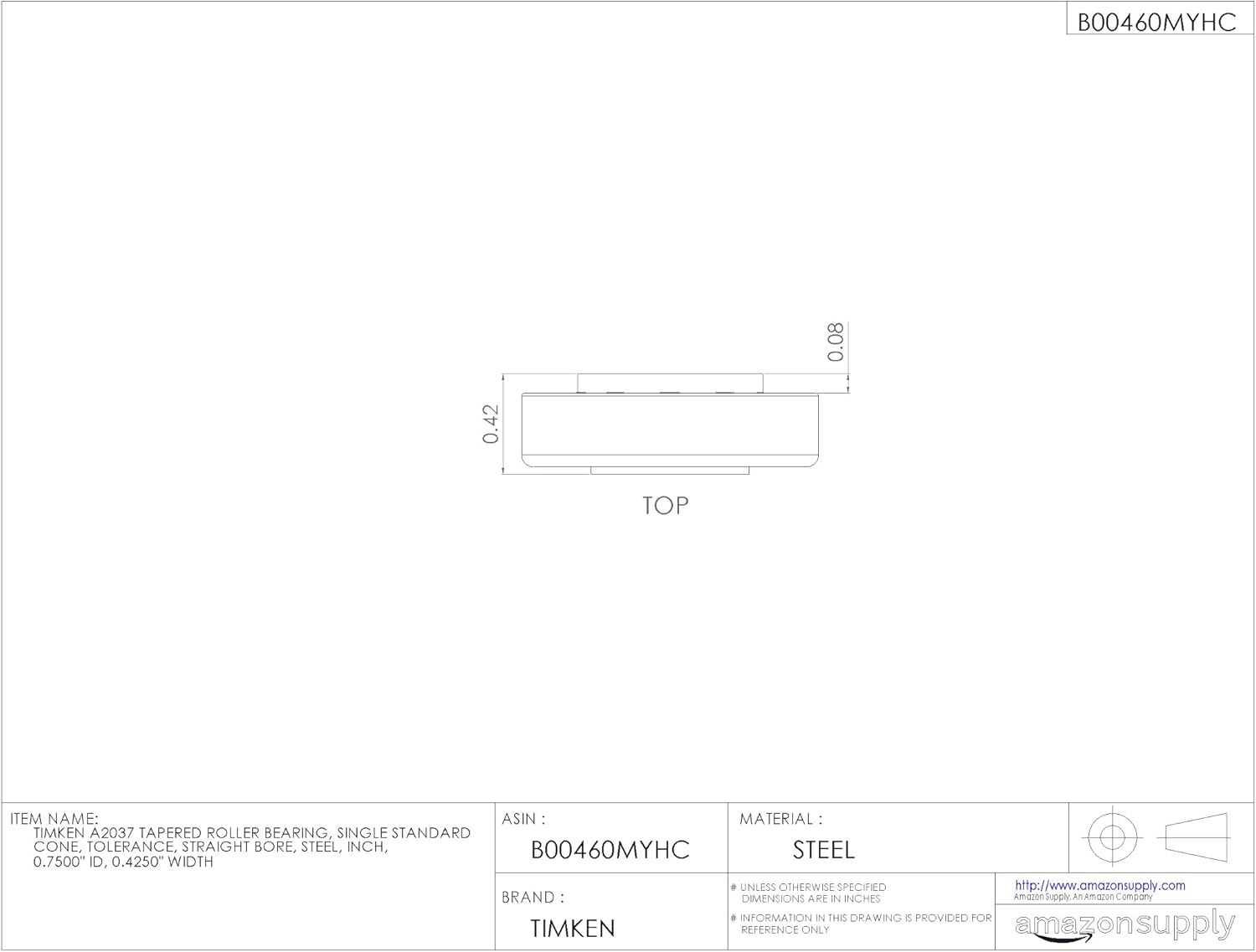

Juu view technical drawing of Timken A2037 bearing cone

Kielelezo cha 4: Juu view technical drawing of the Timken A2037 Tapered Roller Bearing Cone, showing its diameter and overall dimensions.

4. Miongozo ya Uendeshaji

Once installed, the Timken A2037 bearing cone, as part of a complete tapered roller bearing, is designed for reliable operation under specified conditions. Proper operating practices contribute to extended bearing life.

Uwezo wa Kupakia: This bearing supports both radial and axial loads. Ensure that the applied loads do not exceed the bearing's rated capacity.
Kasi: Operate within the recommended speed limits for tapered roller bearings in your specific application. Excessive speeds can lead to overheating and premature failure.
Halijoto: The bearing is designed for operating temperatures between -54°C and 120°C (-65°F and 250°F). Monitor operating temperatures to prevent overheating, which can degrade lubricant and bearing materials.
Upakaji mafuta: Maintain adequate lubrication as per the equipment manufacturer's schedule. The open configuration of this bearing allows for lubrication applied in place.

5. Matengenezo

Regular maintenance is essential for maximizing the service life of the Timken A2037 Tapered Roller Bearing Cone.

5.1 Upakaji mafuta:

Tapered roller bearings require periodic relubrication. The frequency and type of lubricant depend on the application, operating conditions, and environment. Refer to your equipment's maintenance schedule for specific lubrication requirements. Use only compatible lubricants (e.g., grease) as recommended.

5.2 Ukaguzi:

Periodically inspect the bearing and surrounding components for:

Kelele au mtetemo usio wa kawaida wakati wa operesheni.
Signs of lubricant leakage or contamination.
Uzalishaji wa joto kupita kiasi.
Visible wear or damage to the bearing surfaces, cage, or rollers.

Suluhisha maswala yoyote mara moja ili kuzuia uharibifu zaidi.

5.3 Replacement:

Replace the bearing cone and cup as a set if any signs of wear, pitting, spalling, or other damage are observed. Do not replace only one component of a tapered roller bearing set, as this can lead to premature failure of the new component.

6. Utatuzi wa shida

This section provides general guidance for common issues related to tapered roller bearings. For specific diagnostic procedures, consult your equipment's service manual.

Dalili	Sababu inayowezekana	Kitendo
Kelele/Mtetemo Kupita Kiasi	Lubrication haitoshi Uchafuzi Improper bearing setting (preload/end play) Damage to bearing components Kuelekeza vibaya	Check and replenish lubricant Inspect for contamination; clean or replace Adjust bearing setting Inspect and replace damaged bearing Check alignment of shaft and housing
Kuzidisha joto	Excessive lubrication (over-greasing) Lubrication haitoshi Excessive preload High operating speed/load Uchafuzi	Remove excess lubricant Check and replenish lubricant Adjust bearing setting Reduce speed/load if possible; verify bearing capacity Inspect for contamination; clean or replace
Premature Wear/Failure	Ufungaji usiofaa Upungufu wa lubrication Uchafuzi Kupakia kupita kiasi Kutu	Review utaratibu wa ufungaji Establish proper lubrication schedule Improve sealing; clean or replace Verify application loads vs. bearing capacity Identify source of moisture/chemicals; improve sealing

7. Vipimo

The following specifications apply to the Timken A2037 Tapered Roller Bearing Cone:

Sifa	Thamani
Chapa	TIMKEN
Nambari ya Mfano	A2037
Aina ya Kuzaa	Tapered Roller Bearing Cone
Nyenzo	Aloi ya chuma
Uzito wa Kipengee	Wakia 1.28 (takriban Pauni 0.08)
Vipimo vya Bidhaa (L x W x H)	Inchi 3 x 3 x 1
Kiwango cha Joto la Uendeshaji	-54°C hadi 120°C (-65°F hadi 250°F)
Mafuta Yanayoendana	Grease (as specified by application)
Kumaliza kwa Nje	Imetengenezwa kwa mashine
UPC	053893108667

Viwango Vilivyofikiwa:

ISO 355 (Tapered roller bearings—Boundary dimensions and series designations)
ABMA standard 19.2 (Inch part numbering system)
ISO 492 (Width tolerance standards)
ISO 720 (Tapered roller bearing naming conventions)
ABEC (Specification Met)

8. Udhamini na Msaada

For warranty information and technical support regarding your Timken A2037 Tapered Roller Bearing Cone, please contact Timken customer service or visit the official Timken webtovuti. Hifadhi uthibitisho wako wa ununuzi kwa madai ya udhamini.

Mtengenezaji: Timken Company

Webtovuti: www.timken.com
