Mwongozo wa Maelekezo ya Kikapu cha Kichujio cha Super Pump cha Hayward SPX1600M

Utangulizi

This manual provides essential information for the proper use and maintenance of your Hayward SPX1600M Super Pump Strainer Basket. This basket is specifically designed for use with all Hayward Super Pump models, ensuring optimal filtration and pump protection.

Vipengele vya Bidhaa

Super Pump basket replacement.
Compatible with Hayward Super Pump models: SP1600X5, SP1605X7, SP1607X10, SP1608X10, SP1610X15, SP1611X15, SP1615X20, SP1616X20, SP1621X25.
Constructed from corrosion-resistant plastic for durability.
Lightweight design, weighing approximately 0.2 kilograms (7 ounces).
Features a handle for easy removal and cleaning.

Vipimo

Sifa	Maelezo
Chapa	Hayward
Nambari ya Mfano	SPX1600M
Rangi	Nyeupe
Nyenzo	Corrosion-resistant plastic
Vipimo vya Bidhaa	6"L x 6"W x 5.25"H
Uzito wa Kipengee	Kilo 0.2 (wakia 7)
UPC	753956520022, 717261575191, 610377040044

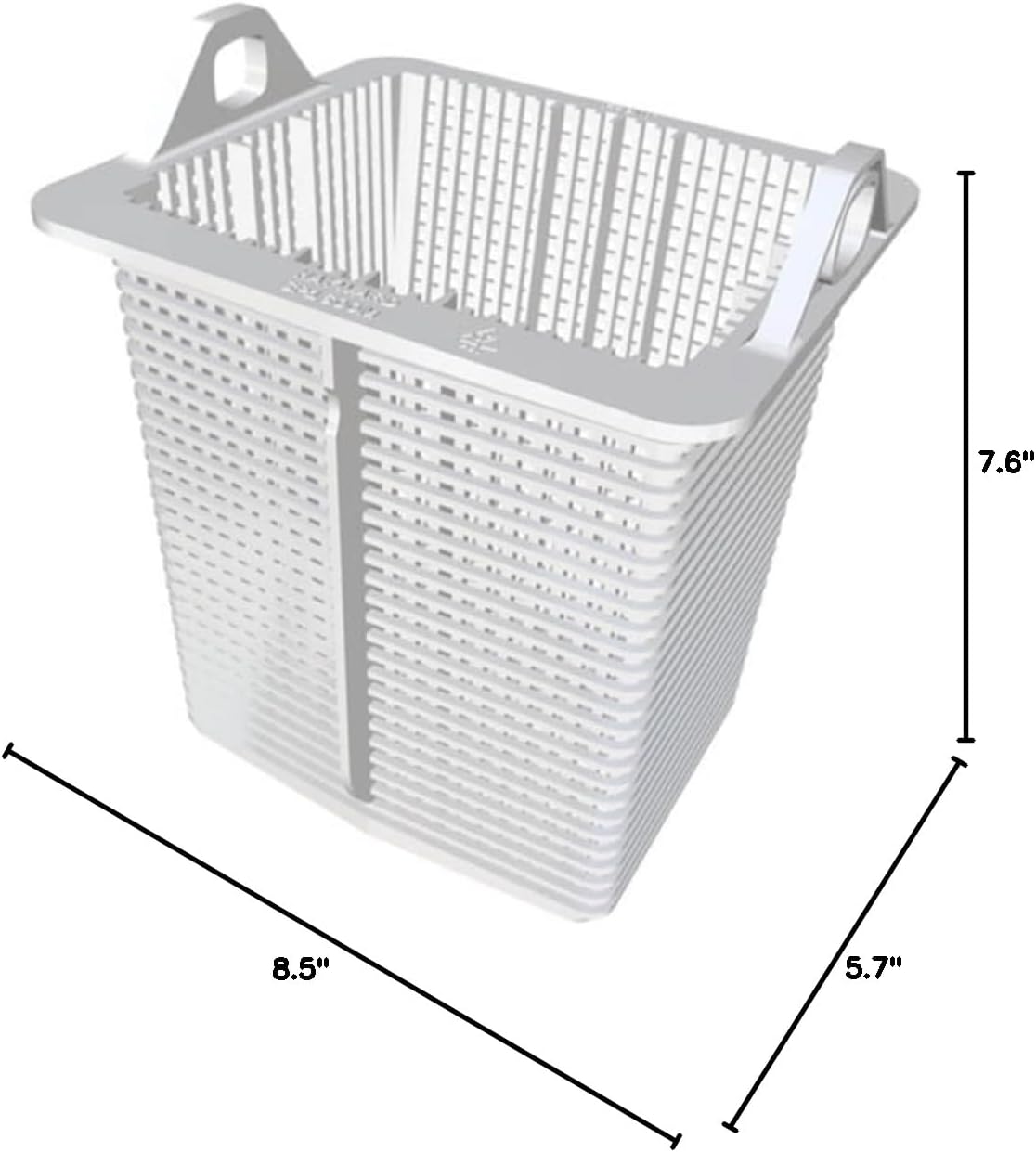

Hayward SPX1600M Super Pump Strainer Basket with dimensions

Image: Hayward SPX1600M Super Pump Strainer Basket with key dimensions labeled. The basket measures approximately 8.5 inches in length, 5.7 inches in width, and 7.6 inches in height.

Kuweka na Kuweka

The Hayward SPX1600M Super Pump Strainer Basket is designed for straightforward replacement in compatible Hayward Super Pump models. Ensure your pump is turned off and disconnected from power before proceeding.

Zima Pampu: Locate the power switch for your pool pump and turn it off. For added safety, disconnect the pump from its power source.
Access Strainer Housing: Open the lid of your pump's strainer housing. This usually involves unscrewing or unlatching the cover.
Remove Old Basket: Carefully lift out the old strainer basket. It may contain accumulated debris. Dispose of any debris properly.
Kagua Makazi: Check the strainer housing for any remaining debris or damage. Clean as necessary.
Insert New Basket: Place the new Hayward SPX1600M strainer basket into the housing, ensuring it sits correctly at the bottom. The handle should be accessible for future removal.
Mfuniko salama: Replace the strainer housing lid and secure it tightly to prevent leaks.
Rejesha Nguvu: Reconnect the pump to its power source and turn it on. Check for any leaks around the strainer housing.

Video: This video demonstrates the process of replacing a Hayward pump basket. It shows the removal of an old, damaged basket and the insertion of a new one into the pump's strainer housing.

Video: A demonstration of replacing a Hayward pump basket, including opening the pump lid, removing the old basket, and inserting the new replacement.

Uendeshaji

The strainer basket operates passively within your Hayward Super Pump system. Its primary function is to capture large debris such as leaves, twigs, and hair before they reach the pump impeller and other sensitive components. This prevents damage and maintains efficient pump operation.

Image: The Hayward SPX1600M Super Pump Strainer Basket, designed to capture debris in pool pump systems.

Matengenezo

Regular cleaning of the strainer basket is crucial for maintaining optimal pool circulation and extending the life of your pump. Follow these steps for routine maintenance:

Zima Pampu: Always turn off your pool pump before performing any maintenance.
Remove Basket: Open the strainer housing lid and use the basket's handle to lift it out.
Mabaki Tupu: Invert the basket to empty all collected leaves, hair, and other debris.
Safisha Safi: Rinse the basket thoroughly with a garden hose to remove any remaining small particles. Ensure all holes are clear.
Chunguza Uharibifu: While cleaning, inspect the basket for any cracks, breaks, or signs of wear. Replace if damaged.
Sakinisha upya: Place the clean basket back into the strainer housing, ensuring it is seated correctly. Secure the lid.
Restart Pump: Washa pampu tena.

Mara kwa mara: Clean the strainer basket at least once a week, or more frequently if your pool experiences heavy debris accumulation (e.g., after a storm or during leaf-shedding seasons).

Video: This short video demonstrates the features of the SPX1600M skimmer basket, including its handle and how it collects various types of debris like leaves, pinecones, and cotton-like material.

Kutatua matatizo

Kupungua kwa mtiririko wa maji: If you notice a decrease in water flow or pump efficiency, the strainer basket is likely clogged. Follow the maintenance steps to clean it.
Pump Losing Prime: A cracked or damaged strainer basket can cause the pump to lose prime by allowing air into the system. Inspect the basket for damage and replace if necessary.
Debris in Pump Impeller: If debris is reaching the pump impeller, the strainer basket may be damaged or incorrectly seated. Remove, inspect, and reinstall or replace the basket.

Taarifa ya Udhamini

Specific warranty details for the Hayward SPX1600M Super Pump Strainer Basket are not provided in the product information. Please refer to the manufacturer's official webau wasiliana na huduma kwa wateja wao kwa masharti na masharti ya udhamini wa sasa.

Usaidizi wa Wateja

For further assistance, technical support, or to inquire about replacement parts, please visit the official Hayward webtovuti au wasiliana na idara yao ya huduma kwa wateja. Maelezo ya mawasiliano yanaweza kupatikana kwenye kifungashio cha bidhaa au cha mtengenezaji webtovuti.
