1. Utangulizi

Thank you for choosing the JL Audio 300/4V2 4-Channel Car Audio Ampmsafishaji. Hii amplifier is designed to deliver high-fidelity sound reproduction for your vehicle's audio system. Featuring a Class A/B full-range design, absolute symmetry Class A/B circuitry, and differential balanced input topology, the 300/4V2 ensures clean and powerful audio output.

Vipengele muhimu ni pamoja na:

• Class A/B full-range four-channel ampmaisha zaidi.
• Absolute Symmetry Class A/B circuit.
• Differential Balanced Input Topology with 2 pairs of inputs.
• On-board Crossover: Fully variable (50 Hz - 5 kHz), selectable slope/mode (12 or 24 dB/octave, LP or HP) for each channel pair.
• Speaker output connections: Accepts up to 8 AWG wire.

Kielelezo 1.1: Juu view of the JL Audio 300/4V2 amplifier, showcasing its sleek design and branding.

2. Taarifa za Usalama

Tafadhali soma maagizo yote kwa makini kabla ya kusakinisha na kuendesha amplifier. Failure to do so may result in personal injury or damage to the ampchombo cha kuhifadhia maji au gari.

• Daima tenganisha kituo cha gari kisicho na betri kabla ya kuanza usakinishaji wowote.
• Kuhakikisha msingi sahihi kwa ajili ya amplifier to prevent electrical hazards and noise.
• Use appropriate wire gauges for power, ground, and speaker connections as specified in the installation section.
• Weka mlima ampkiyoyozi salama katika eneo linaloruhusu uingizaji hewa wa kutosha na linalolindwa kutokana na unyevu na joto kali.
• Avoid routing wires near sharp edges or moving parts. Use grommets where wires pass through metal.
• Usifanye kazi ya amplifier ikiwa imeharibika au haifanyi kazi vizuri. Rejelea sehemu ya utatuzi wa matatizo au wasiliana na usaidizi.
• Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Adjust volume responsibly.

3. Mipangilio na Usakinishaji

Usanikishaji sahihi ni muhimu kwa utendaji bora na maisha marefu ya kifaa chako amplifier. If you are unsure about any part of the installation process, it is recommended to seek professional assistance.

3.1 Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi:

• JL Audio 300/4V2 Ampmaisha zaidi
• Mwongozo wa Mmiliki (hati hii)
• Vifaa vya Kupachika (skrubu, mashine za kuosha)
• Connector Plugs (if applicable for speaker/power terminals)

3.2 Mahali pa Kuweka

Choose a mounting location that is dry, well-ventilated, and secure. Common locations include under seats, in the trunk, or behind panels. Ensure there is sufficient space for the amplifier's dimensions (43.69 x 31.5 x 13.72 cm) and for proper air circulation around the heat sinks.

Kielelezo 3.1: Pembe view of the JL Audio 300/4V2 amplifier, showing its compact form factor suitable for various mounting locations.

3.3 Viunganisho vya Wiring

Refer to the rear panel image for connection points. All connections should be made with the vehicle's battery disconnected.

Kielelezo 3.2: Kina view of the JL Audio 300/4V2 amplifier's rear panel, showing power, ground, remote, input, and output terminals, along with crossover controls.

3.3.1 Miunganisho ya Umeme na Ardhi

• +12V (Nguvu): Connect directly to the positive terminal of the vehicle's battery using a fuse holder within 18 inches of the battery. Use appropriate gauge wire (e.g., 8 AWG or larger for typical installations).
• Uwanja: Connect to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid electrical connection. The ground wire should be the same gauge and as short as possible, ideally less than 3 feet.
• Mbali: Connect to the remote turn-on lead from your head unit. This signal turns the amplifier on and off with your audio system. If using speaker-level inputs without a remote wire, the amplifier's signal sensing technology can automatically turn it on.

3.3.2 Viunganisho vya Kuingiza

The 300/4V2 features differential balanced input topology with two pairs of inputs, allowing for both low-level (RCA) and speaker-level inputs.

• Ingizo za RCA: Connect RCA cables from your head unit's pre-outs to the ampjeki za kuingiza za lifier.
• Ingizo za Kiwango cha Spika: If your head unit does not have RCA outputs, you can connect the speaker wires directly to the amplifier's input terminals. The amplifier's balanced inputs are designed to handle this without needing a separate line-output converter.

3.3.3 Miunganisho ya Towe ya Spika

Unganisha spika zako kwenye amplifier's speaker output terminals. The 300/4V2 is a 4-channel amplifier, allowing for connection of four speakers or two speakers in bridged mode for higher power output to subwoofers or mid-bass drivers. The terminals accept up to 8 AWG wire.

• Ensure correct polarity (+ to + and - to -) for all speaker connections.
• Refer to your speaker's impedance rating and the ampvipimo vya lifier ili kuhakikisha utangamano.

4. Uendeshaji

Mara tu ikiwa imewekwa, amplifier requires proper configuration to match your audio system and preferences.

4.1 Pata Marekebisho

The gain control (Input Sensitivity) matches the amplifier's input level to the output level of your head unit. This is not a volume control. To set the gain:

1. Geuza amplifier's gain control all the way down (counter-clockwise).
2. Set your head unit's volume to about 75% of its maximum.
3. Piga kipande cha muziki chenye nguvu.
4. Punguza polepole amplifier's gain control until you hear slight distortion, then back it off slightly until the sound is clean.

4.2 Mipangilio ya Crossover

The 300/4V2 features a fully variable on-board crossover (50 Hz - 5 kHz) with selectable slope/mode (12 or 24 dB/octave, Low-Pass or High-Pass) for each pair of channels. This allows you to direct specific frequency ranges to your speakers.

• HP (High-Pass): Inaruhusu masafa juu the set point to pass through. Typically used for full-range speakers to prevent them from playing low bass.
• LP (Low-Pass): Inaruhusu masafa chini the set point to pass through. Typically used for subwoofers.
• Adjust the crossover frequency and slope according to your speaker types and desired sound.

5. Matengenezo

The JL Audio 300/4V2 amplifier is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity.

• Kusafisha: Futa kwa upole amplifier's exterior with a soft, dry cloth to remove dust. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation fins are clear of obstructions.
• Ukaguzi wa Muunganisho: Periodically inspect all power, ground, remote, input, and speaker connections to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
• Uingizaji hewa: Hakikisha amplifier's mounting location remains clear and allows for proper airflow. Blocked ventilation can lead to overheating.

6. Utatuzi wa shida

Ikiwa unapata maswala na yako amplifier, angalia jedwali lifuatalo kabla ya kuwasiliana na usaidizi.

7. Vipimo

The following are key technical specifications for the JL Audio 300/4V2 ampmaisha:

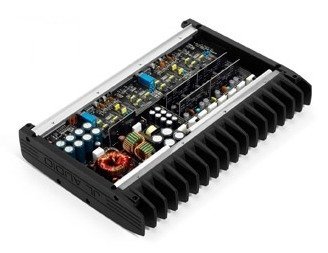

Kielelezo 7.1: Ndani view of the JL Audio 300/4V2 amplifier, showing the high-quality components and robust construction.

8. Udhamini na Msaada

JL Audio products are engineered for durability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official JL Audio webtovuti. Udhamini kwa kawaida hujumuisha kasoro katika vifaa na ufundi kwa kipindi maalum kuanzia tarehe ya ununuzi.

For technical support, service, or replacement parts, please contact JL Audio customer service or an authorized JL Audio dealer. Ensure you have your product model number (300/4V2) and proof of purchase available when seeking support.

You can find more information and contact details on the official JL Audio webtovuti: www.jlaudio.com
