McGrey MOVE Compact PA Speaker User Manual

Utangulizi

The McGrey MOVE Compact is an 8-inch battery-powered active PA speaker designed for versatile use in various settings such as events, parties, and presentations. It offers powerful sound, flexible connectivity, and portability. This manual provides essential information for the safe and efficient operation of your device.

Maagizo ya Usalama

• Soma maagizo yote kwa uangalifu kabla ya kutumia kifaa.
• Weka mwongozo huu kwa marejeleo ya baadaye.
• Usiweke kifaa kwenye mvua au unyevu ili kuzuia moto au mshtuko wa umeme.
• Usizuie fursa yoyote ya uingizaji hewa. Sakinisha kwa mujibu wa maelekezo ya mtengenezaji.
• Usisakinishe karibu na vyanzo vyovyote vya joto kama vile radiators, rejista za joto, jiko, au vifaa vingine (pamoja na amplifiers) zinazotoa joto.
• Linda waya wa umeme dhidi ya kutembezwa au kubanwa, haswa kwenye plagi, vyombo vya kuhifadhia umeme, na mahali zinapotoka kwenye kifaa.
• Tumia viambatisho/vifaa vilivyobainishwa na mtengenezaji pekee.
• Chomoa kifaa hiki wakati wa dhoruba za umeme au kisipotumika kwa muda mrefu.
• Rejelea huduma zote kwa wafanyikazi waliohitimu wa huduma. Huduma inahitajika wakati vifaa vimeharibiwa kwa njia yoyote.

Bidhaa Imeishaview

The McGrey MOVE Compact speaker combines portability with powerful audio performance, making it suitable for a wide range of applications.

Sifa Muhimu:

• Mobile & Independent: Integrated lithium battery provides up to 8 hours of operation.
• Powerful 2-Way Sound: 8-inch woofer and 1-inch compression driver deliver 95 W RMS and up to 115 dB SPL.
• Bluetooth na TWS: Wireless streaming via Bluetooth 5.0. TWS function allows stereo pairing of two systems.
• Professional Connections: 2x XLR Line Combo inputs, Cinch, 3.5 mm AUX, and XLR output. Optional 48V phantom power.
• DSP Akili: Voicing Modes (Music, Speech, Monitor, Sub), Feedback Eliminator, and Talkover function.

Sanidi

1. Kuchaji Betri

Before first use, fully charge the integrated lithium battery. Connect the power cable to the AC input on the rear panel and plug it into a suitable power outlet. The battery level indicator on the control panel will show the charging status. A full charge takes approximately 3 hours.

2. uwekaji

Position the speaker according to your needs. The MOVE Compact can be placed:

• On a stand: For wider sound dispersion over a distance.
• Angled upright: Ideal for close proximity listening or as a personal monitor.
• Angled horizontally: Suitable for use as a stage kufuatilia.

3. Nguvu ya Awali Imewashwa

After charging, ensure all volume controls are set to minimum. Press the main power switch on the rear panel to turn on the speaker.

Uendeshaji

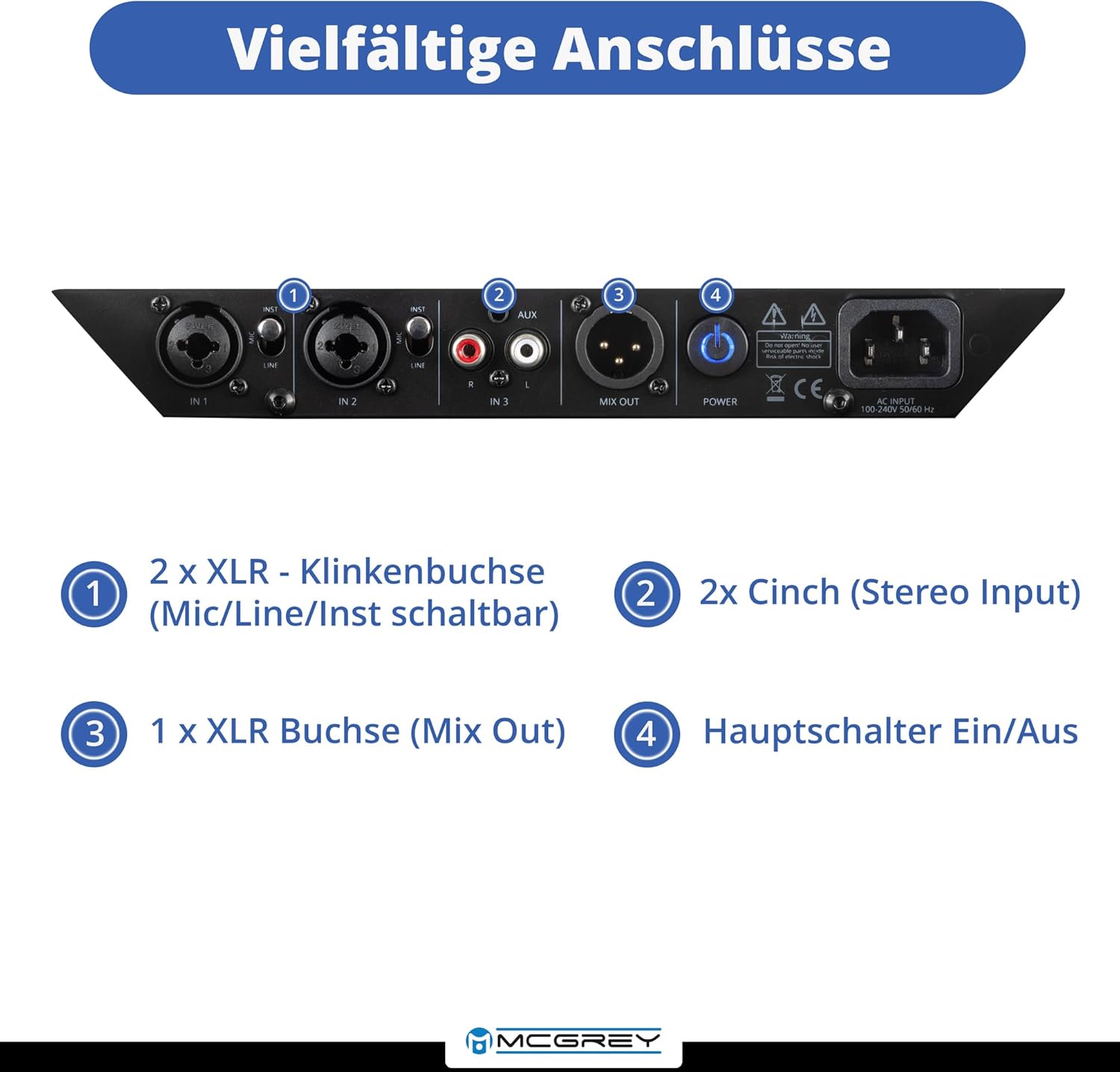

1. Kuunganisha Vyanzo vya Sauti

The MOVE Compact offers various input options:

• XLR Line Combo Inputs (CH 1, CH 2): Use these for microphones, instruments, or line-level signals. The input type (Mic/Line/Inst) is switchable.
• Cinch (RCA) Stereo Input (CH 3): Connect devices like CD players or DJ mixers.
• 3.5 mm AUX Input (CH 3): For connecting smartphones, tablets, or other portable audio devices.
• Mchanganyiko wa XLR: Use this output to send the mixed signal to other PA systems or recording devices.

2. Bluetooth Pairing & TWS Function

• Ufungaji wa Bluetooth: Activate Bluetooth on your smartphone or tablet. On the MOVE Compact, select the Bluetooth input. The speaker will appear as 'McGrey MOVE Compact' in your device's Bluetooth list. Select it to pair.
• TWS (Tereo ya Kweli Isiyo na Waya): To achieve stereo sound with two MOVE Compact speakers, ensure both speakers are powered on and not connected to any other Bluetooth device. On one speaker, activate the TWS pairing mode (refer to the control panel for the specific button). The two speakers will automatically connect, with one acting as the left channel and the other as the right.

3. Using DSP Modes & Effects

• Voicing Modes: Select from 'Music', 'Speech', 'Monitor', or 'Sub' to optimize the speaker's sound profile kwa maombi yako mahususi.
• Feedback Eliminator: Activate this function to reduce unwanted audio feedback, especially when using microphones.
• Kazi ya Kuzungumza: When activated, this feature automatically lowers the background music volume when a microphone signal is detected, ideal for announcements or presentations.
• Athari ya Kitenzi: Apply reverb to your audio signals for added depth and ambiance.
• Kuongeza Bass: Engage this feature for enhanced low-frequency response.

4. Kurekebisha Sauti na EQ

Use the individual volume controls for each channel to balance your audio sources. The 2-band EQ (Treble and Bass) for each input channel allows you to fine-tune the tone.

Matengenezo

1. Kusafisha

Wipe the exterior of the speaker with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure no liquids enter the speaker grille or control panel.

2. Utunzaji wa Betri

To prolong battery life, avoid fully discharging the battery frequently. If storing the speaker for an extended period, charge the battery to approximately 50-70% and recharge it every few months.

3. Hifadhi

Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. Protect it from dust and moisture.

Kutatua matatizo

• Hakuna Sauti: Check power connection, ensure speaker is on, verify input source connections, check volume levels on both the speaker and the source device.
• Sauti Iliyopotoka: Reduce input volume from the source device or the speaker's channel volume. Check for proper cable connections.
• Masuala ya Kuoanisha Bluetooth: Ensure the speaker is in Bluetooth pairing mode. Turn off and on Bluetooth on your source device. Make sure no other devices are connected to the speaker via Bluetooth.
• Maoni: Activate the Feedback Eliminator. Reduce microphone gain. Reposition the microphone or speaker.
• Maisha Mafupi ya Betri: Ensure the battery is fully charged. Battery performance may decrease over time with usage.

Vipimo

Udhamini na Msaada

For warranty information and technical support, please refer to the documentation provided with your purchase or contact McGrey customer service. Keep your proof of purchase for any warranty claims.
