Utangulizi
Thank you for choosing the L.a.Z.-Boy Air Lumbar Manager Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new office chair. Please read these instructions carefully before use and retain them for future reference.
Taarifa za Usalama
Always follow basic safety precautions when using this product to reduce the risk of injury. Ensure all components are securely fastened before use. Do not stand on the chair. Do not use the chair if any parts are damaged or missing. Keep children away from moving parts. The maximum weight capacity for this chair is 275 pounds.
Kuweka na Kukusanya
Your L.a.Z.-Boy Air Lumbar Manager Office Chair requires assembly. Detailed assembly instructions are included in the product packaging. Please refer to those instructions for step-by-step guidance. Ensure all parts are present and undamaged before beginning assembly.
Figure 1: Chair Components Overview. This image illustrates the various parts of the L.a.Z.-Boy Air Lumbar Manager Office Chair, including the backrest, seat, armrests, pneumatic cylinder, and 5-star base with casters. Refer to your included assembly guide for detailed instructions on how to connect these components.
Maagizo ya Uendeshaji
Familiarize yourself with the chair's adjustable features to optimize your comfort and support.
1. Pneumatic Height Adjustment
To adjust the seat height, locate the lever on the right side beneath the seat. While seated, lift the lever to lower the seat. To raise the seat, lift the lever while taking your weight off the seat. Release the lever at your desired height. The chair features a 3.75-inch height adjustment range.
Figure 2: Pneumatic Height Adjustment. This diagram, part of a larger feature illustration, visually explains the mechanism for adjusting the chair's seat height using the control lever.
2. InfinityLock™ Seat Plate (Recline and Tilt Adjustments)
The InfinityLock™ seat plate allows you to secure your recline angle at an infinite number of positions. Locate the easy-to-reach control lever on the left side beneath the seat. Pull the lever outwards to unlock the recline function, allowing the chair to tilt. Push the lever inwards to lock the chair in your preferred reclined position. To adjust the ease of recline (tilt tension), rotate the knob located under the seat towards the front of the chair for more resistance, or towards the back for less resistance.
Figure 3: Recline Function. This image shows the chair in a reclined state, demonstrating the range of motion provided by the InfinityLock™ seat plate.
3. Padded Flip-Up Armrests
The chair features padded armrests that can be flipped up and out of the way. This provides ergonomic support for your arms and wrists when down, and allows for space-saving or closer access to your desk when flipped up. To raise an armrest, simply lift it upwards until it locks into the vertical position. To lower, gently pull it down.

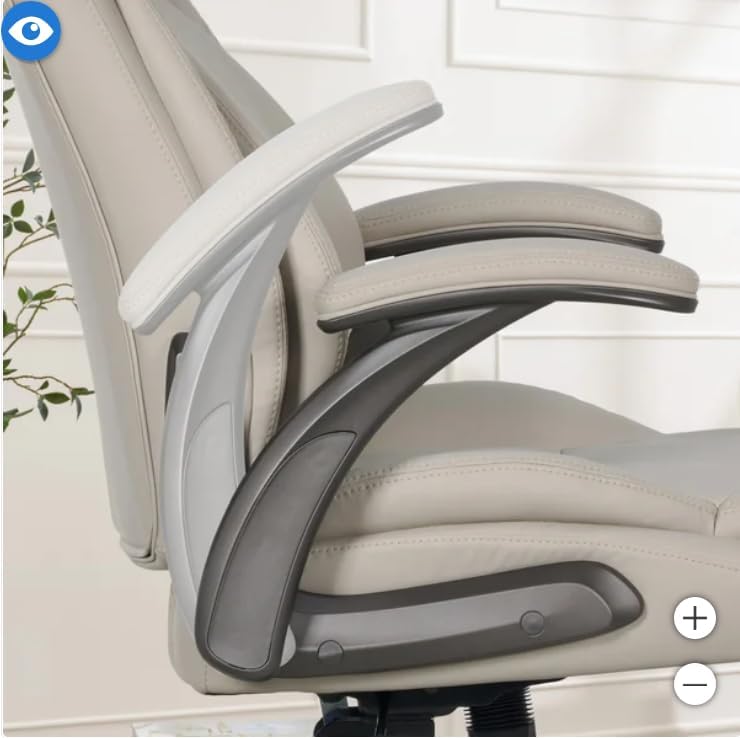

Figure 4: Flip-Up Armrests. This image highlights the design of the padded armrests, which can be moved upwards for convenience.
4. AIR Ergonomic Support Technology® Lumbar Zone
The patented TrueWellness® AIR Ergonomic Support Technology® lumbar zone is designed to pivot with your movements, providing continuous lumbar support and comfort throughout your workday. This feature automatically adjusts to your posture, promoting better spinal alignment.
Figure 5: AIR Lumbar Support. This diagram, part of a larger feature illustration, visually explains how the AIR Ergonomic Support Technology provides dynamic lumbar support.
5. Dual-Wheel 360° Mobility Casters
The chair is equipped with branded dual-wheel 360° mobility casters, designed to roll quietly over most carpet types. These casters allow for easy movement around your workspace. Please note that these casters are intended for use on carpet and are not recommended for use on tile or hard wood floors to prevent potential damage to the flooring or reduced mobility.
Figure 6: Mobility Casters. This diagram, part of a larger feature illustration, shows the dual-wheel casters designed for smooth movement on carpeted surfaces.
Matengenezo na Utunzaji
Proper care will extend the life and appearance of your L.a.Z.-Boy office chair.
- Kusafisha: The chair is upholstered with PureSoft™ Faux Leather. For general cleaning, spot clean with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the upholstery.
- Ukaguzi: Mara kwa mara angalia boliti na skrubu zote ili kuhakikisha zimebana. Kaza tena inapohitajika.
- Huduma ya Caster: Keep casters free of debris such as hair or lint to ensure smooth rolling.
Kutatua matatizo
Ikiwa unakutana na maswala yoyote na mwenyekiti wako, rejelea suluhisho zifuatazo za kawaida:
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Kiti hakirekebishi urefu | Pneumatic cylinder issue or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the issue persists, the pneumatic cylinder may need replacement. |
| Chair squeaks or wobbles | Boliti au viunganisho vilivyolegea. | Check and tighten all assembly bolts and screws. |
| Wachezaji hawazunguki vizuri | Debris in casters or unsuitable flooring. | Clean any hair or debris from the caster wheels. Ensure the chair is used on carpeted surfaces as recommended. |
| Recline function not locking | InfinityLock™ lever not fully engaged or tilt tension too loose. | Push the InfinityLock™ lever fully inwards to lock. Adjust the tilt tension knob to increase resistance if the chair reclines too easily. |
Vipimo
| Kipengele | Maelezo |
|---|---|
| Chapa | Generic (L.a.Z.-Boy) |
| Jina la Mfano | 1782799 |
| Vipimo vya Jumla (L x W x H) | 29.5" x 28.75" x 45.5"-49.2" |
| Urefu wa Kiti | 19.75" - 23.5" |
| Kina cha Kiti | 18.75" |
| Uzito wa Kipengee | Pauni 45.41 |
| Mapendekezo ya Uzito wa Juu | Pauni 275 |
| Nyenzo | Faux Leather (PureSoft™ Upholstery) |
| Nyenzo ya Fremu | Plastic (Nylon 5-Star Base) |
| Mtindo wa Nyuma | High Back, Modern |
| Mtindo wa Mkono | Vipumziko vya Mikono Vilivyofunikwa |
| Wachezaji | Dual-Wheel 360° Mobility Casters (recommended for carpet) |
| Mkutano Unaohitajika | Ndiyo (Maelekezo Yamejumuishwa) |
| Utunzaji wa Bidhaa | Spot Safi |

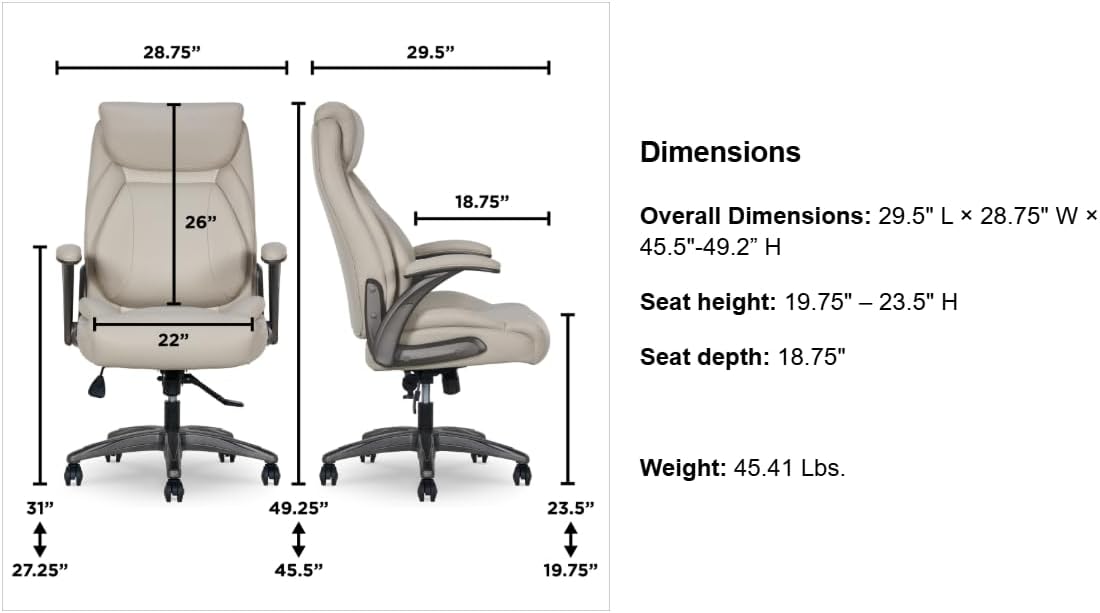

Mchoro 7: Vipimo vya Bidhaa kwa Kina. Picha hii inatoa maelezo ya kinaview of the chair's measurements, including overall height, width, depth, seat height, and seat depth.
Taarifa ya Udhamini
Warranty information for the L.a.Z.-Boy Air Lumbar Manager Office Chair is not explicitly provided in the product details. Please refer to the product packaging or contact the retailer/manufacturer directly for specific warranty terms and conditions.
Usaidizi wa Wateja
For further assistance, questions, or to report any issues, please contact the retailer from whom you purchased the chair or visit the manufacturer's official webtovuti. Weka risiti yako ya ununuzi na nambari ya modeli (1782799) karibu unapowasiliana na usaidizi.
