1. Utangulizi
This manual provides essential information for the safe assembly, operation, and maintenance of your EVERCROSS EV65M 48V Electric Motorcycle. Please read it thoroughly before first use and retain it for future reference. This electric motorcycle is designed for children aged 12 years and older, with a maximum load capacity of 75 kg.

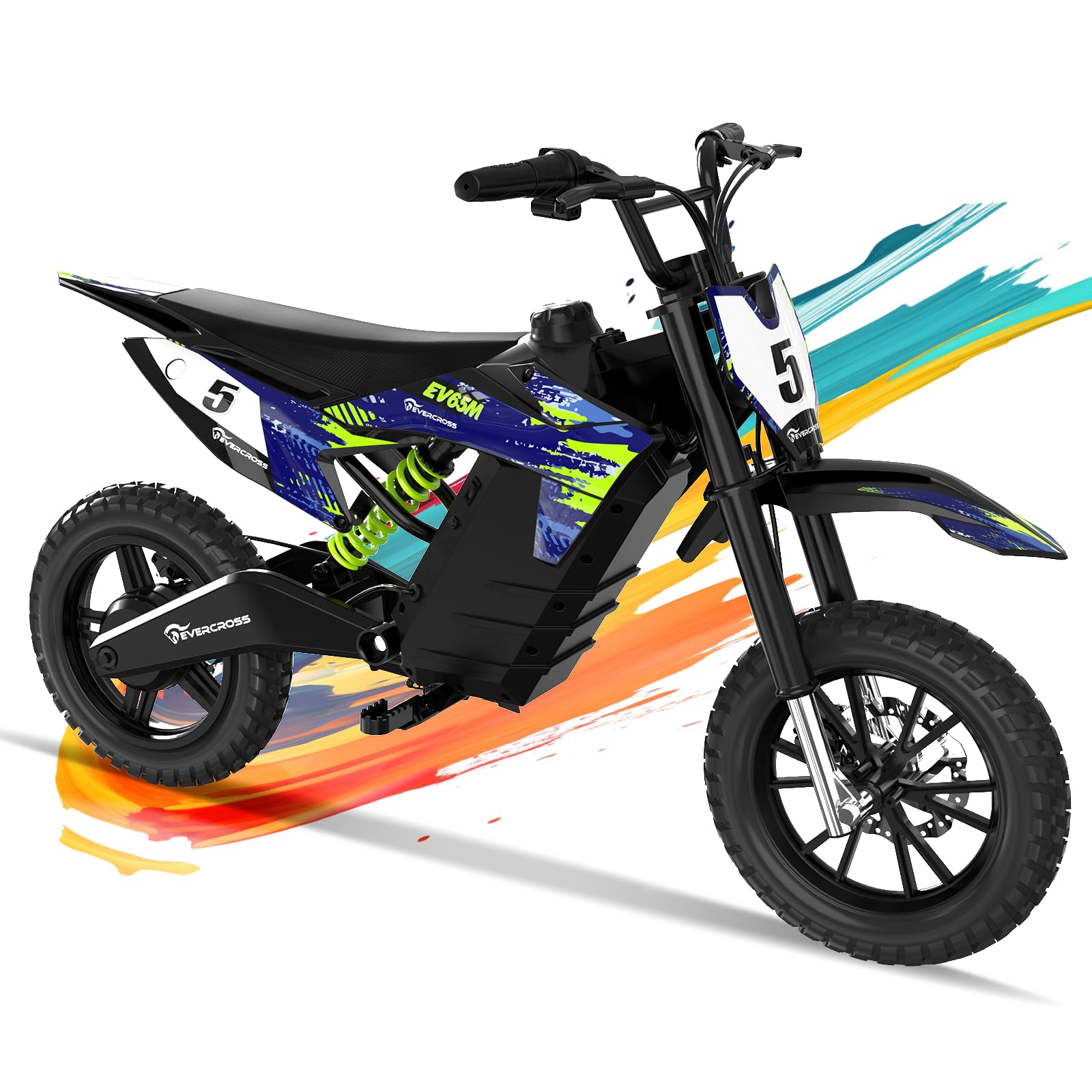

Image 1.1: The EVERCROSS EV65M Electric Motorcycle.
2. Taarifa za Usalama
Your safety and the safety of others are paramount. Always follow these safety guidelines:
- Vifaa vya Kinga: Vaa kofia ya chuma, pedi za magoti, pedi za kiwiko, na viatu vinavyofaa wakati wa kupanda farasi.
- Usimamizi wa Watu Wazima: Watoto wanapaswa kusimamiwa na mtu mzima wakati wa kupanda farasi.
- Angalia Kabla ya Safari: Before each ride, inspect the motorcycle for proper assembly, brake function, tire pressure, and battery charge.
- Kikomo cha Uzito: Usizidi kiwango cha juu cha mzigo wa kilo 75.
- Masharti ya Barabara: Ride on appropriate surfaces (asphalt, gravel, uneven terrain) and avoid public roads or areas with heavy traffic.
- Udhibiti wa Kasi: Start with the lowest speed mode until the rider is comfortable and proficient.
- Kuweka breki: Familiarize yourself with the dual disc brake system and practice controlled stopping.
- Mambo ya Mazingira: Avoid riding in wet conditions, heavy rain, or extreme temperatures.
3. Yaliyomo kwenye Kifurushi
Baada ya kufungua kifurushi, hakikisha kuwa vifaa vyote vipo:
- EVERCROSS EV65M Electric Motorcycle (main frame, wheels, handlebars, seat)
- Chaja ya Betri
- Zana za Kusanyiko (ikiwa inahitajika)
- Mwongozo wa Mtumiaji
Ikiwa sehemu zozote hazipo au kuharibika, wasiliana na usaidizi kwa wateja mara moja.
4. Kusanyiko na Kuweka
Assembly is required. Due to the weight of the motorcycle, it is recommended that two adults perform the assembly. Ensure all connections are secure before use.
- Kufungua: Ondoa kwa uangalifu vifaa vyote kutoka kwa kifurushi.
- Ufungaji wa Upau wa Mshiko: Attach the handlebars to the steering column. Ensure they are aligned and securely tightened.
- Kiambatisho cha Gurudumu: If wheels are not pre-attached, secure them according to the specific instructions provided in the box. Pay close attention to brake caliper alignment.
- Ufungaji wa kiti: Mount the seat onto the frame.
- Malipo ya awali: Fully charge the battery before the first ride. Connect the charger to the motorcycle's charging port and then to a power outlet. The charging indicator will show when charging is complete (approximately 5-6 hours).
- Ukaguzi wa Usalama: Perform a thorough safety check as outlined in Section 2.
Image 4.1: Front wheel assembly detail.
5. Maagizo ya Uendeshaji
Follow these steps for safe operation of your EV65M Electric Motorcycle:
- Washa: Locate the power button, usually near the battery compartment or handlebars, and press it to turn on the motorcycle.
- Chagua Hali ya Kasi: The EV65M features three adjustable speed modes:
- Mode L (Low): 10 km/h (6.2 mph) - Recommended for beginners.
- Mode M (Medium): 20 km/saa (12.4 mph)
- Mode H (High): 30 km/saa (18.6 mph)
- Kuongeza kasi: Gently twist the throttle on the right handlebar to accelerate. Avoid sudden acceleration, especially in higher speed modes.
- Kuweka breki: The motorcycle is equipped with dual front and rear disc brakes. Squeeze the brake levers on the handlebars to slow down or stop. Apply both brakes smoothly for optimal control.
- Kuzima: Press and hold the power button to turn off the motorcycle when not in use.
Use the speed selector switch to choose the desired mode. Always start with the lowest speed until the rider is proficient.
Image 5.1: Speed mode selection.
Image 5.2: Dual disc brake system.
Image 5.3: Child operating the EV65M.
6. Matengenezo
Regular maintenance ensures the longevity and safe operation of your electric motorcycle:
- Kusafisha: Wipe the motorcycle with a damp kitambaa baada ya matumizi. Epuka kutumia maji yenye shinikizo kubwa au kemikali kali.
- Utunzaji wa Betri:
- Chaji betri kikamilifu baada ya kila matumizi.
- Usiache betri ikiwa imezimwa kabisa kwa muda mrefu.
- Store the motorcycle in a cool, dry place when not in use.
- Matairi: Regularly check tire pressure and for any signs of wear or damage. The 14-inch rubber tires provide excellent grip.
- Breki: Inspect the dual disc brakes for proper function and wear. Adjust or replace brake pads as needed.
- Vifunga: Periodically check all bolts, nuts, and other fasteners to ensure they are tight.
- Kusimamishwa: The dual suspension system (front and rear) should be checked for smooth operation and any signs of damage.
Image 6.1: Battery compartment detail.
Image 6.2: 14-inch tire detail.
Image 6.3: Dual suspension system.
7. Utatuzi wa shida
If you encounter issues with your EVERCROSS EV65M, refer to the following common problems and solutions:
| Tatizo | Sababu inayowezekana | Suluhisho |
|---|---|---|
| Motorcycle does not turn on. | Battery is not charged or improperly connected. | Ensure the battery is fully charged (5-6 hours) and properly seated. Check all electrical connections. |
| Motorcycle loses power or range is reduced. | Low battery charge; battery degradation; riding conditions (uphill, heavy load). | Recharge the battery. If the issue persists, contact customer support for battery inspection. Adjust riding style to conserve power. |
| Brakes are squeaky or ineffective. | Brake pads worn; disc dirty; improper adjustment. | Inspect brake pads for wear and replace if necessary. Clean brake discs. Adjust brake caliper or cable tension. |
| Unusual noises from the battery area. | Loose components; internal battery issue. | Check for any loose covers or components around the battery. If the noise persists or is accompanied by other issues, discontinue use and contact customer support. |
For issues not listed here, please contact EVERCROSS customer support.
8. Vipimo
| Kipengele | Maelezo |
|---|---|
| Chapa | EVERCROSS |
| Nambari ya Mfano | EV65M |
| Nguvu ya Magari | 500W Brushless Motor |
| Betri | Betri ya Lithium ya 48V 7.8Ah |
| Kasi ya Juu | 30 km/saa (18.6 mph) |
| Njia za kasi | 3 (10 km/h, 20 km/h, 30 km/h) |
| Mbio Mbaya | Hadi 20 km |
| Muda wa Kuchaji | Saa 5-6 |
| Ukubwa wa tairi | inchi 14 |
| Mfumo wa Breki | Dual Front and Rear Disc Brakes |
| Kusimamishwa | Dual Suspension (Front and Rear) |
| Uwezo wa Juu wa Kupakia | 75 kg |
| Umri uliopendekezwa | Miaka 12+ |
| Nyenzo | Alumini |
| Vipimo (L x W x H) | 129.5 x 27.9 x 72.9 cm |
Picha 8.1: Vipimo vya bidhaa.
9. Udhamini na Msaada
EVERCROSS products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official EVERCROSS website. If you require technical assistance, have questions about assembly, operation, or maintenance, or need to report a defect, please contact EVERCROSS customer support through their official channels.
Kwa msaada zaidi, unaweza kutembelea Duka la EVERCROSS kwenye Amazon.
