Brightever Dusk to Dawn Outdoor Wall Light Fixture Instruction Manual

1. Taarifa za Usalama

Please read these instructions carefully before installation and retain them for future reference. Improper installation or use can lead to electrical shock, fire, or other hazards.

• Ondoa Nguvu: Zima umeme mkuu kwenye kivunja mzunguko kila wakati kabla ya kusakinisha, kukarabati, au kusafisha kifaa.
• Fundi Umeme Aliyehitimu: Ufungaji unapaswa kufanywa na fundi umeme aliyehitimu au mtu anayefahamu ujenzi na uendeshaji wa bidhaa na hatari zinazohusika.
• Kutuliza: Hakikisha kuwa kifaa kimewekwa chini vizuri ili kuzuia mshtuko wa umeme unaoweza kutokea.
• Mahitaji ya balbu: Use only E26 base bulbs. Do not exceed the maximum recommended wattage of 100W for incandescent bulbs or 14W for LED bulbs.
• Kushughulikia kwa Uangalifu: The glass panels are sturdy but can break if mishandled.
• Matumizi ya Nje Pekee: This fixture is designed for outdoor use and is waterproof.

2. Yaliyomo kwenye Kifurushi

Verify that all components are present before beginning installation. This product is supplied as a 2-pack.

• Outdoor Wall Light Fixture (2 units)
• Mwongozo wa Maagizo
• Mounting Hardware (including wire connectors and screws)

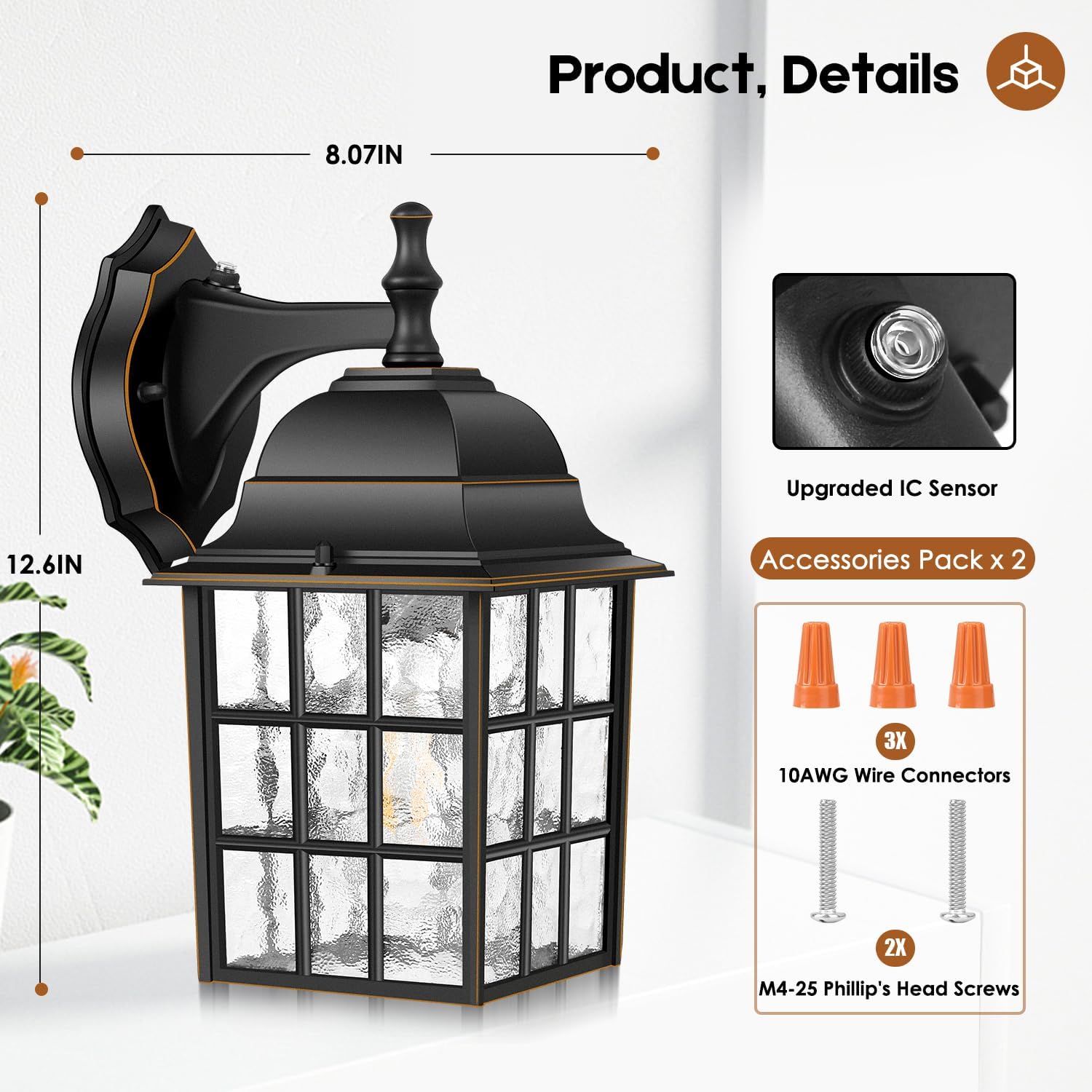

Figure 2.1: Product dimensions and included accessories for installation.

3. Bidhaa za Bidhaa

The Brightever Dusk to Dawn Outdoor Wall Light Fixture is designed with several key features for convenience and durability:

• Kihisi cha Seli ya Picha ya Jioni hadi Alfajiri: Automatically turns the light on at dusk and off at dawn, optimizing energy use and providing hands-free operation.
• Anti-corrosion & Weather Resistant: Constructed with a pure aluminum framework, waterfall glass panels, and a bronze alloy finish, ensuring resistance to rain, snow, and extreme temperatures.
• Sturdy Waterfall Glass: Features thick, durable glass panels designed to withstand outdoor elements.
• Fungua Muundo wa Chini: Facilitates easy bulb replacement and cleaning without disassembling the fixture.
• Soketi ya E26 ya Kawaida: Compatible with various E26 base bulbs, including LED, CFL, and incandescent types (bulb not included).
• Ujenzi wa Metali wa Kudumu: High-quality metal ensures longevity and robust performance in outdoor environments.

Figure 3.2: Durability comparison highlighting the fixture's waterproof and anti-corrosion properties.

Figure 3.3: Bulb compatibility for the E26 socket.

Kielelezo 3.4: Kutamples of the outdoor wall light in various application scenarios.

4. Weka (Usakinishaji)

Follow these steps to install your Brightever outdoor wall light fixture. Ensure power is disconnected before starting.

1. Jitayarishe kwa Ufungaji: Turn off power at the main circuit breaker. Gather necessary tools (screwdriver, wire strippers, electrical tape, ladder).
2. Weka Mpangilio: Secure the mounting bracket to the junction box using the provided screws. Ensure it is firmly attached.
3. Viunganisho vya Waya: Connect the fixture's wires to your household electrical wires using the included wire connectors. Match black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Secure all connections with electrical tape.
4. Ambatisha Ratiba: Panga kifaa kwa uangalifu na bracket ya kupachika na ukifunge kwa skrubu zilizotolewa.
5. Sakinisha Balbu: Insert an E26 base bulb (max 100W incandescent or 14W LED) into the socket.
6. Rejesha Nguvu: Washa tena nguvu kwenye kikatiza mzunguko.

5. Maagizo ya Uendeshaji

This fixture features an integrated photocell sensor for automatic operation.

• Washa/Zima kiotomatiki: The photocell sensor detects ambient light levels. The light will automatically turn on when it gets dark (dusk) and turn off when it becomes bright (dawn).
• Uwekaji Bora: For best performance, ensure the photocell sensor is not obstructed by objects or exposed to direct artificial light sources (e.g., other bright lights, streetlights) at night, as this may interfere with its operation.

Figure 5.1: Illustration of the automatic dusk to dawn functionality.

6. Matengenezo

Matengenezo ya mara kwa mara huhakikisha uimara na utendaji bora wa taa yako.

• Kusafisha: Ili kusafisha kifaa, hakikisha kuwa umeme umezimwa. Futa sehemu ya nje kwa laini, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or glass.
• Kubadilisha Balbu: Due to the open bottom design, bulb replacement is straightforward. Simply unscrew the old E26 bulb and screw in a new one (ensure power is off before replacing).
• Ukaguzi: Periodically check for any loose wiring or damage to the fixture.

7. Utatuzi wa shida

Ukikumbana na matatizo na taa yako, rejelea matatizo na suluhisho zifuatazo za kawaida:

8. Vipimo

Detailed specifications for the Brightever Dusk to Dawn Outdoor Wall Light Fixture (Model 9033-A):

• Chapa: Kung'aa zaidi
• Nambari ya Mfano: 9033-A
• Rangi: Shaba
• Nyenzo: Metal (Aluminum framework)
• Nyenzo ya Kivuli: Waterfall Glass
• Vipimo vya Kipengee (L x W x H): 8.07" x 8.07" x 12.6"
• Chanzo cha Nguvu: Umeme wa Cord
• Voltage: 120 Volts
• Wattage: Max 100W (Incandescent), Max 14W (LED)
• Msingi wa Balbu: E26
• Aina ya Mdhibiti: Photocell Sensor (Dusk to Dawn)
• Kiwango cha Upinzani wa Maji: Kuzuia maji
• Mwangaza: Up to 800 lumens (bulb dependent)
• Joto la Rangi: 3000 Kelvin (bulb dependent)
• Aina ya Usakinishaji: Mlima wa Ukuta
• Idadi ya Vipengee: 2 (Furushi 2)

9. Udhamini na Msaada

Your Brightever Dusk to Dawn Outdoor Wall Light Fixture (Model 9033-A) comes with a manufacturer's warranty.

• Udhamini: This product is covered by a 1-year seller warranty.
• Usaidizi kwa Wateja: For any questions, technical assistance, or warranty claims, please contact Brightever customer support through your purchase platform or the official Brightever webtovuti.
