Bush Business Furniture Move 60 Series 60-inch Height Adjustable L Shaped Standing Desk Instruction Manual

1. Bidhaa Imeishaview

The Bush Business Furniture Move 60 Series L Shaped Standing Desk is designed to provide an ergonomic and adaptable workspace. This electric sit-stand desk allows for easy transitions between sitting and standing positions, promoting a healthier work environment. It features a durable construction suitable for a busy professional setting.

Sifa Muhimu:

• Faraja ya Ergonomic: Promotes a healthy and productive workspace by allowing easy transitions between sitting and standing.
• Instant Adjustability: Electric height adjustment from 27 to 46.7 inches with a simplified control panel.
• Mipangilio ya Kumbukumbu: Two customizable presets to save preferred seated and standing heights.
• Anti-Collision Sensor: Automatically stops movement when an object is detected, enhancing safety.
• Spacious and Durable: 60W x 78D assembled dimensions with a 200-pound weight capacity, supported by 16-gauge steel legs.
• Thermally Fused Laminate Surface: Protects against scratches, stains, and other damage.
• Usimamizi wa Waya: Integrated grommets for organized cable routing.

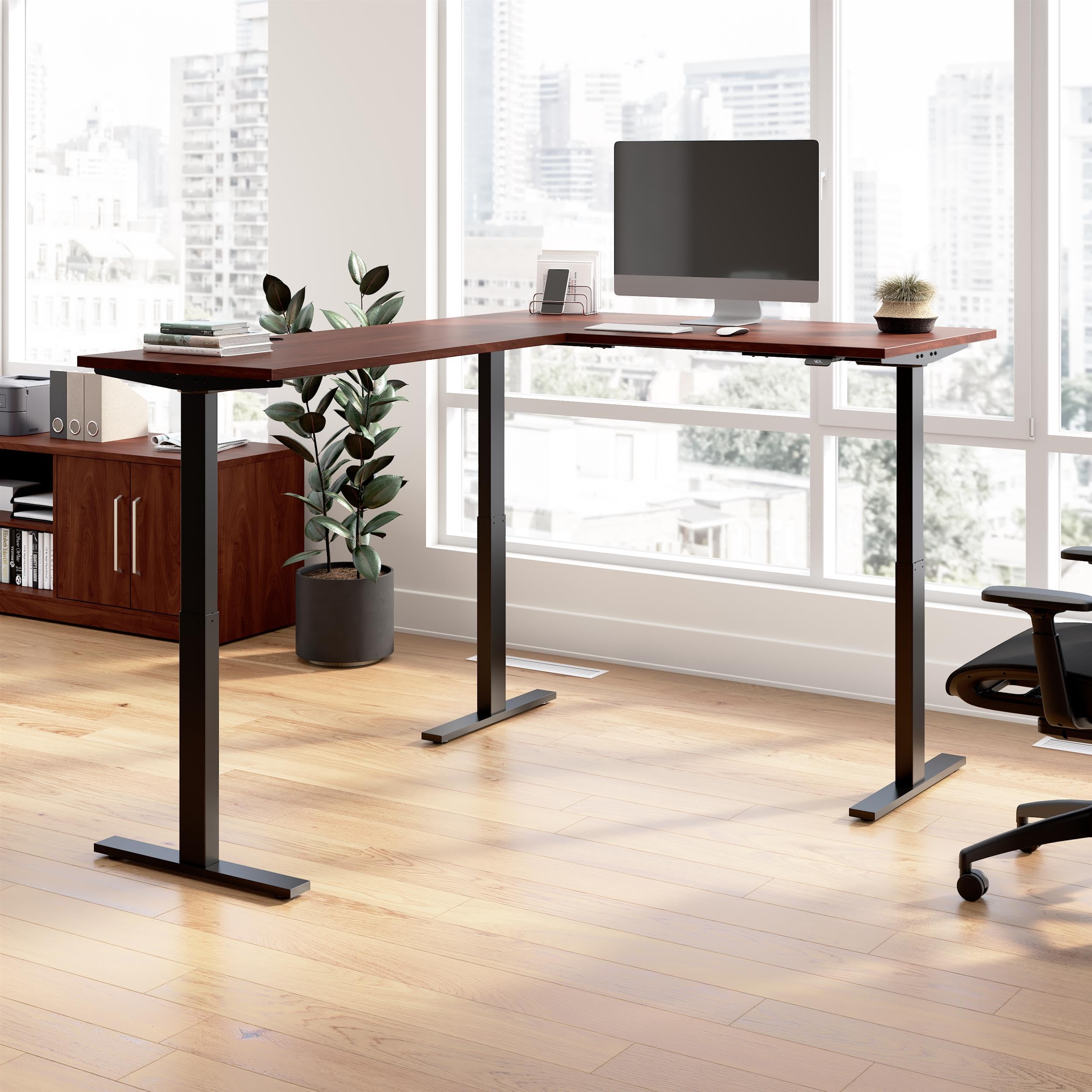

Figure 1.1: Bush Business Furniture Move 60 Series L Shaped Standing Desk (Hansen Cherry with Black Base).

Figure 1.2: Key features and dimensions of the Move 60 Series L Shaped Standing Desk.

Video ya Bidhaa:

2. Maagizo ya Kuweka

Careful assembly is required for proper function and safety. It is recommended that two people assemble this desk.

2.1 Kufungua

1. Fungua kwa uangalifu ufungaji na uondoe vipengele vyote.
2. Verify that all parts listed in the assembly manual (not included in this document) are present and undamaged.
3. Keep packaging materials until assembly is complete to prevent loss of small parts.

2.2 Mkutano

1. Refer to the detailed assembly manual provided with your product for step-by-step instructions.
2. Attach the desk legs to the tabletop using the provided hardware. Ensure all connections are secure.
3. Connect the motor control unit and cables as indicated in the assembly manual.
4. Position the desk in its desired location, ensuring adequate space for height adjustment.

Figure 2.1: Product dimensions for planning your workspace.

Uunganisho wa Nguvu 2.3

1. Chomeka waya wa umeme wa futi 10 kwenye soketi ya kawaida ya umeme.
2. Ensure the power cord is routed safely to avoid tripping hazards and is not pinched by moving parts of the desk.

3. Maagizo ya Uendeshaji

The Move 60 Series desk features an intuitive control panel for height adjustment and memory functions.

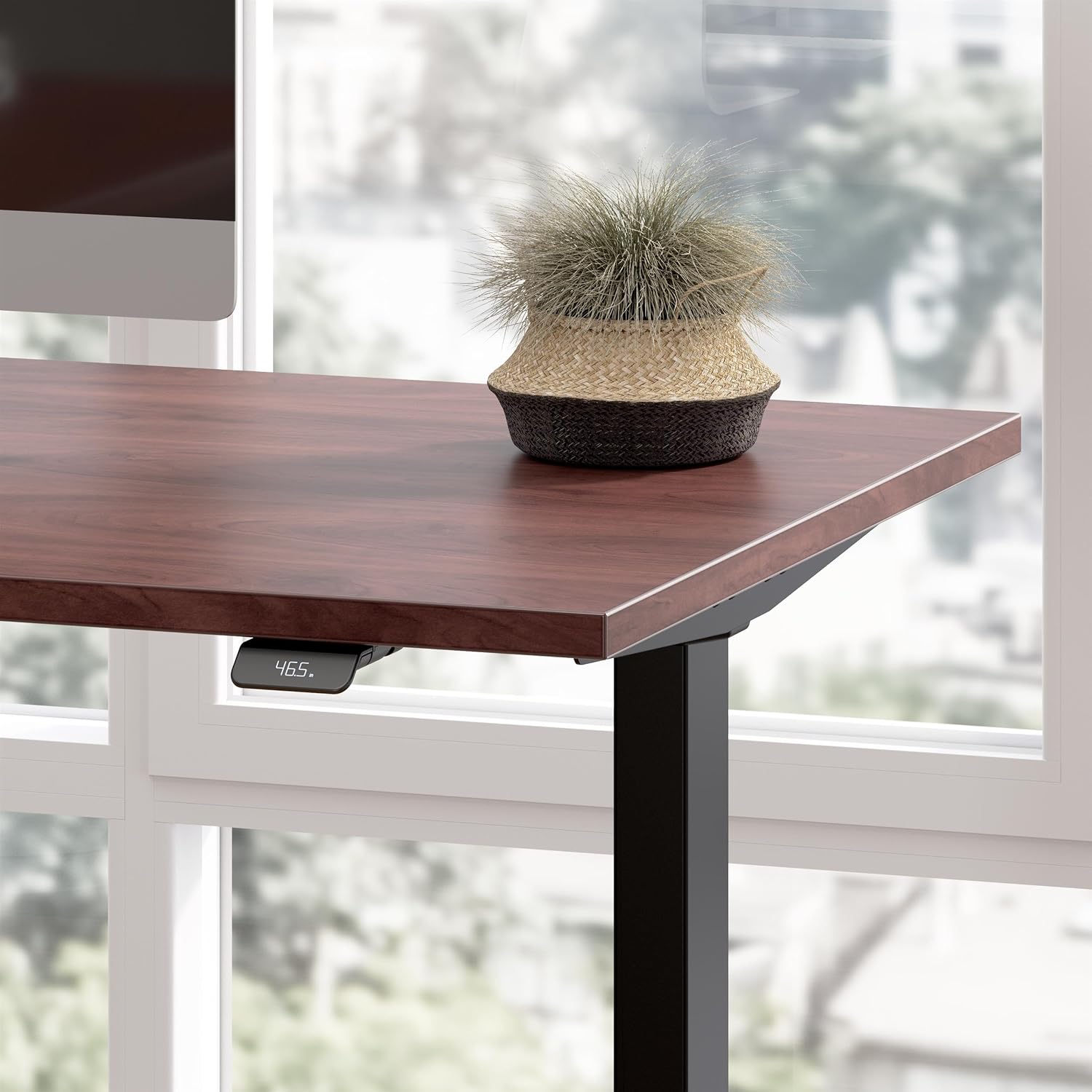

Figure 3.1: Desk control panel for height adjustment.

3.1 Kurekebisha Urefu

• To raise the desk, press and hold the 'Up' arrow button on the control panel.
• To lower the desk, press and hold the 'Down' arrow button on the control panel.
• Release the button when the desired height is reached. The digital display will show the current height.

3.2 Kutumia Vipangilio vya Kumbukumbu Vilivyoanzia Awali

The desk allows you to save two preferred height settings for quick recall.

1. Adjust the desk to your desired seated height using the 'Up'/'Down' buttons.
2. Press and hold one of the memory preset buttons (e.g., '1' or '2') until the display confirms the setting is saved.
3. Repeat for your desired standing height with the other preset button.
4. To recall a saved height, press and shika the corresponding preset button. The desk will move to the saved height and stop when the button is released or the position is reached. Note that the button must be held down during movement.

3.3 Anti-Collision Sensor

The desk is equipped with an anti-collision sensor that detects obstacles in its path during height adjustment. If an object is detected, the desk will automatically stop movement to prevent damage or injury.

• Ensure the area above and below the desk is clear before adjusting the height.
• If the sensor activates, remove the obstruction and resume adjustment.

4. Matengenezo

Ili kuhakikisha muda mrefu na mwonekano wa dawati lako, fuata miongozo hii rahisi ya matengenezo:

• Kusafisha: Futa uso wa dawati na tangazoamp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the thermally fused laminate finish.
• Ukaguzi: Mara kwa mara angalia skrubu na viunganishi vyote ili kuhakikisha vinasalia kuwa vikali.
• Usimamizi wa Cable: Regularly organize cables using the integrated grommets to prevent tangling and interference with desk movement.

5. Utatuzi wa shida

If you encounter any issues with your desk, refer to the following troubleshooting guide:

6. Vipimo

7. Taarifa za Udhamini

This Bush Business Furniture Move 60 Series L Shaped Standing Desk is backed by a Dhamana ya Mtengenezaji ya Mwaka 5.

For specific details regarding warranty coverage, terms, and conditions, please refer to the product description on the store page or contact Bush Furniture customer support directly.

8. Msaada kwa Wateja

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact Bush Furniture customer support.

Maelezo ya mawasiliano yanaweza kupatikana kwa kawaida kwenye mtengenezaji webtovuti au ndani ya kifungashio cha bidhaa asili.
