Victron Energy SmartSolar MPPT Solar Charge Controller 100V 20A 48V User Manual

1. Utangulizi

The Victron Energy SmartSolar MPPT 100/20 is an advanced solar charge controller designed to maximize energy harvest from solar panels and efficiently charge batteries. It features Maximum Power Point Tracking (MPPT) technology to ensure optimal power output, even under varying light conditions. Integrated Bluetooth allows for convenient monitoring and configuration via the VictronConnect app.

Sifa Muhimu:

• Kuchaji kwa Nishati ya Jua: Optimizes battery longevity by converting available sunlight into usable energy.
• Upeo wa Pato la Nguvu: Lightning-fast MPPT ensures maximum power, even with partial shading.
• Kuchaji Kulikosawazishwa: Multiple SmartSolar MPPT controllers can synchronize for system-wide energy optimization.
• Muunganisho wa Bluetooth: Use the VictronConnect app for real-time data, 30-day performance history, configuration, and firmware updates.
• Matokeo ya Mzigo Akili: Vifaa vya kuwasha umeme moja kwa moja vyenye vol inayoweza kusanidiwatage disconnects to protect batteries.

2. Taarifa za Usalama

Please read all safety instructions before installing or operating the device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Usalama wa Umeme: Installation must be performed by qualified personnel. Ensure all power sources are disconnected before making any connections.
• Usalama wa Betri: Work in a well-ventilated area. Wear eye protection and protective clothing. Avoid short-circuiting battery terminals.
• Ulinzi wa Kupindukia: Ensure proper fusing is in place for both solar and battery circuits as specified in the installation guide.
• Uingizaji hewa: Hakikisha mtiririko wa hewa wa kutosha kuzunguka kitengo ili kuzuia joto kupita kiasi.
• Masharti ya Mazingira: Do not expose the device to water, excessive humidity, or extreme temperatures outside its operating range.

3. Yaliyomo kwenye Kifurushi

Thibitisha kuwa vipengee vyote vipo kwenye kifurushi:

• Victron Energy SmartSolar MPPT 100/20 Solar Charge Controller
• Mwongozo wa Mtumiaji (hati hii)

4. Ufungaji na Viunganisho

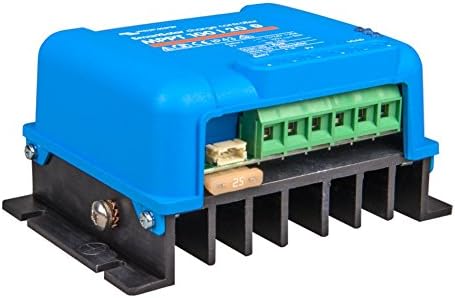

Proper installation is crucial for the safe and efficient operation of your SmartSolar MPPT controller. Refer to the detailed wiring diagram below for connection points.

Kupachika:

Mount the controller vertically on a non-flammable surface, ensuring sufficient clearance for ventilation. Avoid direct sunlight exposure to prevent overheating.

Mlolongo wa Wiring:

1. Connect the battery to the BATT terminals. Ensure correct polarity.
2. Connect the solar panels to the PV terminals. Ensure correct polarity.
3. Connect DC loads to the LOAD terminals (optional). Ensure correct polarity.

Always connect the battery first and disconnect the solar panels first when disassembling.

5. Maagizo ya Uendeshaji

The SmartSolar MPPT controller operates automatically once correctly installed. For monitoring and advanced configuration, use the VictronConnect app.

Bluetooth Connectivity and VictronConnect App:

The integrated Bluetooth module allows wireless connection to your smartphone or tablet via the VictronConnect app. This app provides access to real-time data, historical performance, and settings.

1. Pakua programu ya VictronConnect kutoka duka la programu la kifaa chako.
2. Hakikisha Bluetooth imewashwa kwenye simu mahiri/kompyuta yako kibao.
3. Open the VictronConnect app and select your SmartSolar MPPT device from the list.
4. If prompted, enter the default PIN (usually 000000).

Kupitia programu, unaweza:

• Fuatilia ujazo wa betritage, solar power, charge current, and load status.
• View 30-day historical data.
• Configure battery presets (e.g., Lithium, Lead-acid, AGM, Gel, Flooded).
• Adjust charge settings and set alarms.
• Sasisha programu dhibiti.

Njia za Kuchaji:

The controller automatically manages the charging process through several stages to optimize battery health and lifespan:

• Wingi: Maximum current is delivered to rapidly charge the battery.
• Kunyonya: Voltage is held constant to fully charge the battery and balance cells.
• Kuelea: Voltage is reduced to a lower level to maintain the battery at full charge.
• Hifadhi: A slightly lower float voltage to minimize gassing and corrosion for batteries in storage.

6. Matengenezo

The SmartSolar MPPT controller is designed for minimal maintenance. Regular checks can help ensure optimal performance and longevity.

• Ukaguzi wa Visual: Periodically inspect the unit for any signs of damage, loose connections, or corrosion.
• Usafi: Keep the unit clean and free from dust and debris. Use a dry cloth for cleaning. Do not use solvents or abrasive cleaners.
• Uingizaji hewa: Hakikisha kwamba mapezi ya kupoeza hayajazuiwa ili kuruhusu uondoaji sahihi wa joto.
• Sasisho za Firmware: Regularly check for and install firmware updates via the VictronConnect app to benefit from improvements and new features.

7. Utatuzi wa shida

Ukikumbana na matatizo na kidhibiti chako cha SmartSolar MPPT, rejelea hatua zifuatazo za kawaida za utatuzi wa matatizo:

• Onyesho la Hakuna Nguvu/Hakuna: Check all wiring connections, especially the battery connection and fuse. Ensure the battery voltage iko ndani ya safu ya uendeshaji.
• Pato la Chini la Jua: Verify solar panel connections and ensure panels are clean and not shaded. Check for proper panel voltage using the VictronConnect app.
• Betri Haichaji: Confirm battery type settings in the VictronConnect app match your battery. Check battery health and connections.
• Masuala ya Muunganisho wa Bluetooth: Ensure the controller is powered on and within range. Restart the VictronConnect app and your device's Bluetooth.
• Kuzidisha joto: Ensure adequate ventilation around the unit. Reduce load if necessary.

For more detailed troubleshooting or persistent issues, consult the comprehensive manual available on the Victron Energy webtovuti au wasiliana na usaidizi kwa wateja.

8. Vipimo

Technical specifications for the Victron Energy SmartSolar MPPT 100/20 Solar Charge Controller:

9. Udhamini na Msaada

Victron Energy products are manufactured to high standards and come with a standard warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Victron Energy webtovuti.

For technical support, product information, or service inquiries, please visit the Victron Energy Store kwenye Amazon au afisa wao webtovuti.

10. Video za Bidhaa

Watch these official videos for additional information on the Victron Energy SmartSolar MPPT controller and related systems.
